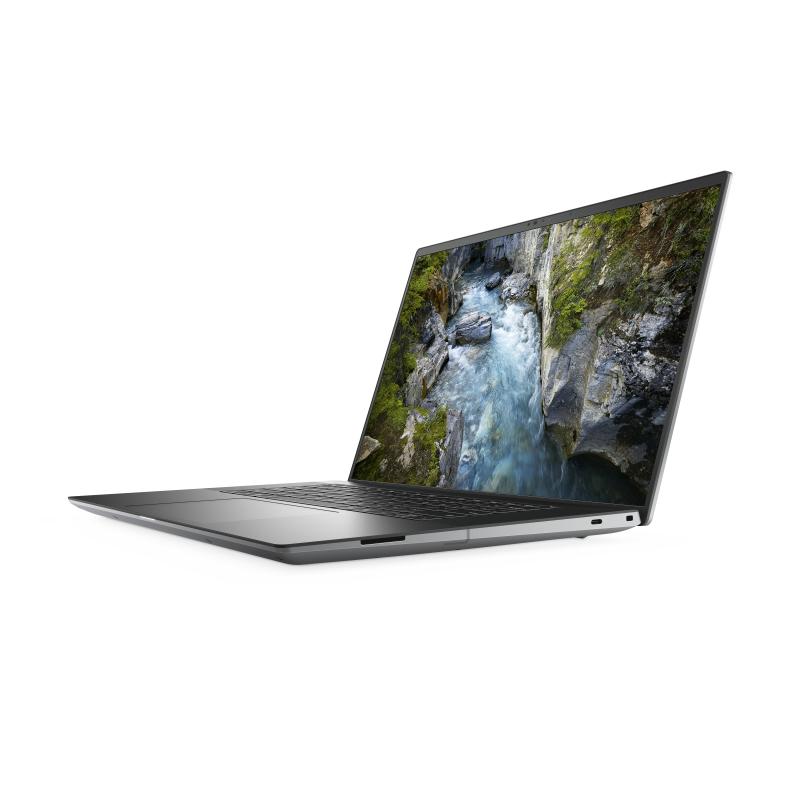

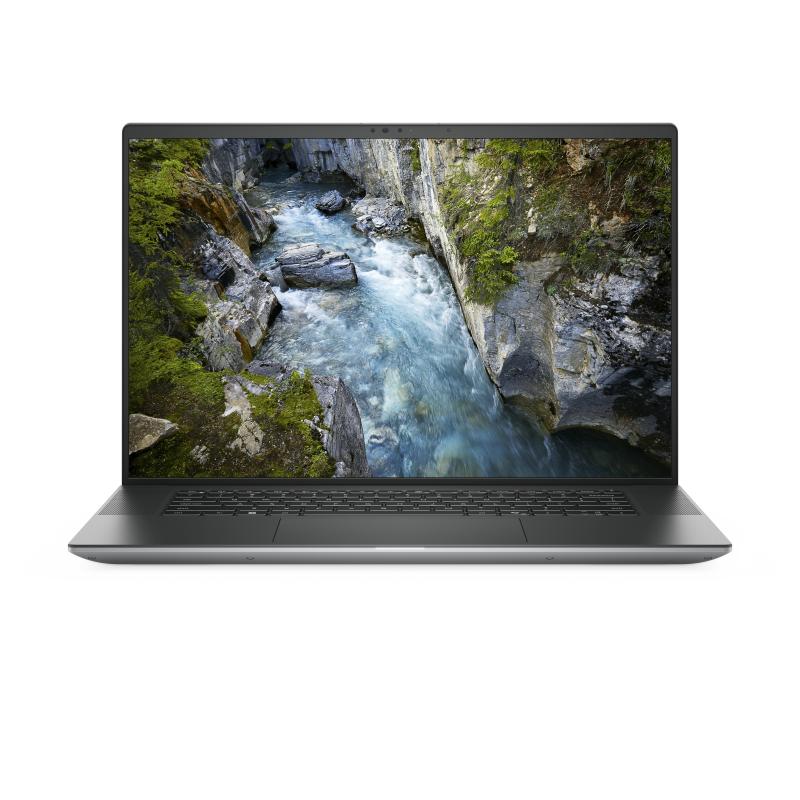

Dell Mobile Precision Workstation 5690, 16" FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic, EPEAT 2018 Registered (Gold), ENERGY STAR Qualified, FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter

Dell Mobile Precision Workstation 5690, 16" FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic, EPEAT 2018 Registered (Gold), ENERGY STAR Qualified, FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter, Intel Core Ultra 7 165H vPro Enterprise (24 MB cache, 16 cores, 22 threads, up to 5.0 GHz, 45W), NVIDIA RTX 1000 Ada 6GB GDDR6, 32GB LPDDR5x 7467 MT/s, 1 TB, M.2 2280, Gen 4 PCIe NVMe SSD, Class 40, Intel(R) Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth(R) wireless card, Intel BE200 WLAN Driver with Bluetooth, 165W E5 Type C Power Adapter, 6-cell 100Whr Lithium battery, International English Backlight Keyboard with fingerprint reader & AI hotkey, External ports: USB ports: 1 x USB 3.2 Gen 2 Type-C port with DisplayPort 1.4 Alt Mode, 2 x Thunderbolt 4 (40 Gbps) ports with Power Delivery, Audio port: 1 x universal audio port, Video port(s): 1 x USB 3.2 Gen 2 Type-C port with DisplayPort 1.4 Alt Mode, 2 x Thunderbolt 4 (40 Gbps) ports with Power Delivery, 1 x HDMI 2.1 port, Media-card reader: 1 x SD-card slot (optional), Power-adapter port: 2 x Thunderbolt 4 (40 Gbps) port with Power Delivery, Security-cable slot: 1 x wedge-shaped lock slot, Internal slots: M.2: 2 x M.2 2230/2280 for solid state drive, Windows 11 Pro, English, Arabic, French, Russian, Turkish, 3y ProSupport and Next Business Day Onsite Service warranty

Speakers manufacturer

Waves

Built-in microphone

Yes

Number of microphones

2

Number of built-in speakers

4

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

99.5 Wh

Number of battery cells

6

Battery voltage

11.55 V

Battery recharge time

3 h

Battery charge indicator

Yes

Battery weight

363 g

Fast charging

Yes

Front camera resolution (numeric)

2.07 MP

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Video capturing speed

30 fps

Infrared (IR) camera

Yes

Front camera

Yes

Total carbon footprint (kg of CO2e)

246

Carbon emissions, manufacturing (kg of CO2e)

200

Carbon emissions, logistics (kg of CO2e)

7

Carbon emissions, energy usage (kg of CO2e)

36

Total carbon emissions, w/o use phase (kg of CO2e)

210

Carbon emissions, end-of-life (kg of CO2e)

2

PAIA version

GaBi verison1

Product type

Mobile workstation

Product colour

Grey

Form factor

Clamshell

Market positioning

Business

Touchscreen

Nu

LED backlight

Yes

Display brightness

500 cd/m²

Panel type

IPS

Anti-glare screen

Yes

Maximum refresh rate

60 Hz

Display resolution

1920 x 1200 pixels

HD type

Full HD+

Native aspect ratio

16:10

Pixel density

142 ppi

Colour gamut

100%

Contrast ratio (typical)

1300:1

Display diagonal

40.6 cm (16)

RGB colour space

DCI-P3

Weight

2.03 kg

Fingerprint reader

Yes

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

Yes

Discrete graphics card model

NVIDIA RTX 1000 Ada

On-board graphics card model

Intel Arc Graphics

Discrete GPU manufacturer

NVIDIA

Discrete graphics card memory

6 GB

Discrete graphics memory type

GDDR6

On-board graphics card family

Intel Arc Graphics

Numeric keypad

No

Keyboard backlit

Yes

Pointing device

Touchpad

Memory channels

Dual-channel

Memory form factor

On-board

Internal memory

32 GB

Internal memory type

LPDDR5x-SDRAM

Memory clock speed

7467 MHz

Memory data transfer rate

7467 MT/s

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

Mobile network connection

No

BLUETOOTH

Yes

Antenna type

2x2

WLAN controller manufacturer

Intel

Neural processor unit (NPU)

Intel AI Boost

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Windows Studio effects support

Yes

AI datatype support on NPU

FP16, FP32, Int8

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Cables included

AC

Ambient light sensor

Yes

Accelerometer

Yes

Proximity sensor

Yes

Gyroscope

Yes

Hall sensor

Yes

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

AC adapter power

165 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Processor family

Intel Core Ultra 7

Processor manufacturer

Intel

Processor generation

Intel® Core™ Ultra (Series 1)

Efficient cores

8

Low Power Efficient-cores

2

Efficient-core Max Turbo Frequency

3.8 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache type

Smart Cache

Processor model

165H

Processor cores

16

Processor threads

22

Processor boost frequency

5 GHz

Performance cores

6

Performance-core Max Turbo Frequency

5 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

Processor cache

24 MB

Processor base power

28 W

Maximum turbo power

115 W

Cable lock slot

Yes

Cable lock slot type

Wedge

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Trial software

Microsoft Office Trial

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD interface

PCI Express 4.0

SSD form factor

M.2

NVMe

Yes

SSD capacity

1 TB

Total storage capacity

1 TB

Total SSDs capacity

1 TB

Tip display:

IPS

Conectivitate celulara

Fara

Tastatura iluminata

Da

Cititor amprente

Da

USB 3.0

Da

USB 3.2

Da

Jack Audio

Da

DisplayPort

Da

Producator Procesor

Intel

Conectivitate

Wi-Fi 7

Sistem de operare

Windows 11 Pro

Camera Web

Full HD

Thunderbolt

Da

Cititor Card

Da

Rezolutie

1920 x 1200

Tip procesor

Intel Core Ultra 7

USB 3.1

Da

Luminozitate

500 nt

Diagonala display

16"

Memorie RAM

32 GB

Capacitate stocare

1 TB

Refresh rate

60 Hz

HDMI

Da

Model procesor

165H

Greutate

N/A

Serie placa video

NVIDIA RTX 1000 Series

Model placa video

RTX 1000 Ada

Width

353.7 mm

Depth

240.3 mm

Height (front)

2.05 cm

Height (rear)

2.22 cm
