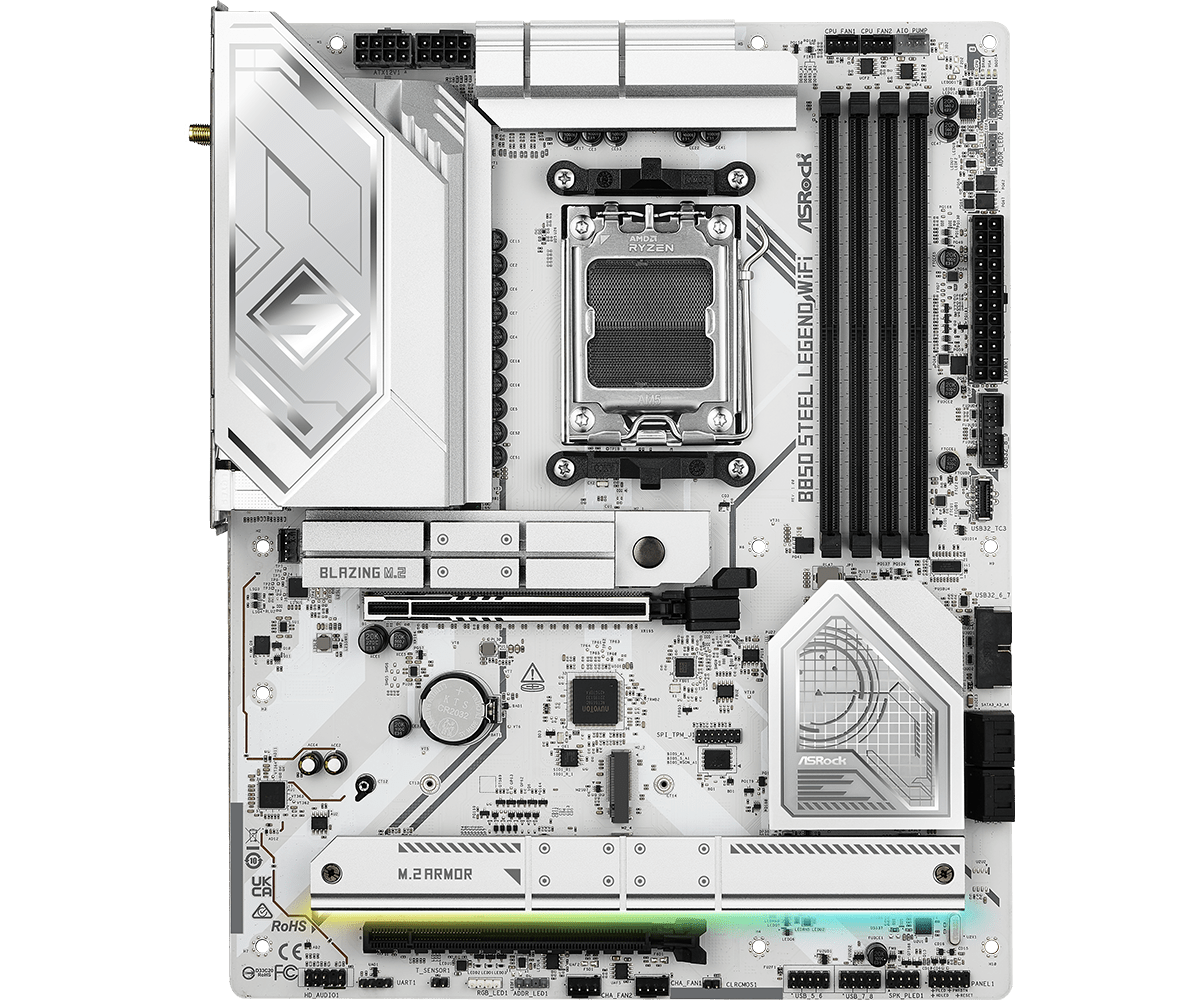

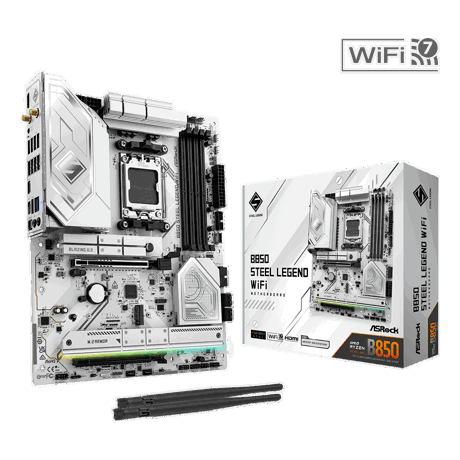

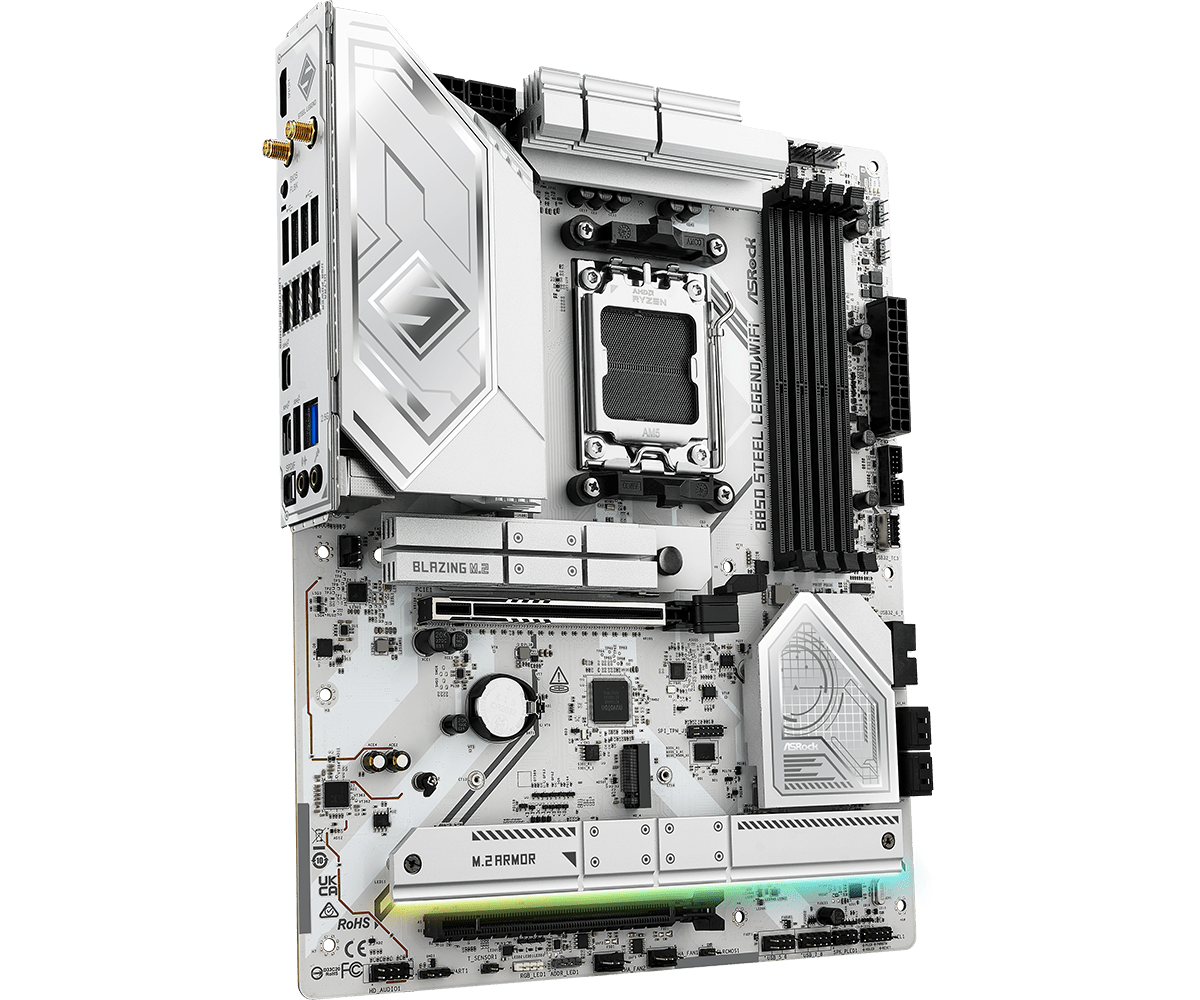

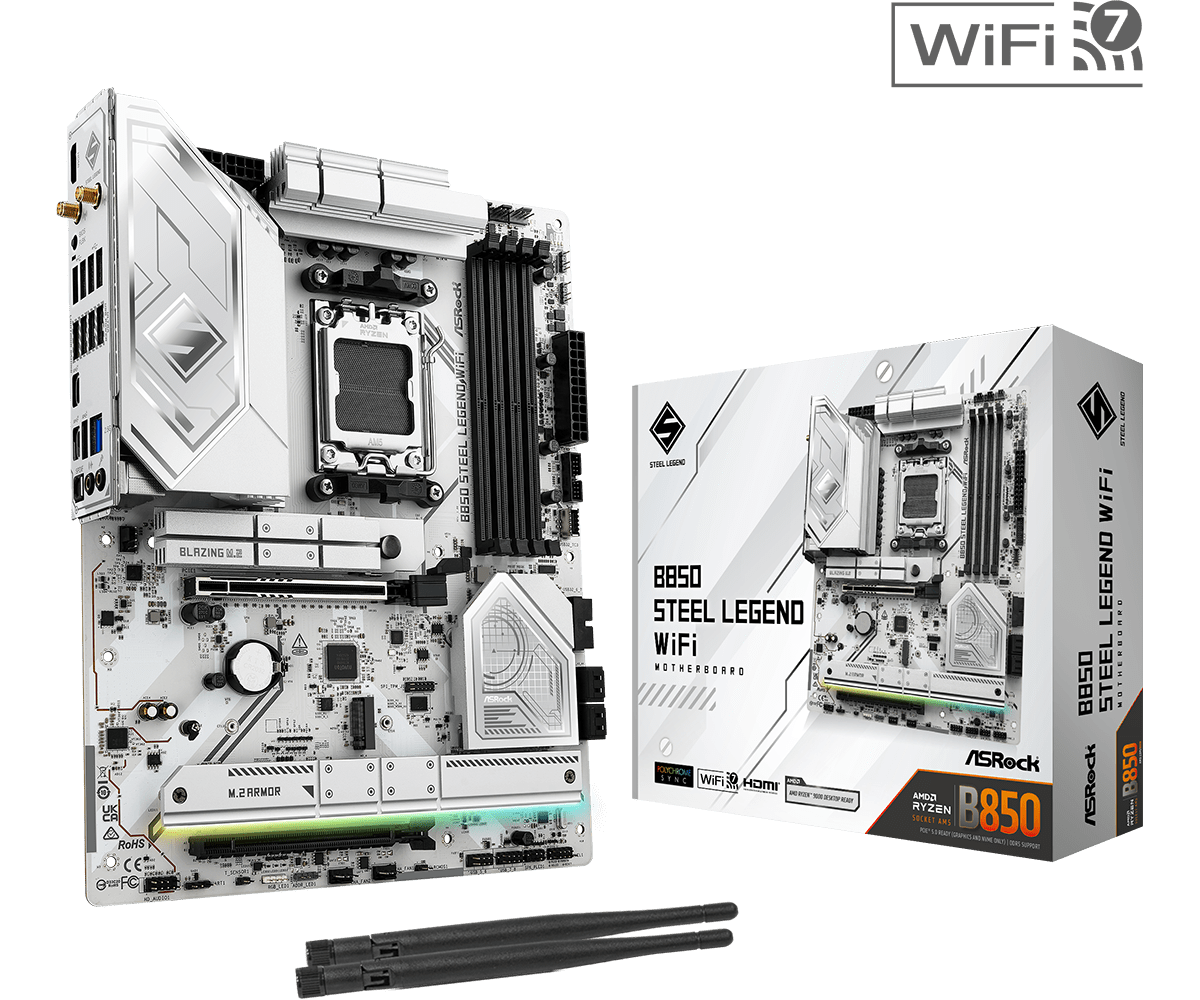

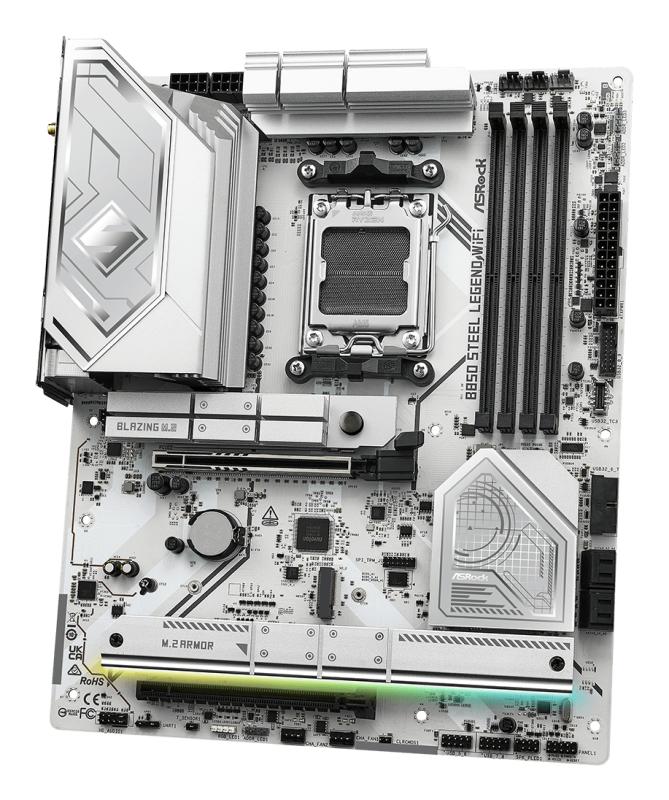

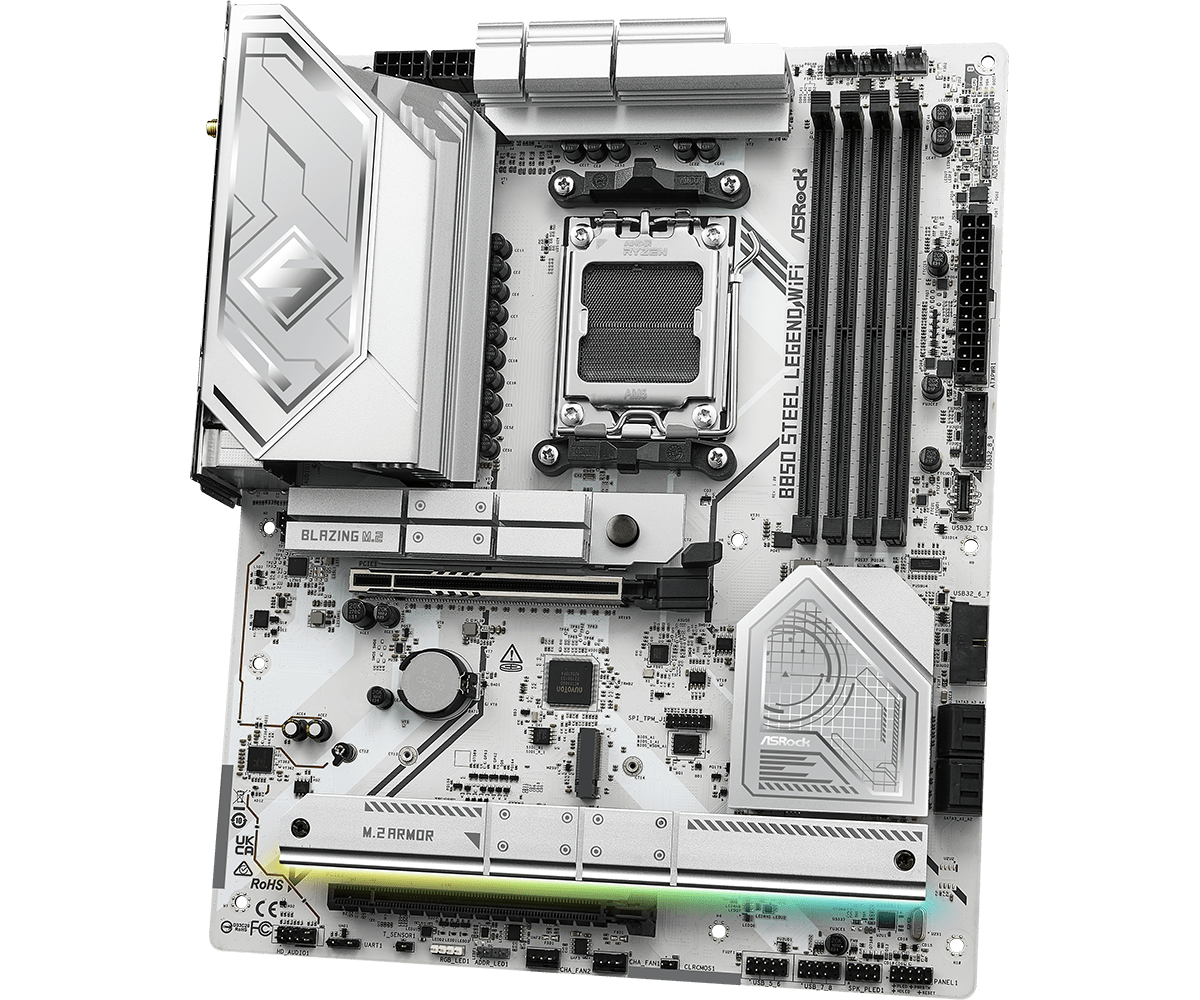

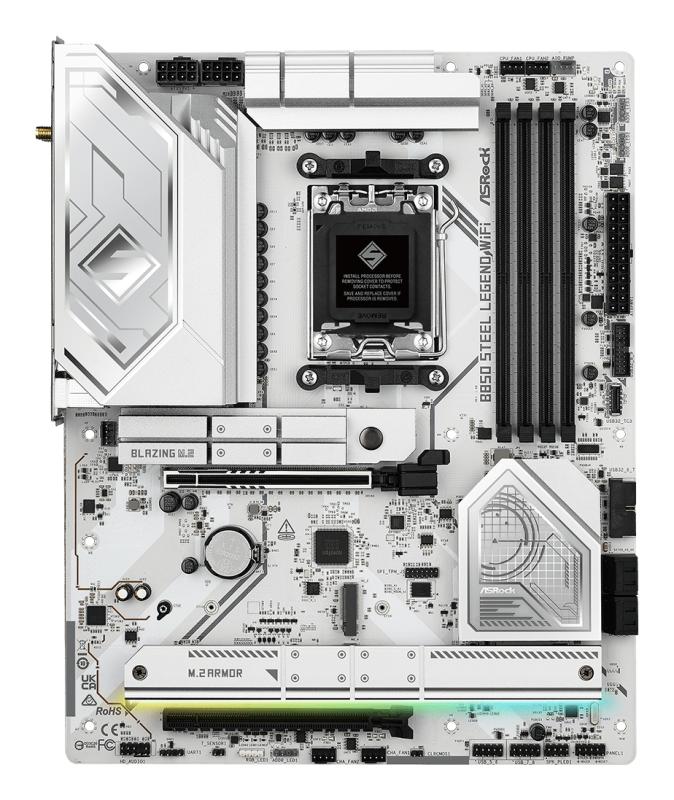

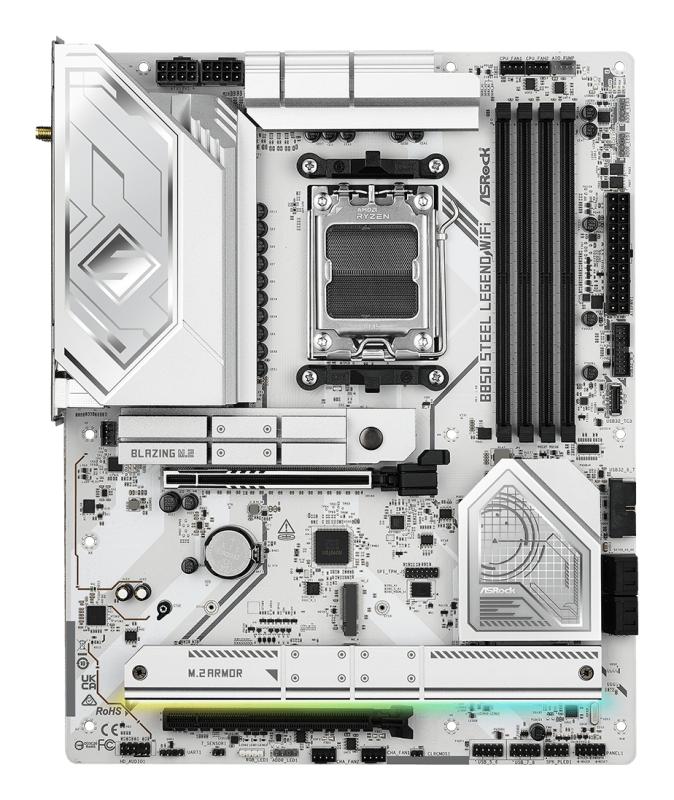

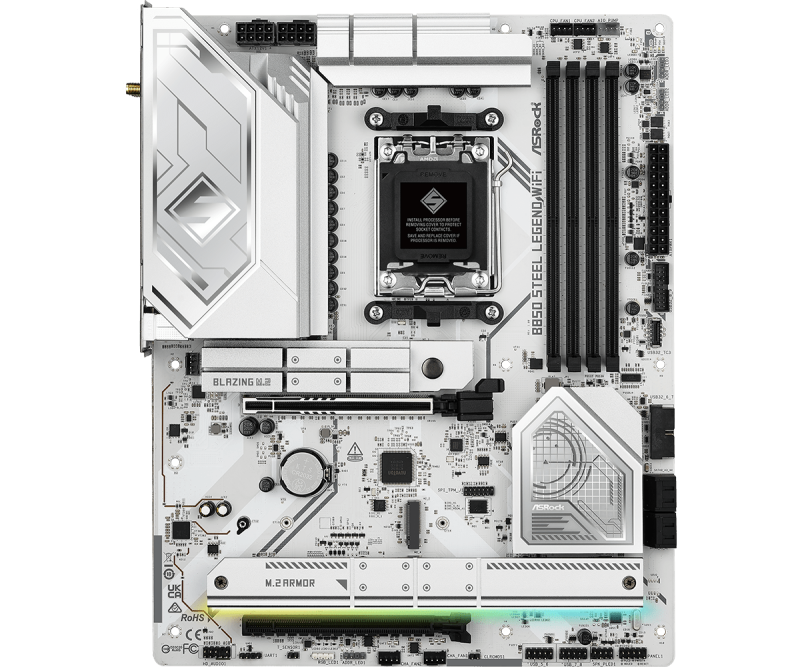

Placa de Baza ASROCK B850 STEEL LEGEND WIFI AM5

Placa de Baza ASROCK B850 STEEL LEGEND WIFI AM5, 4x DDR5, 1x HDMI, 2x PCIE x16, 5x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

Motherboard chipset

AMD B850

Audio Chip

Realtek ALC4082

Certification

FCC, CE, ErP/EuP

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

Maximum resolution

3840 x 2160 pixels

HDCP

Yes

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

3

Number of RGB LED pin headers

1

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Cables included

SATA

Antenna included

Yes

DVI-D ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Headphone outputs

2

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

S/PDIF out port

Yes

Line-in

Yes

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB connector type

USB Type-A, USB Type-C

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of storage drives supported

8

RAID levels

0, 1, 10

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
