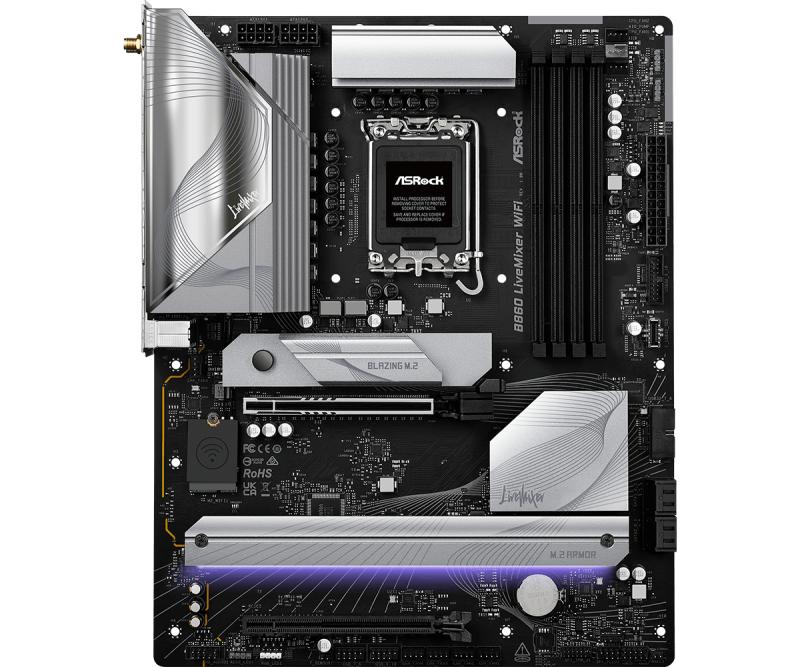

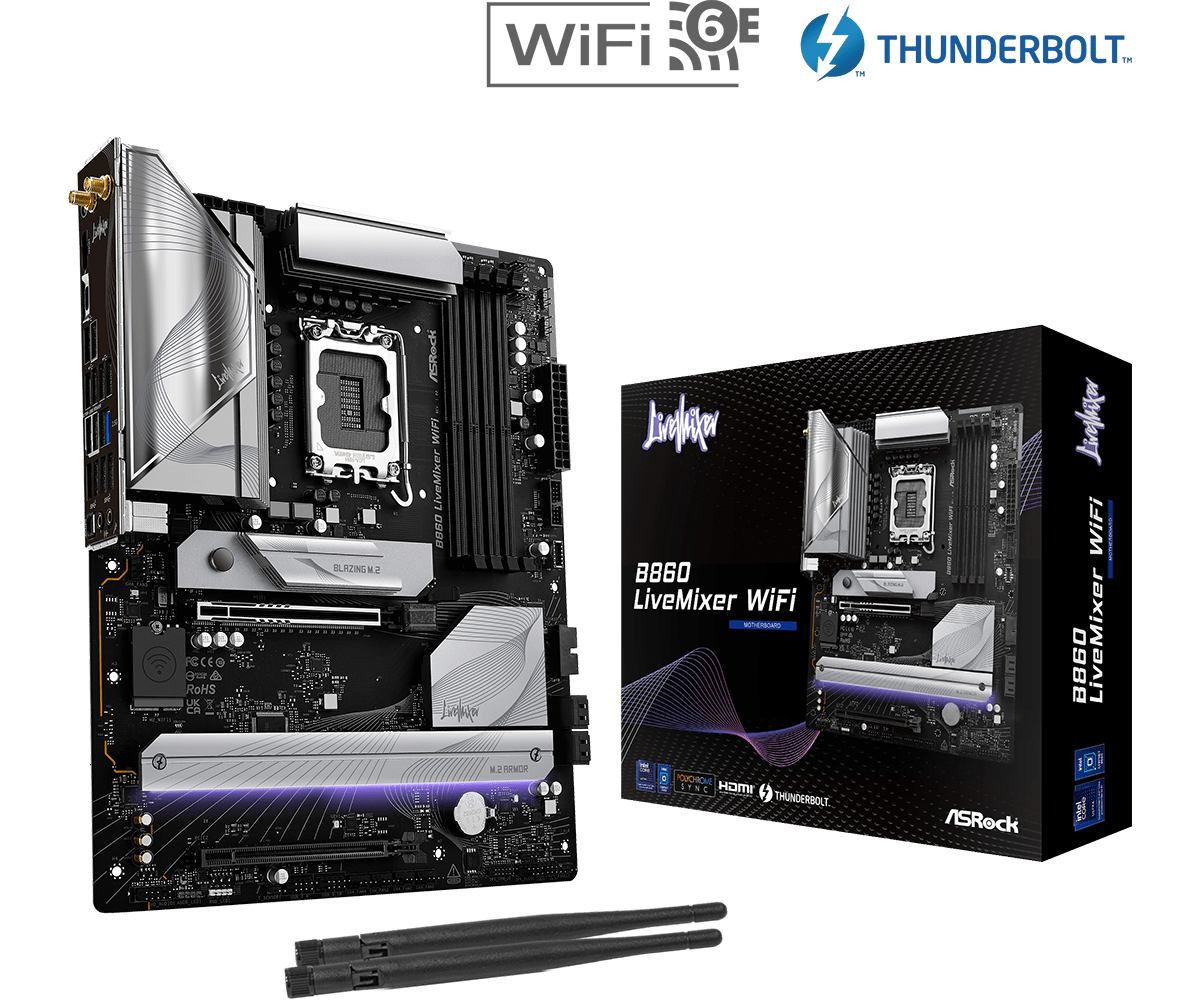

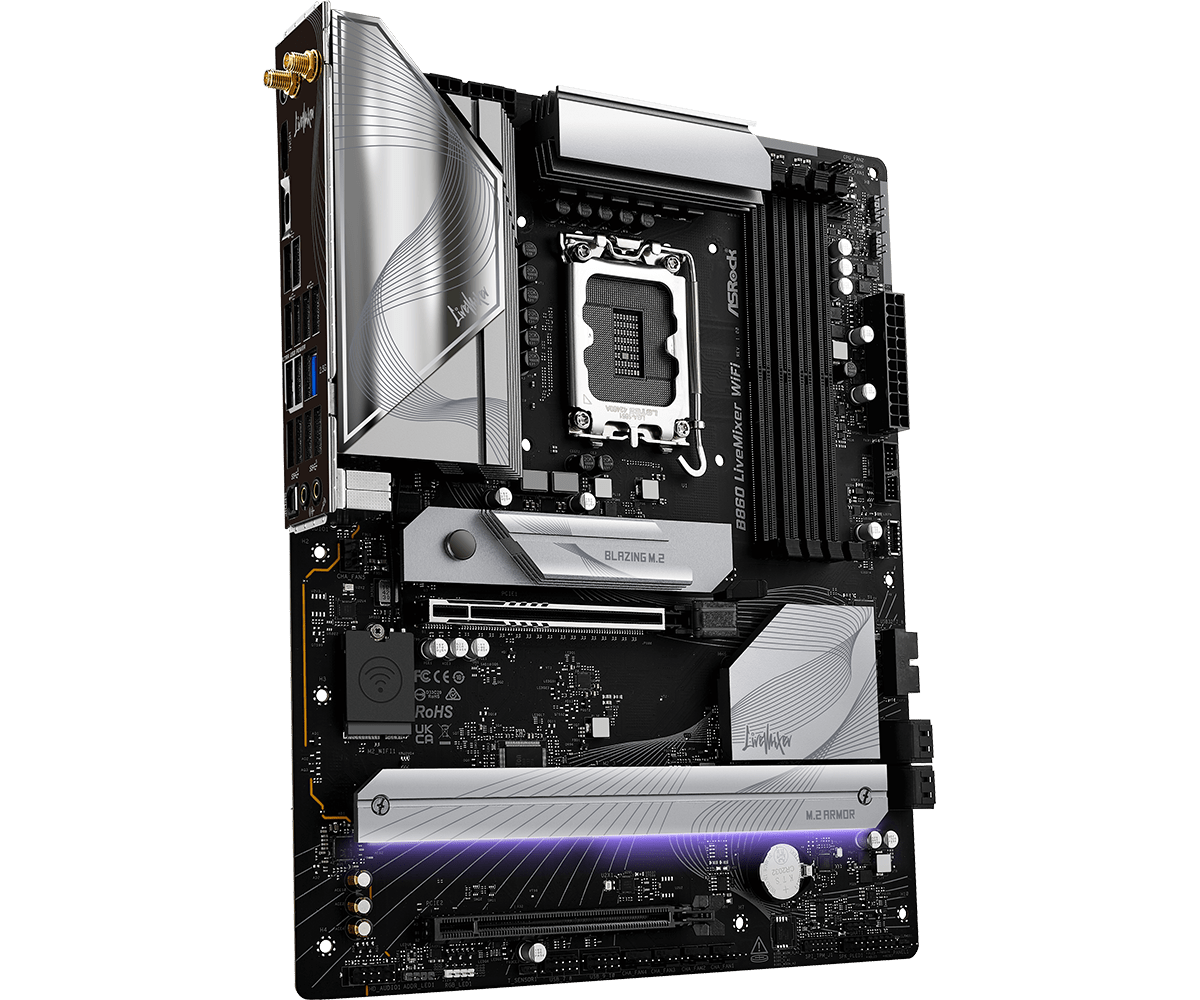

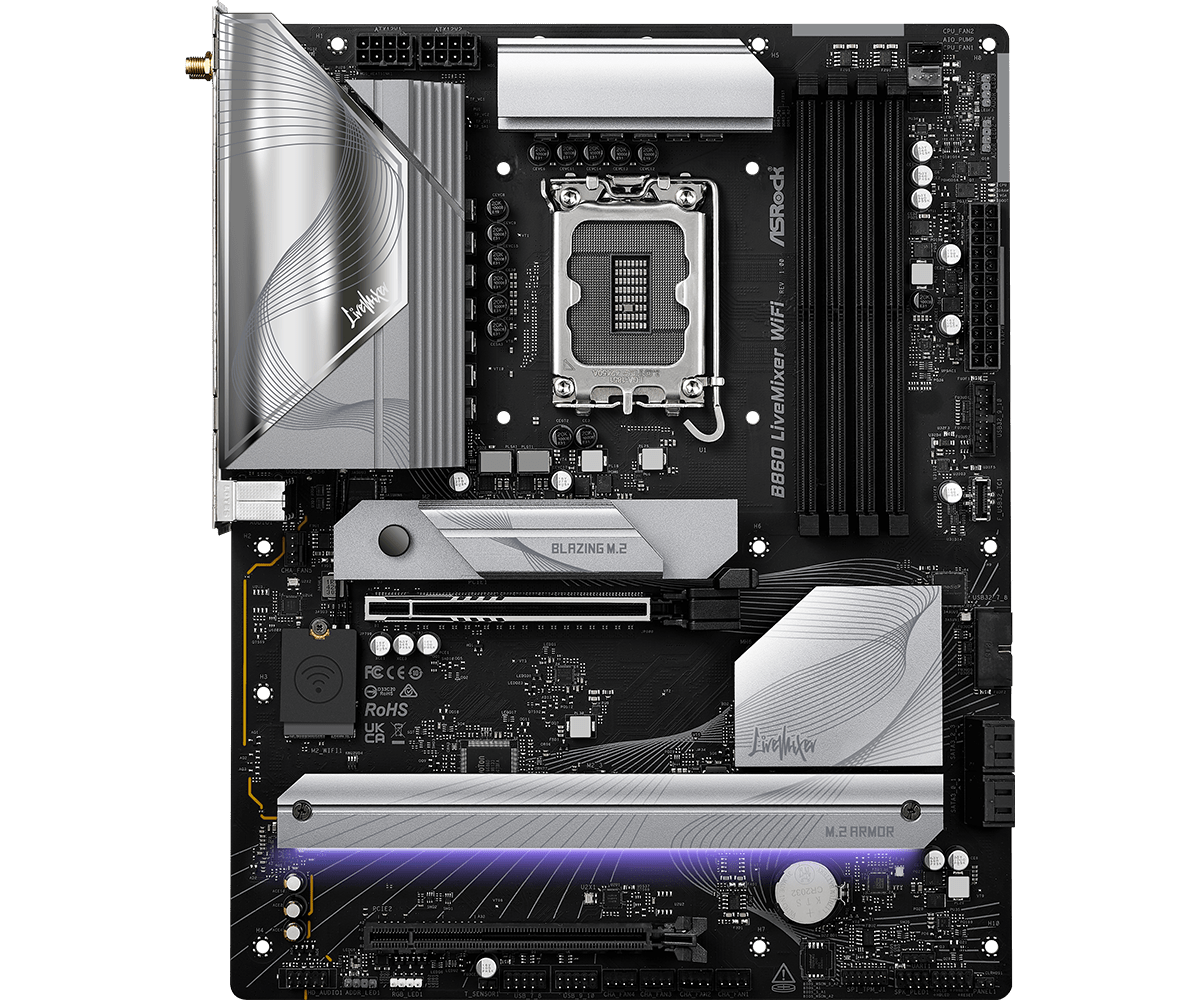

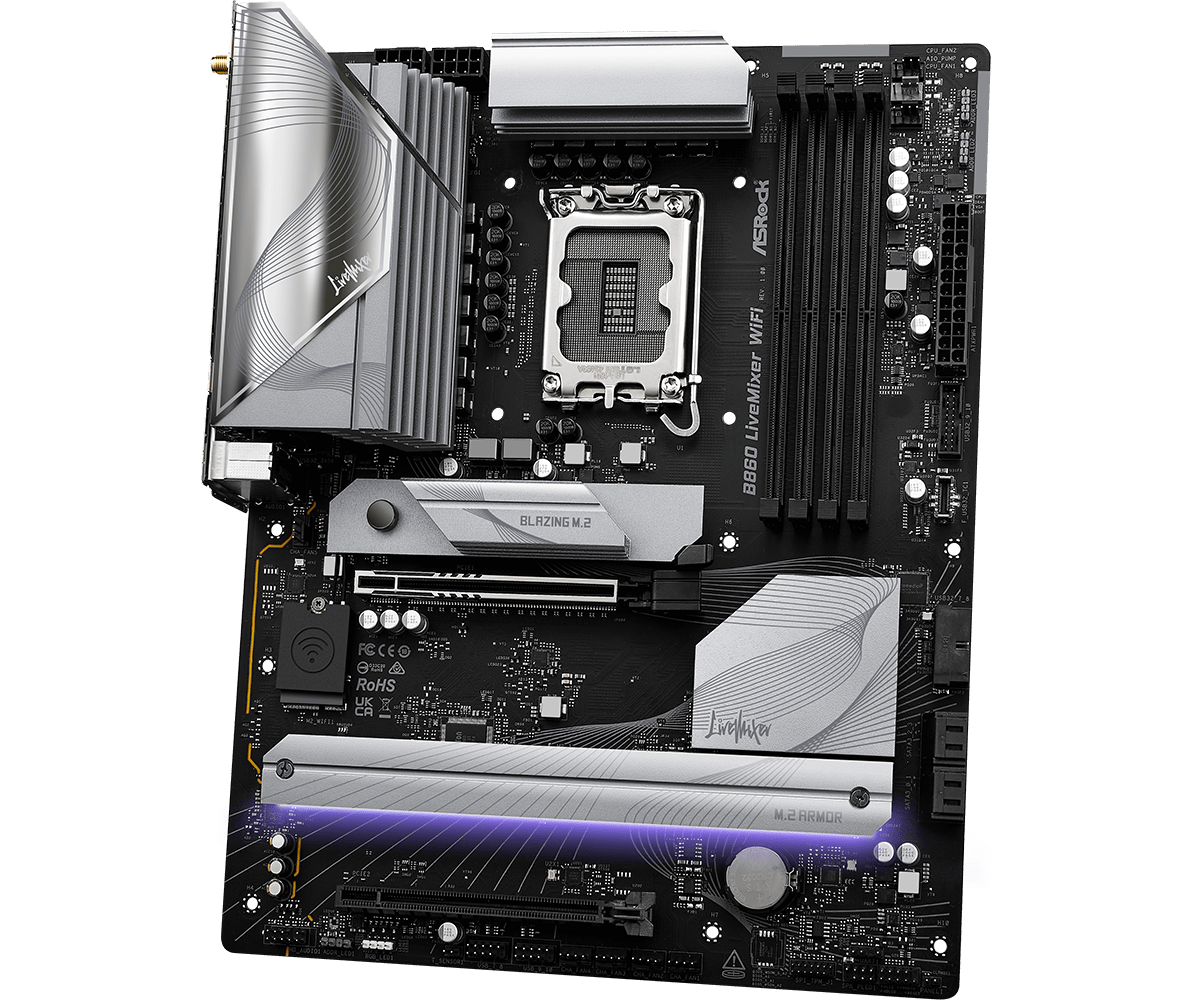

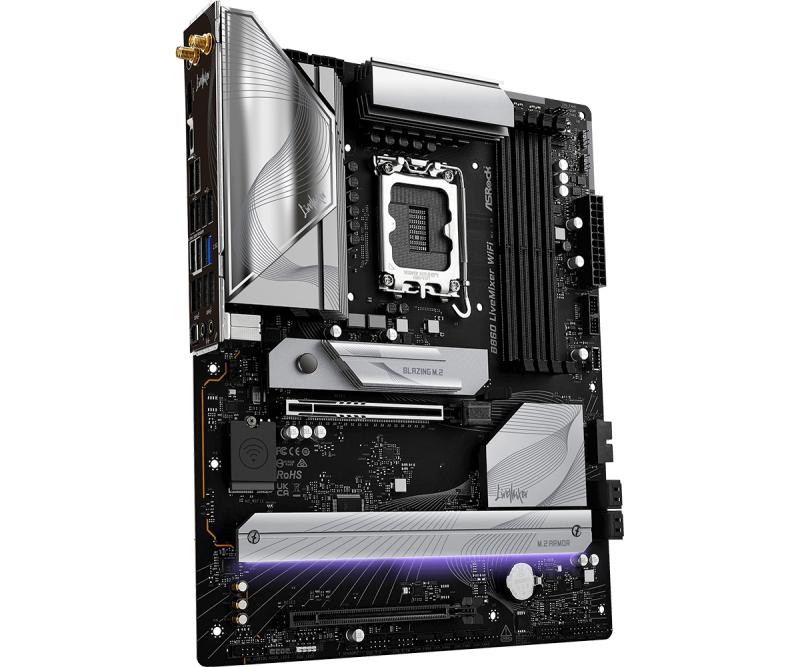

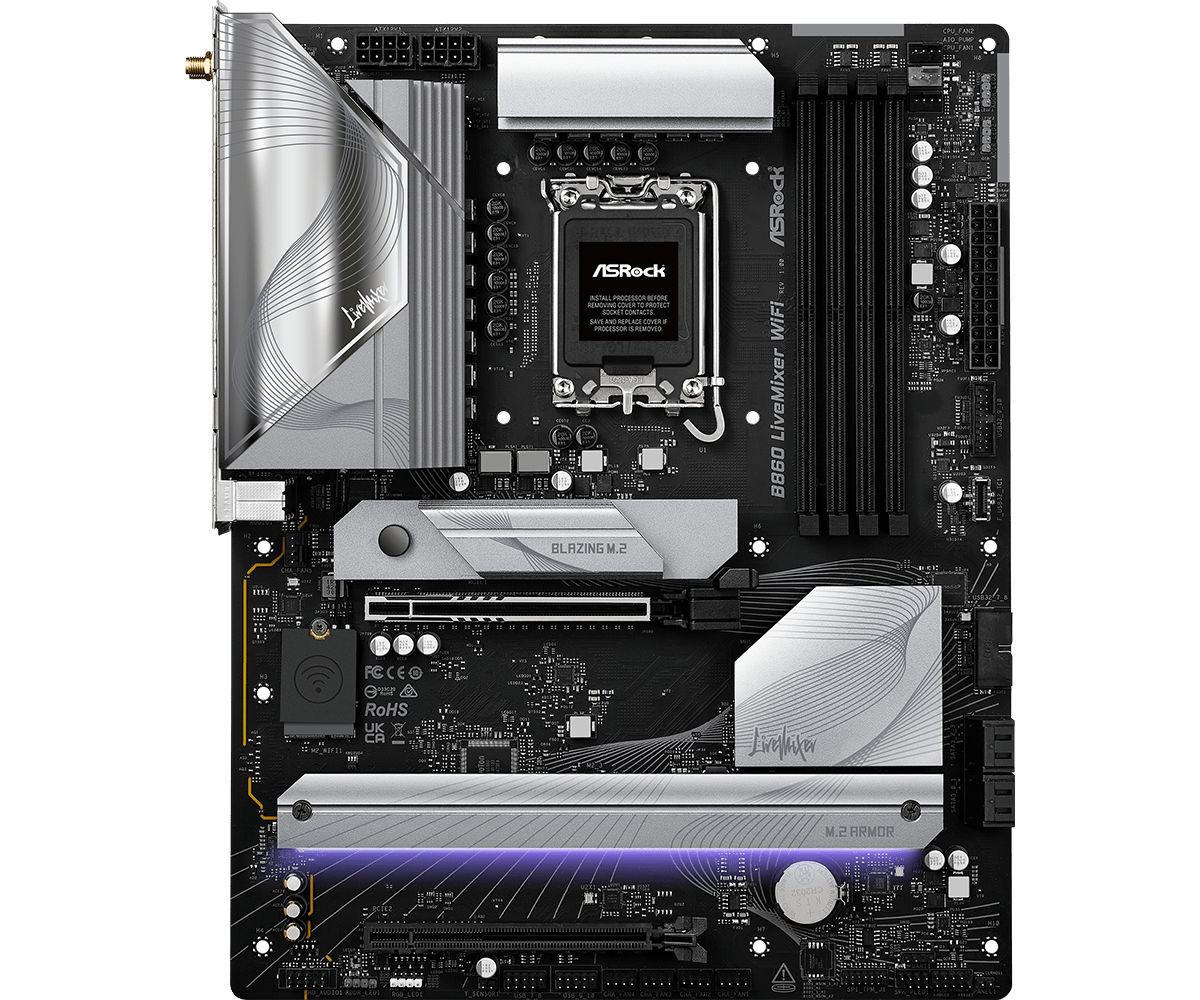

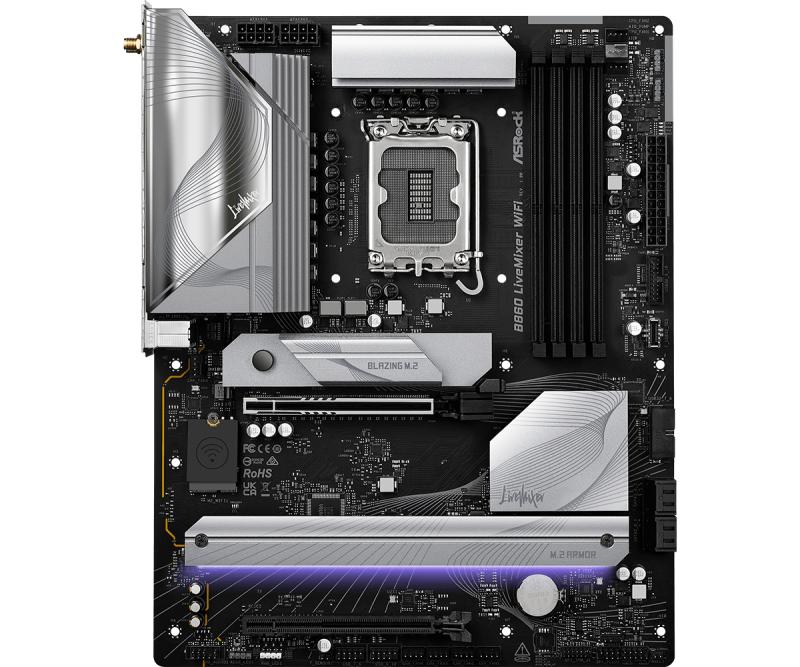

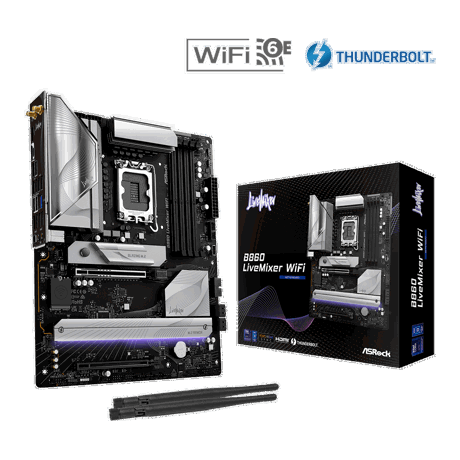

Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851

Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851, 4x DDR5, 1x HDMI 1x Intel Thunderbolt, 2x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

Audio Chip

Realtek ALC1220

Certification

FCC, CE, ErP/EuP

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

Maximum resolution

7680 x 4320 pixels

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Number of water pump connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

Number of chassis fan connectors

5

Number of RGB LED pin headers

1

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Cables included

SATA

Antenna included

Yes

DVI-D ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

Thunderbolt ports quantity

1

USB 2.0 ports quantity

6

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

S/PDIF out port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Headphone outputs

1

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

USB connector type

USB Type-A, USB Type-C

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
