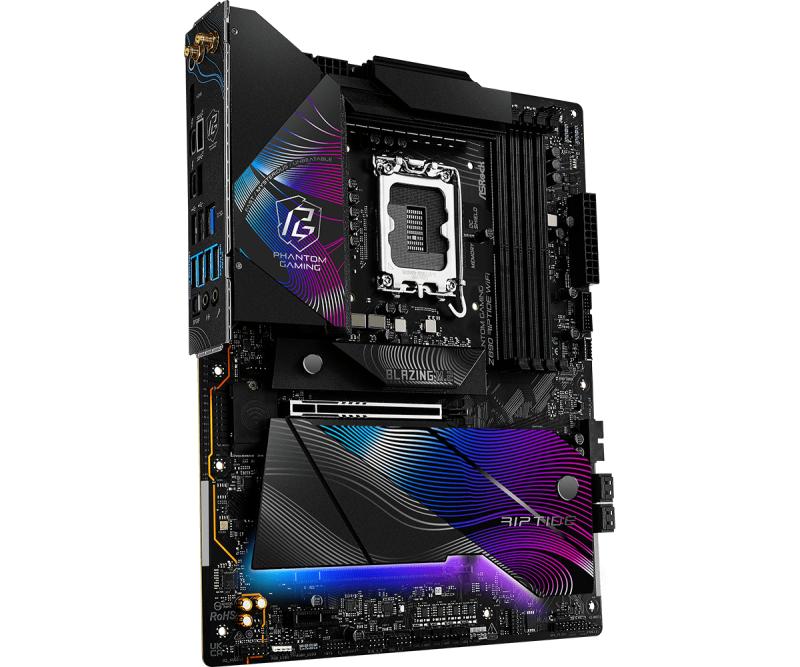

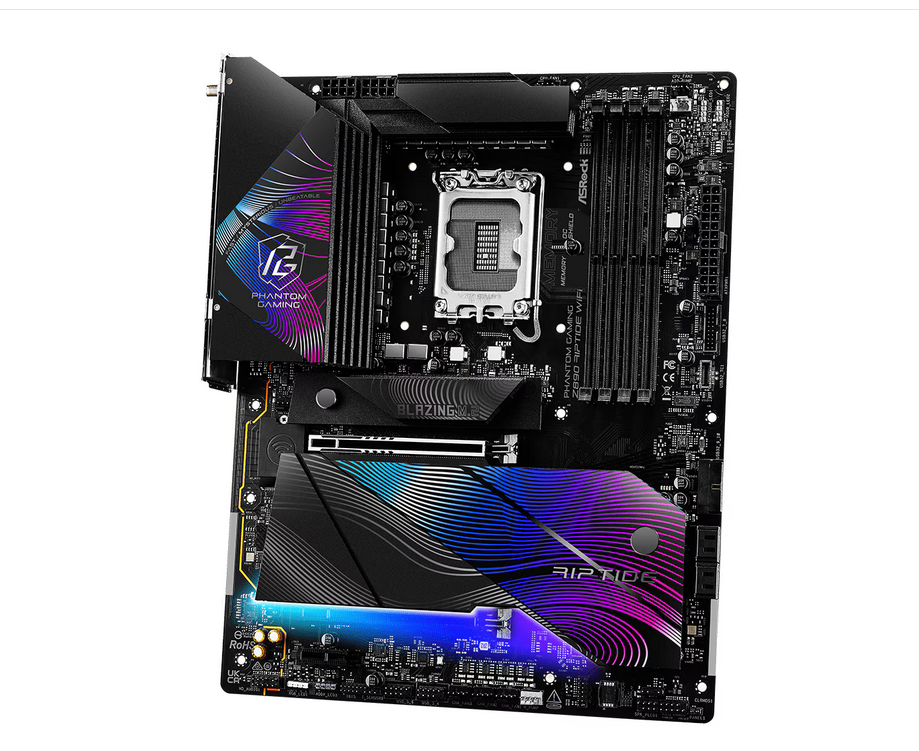

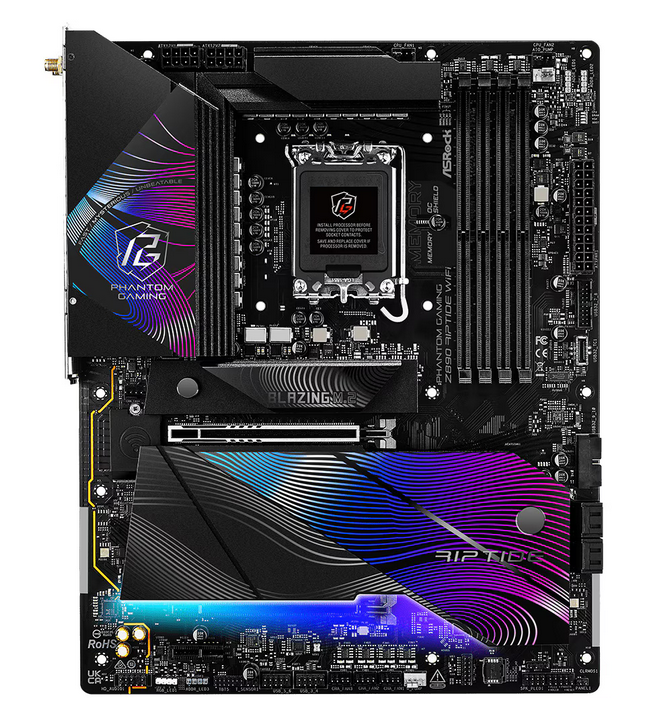

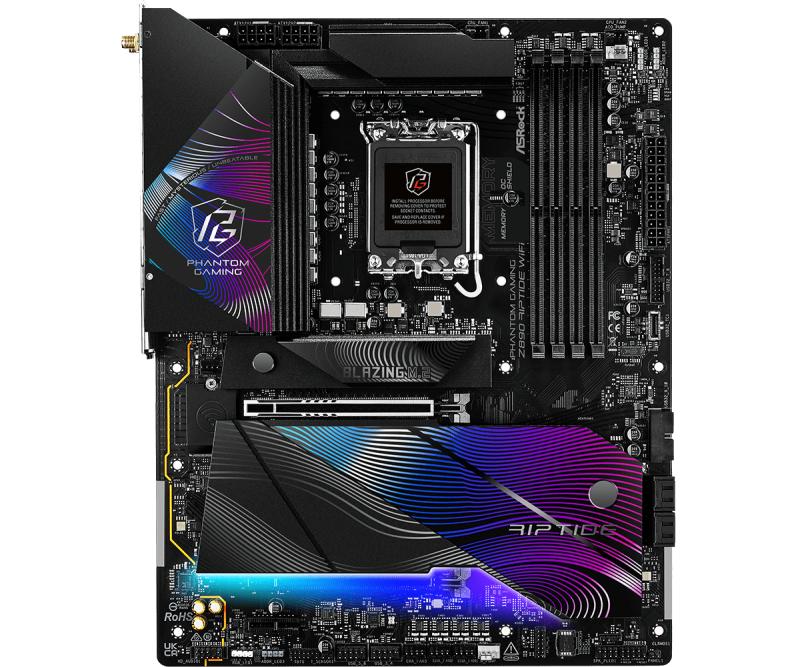

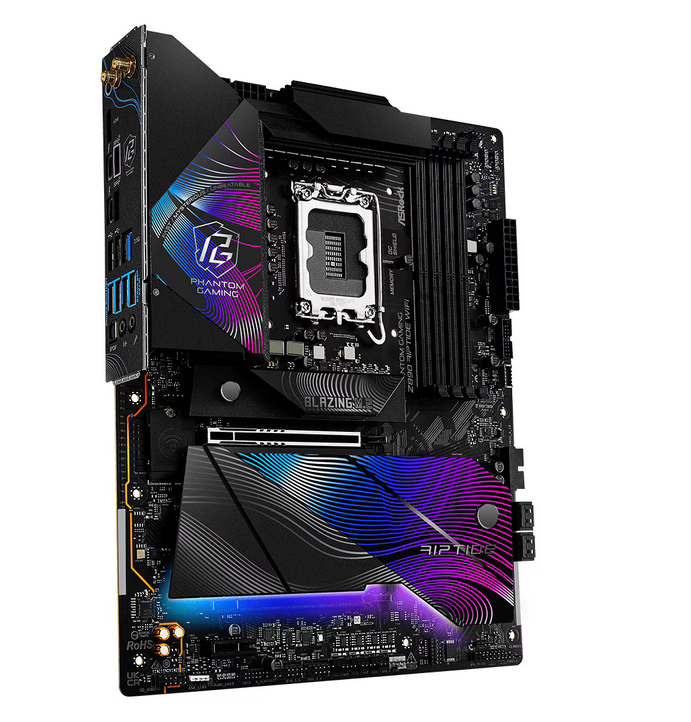

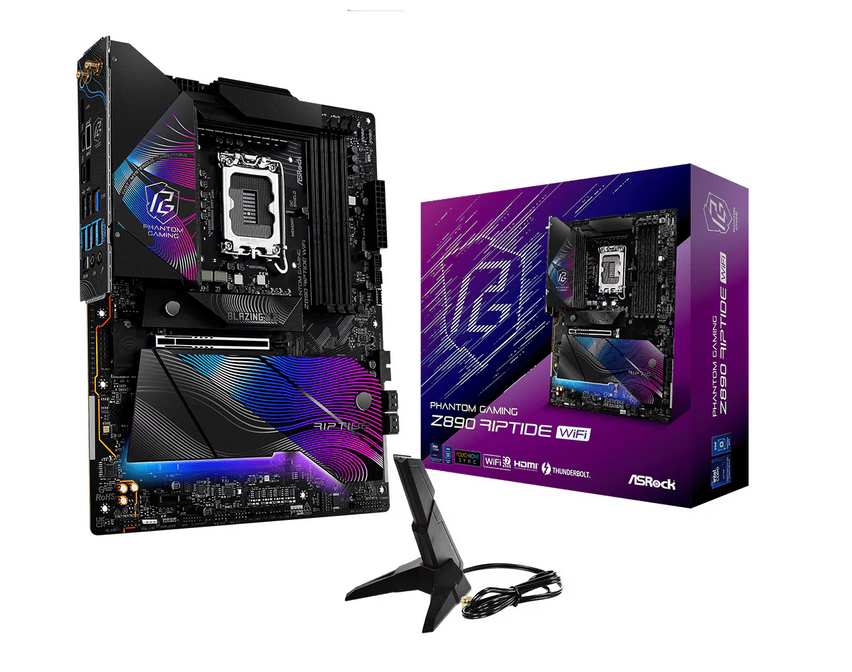

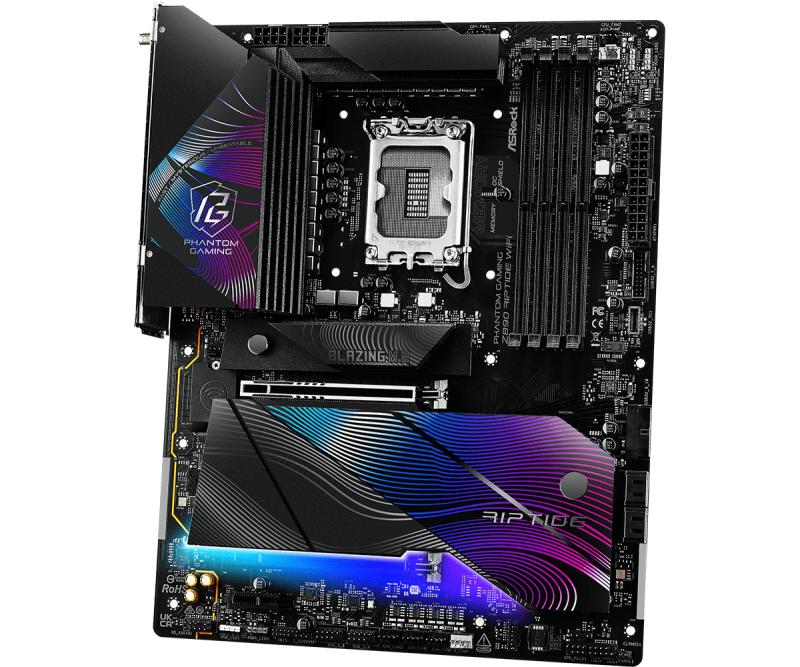

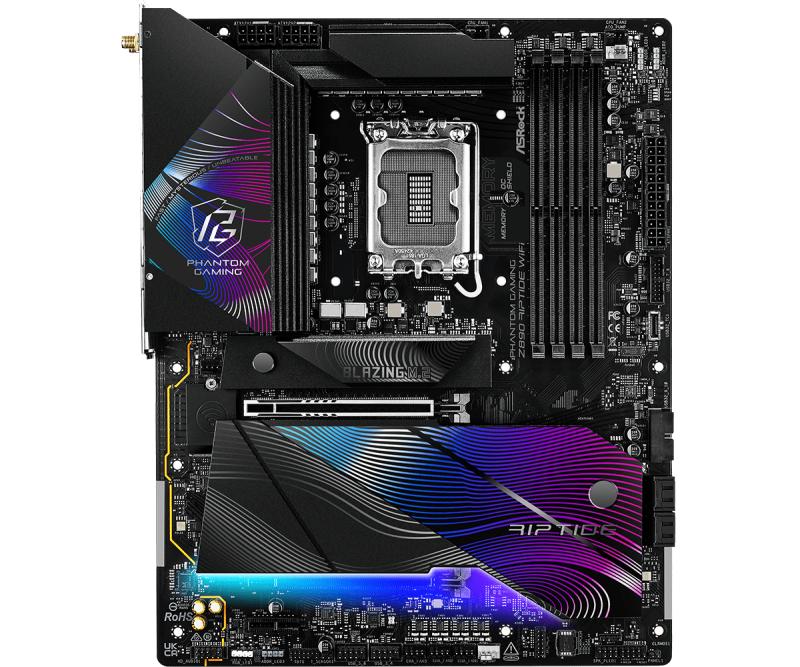

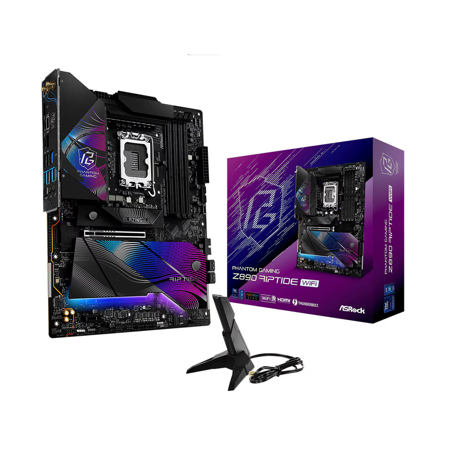

Placa de Baza ASROCK PHANTOM GAMING Z890 RIPTIDE WIFI LGA1851

Placa de Baza ASROCK PHANTOM GAMING Z890 RIPTIDE WIFI LGA1851, 4x DDR5, 1x HDMI 2x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 6x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Audio Chip

Realtek ALC1220

Motherboard chipset

Intel Z890

Motherboard form factor

ATX

Motherboard chipset family

Intel

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2x2 connectors

2

Number of water pump connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Supported memory clock speed (max)

9466 MHz

Number of memory slots

4

Memory slots type

DIMM

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Killer E3100G

Bluetooth version

5.4

BLUETOOTH

Yes

Wi-Fi

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

HDMI ports quantity

1

DVI-D ports quantity

0

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Processor manufacturer

Intel

Microphone in

Yes

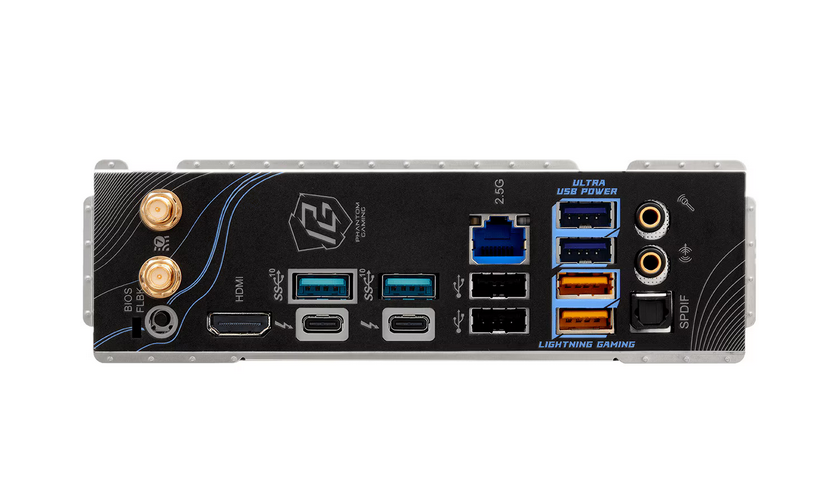

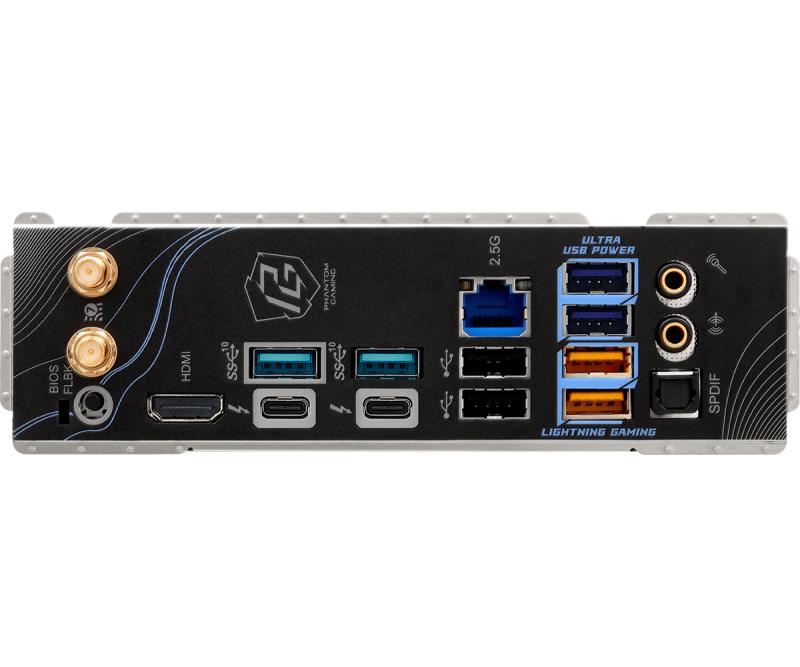

USB 2.0 ports quantity

2

Thunderbolt ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

RAID support

Yes

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
