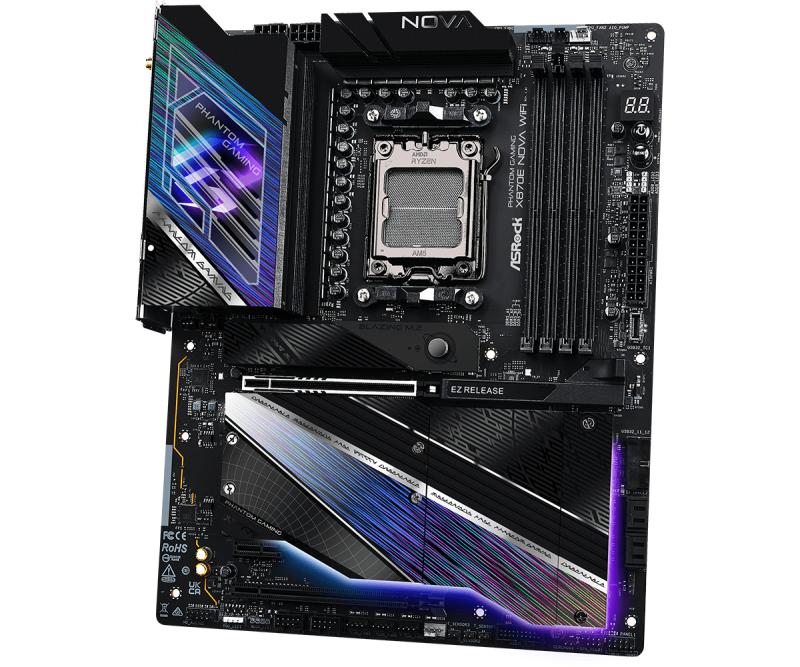

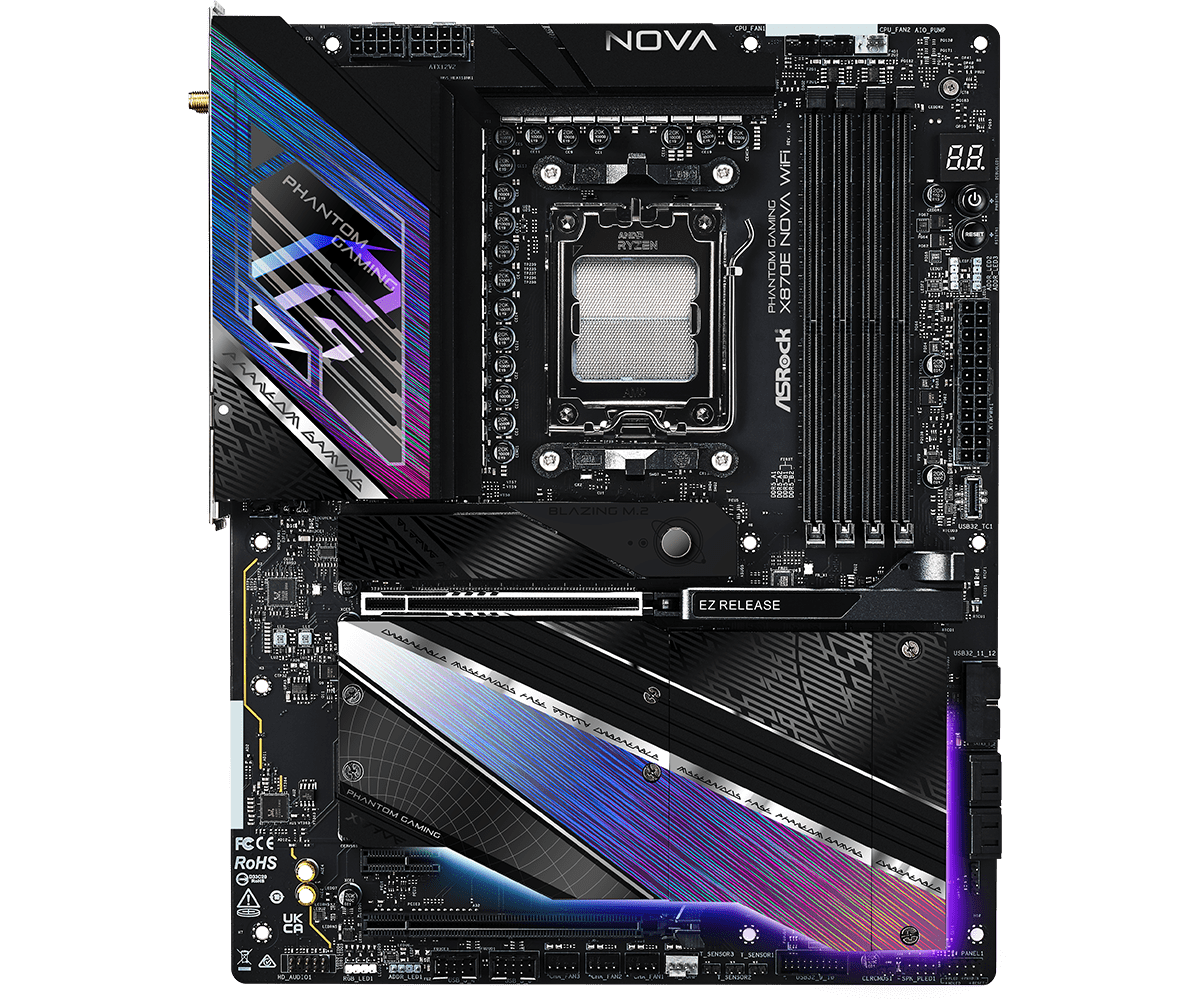

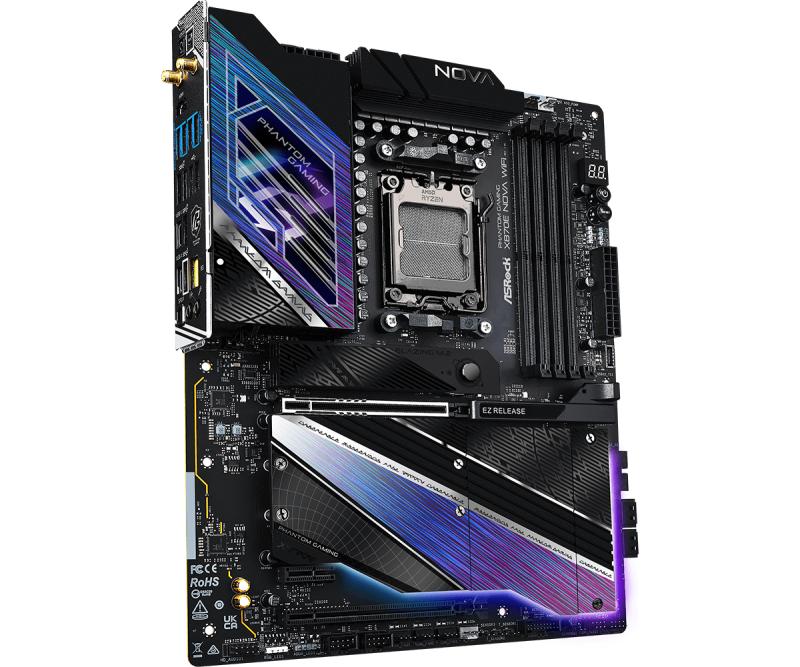

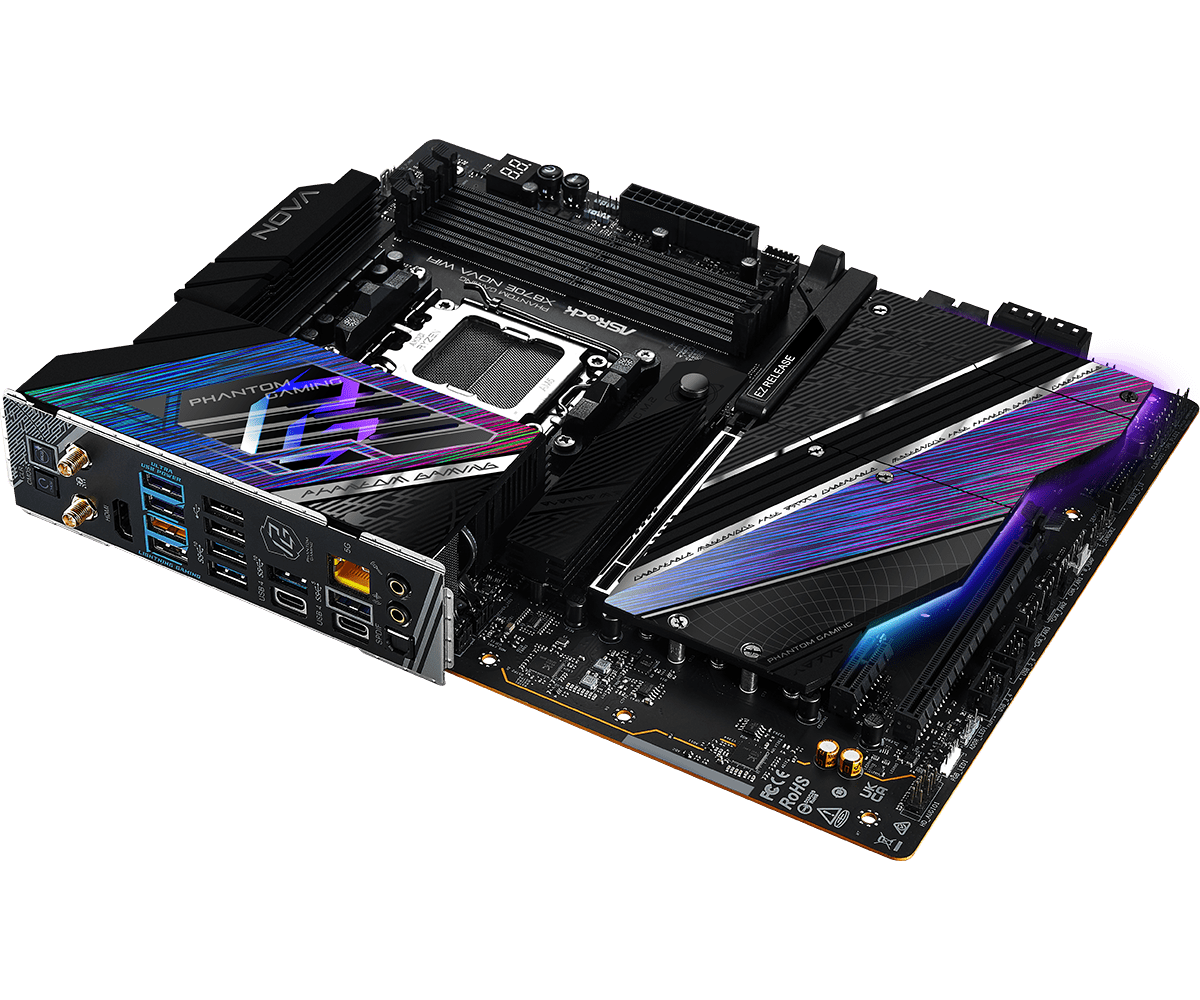

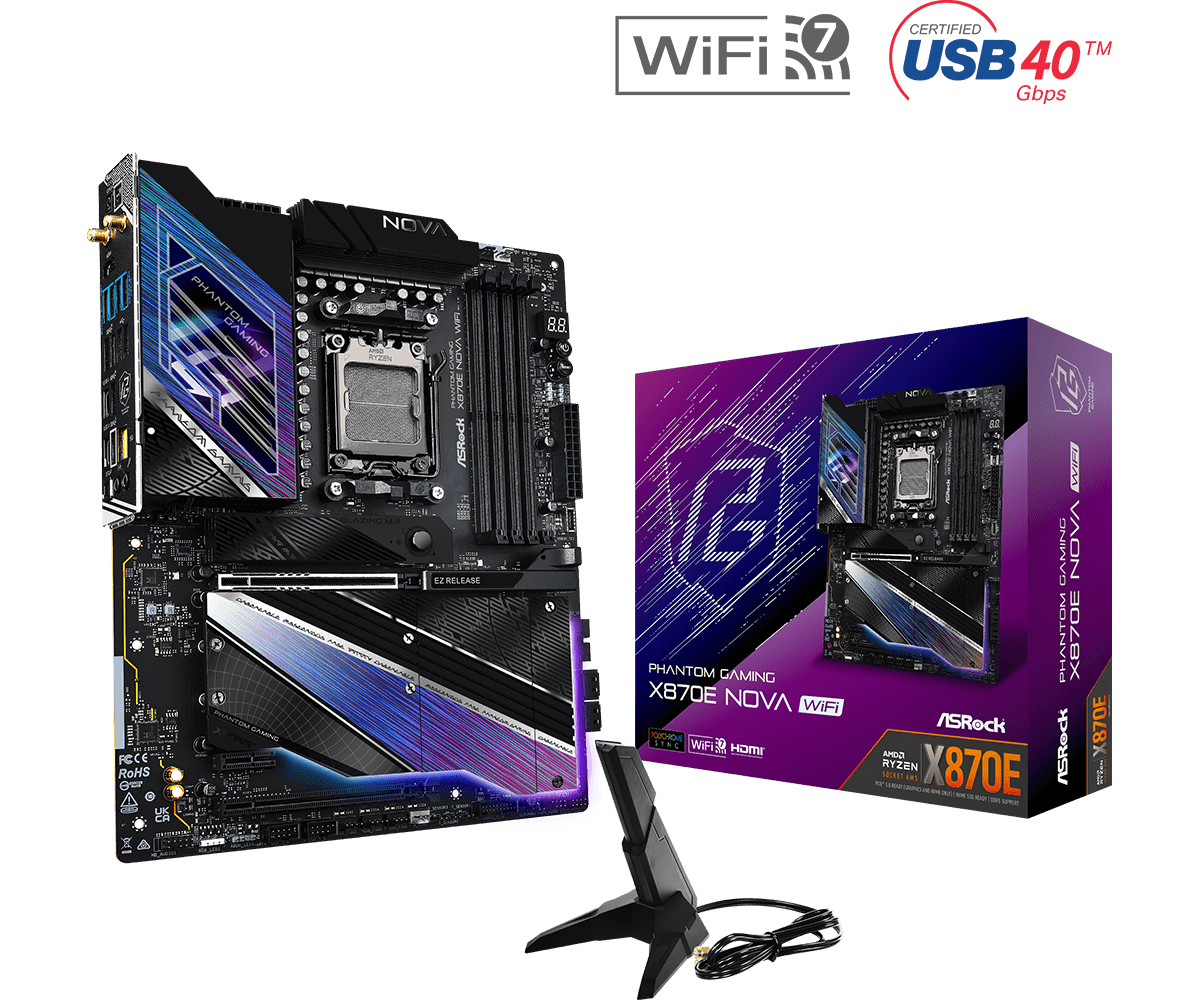

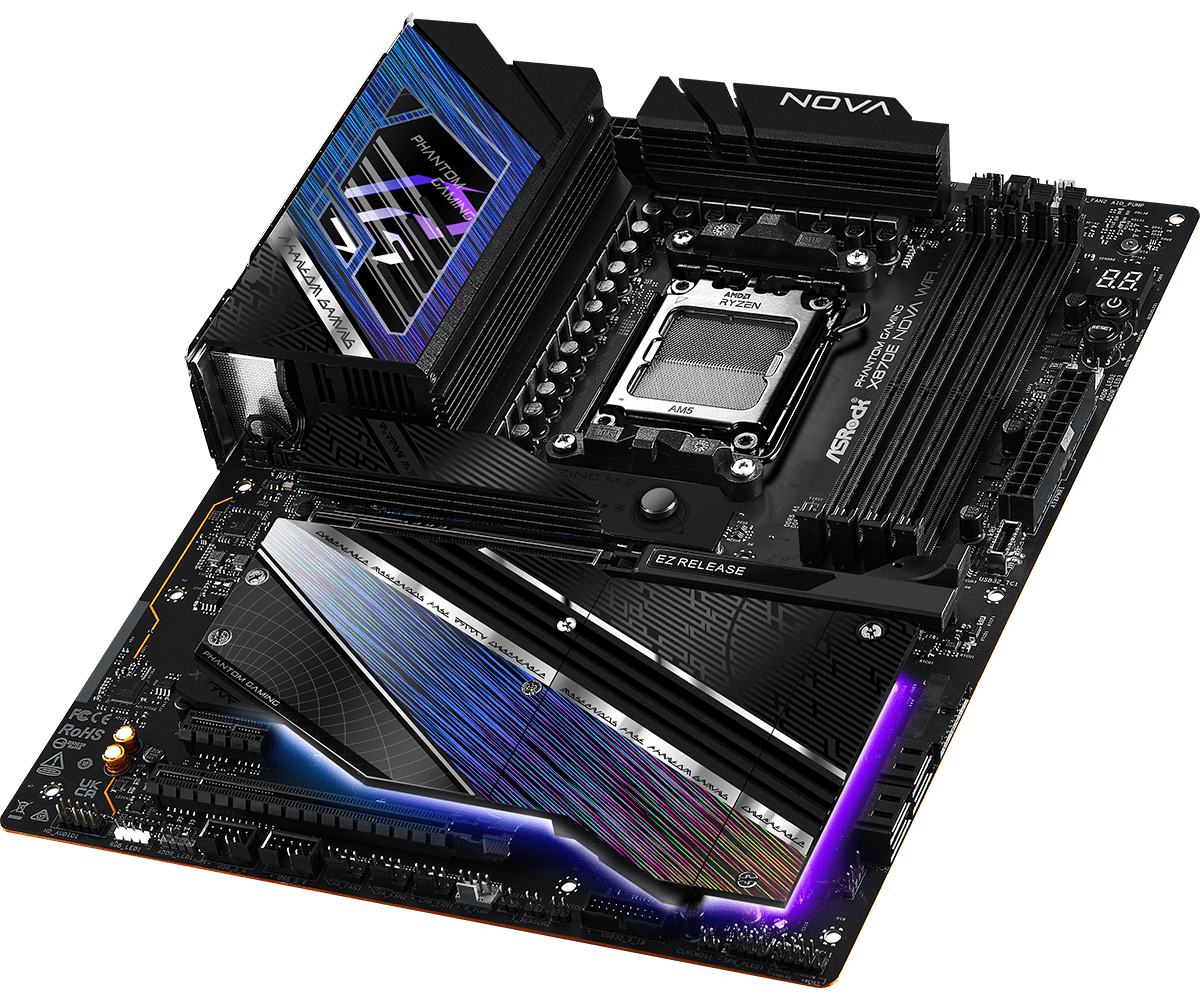

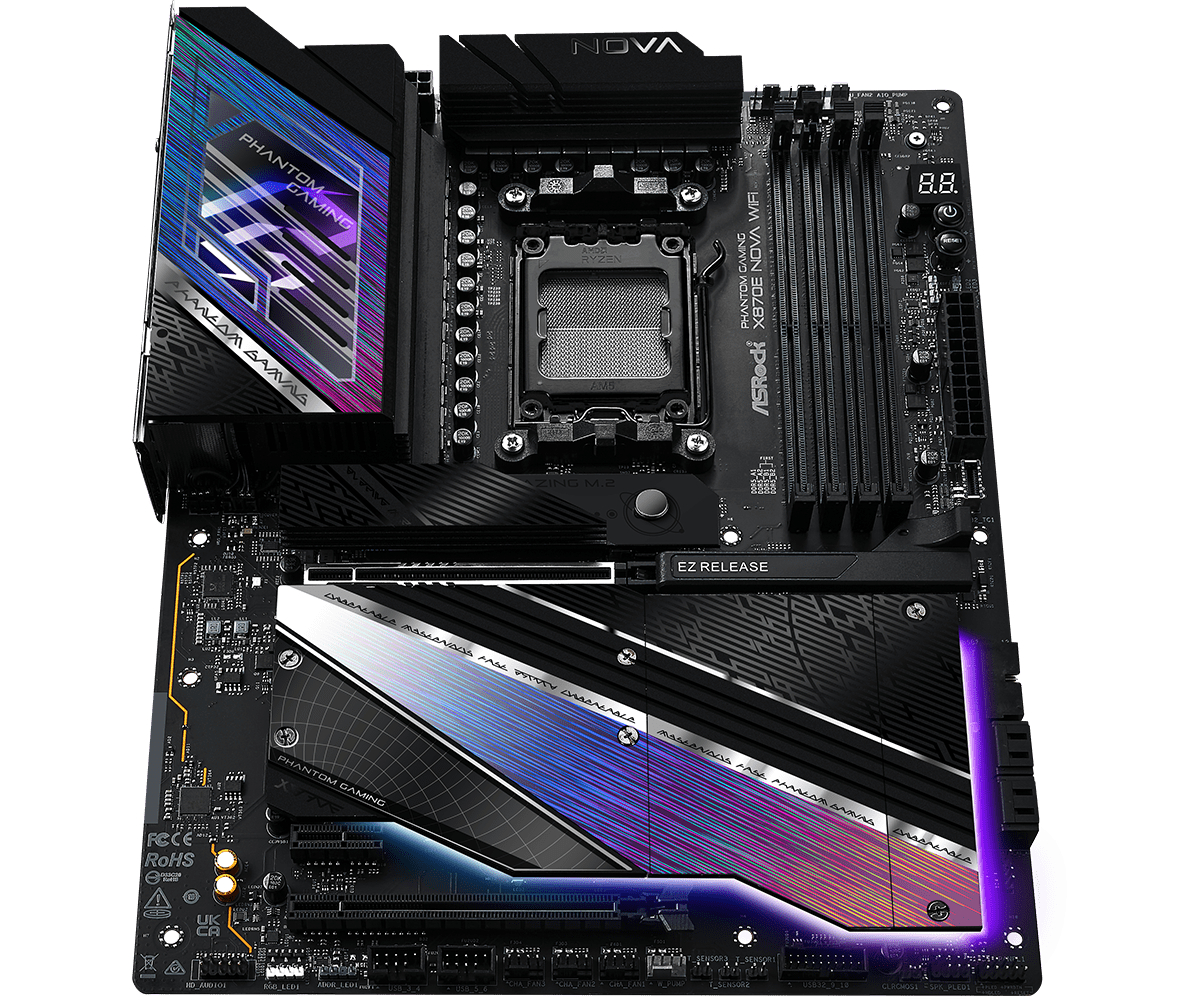

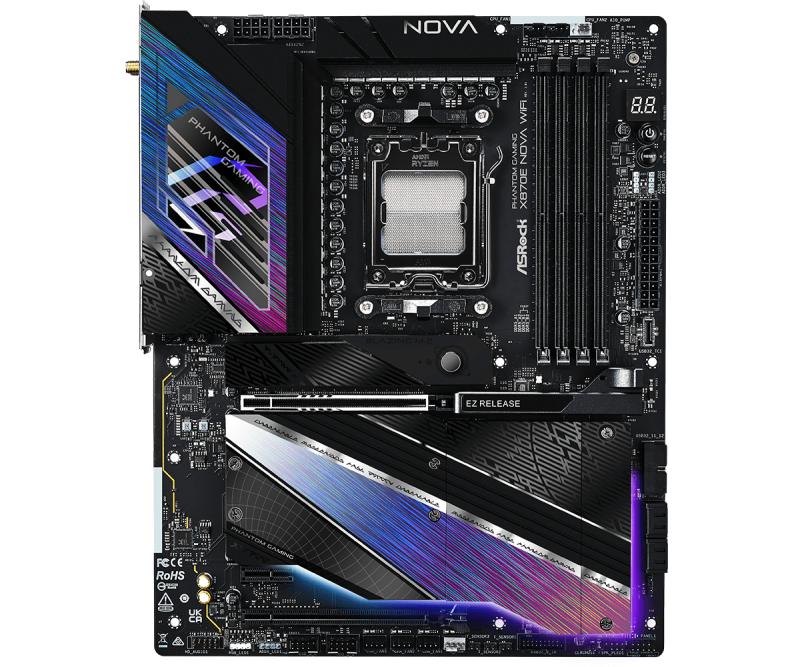

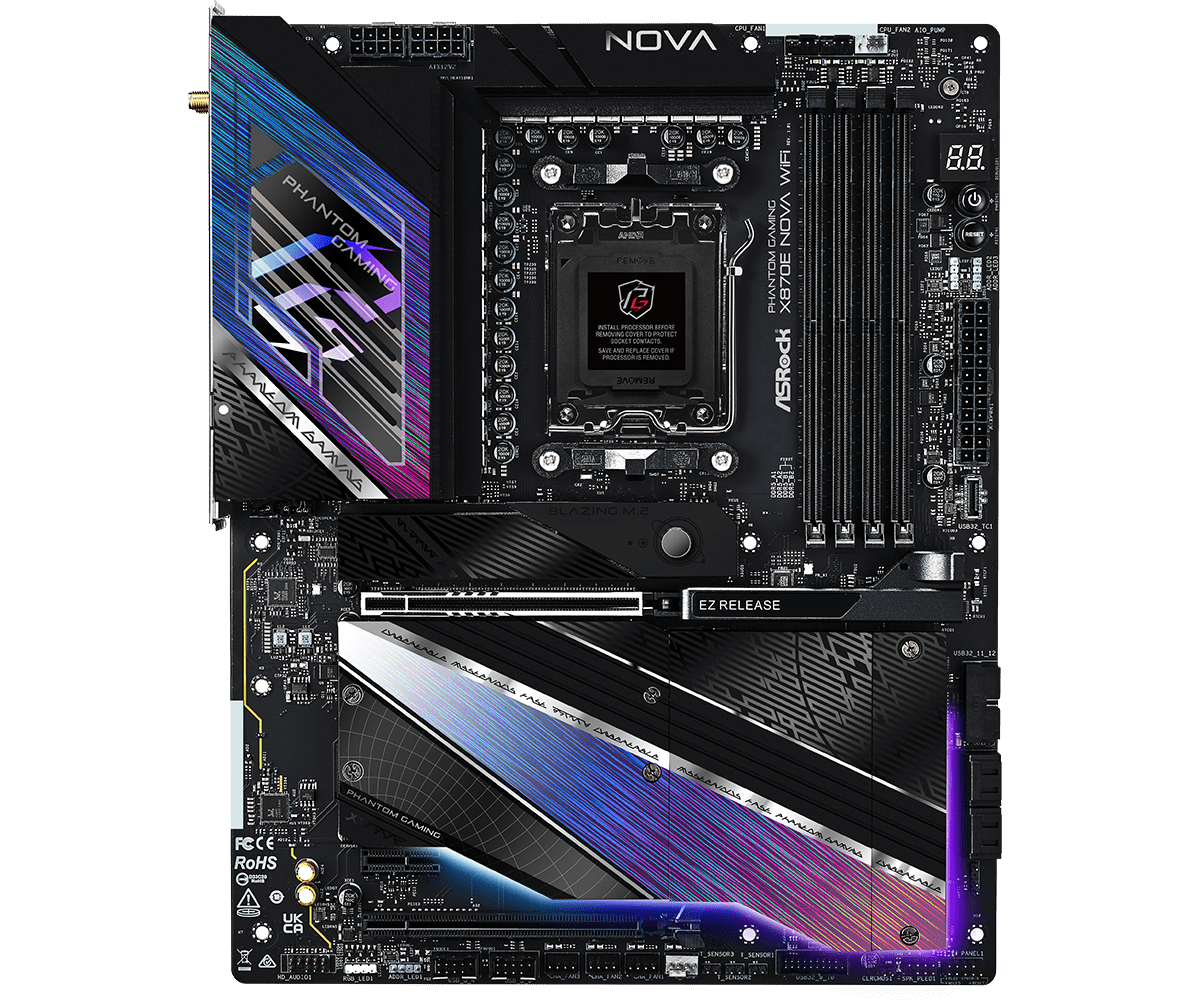

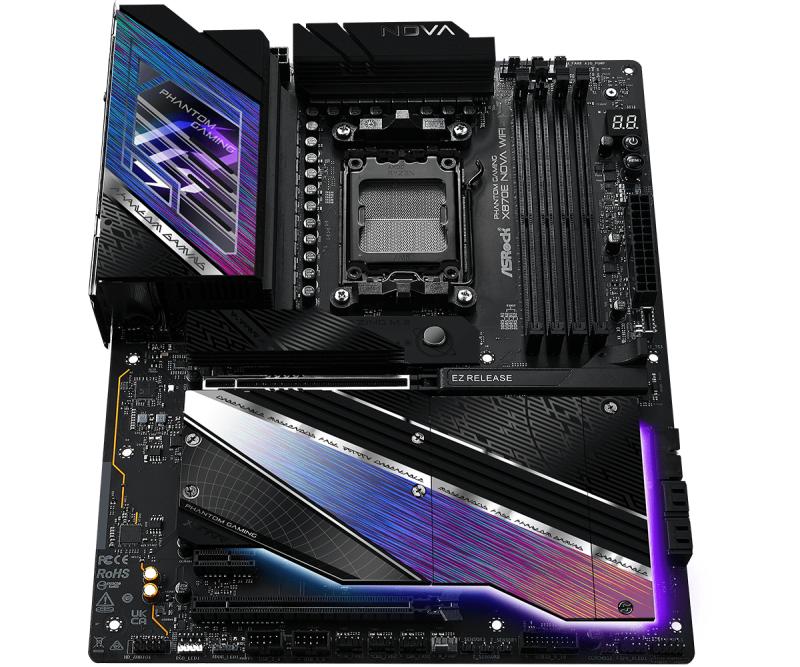

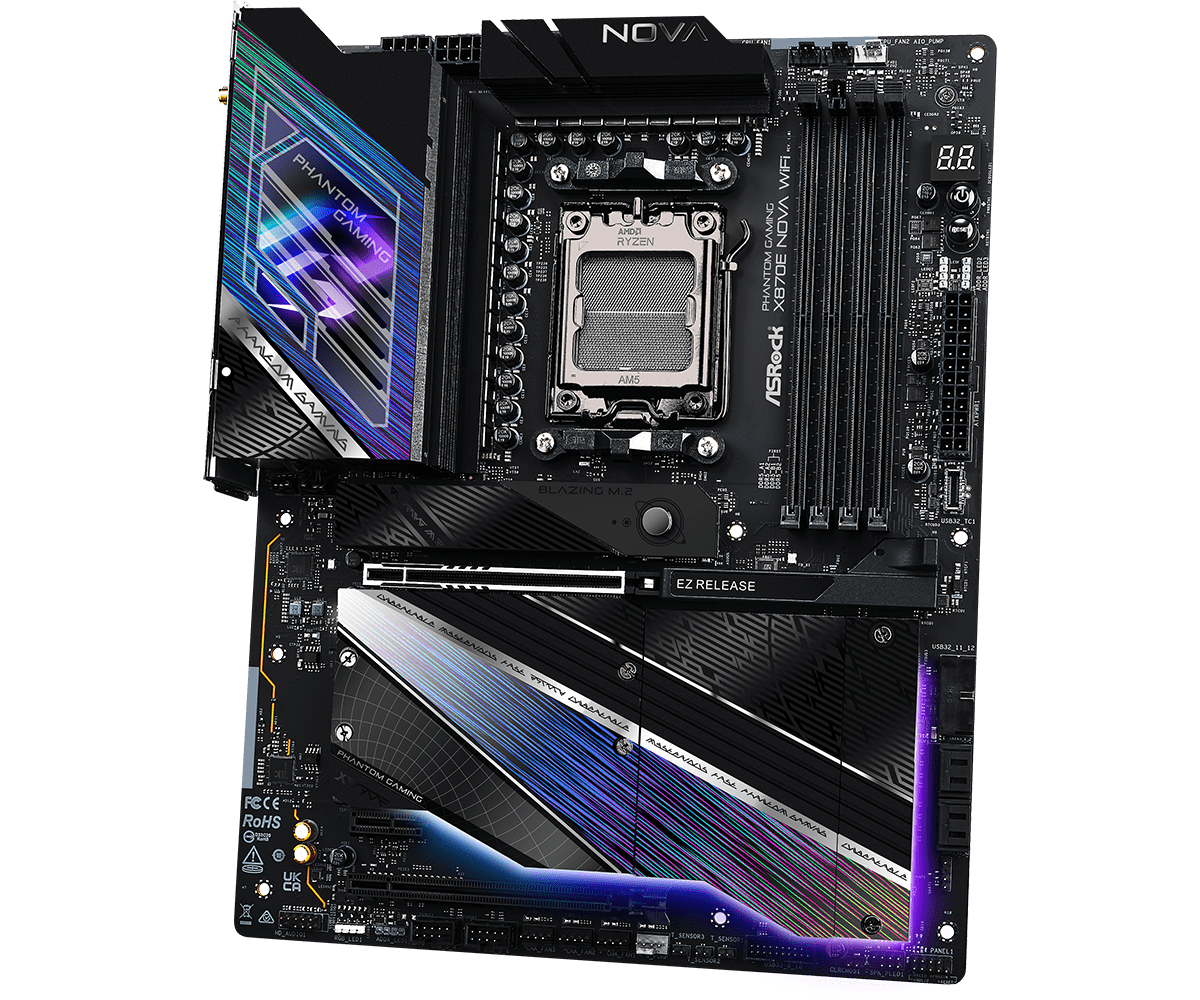

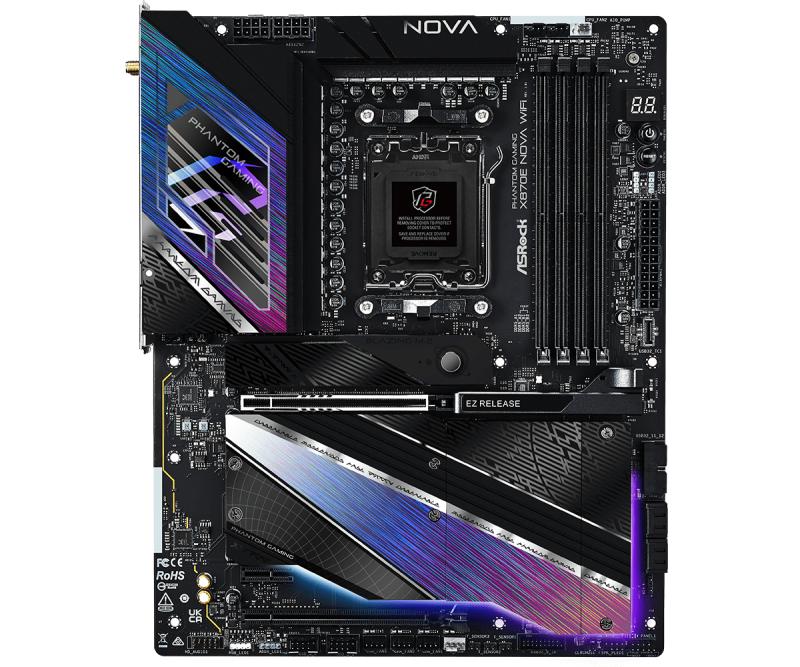

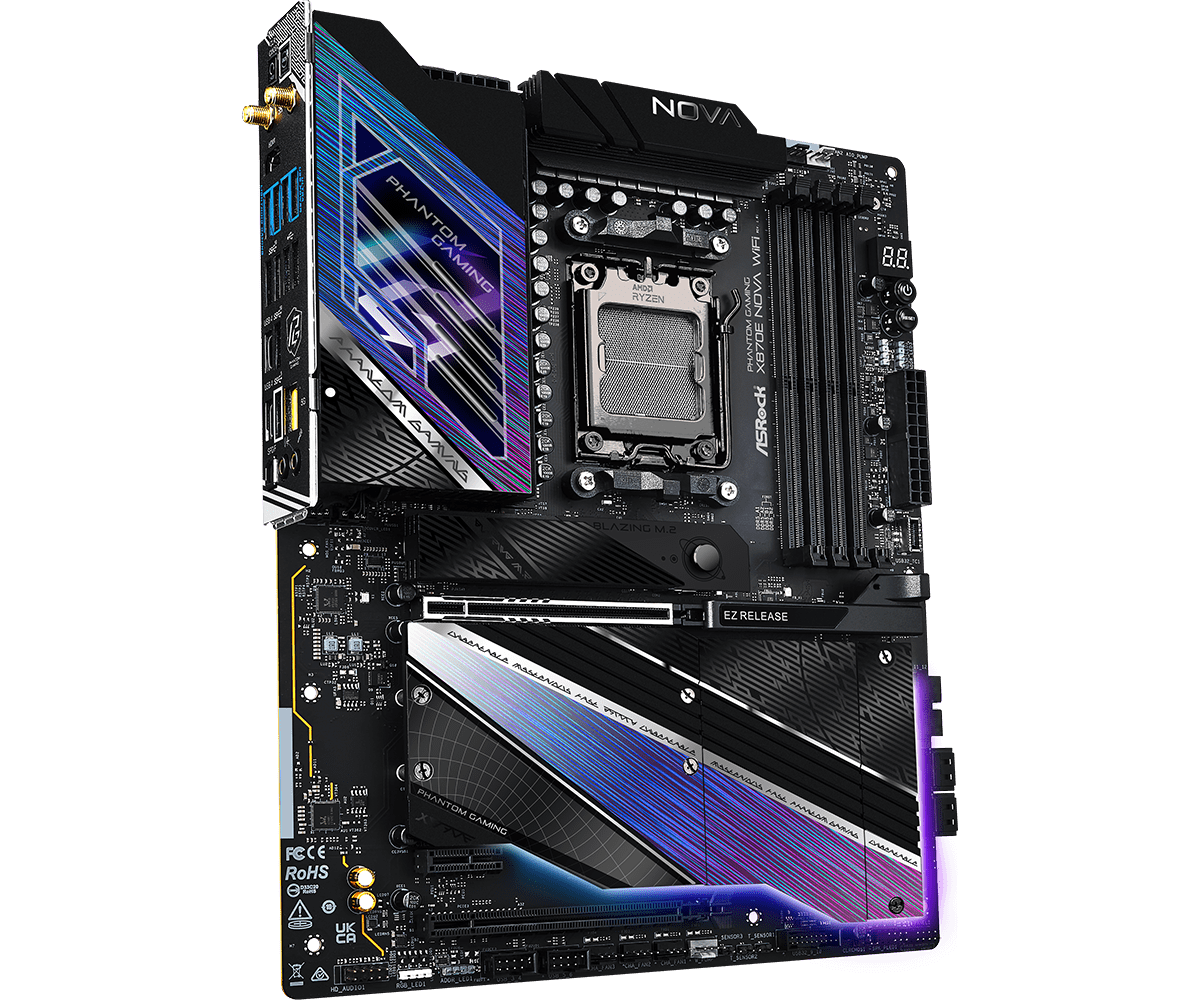

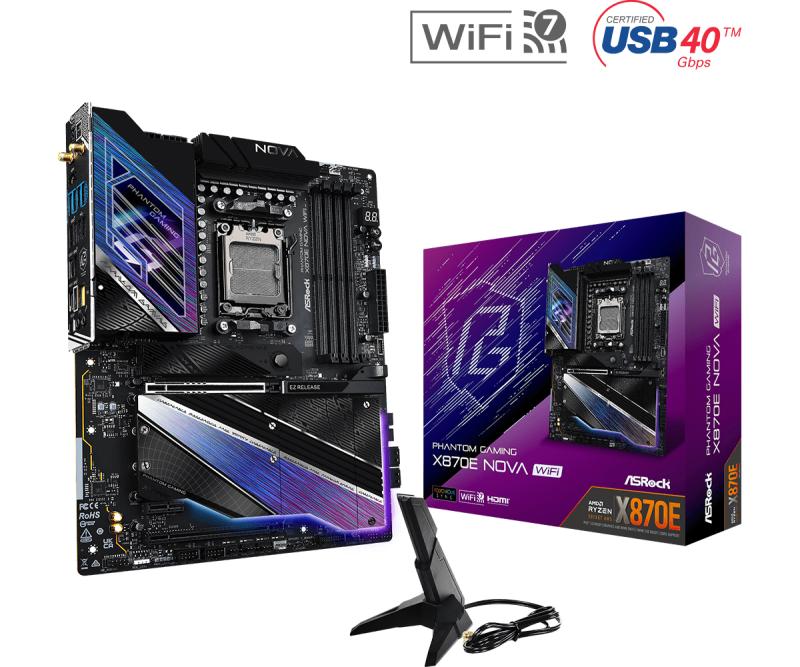

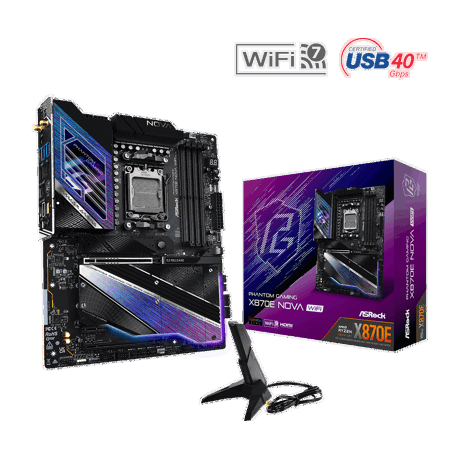

Placa de Baza ASROCK X870E NOVA WIFI AM5

Placa de Baza ASROCK X870E NOVA WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 3.0 x1 1x PCIE 3.0 x16, 6x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

AMD

Audio Chip

Realtek ALC4082

Motherboard chipset

AMD X870E

Motherboard form factor

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Certification

- FCC, CE - ErP/EuP ready

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

2

RGB LED pin header

Yes

Number of chassis fan connectors

3

USB 3.2 Gen 2x2 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported memory clock speeds

8200 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

BLUETOOTH

Yes

Wi-Fi

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

LAN controller

Realtek RTL8126

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

Cables included

SATA

Antenna included

Yes

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity

2

Microphone in

Yes

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of storage drives supported

8

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, SATA III

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
