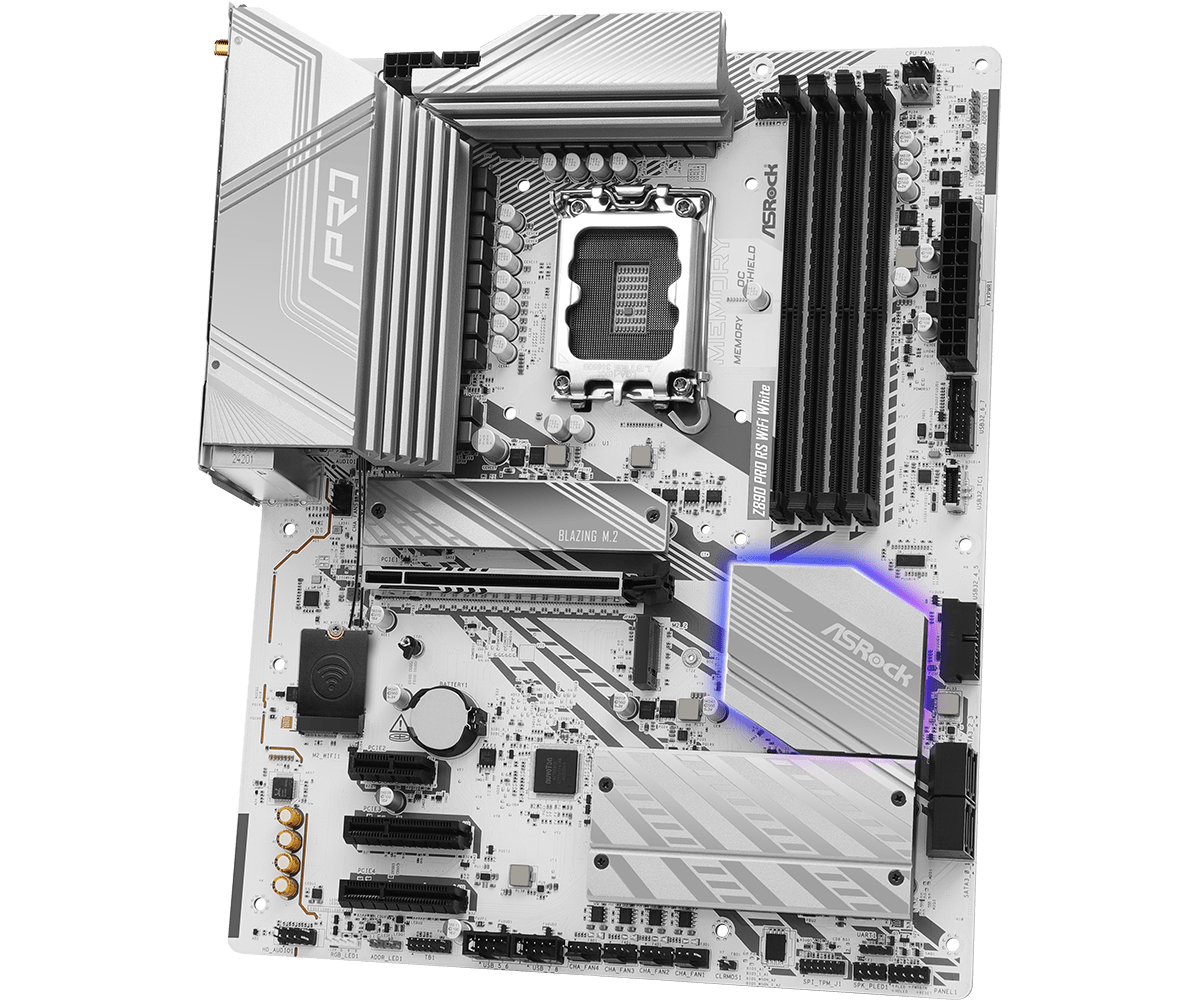

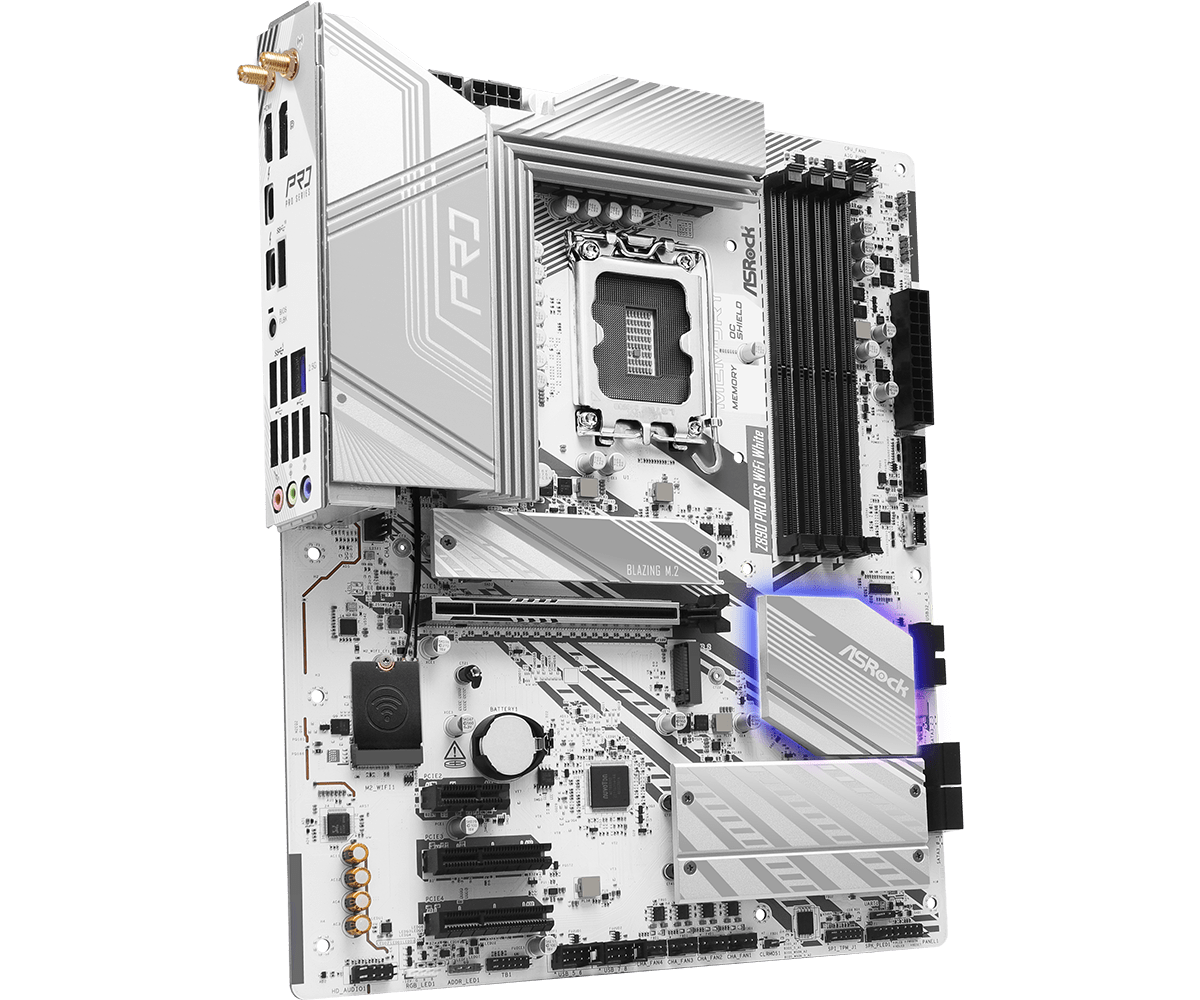

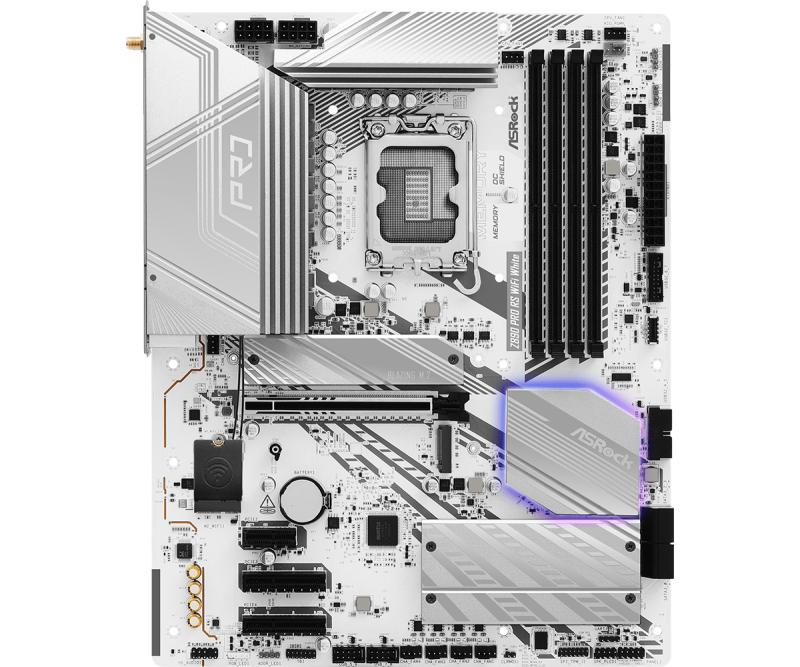

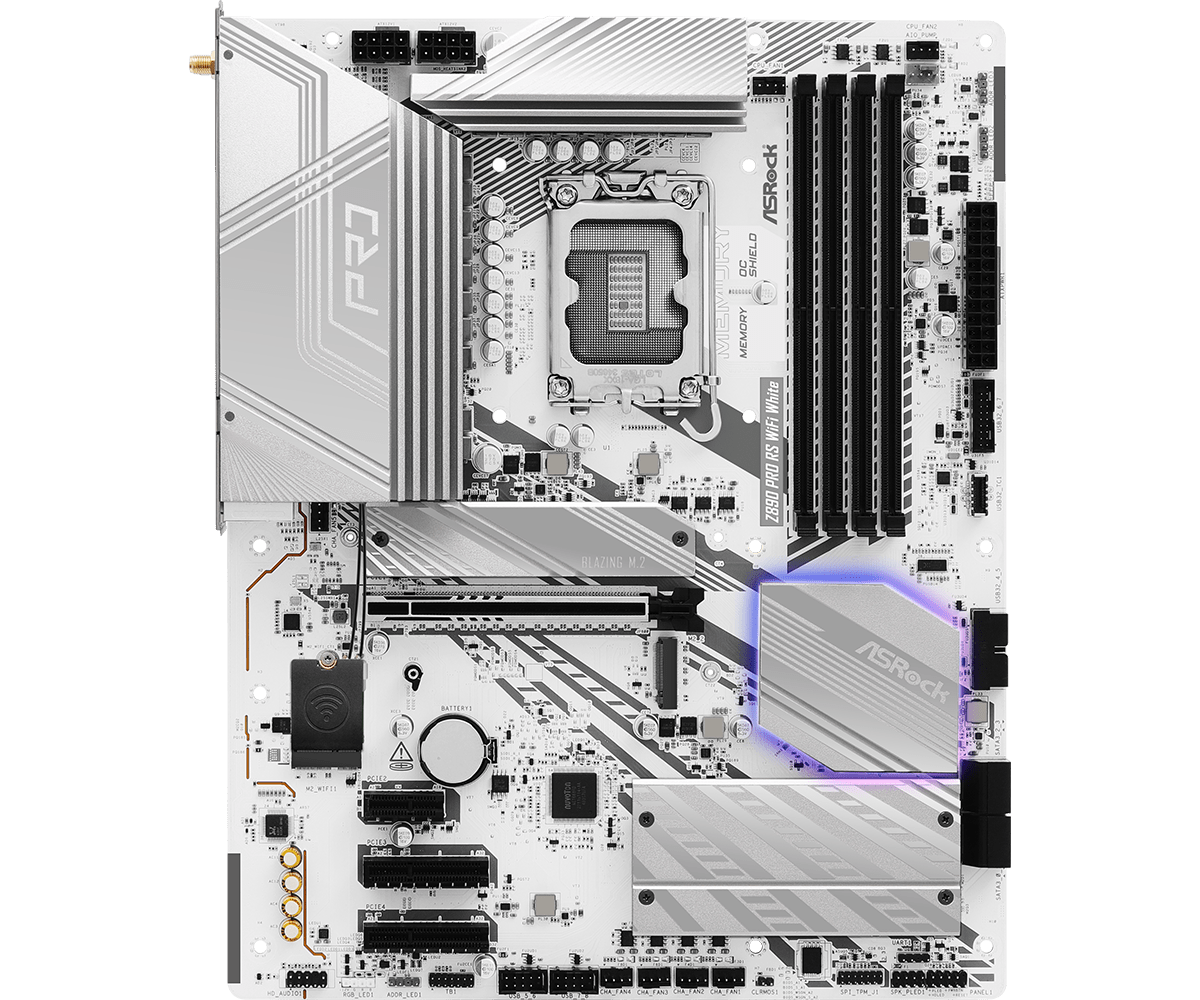

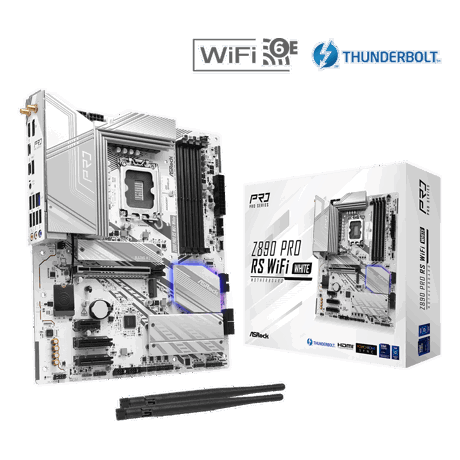

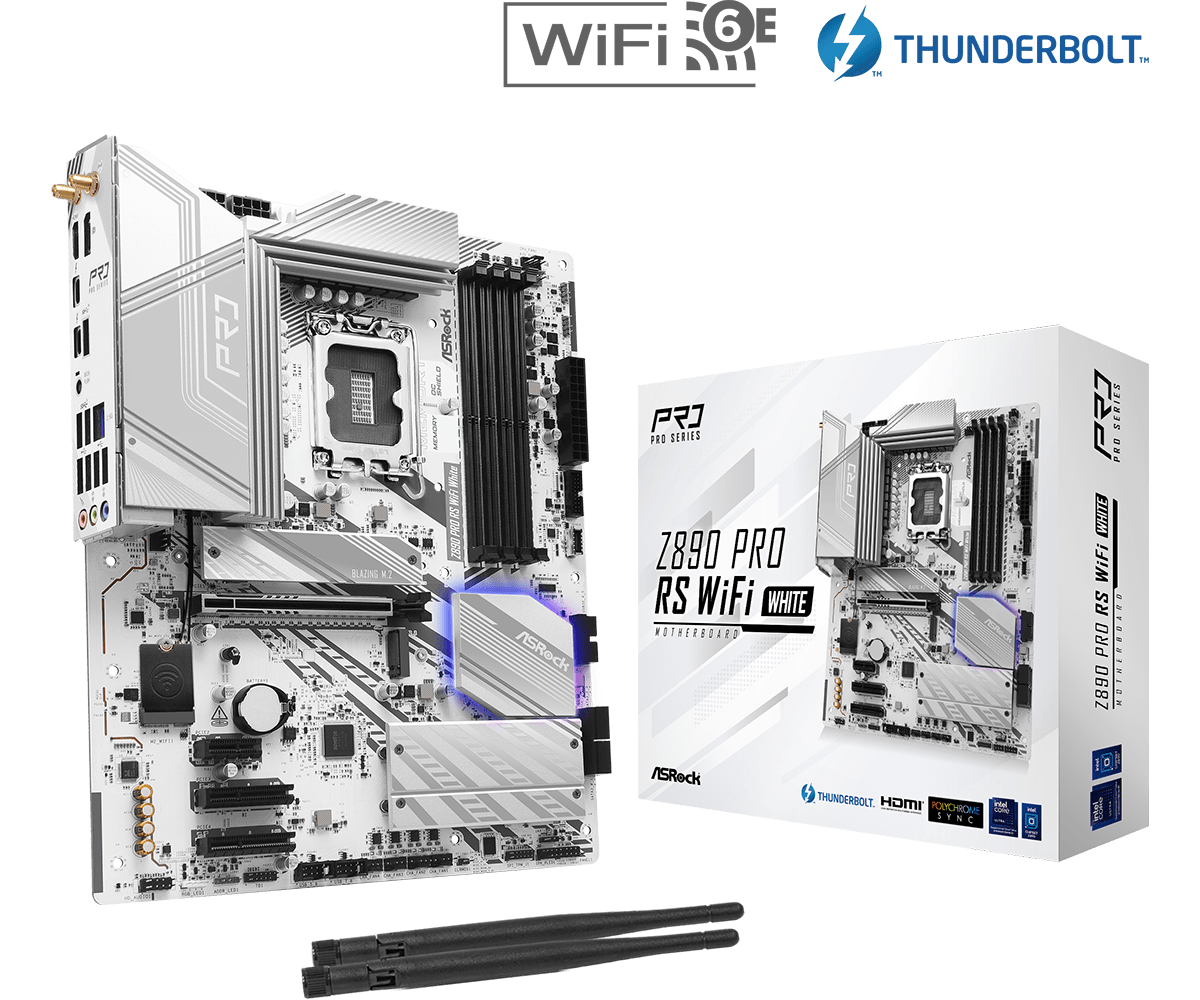

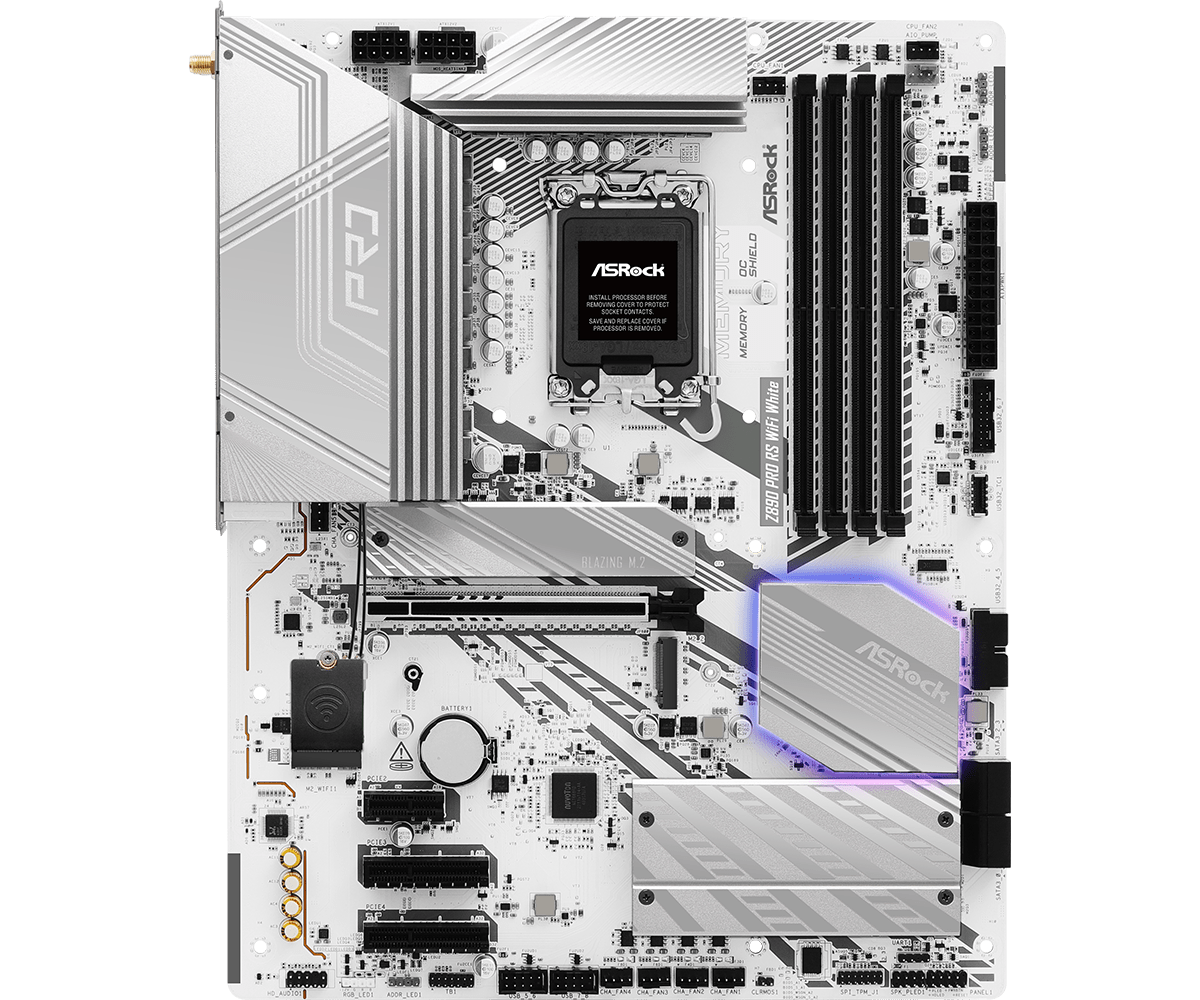

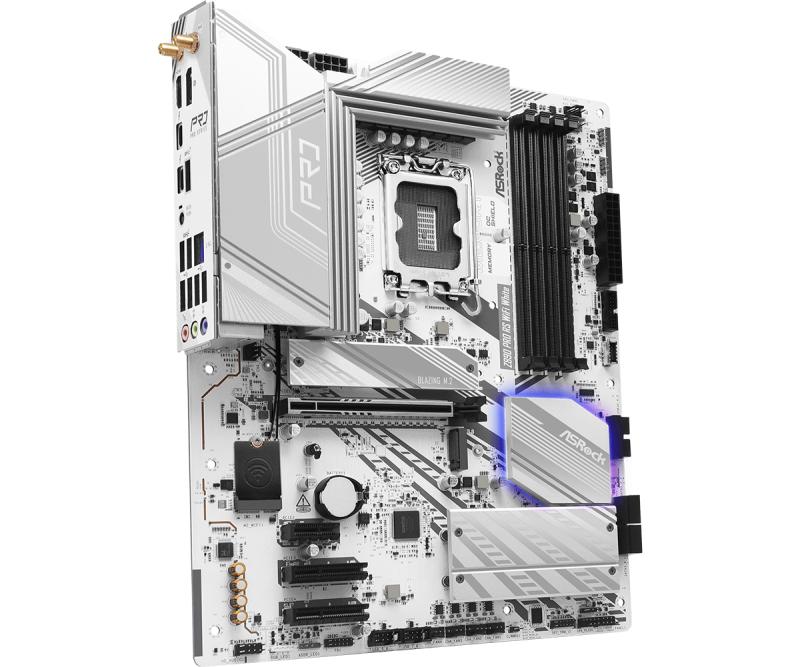

Placa de Baza ASROCK Z890 PRO RS WIFI WHITE LGA1851

Placa de Baza ASROCK Z890 PRO RS WIFI WHITE LGA1851, 4x DDR5, 1x HDMI 1x DP 2x Intel Thunderbolt, 1x PCIE 5.0 x16 2x PCIE 4.0 x4 1x PCIE 4.0 x1, 5x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

PCI Express x16 (Gen 5.x) slots

1

PCI Express x1 (Gen 4.x) slots

1

PCI Express x4 (Gen 4.x) slots

2

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 11 x64

Motherboard chipset

Intel Z890

Number of chassis fan connectors

5

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Audio connector

Yes

Supported memory clock speed (max)

9066 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

Non-ECC

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.3

LAN controller

Dragon RTL8125BG

Ethernet interface type

2.5 Gigabit Ethernet

Antenna included

Yes

Cables included

SATA

Screws included

Yes

M.2 standoff included

Yes

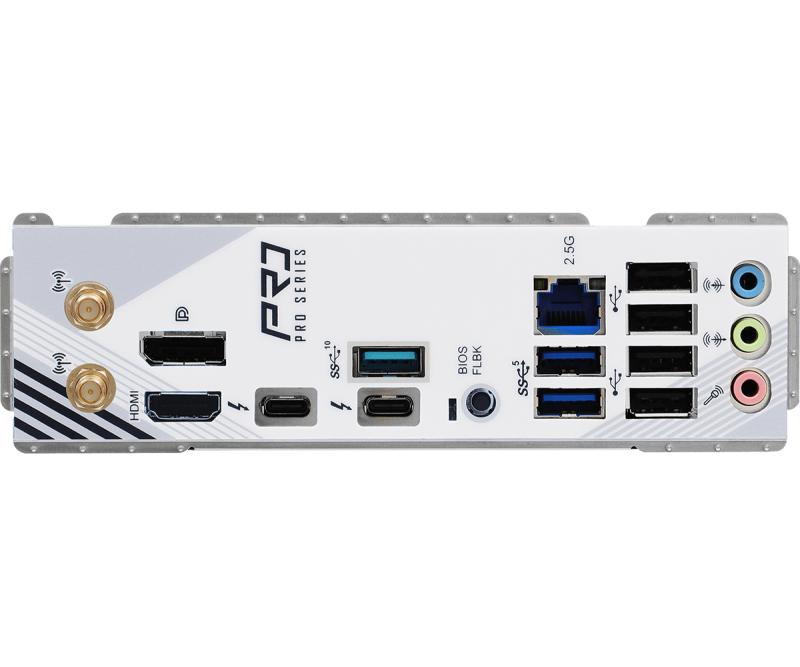

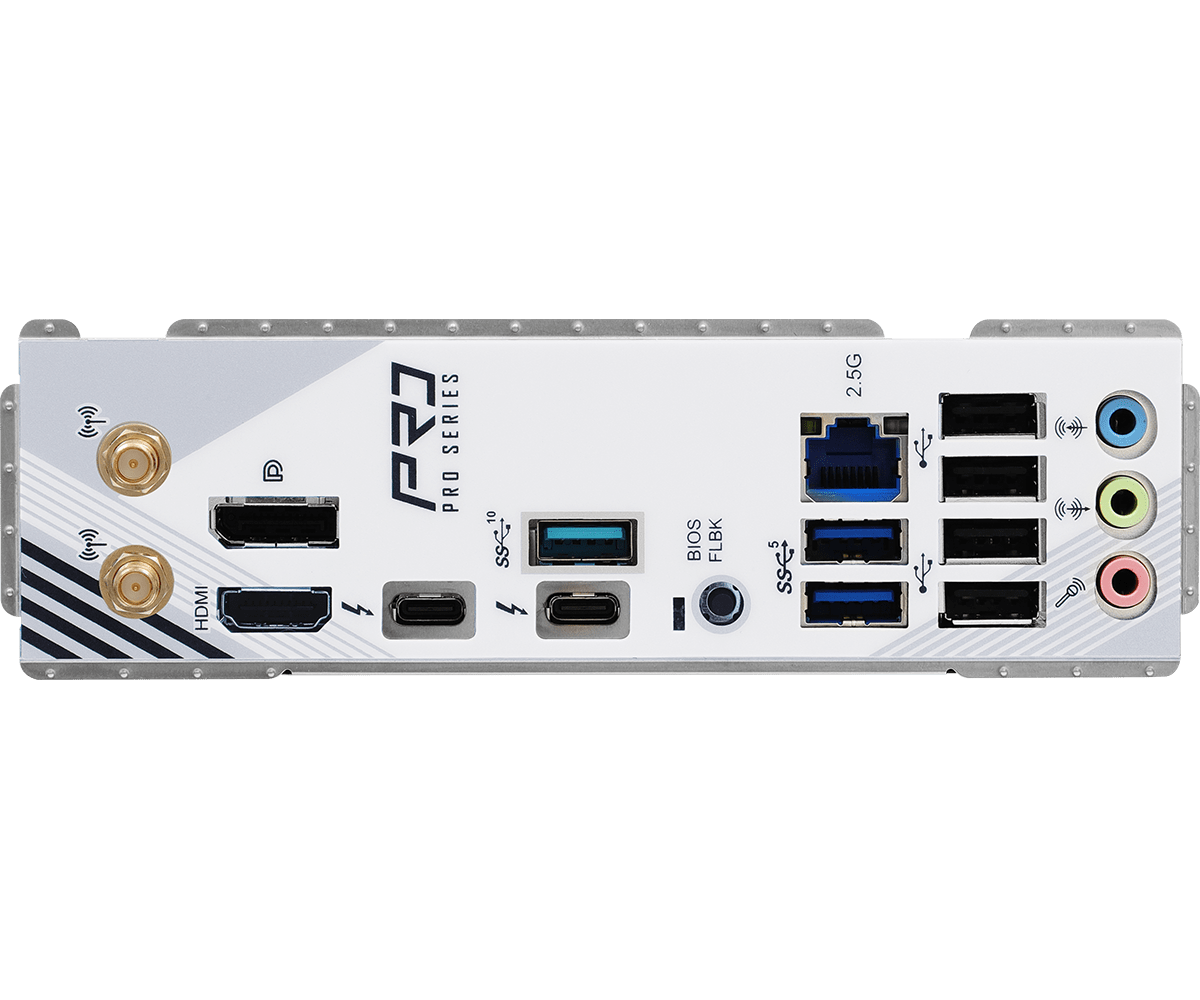

DisplayPorts quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

DVI-D ports quantity

0

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Processor manufacturer

Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Thunderbolt ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Headphone outputs

1

Microphone in

Yes

VGA (D-Sub) ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

8

Compliance certificates

Federal Communications Commission (FCC), CE

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
