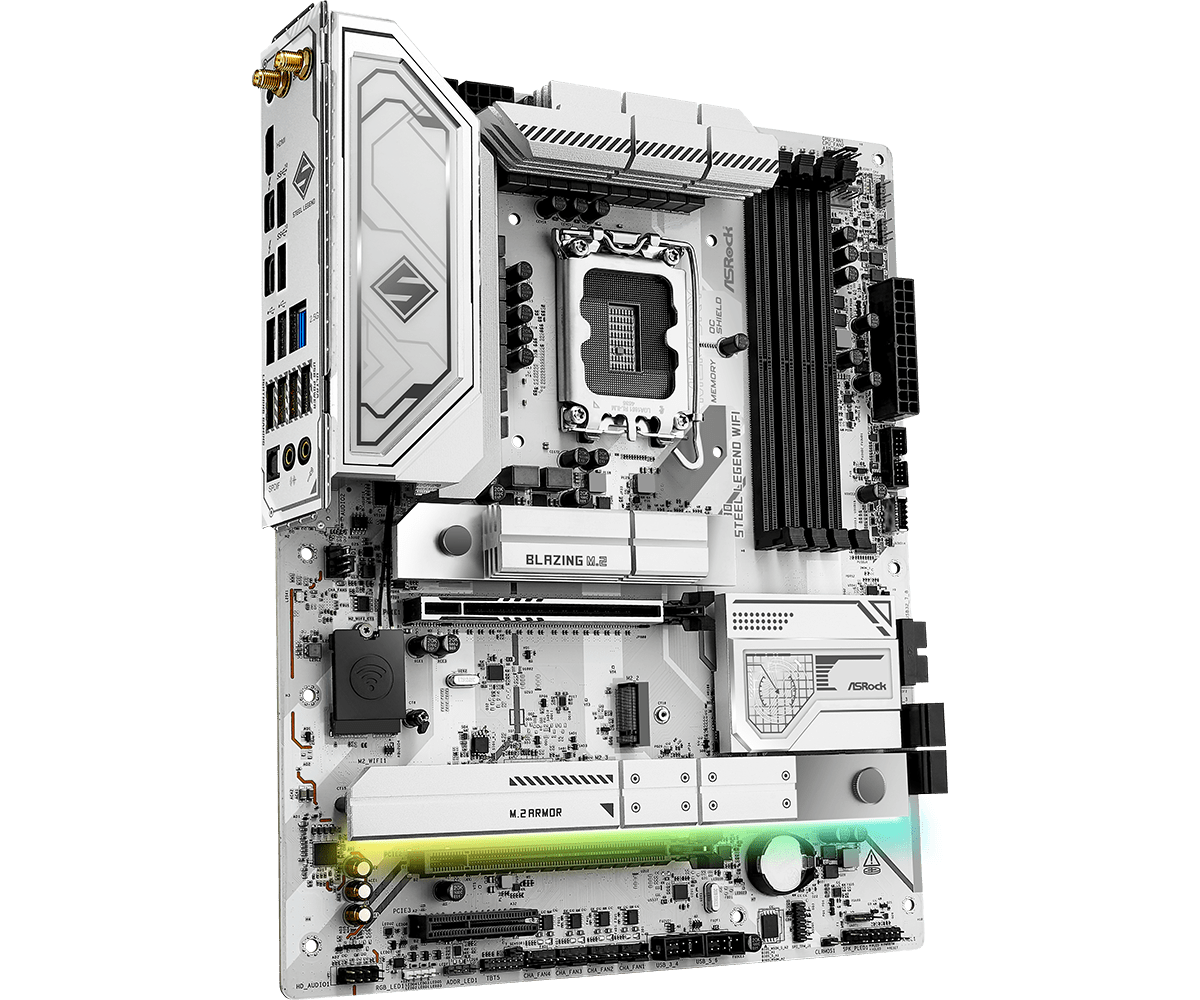

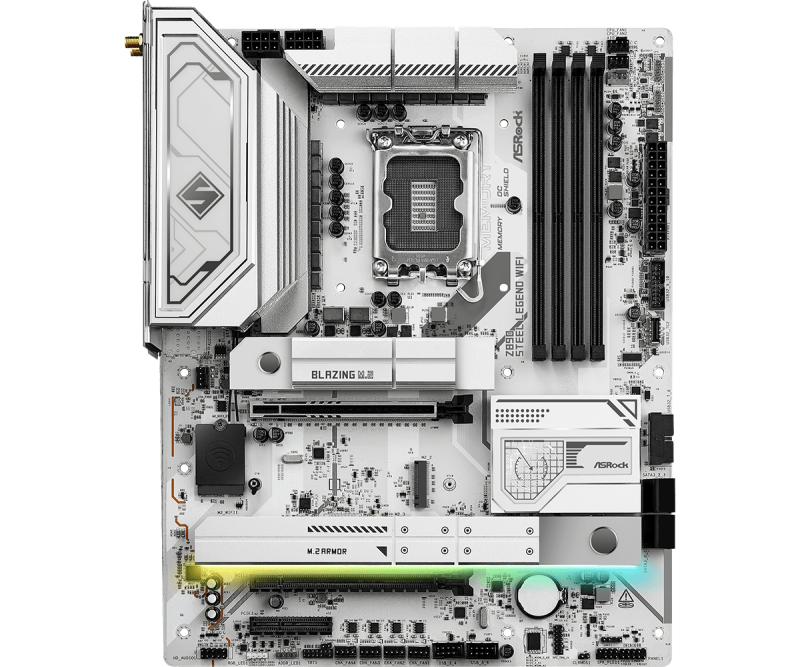

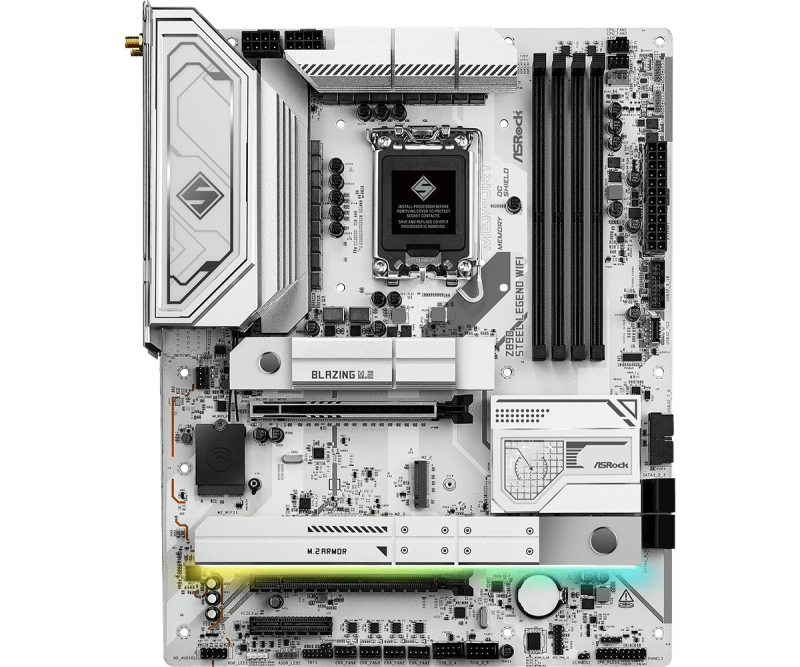

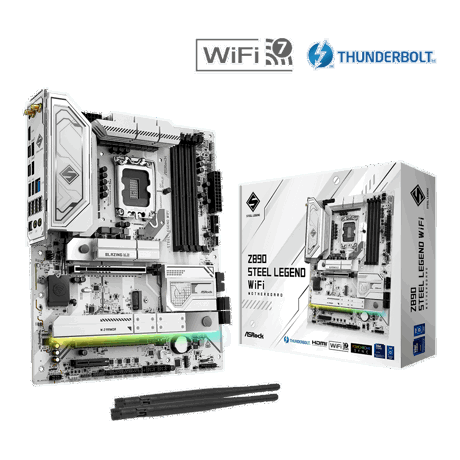

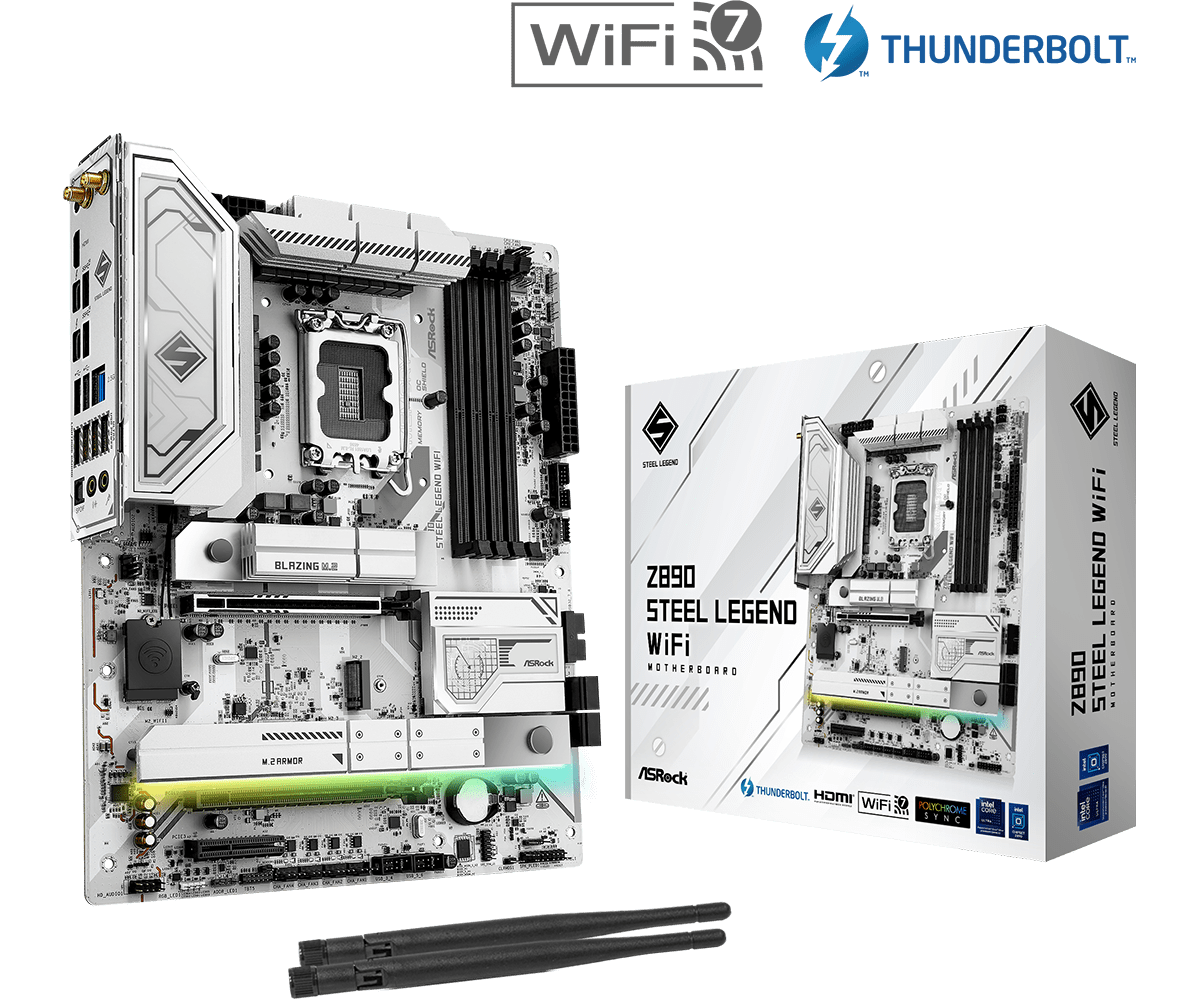

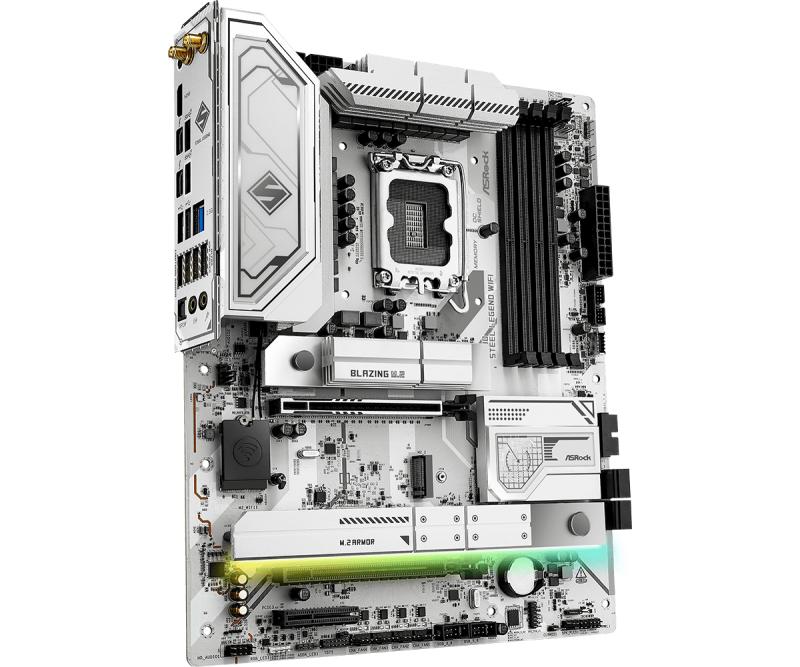

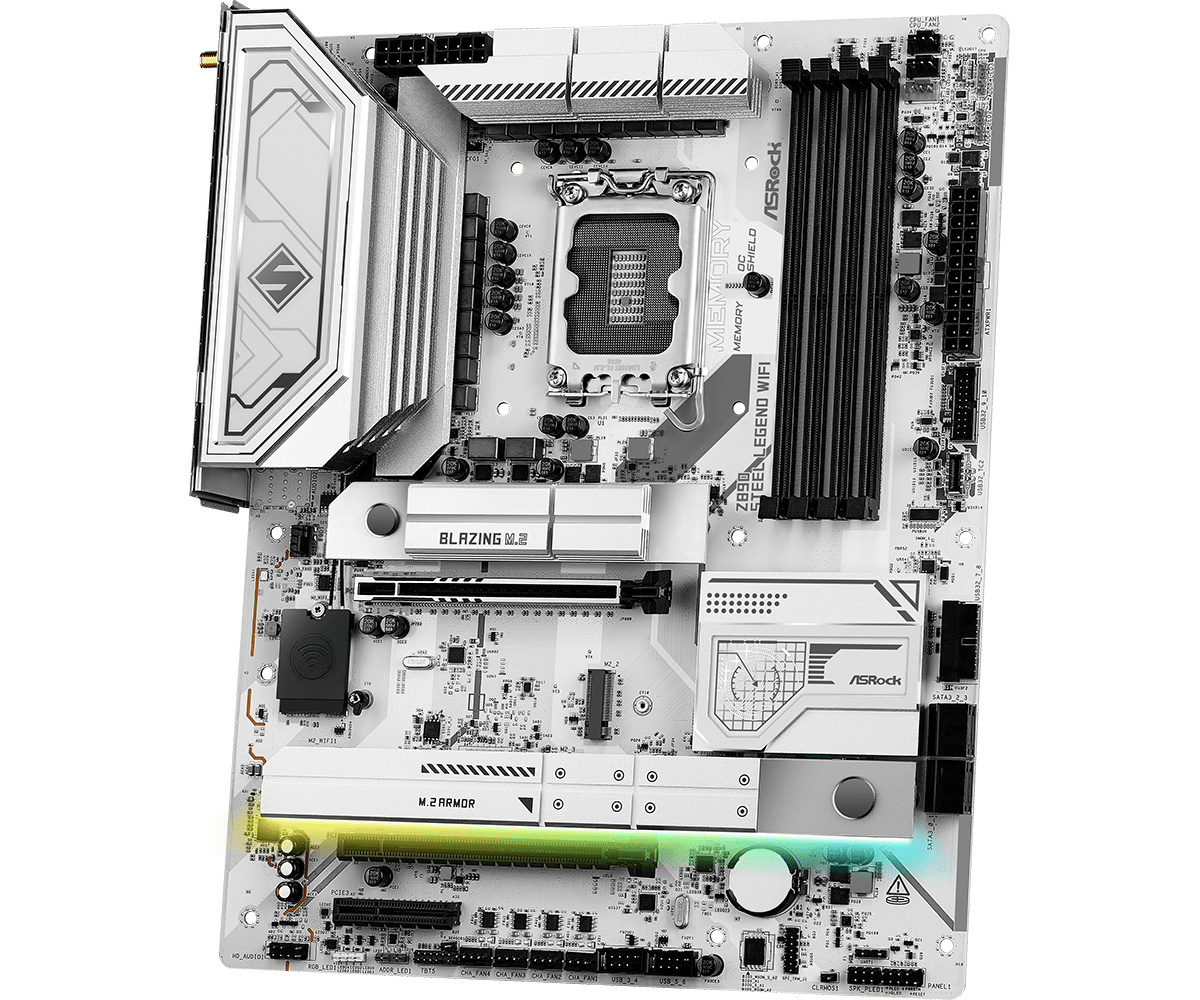

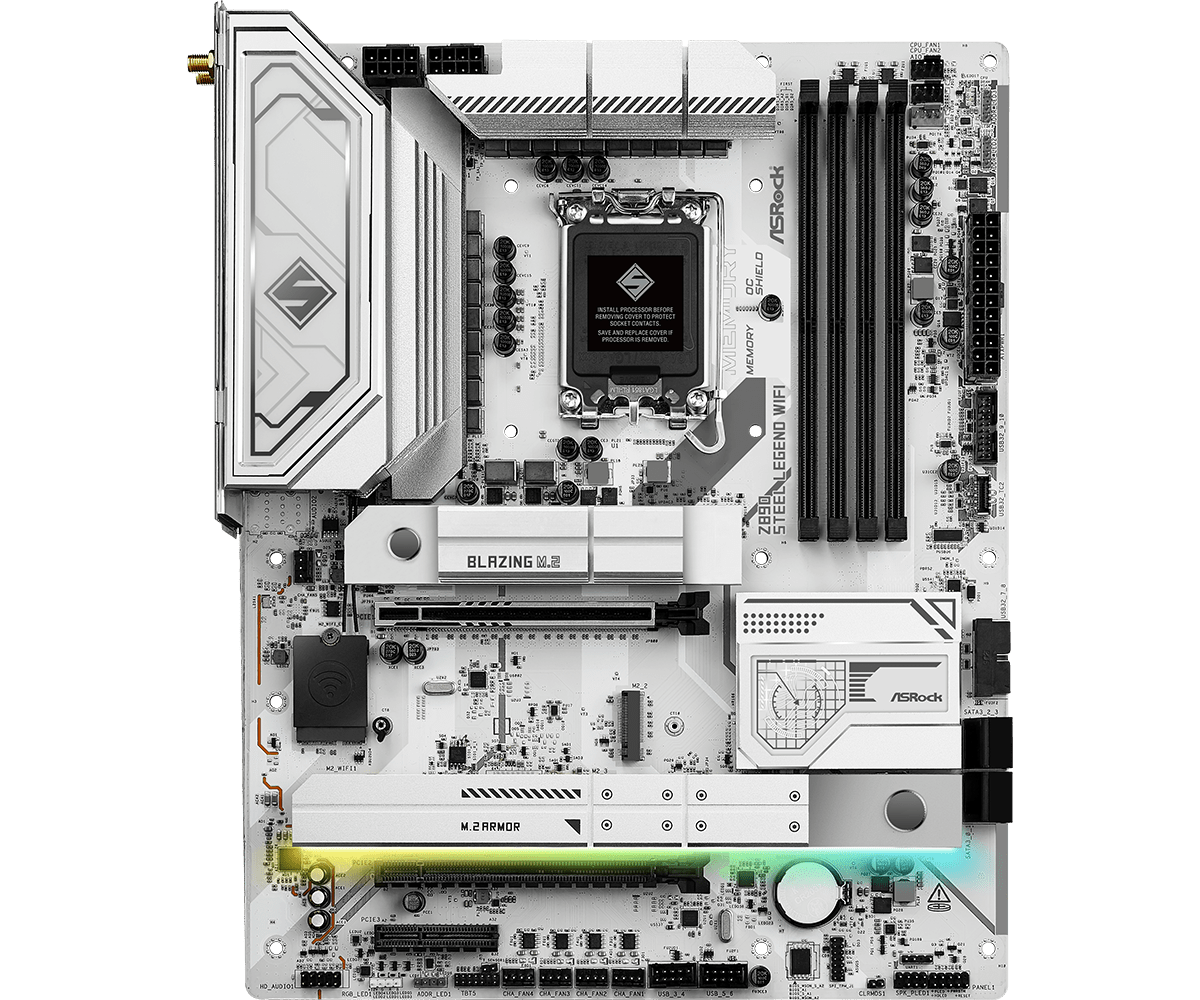

Placa de Baza ASROCK Z890 STEEL LEGEND WIFI LGA1851

Placa de Baza ASROCK Z890 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 2x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x4, 4x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio Chip

Realtek ALC1220

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of chassis fan connectors

5

USB 3.2 Gen 2x2 connectors

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of memory slots

4

Memory slots type

DIMM

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Supported memory clock speed (max)

9466 MHz

LAN controller

Dragon RTL8125BG

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Yes

BLUETOOTH

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

DVI-D ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Processor manufacturer

Intel

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

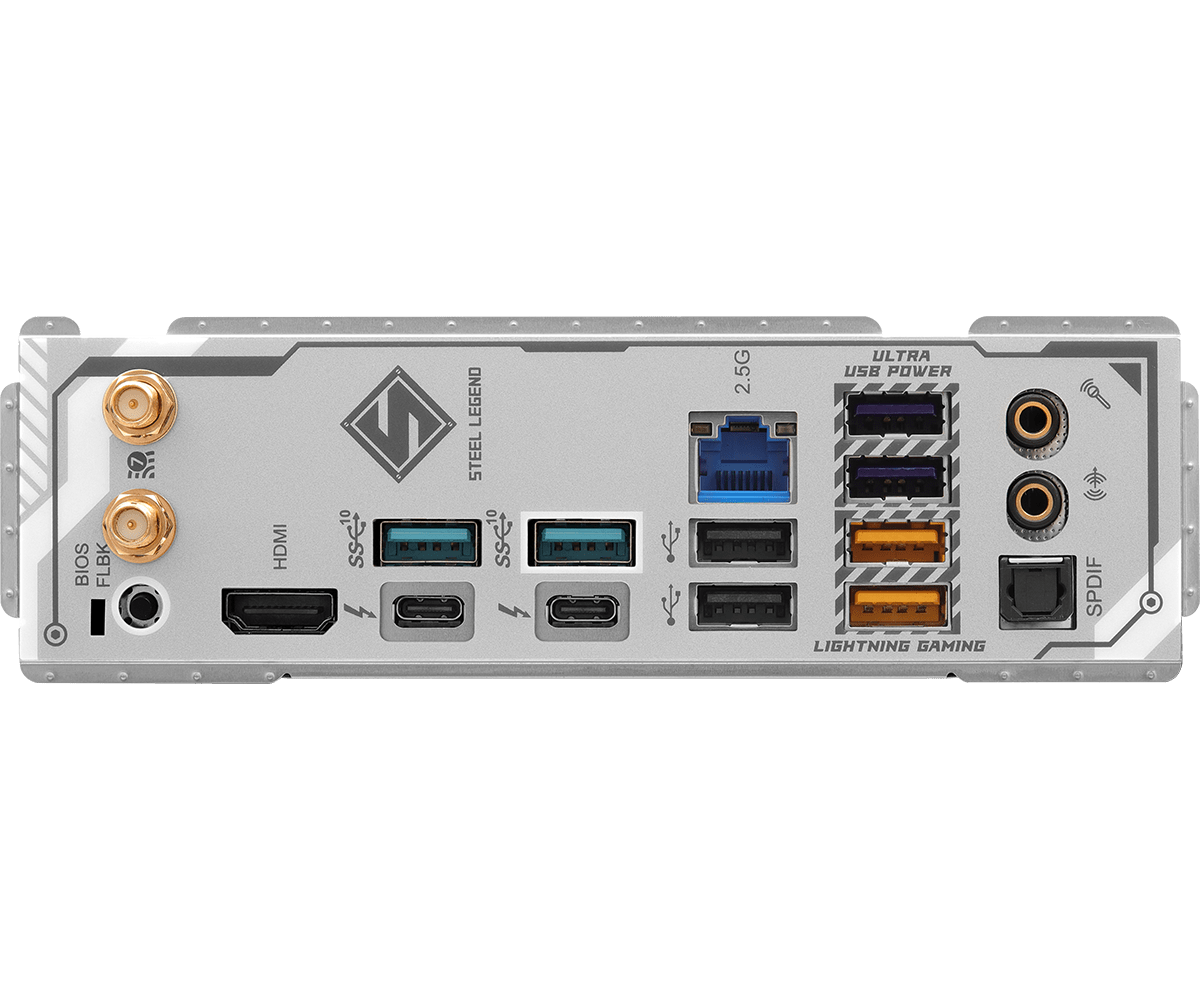

WiFi-AP antenna jack

2

Ethernet LAN (RJ-45) ports

1

Thunderbolt ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Microphone in

Yes

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
