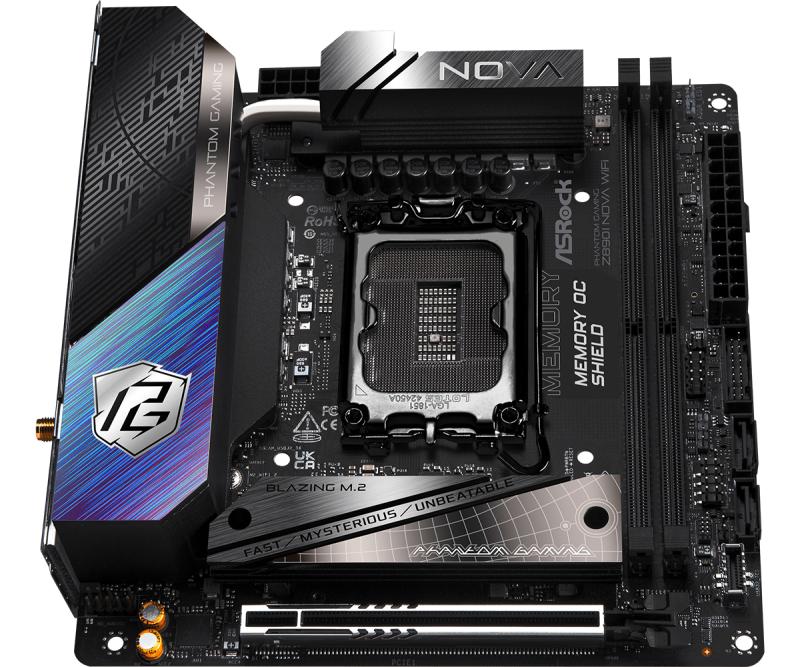

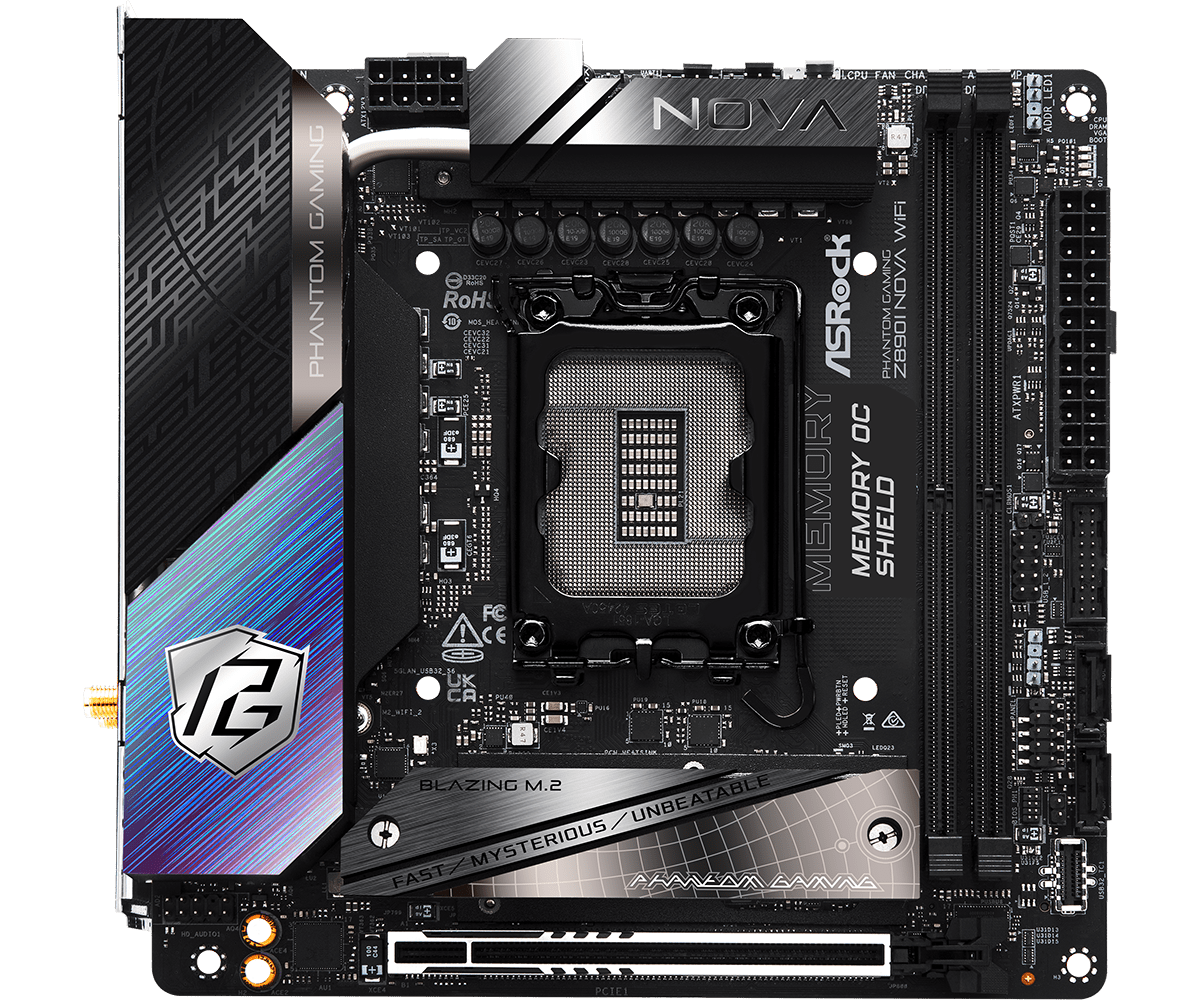

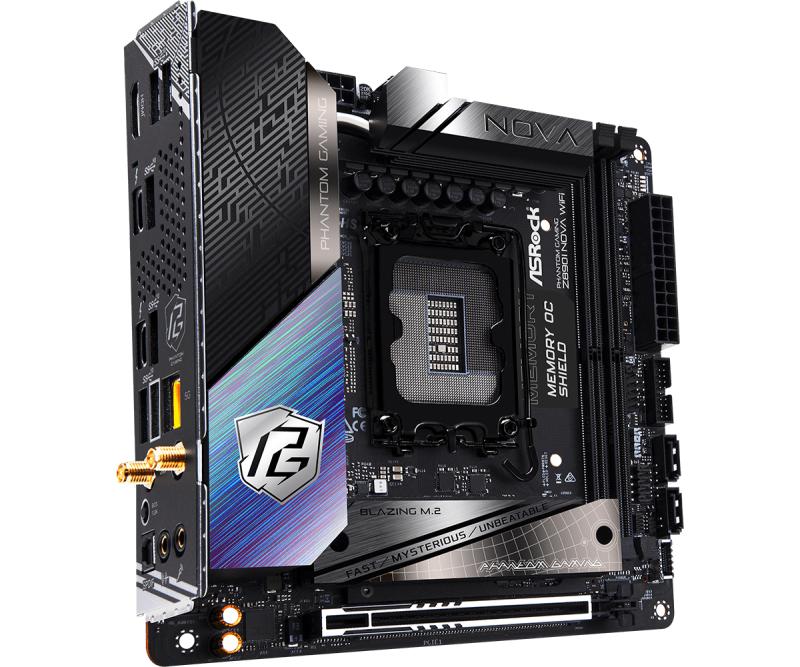

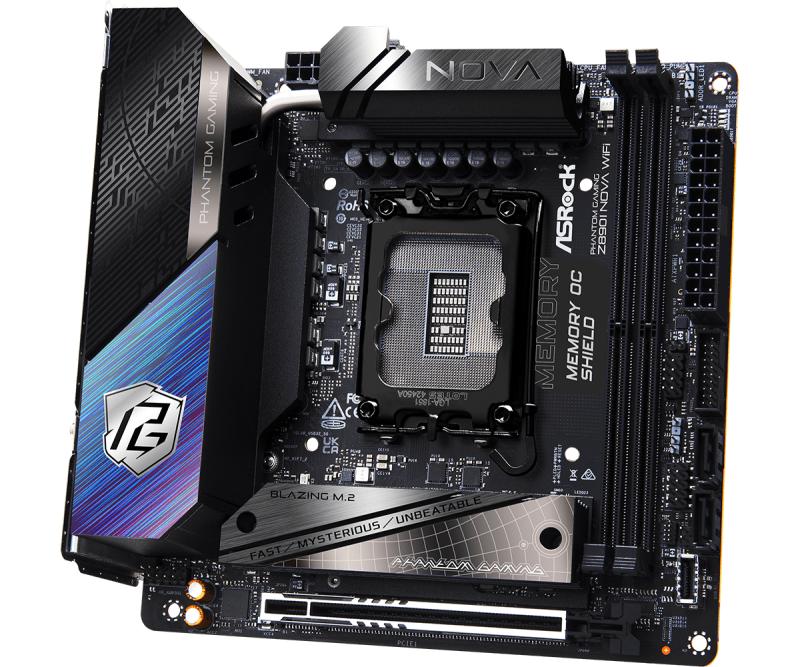

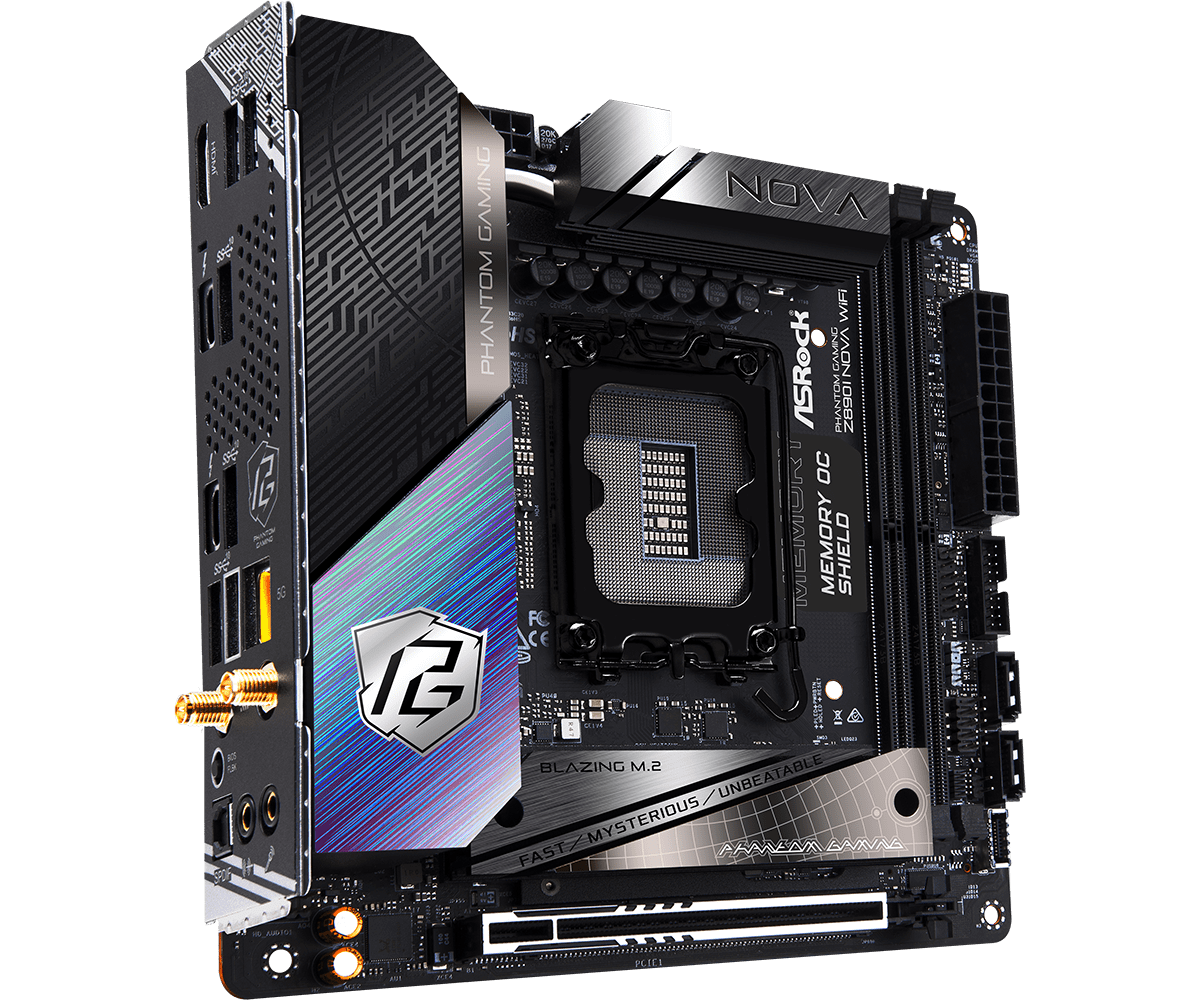

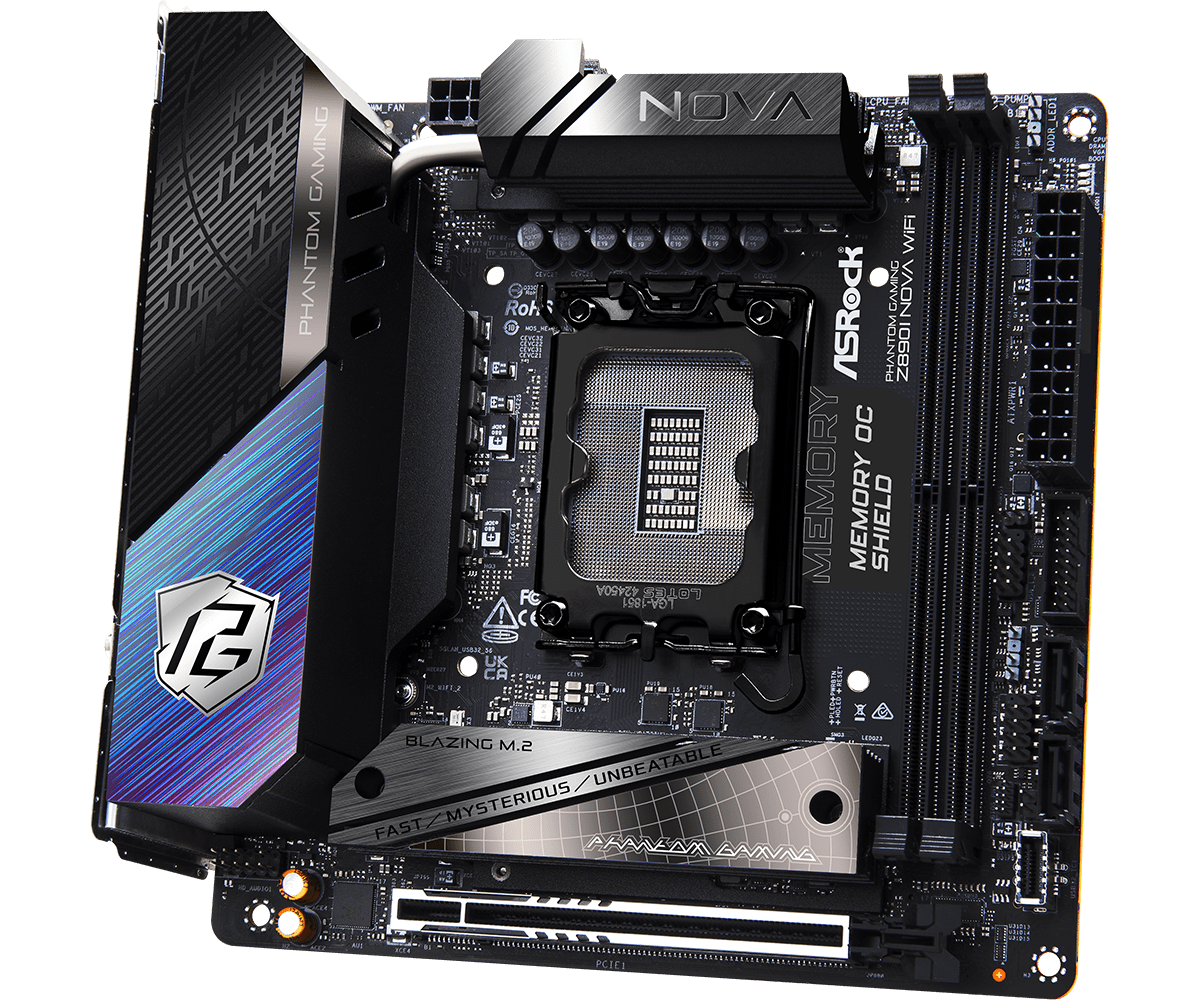

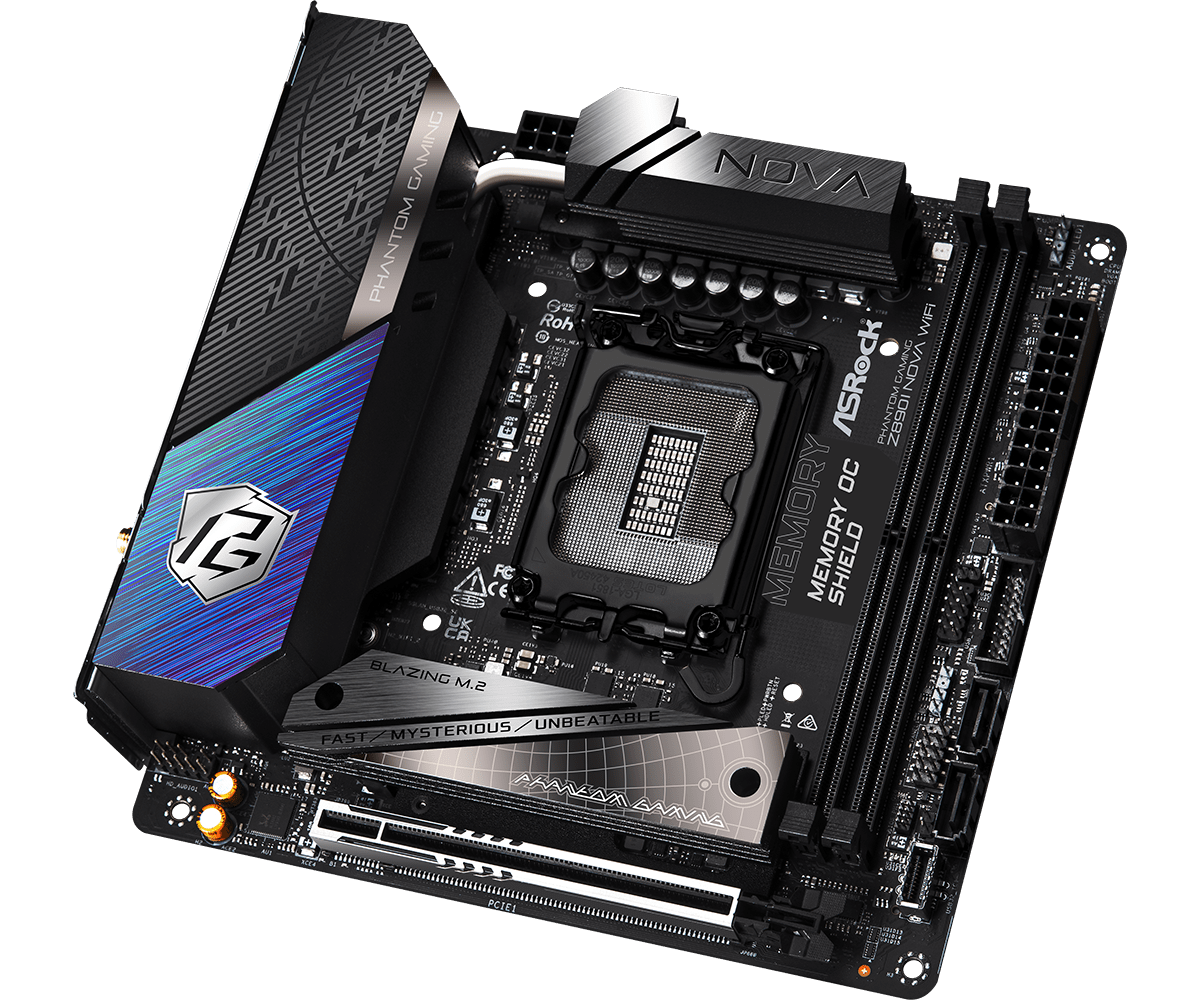

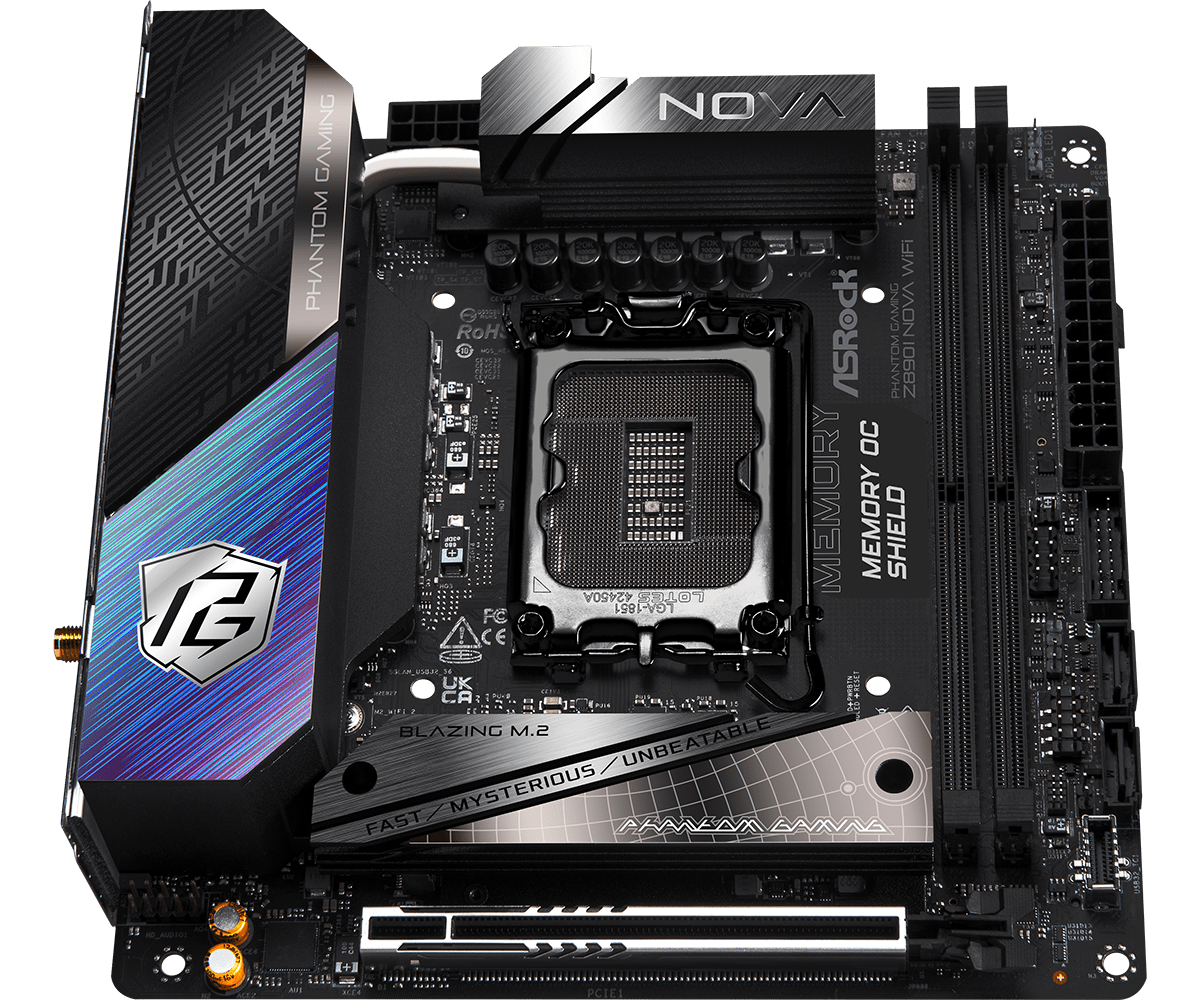

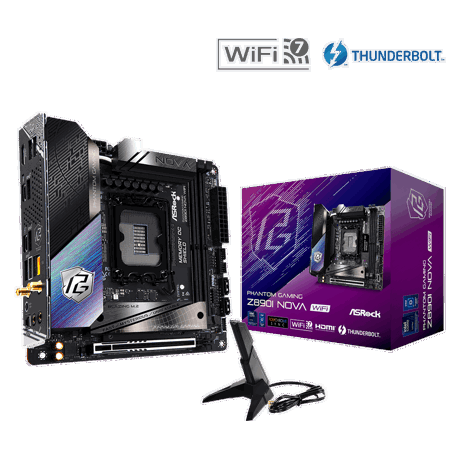

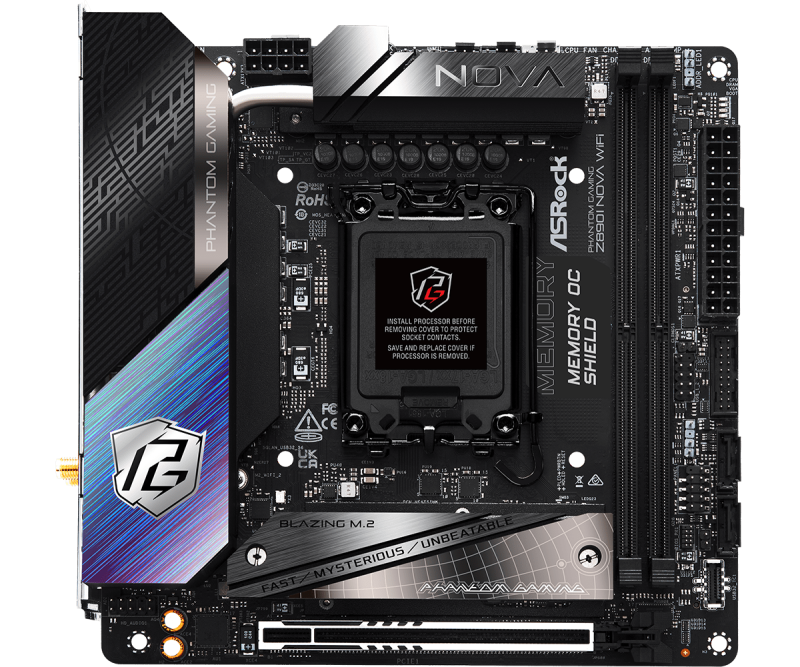

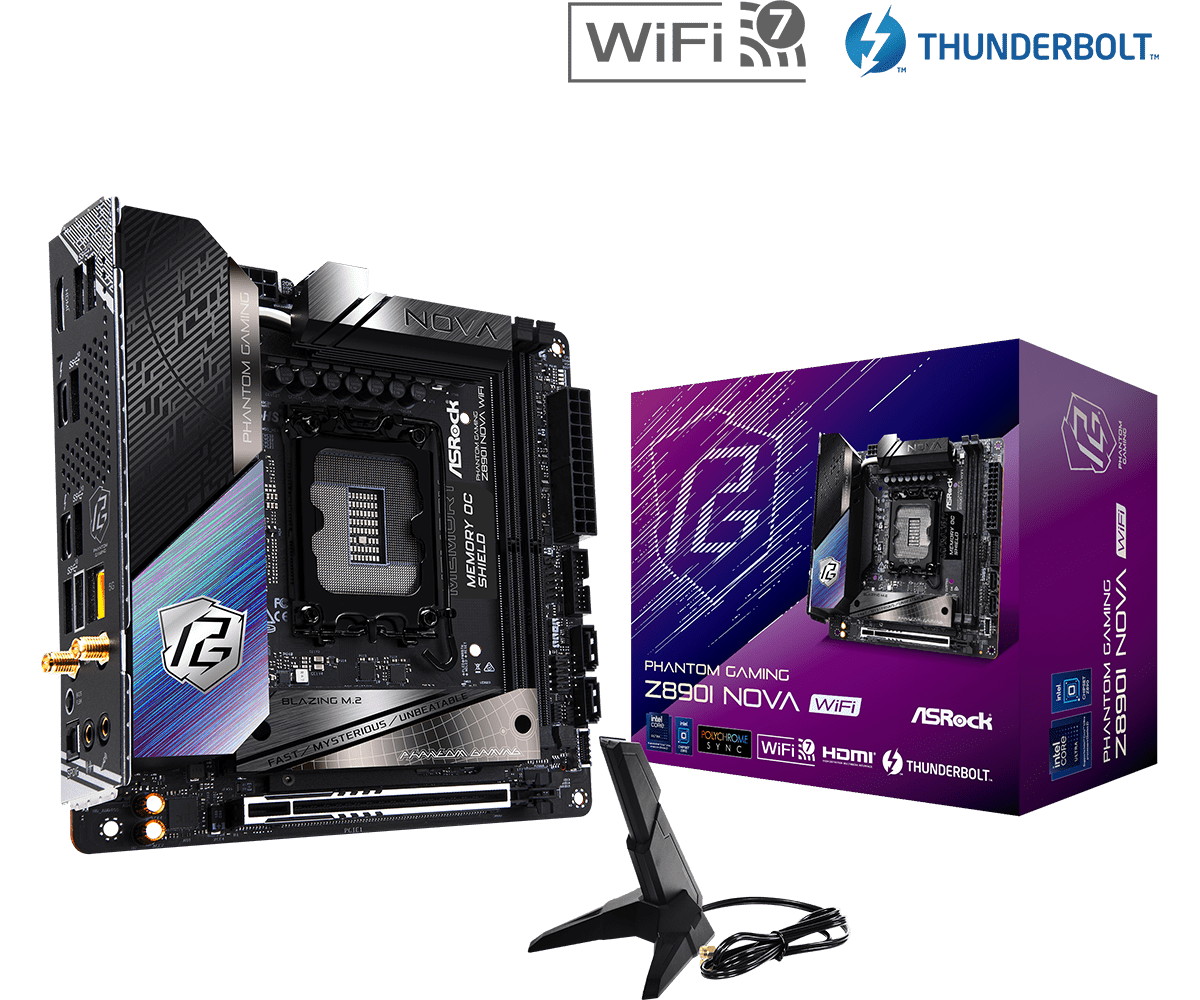

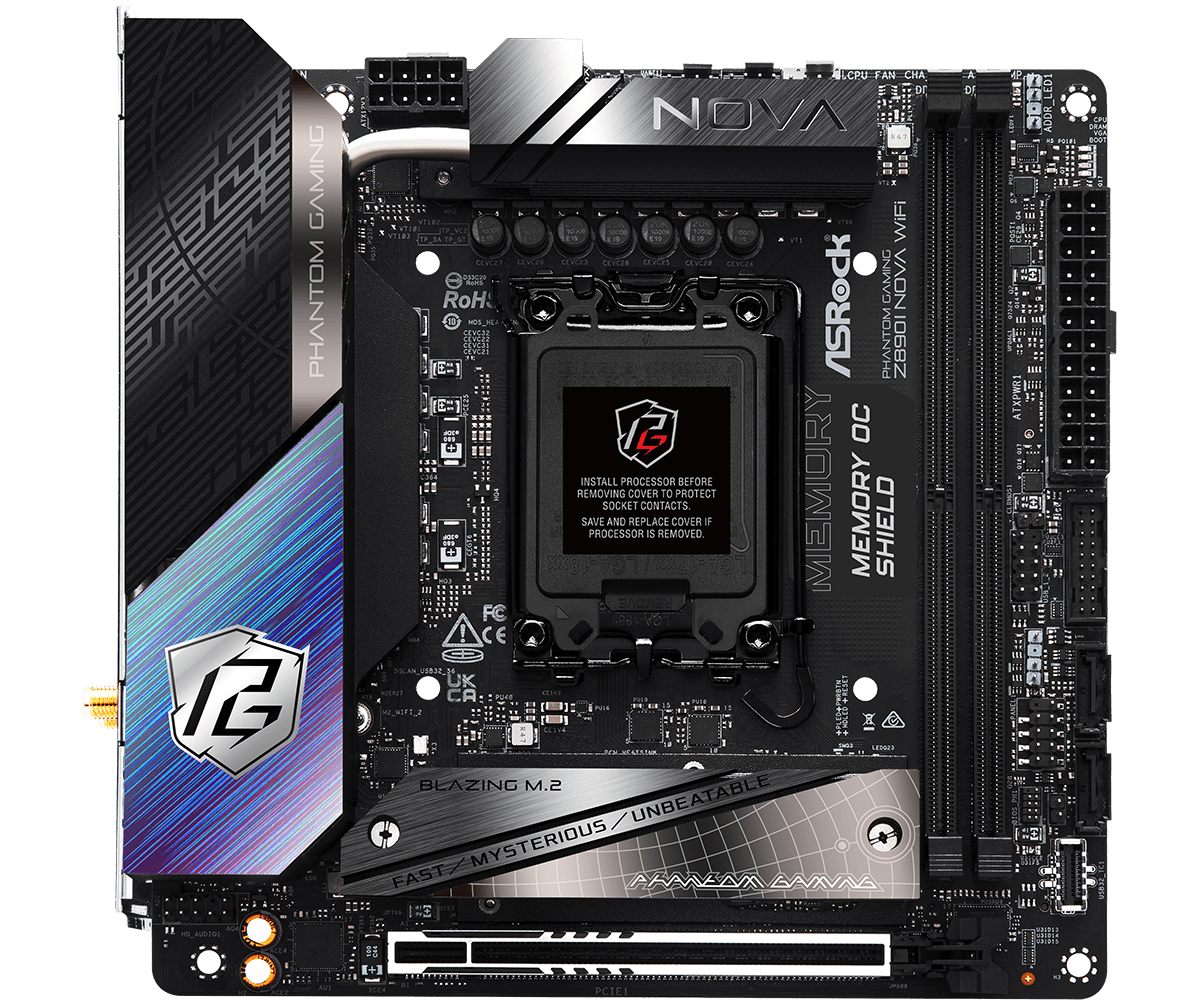

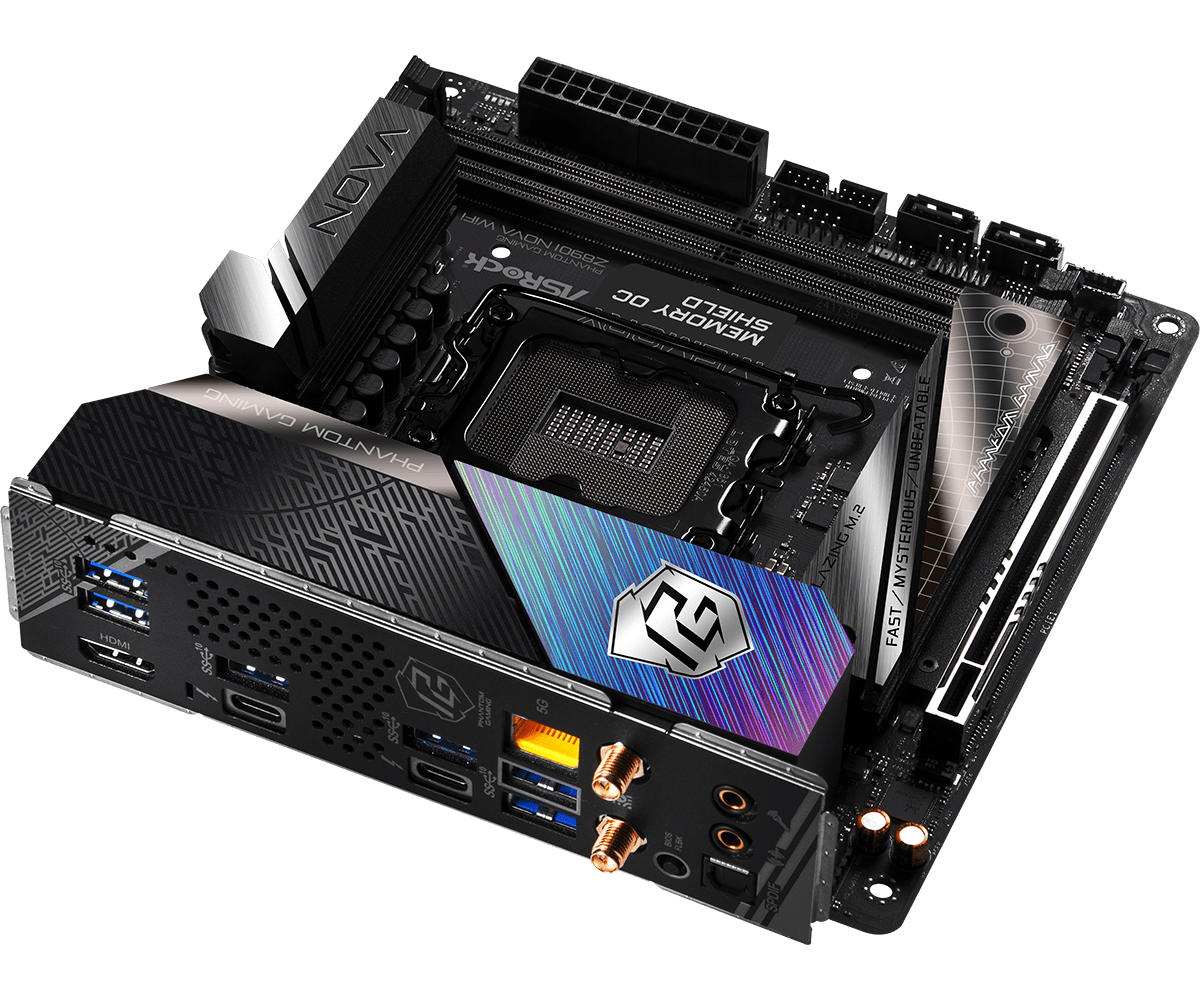

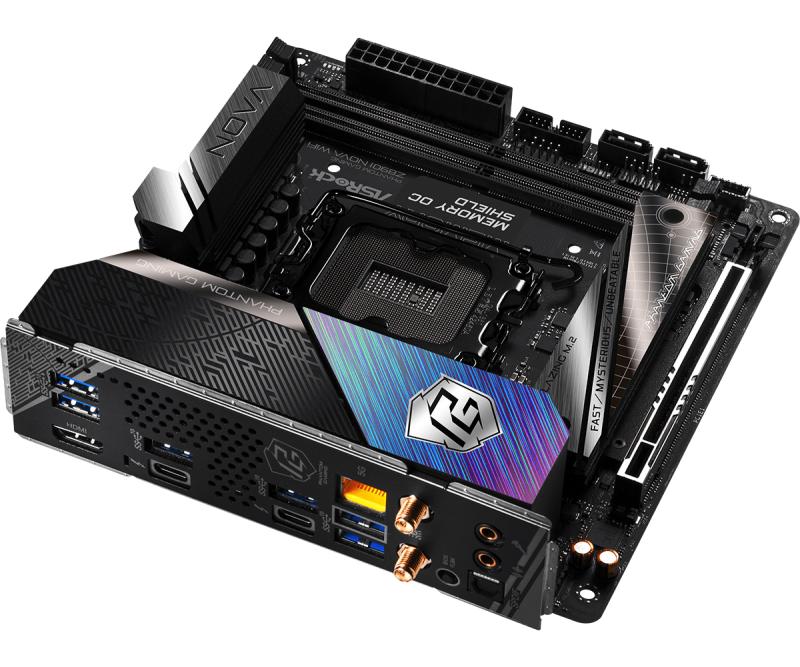

Placa de Baza ASROCK Z890I NOVA WIFI LGA1851

Placa de Baza ASROCK Z890I NOVA WIFI LGA1851, 2x DDR5, 1x HDMI 2x Intel Thunderbolt 4, 1x PCIE 5.0 x16, 4x M.2, 2x SATA 6GB/s, Mini-ITX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

Motherboard chipset

Intel Z890

Audio Chip

Realtek ALC4082

Certification

FCC, CE, ErP/EuP

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

Maximum resolution

7680 x 4320 pixels

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Number of SATA III connectors

2

Number of chassis fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

Number of CPU fan connectors

1

USB 2.0 connectors

1

Maximum internal memory

128 GB

Number of memory slots

2

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet interface type

5 Gigabit Ethernet

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

LAN controller

Realtek RTL8126

Screws included

Yes

Cables included

SATA

Antenna included

Yes

DVI-D ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Processor manufacturer

Intel

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

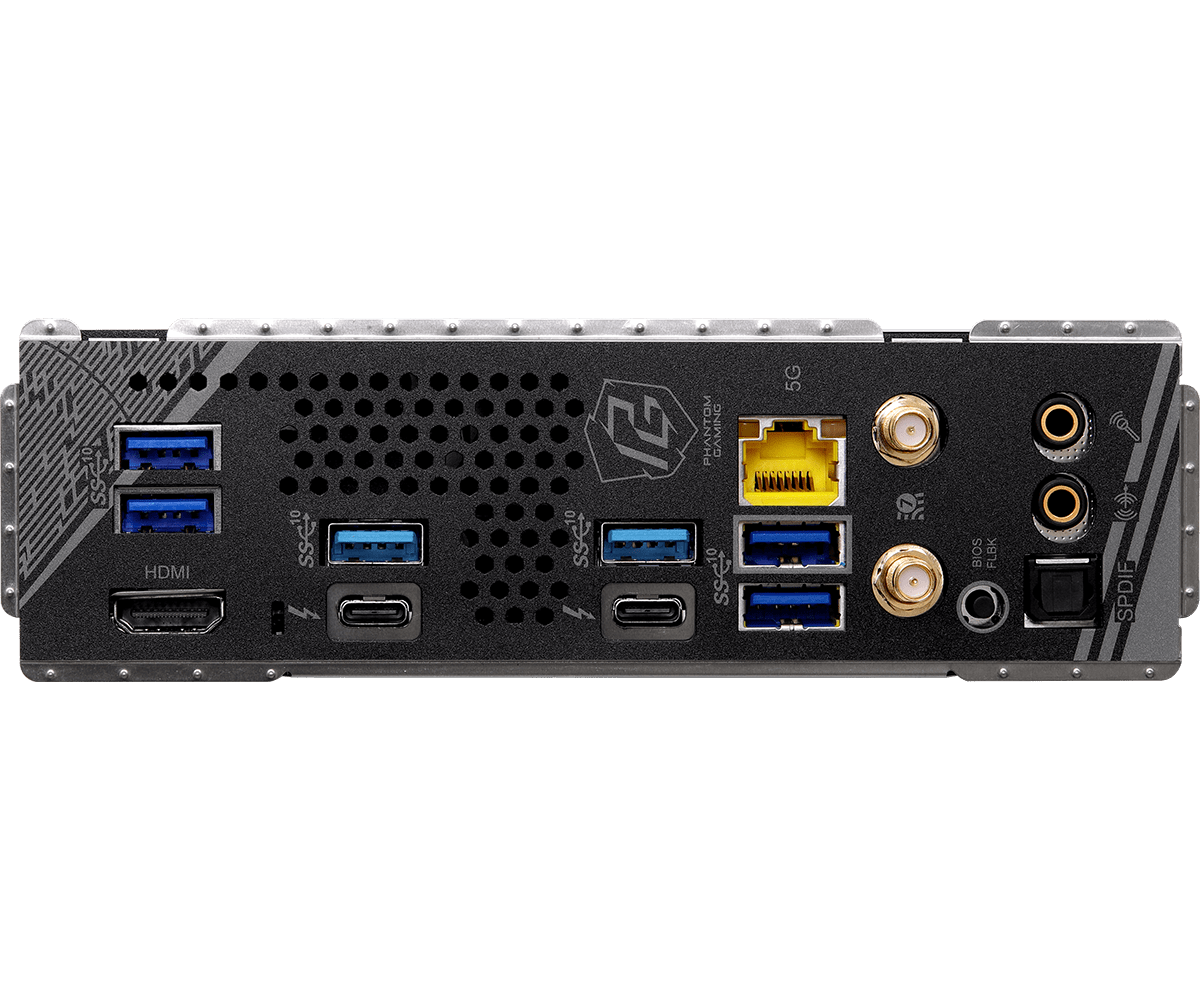

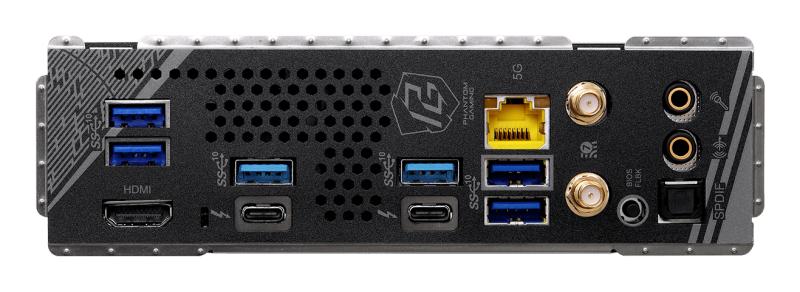

S/PDIF out port

Yes

WiFi-AP antenna jack

2

USB connector type

USB Type-A, USB Type-C

Thunderbolt ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Headphone outputs

1

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 5, 10

Number of storage drives supported

5

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Depth

170 mm

Width

170 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
