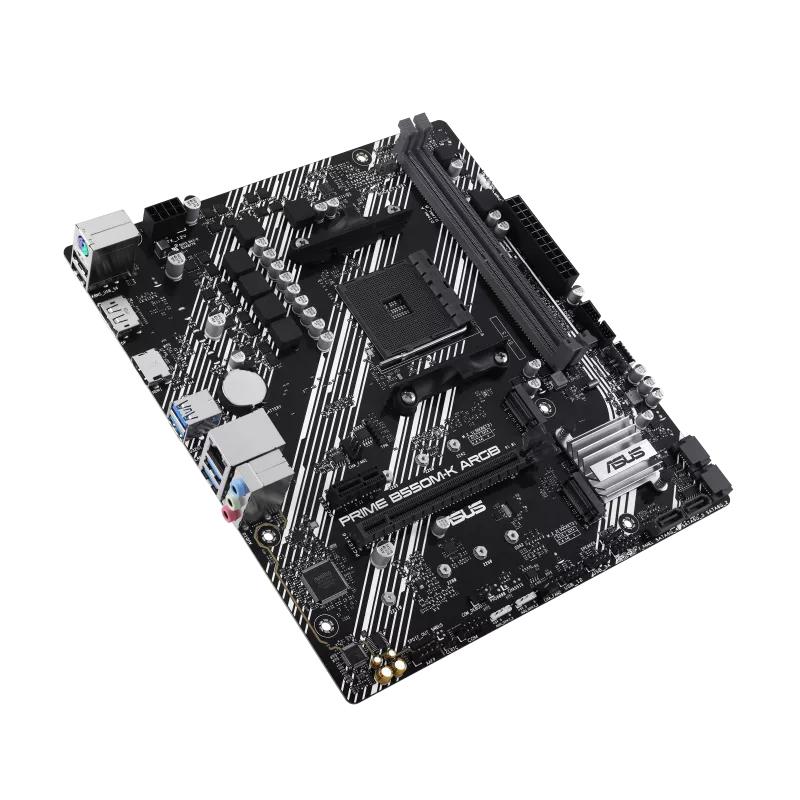

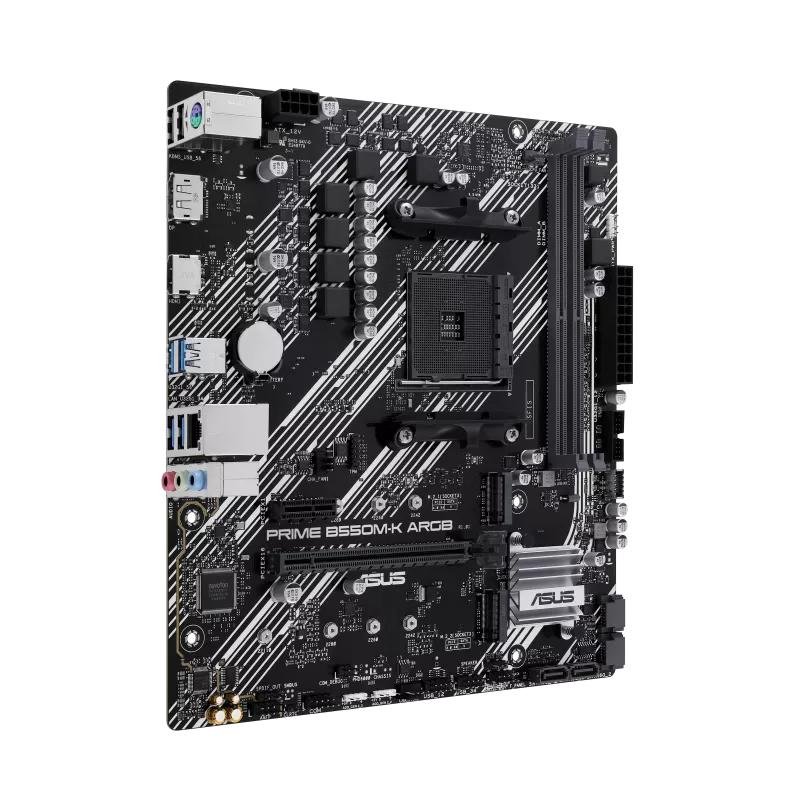

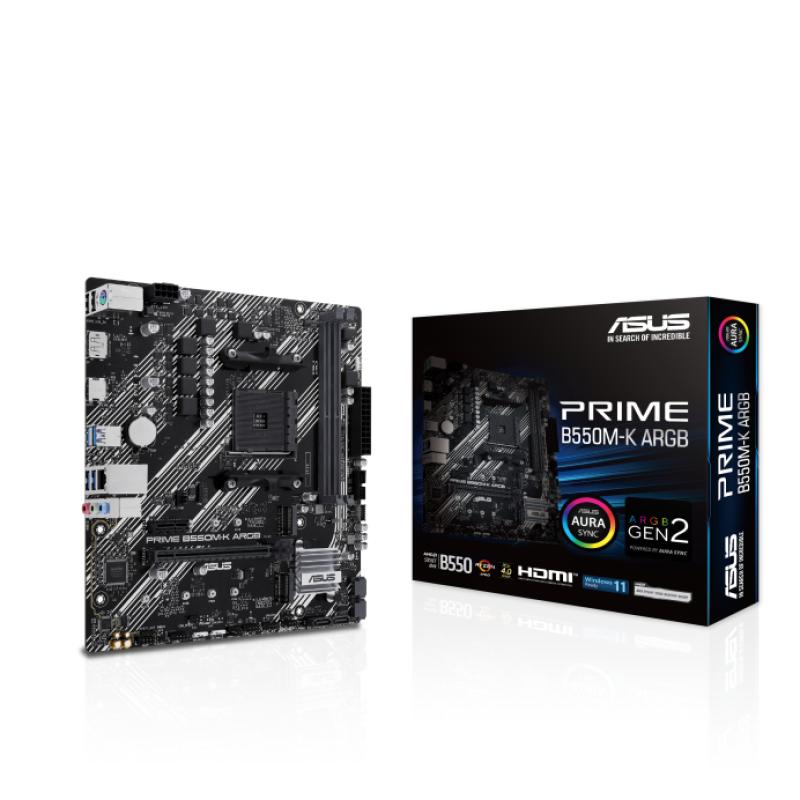

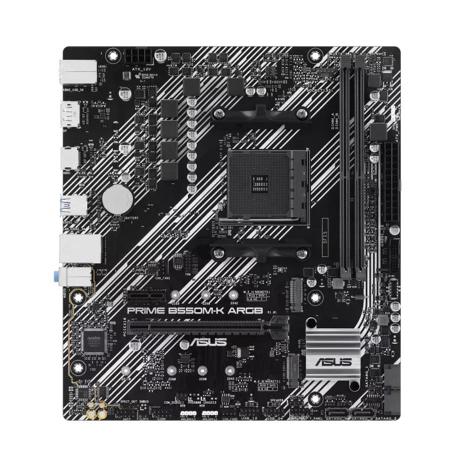

Placa de Baza ASUS PRIME B550M-K ARGB AM4, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2 4x SATA 6GB/s, mATX
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
BIOS type
EFI AMI
PCI Express x16 (Gen 3.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Windows operating systems supported
Windows 10 x64, Windows 11
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
12V power connector
Yes
S/PDIF out connector
Yes
Number of COM connectors
1
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Maximum internal memory
64 GB
Number of memory slots
2
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
Ethernet interface type
Gigabit Ethernet
Weight
460 g
Cables included
SATA
Package width
260 mm
Package depth
270 mm
Package height
515 mm
Package weight
960 g
HDMI version
2.1
DisplayPort version
1.4
HDMI ports quantity
1
DisplayPorts quantity
1
DVI-D ports quantity
0
Processor manufacturer
AMD
Processor socket
Socket AM4
Line-in
Yes
Microphone in
Yes
USB 2.0 ports quantity
2
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
Supported storage drive interfaces
M.2
Supported storage drive types
HDD & SSD
Height
36.5 mm
Depth
221 mm
Width
244 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
