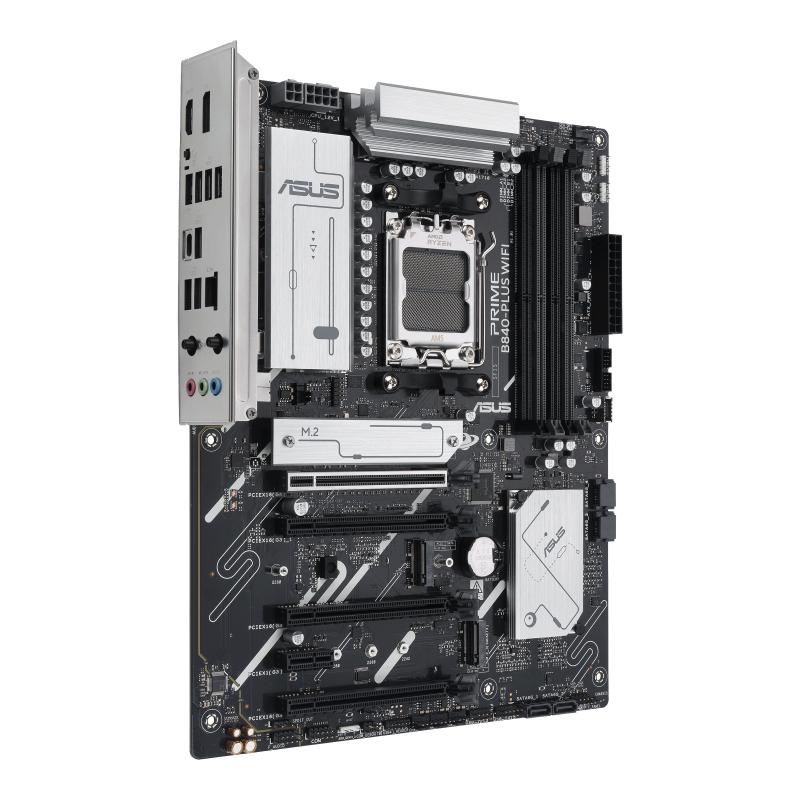

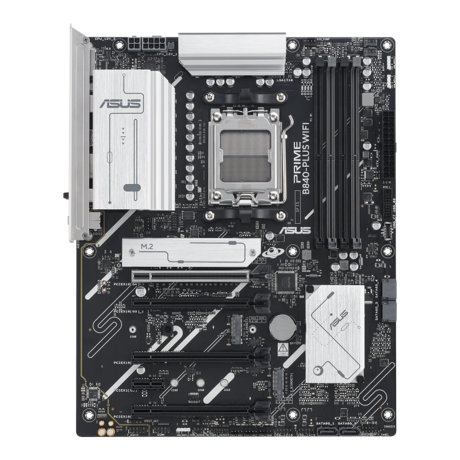

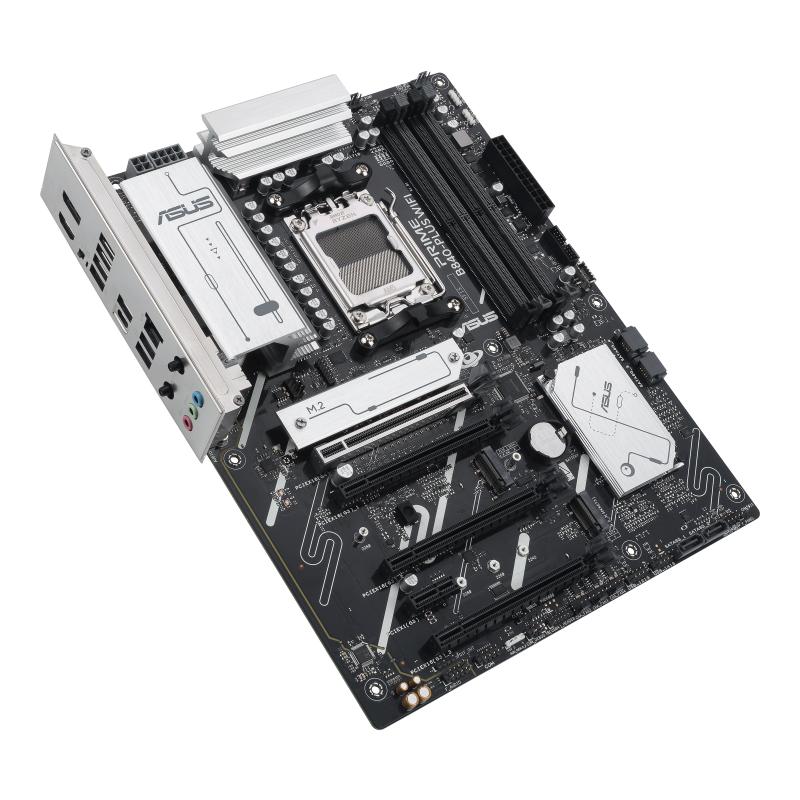

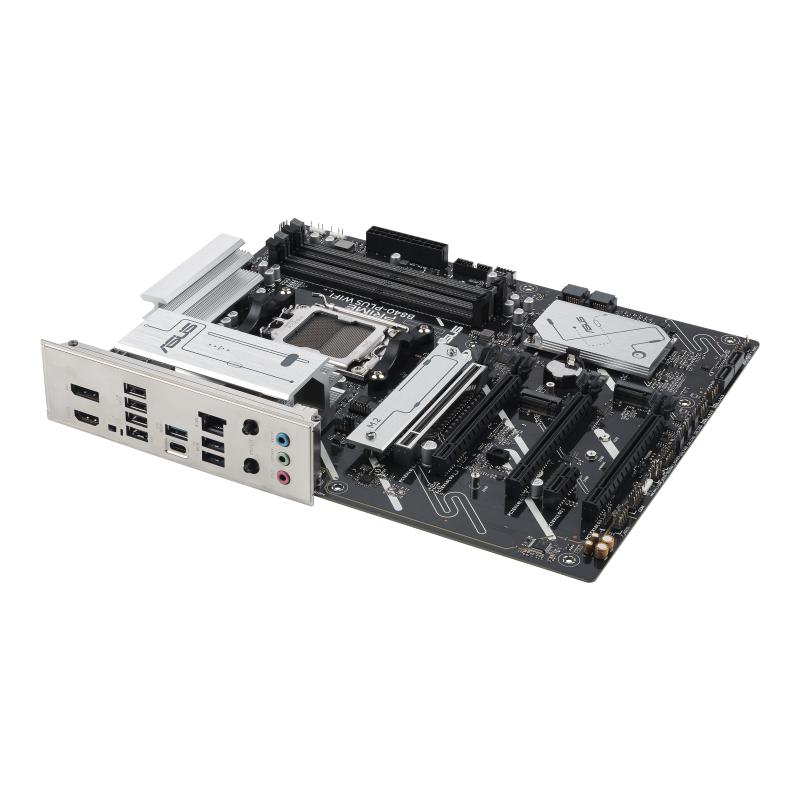

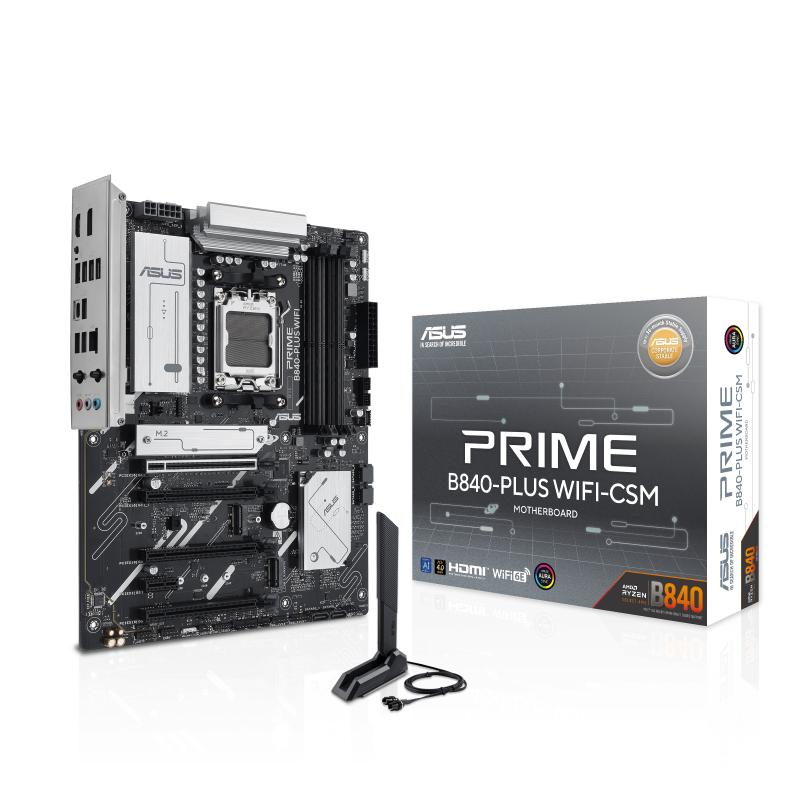

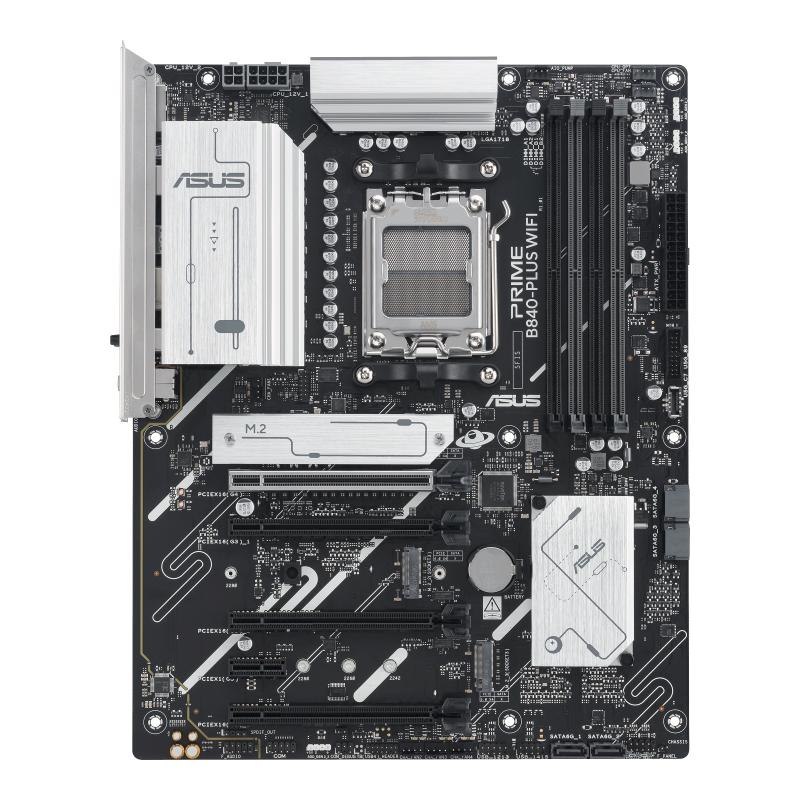

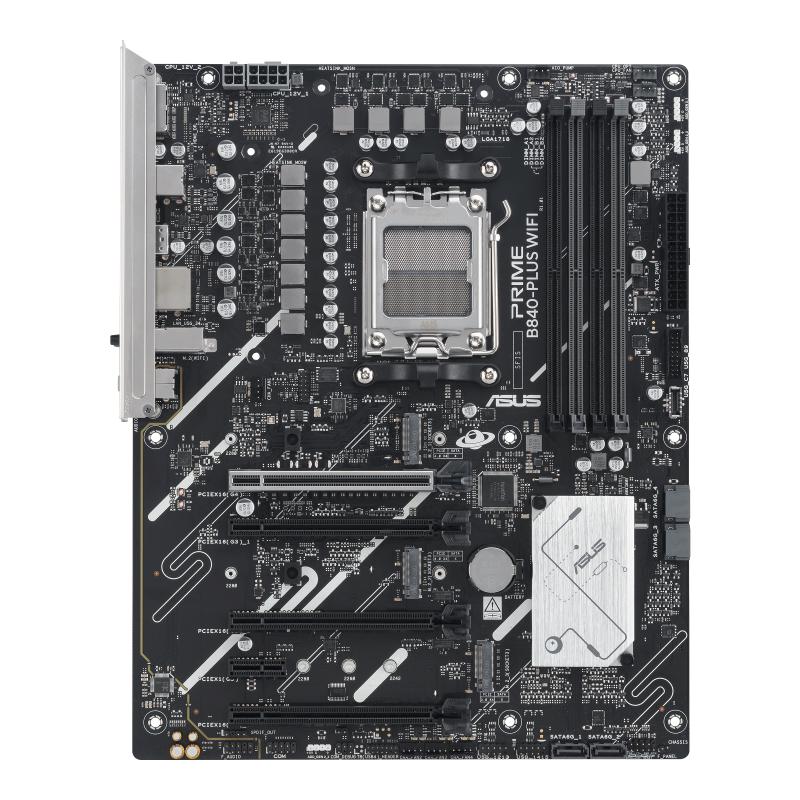

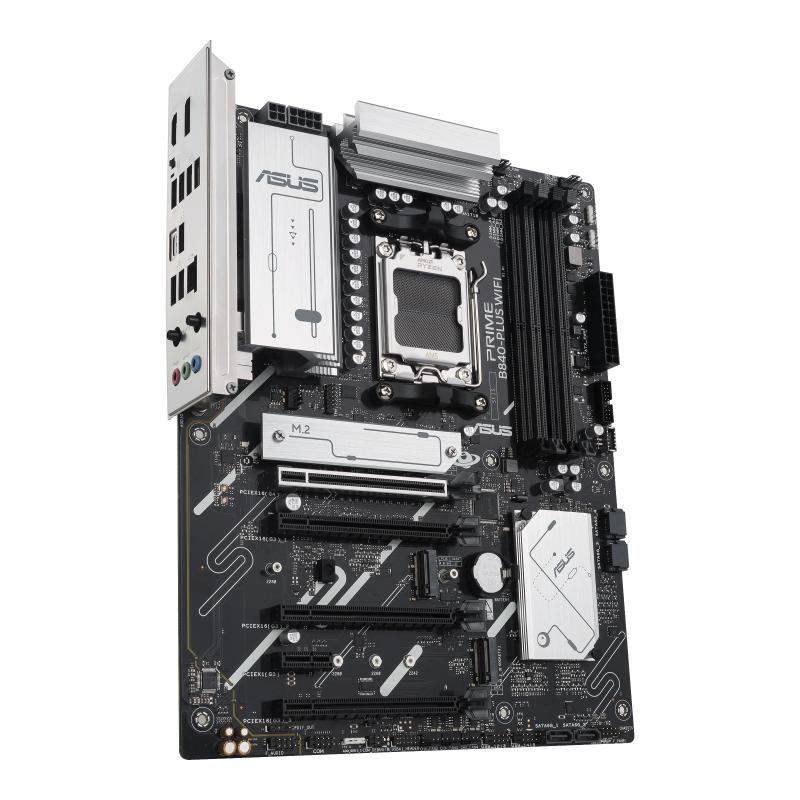

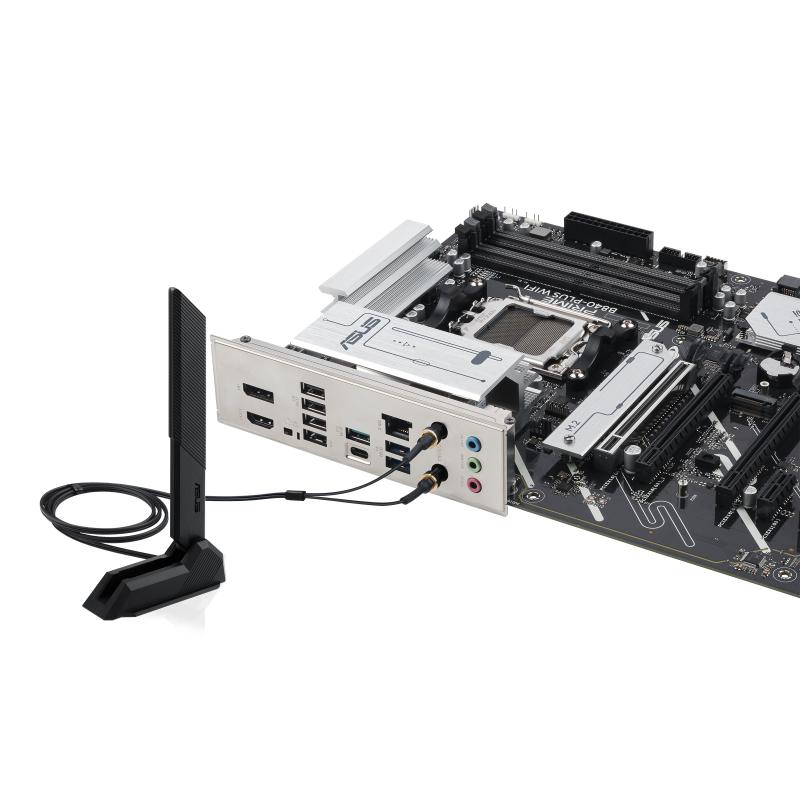

Placa de Baza ASUS PRIME B840 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 3x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza ASUS PRIME B840 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 3x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Aluminium, Black

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

3.0

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

3

2nd M.2 highest PCI Express generation

4.0

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset

AMD B840

Motherboard form factor

ATX

Parallel processing technology support

Not supported

On-board graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

TPM connector

Yes

12V power connector

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

Chassis intrusion connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Maximum internal memory

192 GB

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

mSATA ports quantity

0

Antenna included

Yes

Cables included

SATA

Screws included

Yes

Package height

68 mm

Package width

353 mm

Package depth

273 mm

Package weight

1.26 kg

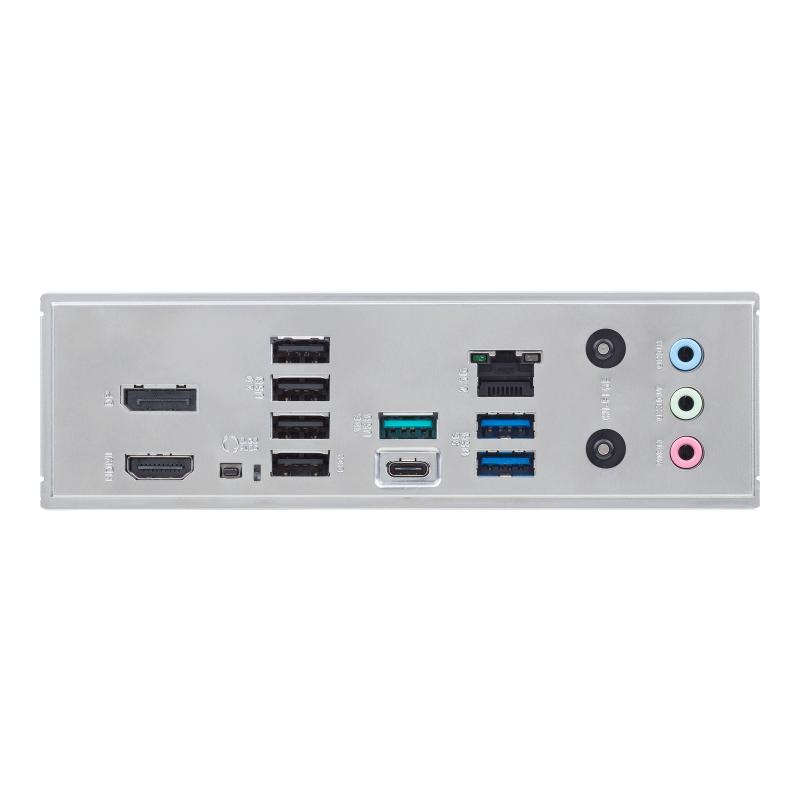

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

WiFi-AP antenna jack

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

Width

305 mm

Depth

244 mm

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No

MB-Format

ATX

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

5
