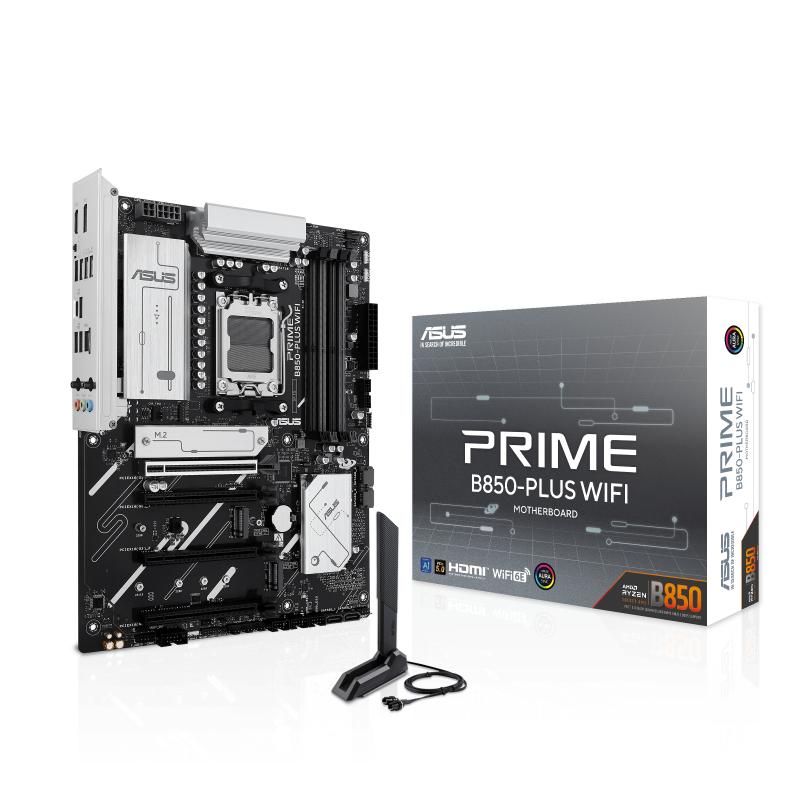

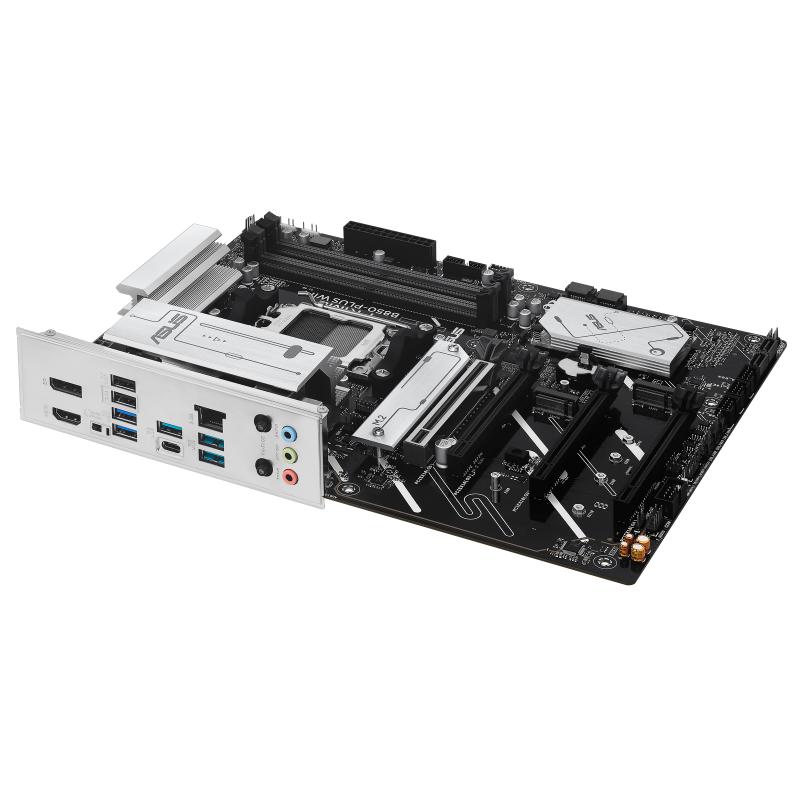

Placa de Baza ASUS PRIME B850 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 2x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza ASUS PRIME B850 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 2x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Multicolour

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) slots

2

Compatible operating systems

Windows 11, Windows 10 64-bit

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

Motherboard form factor

ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Audio output channels

7.1 channels

Component for

PC

Parallel processing technology support

Not supported

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of chassis fan connectors

4

TPM connector

Yes

12V power connector

Yes

USB 2.0 connectors

3

S/PDIF out connector

Yes

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Chassis intrusion connector

Yes

Number of CPU fan connectors

1

Supported memory clock speed (max)

8000 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Weight

1.05 kg

Package depth

68 mm

Package height

273 mm

Package width

353 mm

Package weight

1.26 kg

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

Height

48 mm

Width

305 mm

Depth

244 mm

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

5
