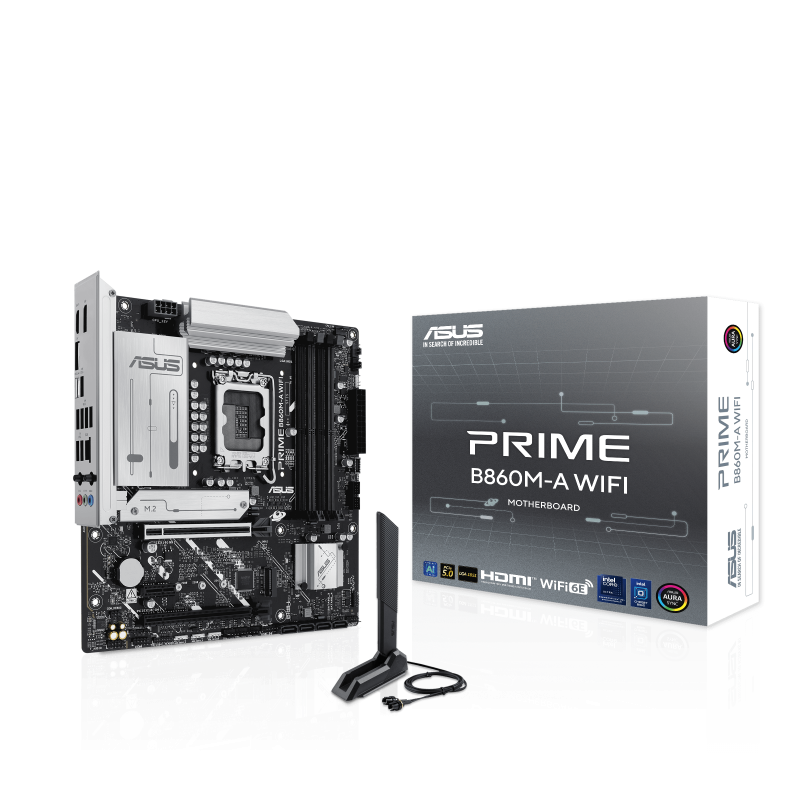

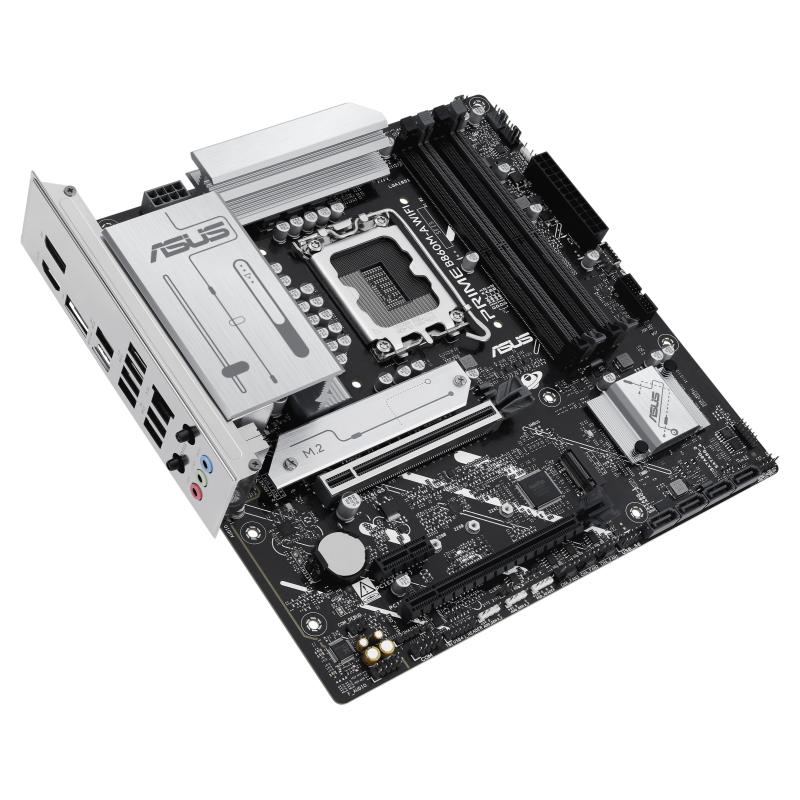

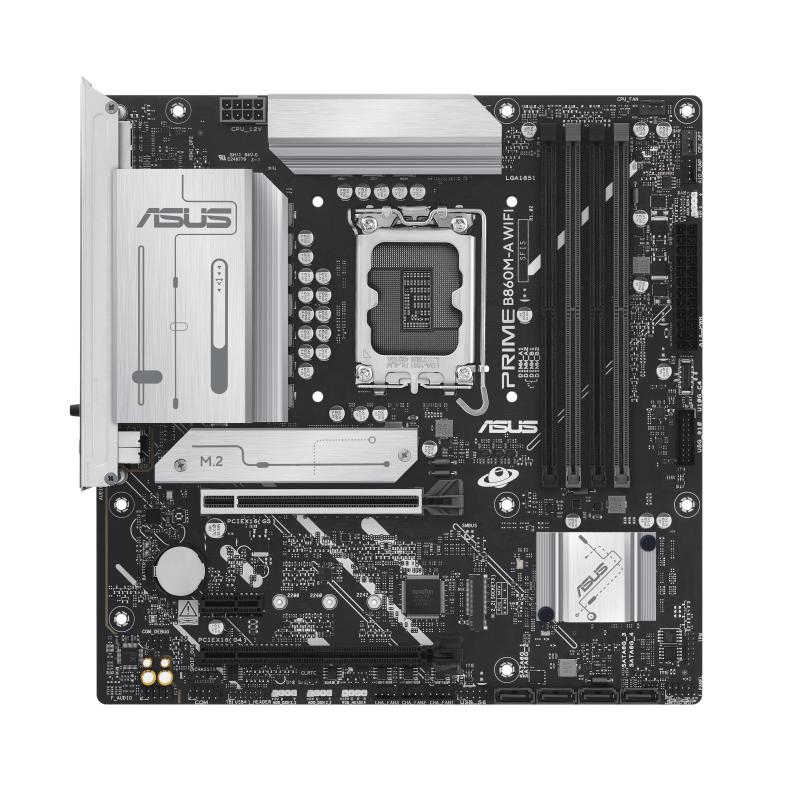

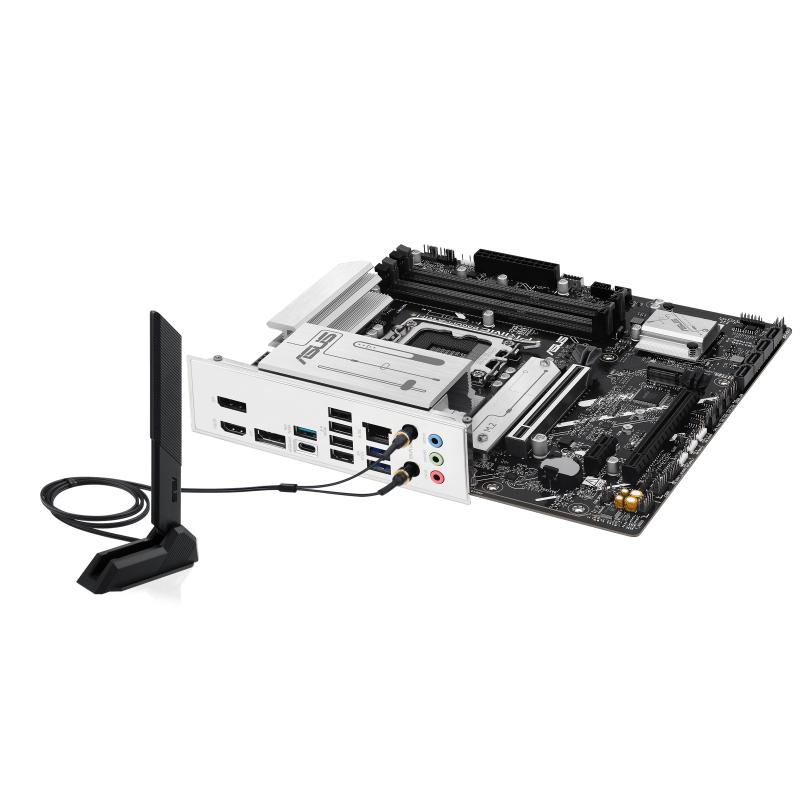

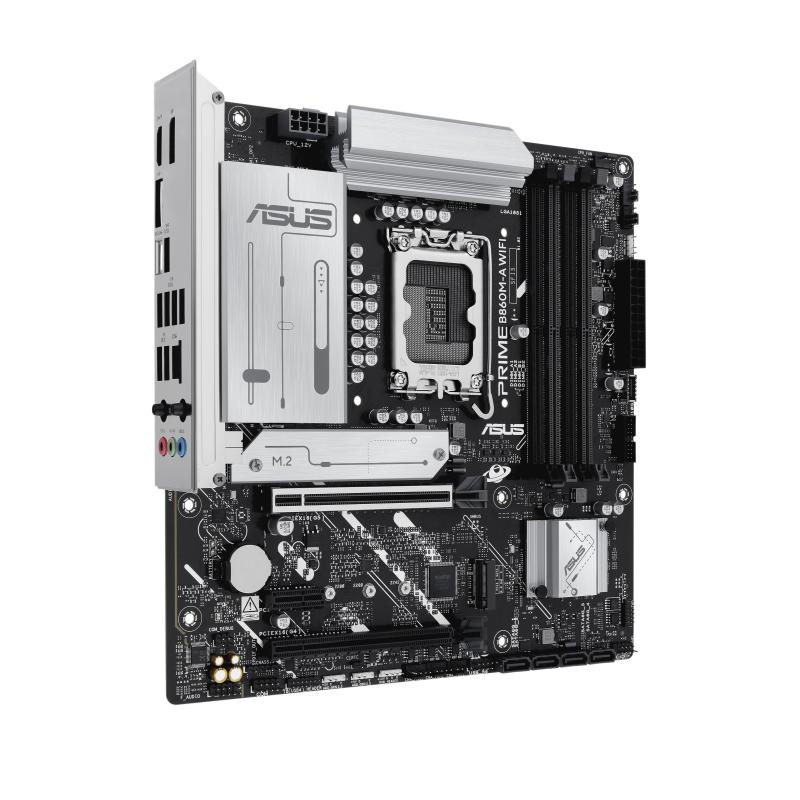

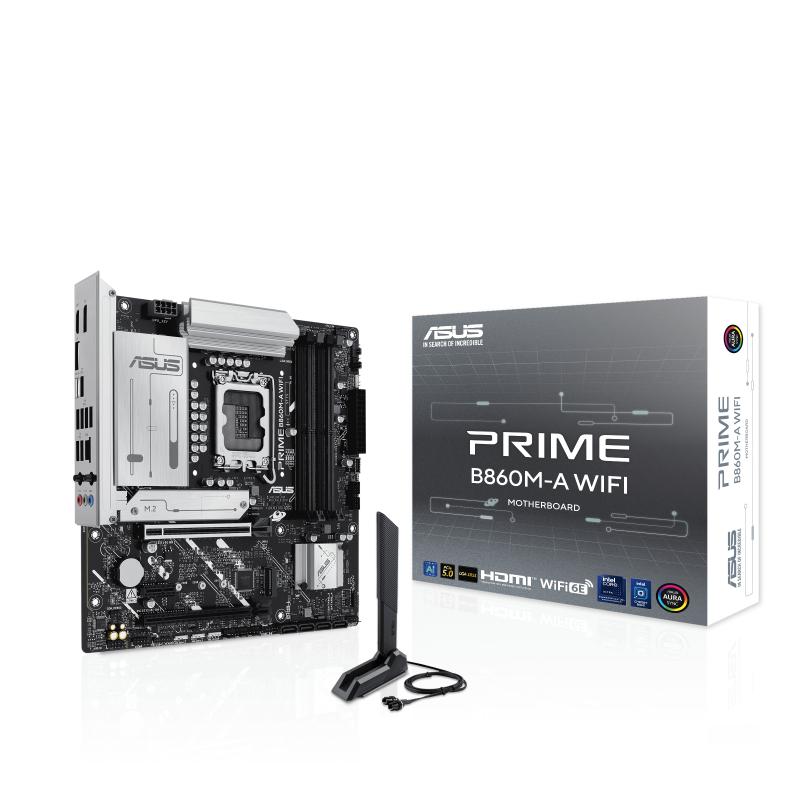

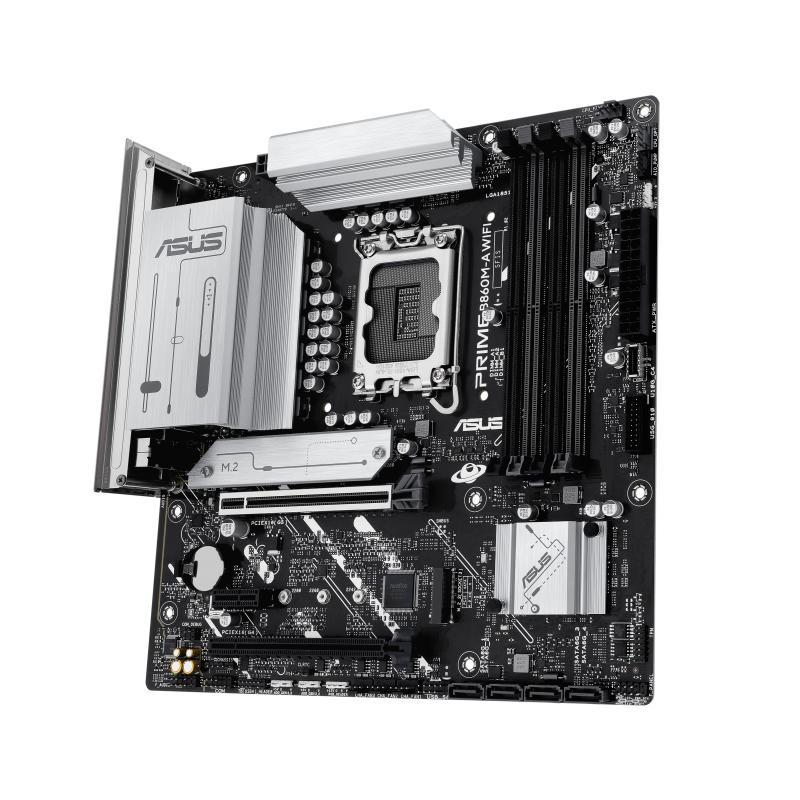

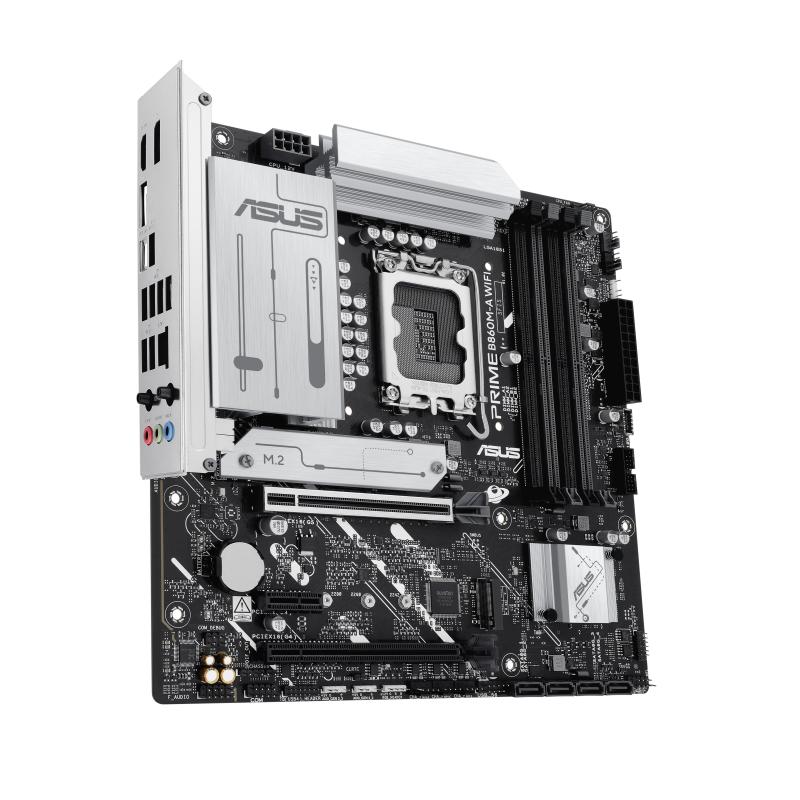

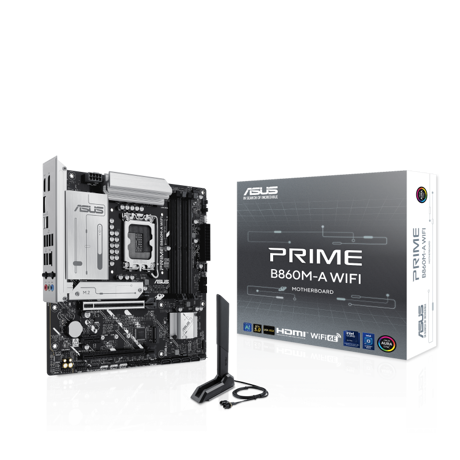

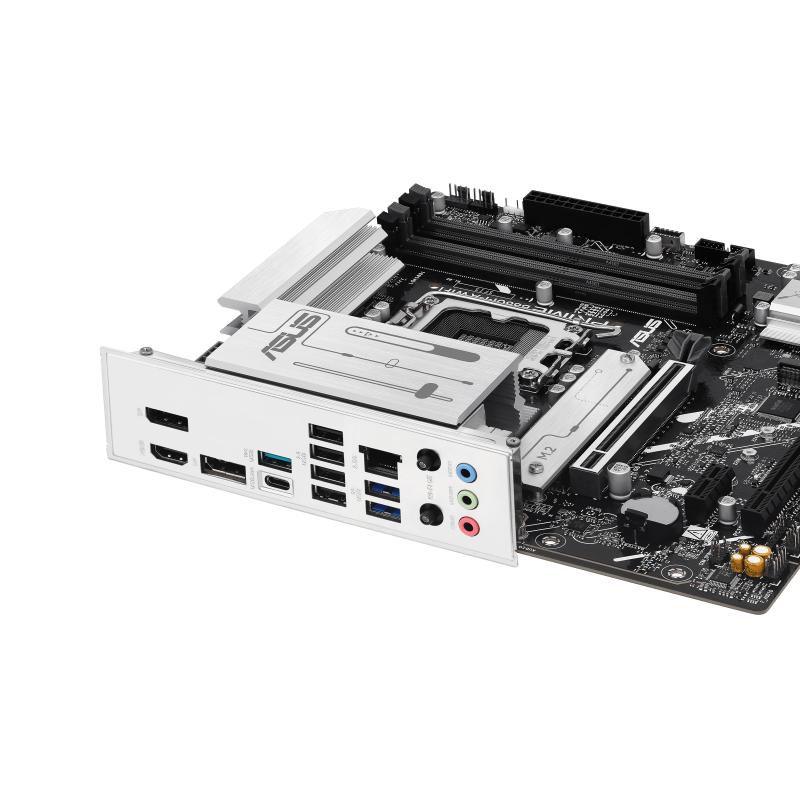

Placa de Baza ASUS PRIME B860M-A WIFI LGA1851, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza ASUS PRIME B860M-A WIFI LGA1851, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

PCI Express x1 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Motherboard form factor

micro ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

USB 2.0 connectors

1

Thunderbolt headers

1

Chassis intrusion connector

Yes

Number of chassis fan connectors

3

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Memory channels

Dual-channel

BLUETOOTH

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Cables included

SATA

Antenna included

Yes

Screws included

Yes

Package depth

275 mm

Package width

275 mm

Package height

67.5 mm

Package weight

1.44 kg

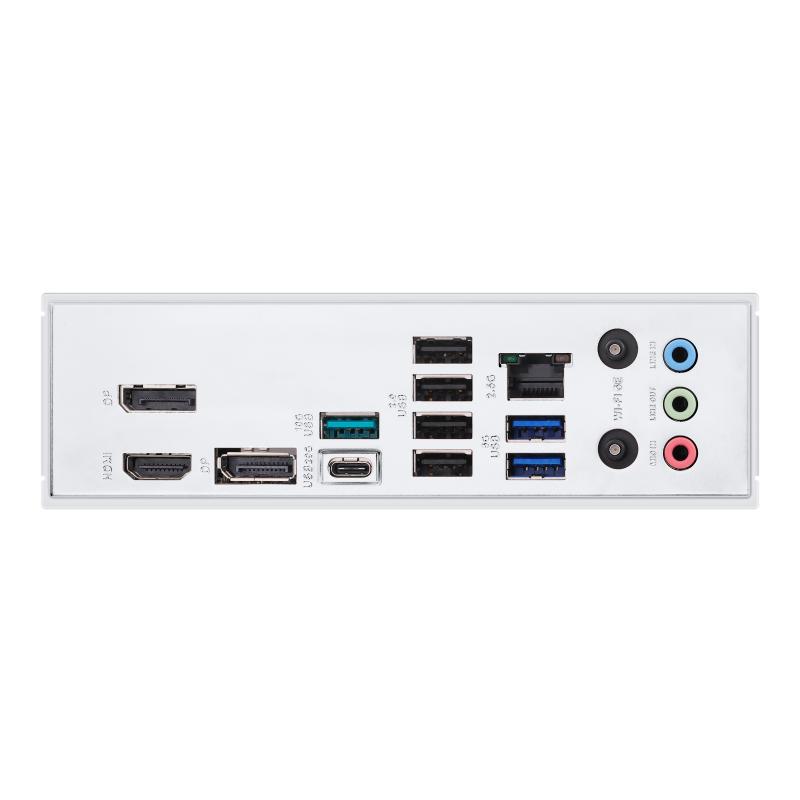

DisplayPorts quantity

2

HDMI ports quantity

1

DVI-D ports quantity

0

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Processor manufacturer

Intel

Compatible processor series

Intel Core Ultra (Series 2)

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

WiFi-AP antenna jack

1

Number of storage drives supported

6

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Supported storage drive types

HDD & SSD

Depth

244 mm

Width

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
