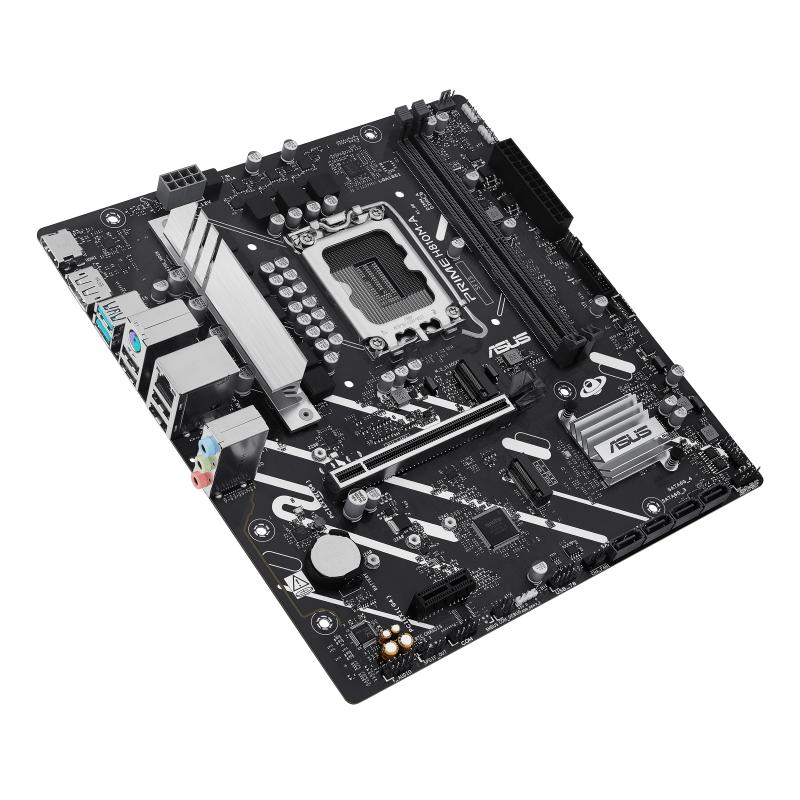

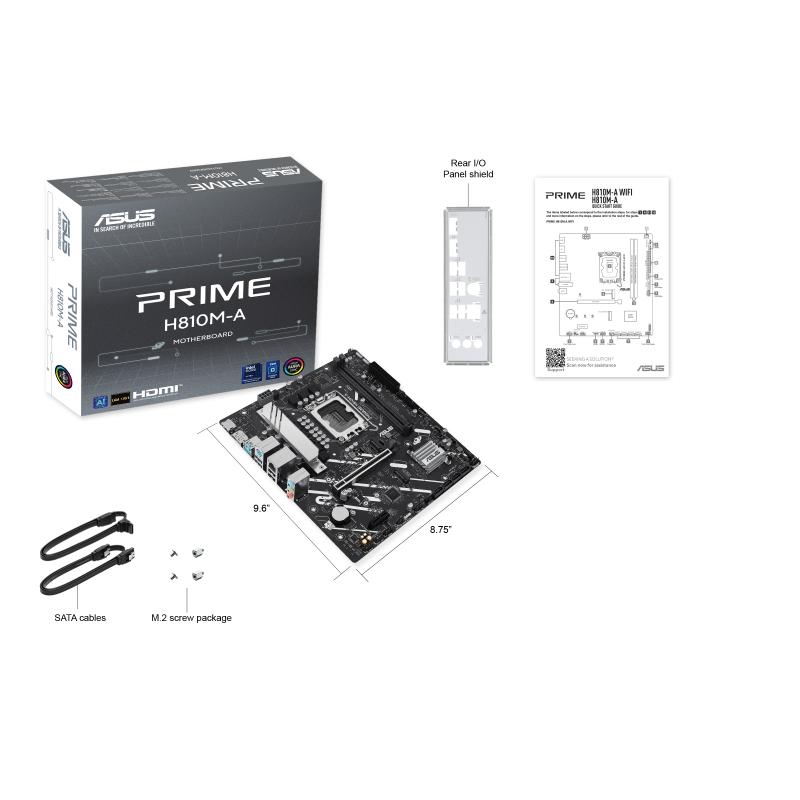

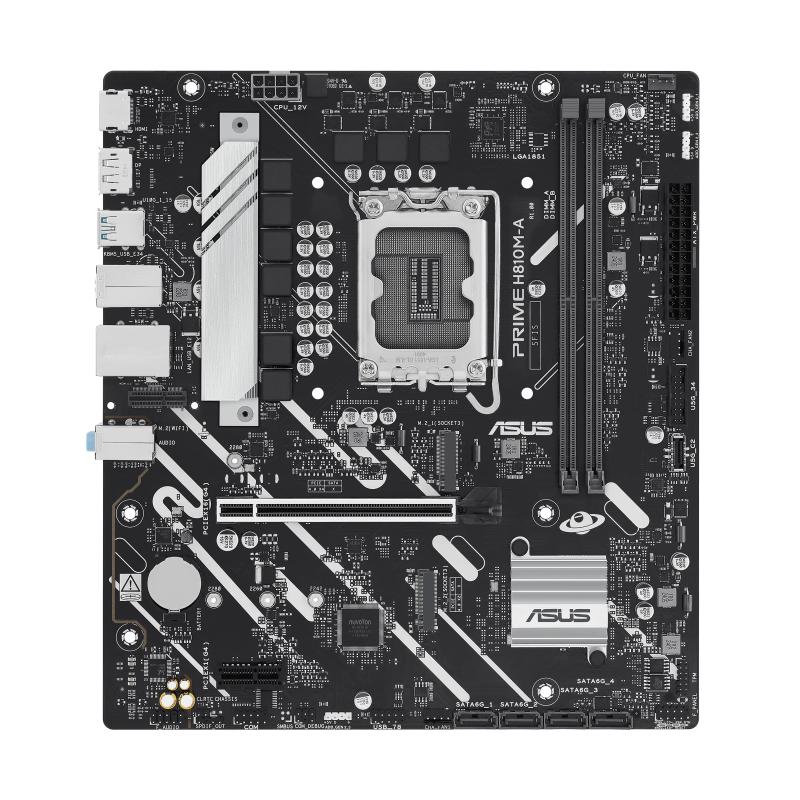

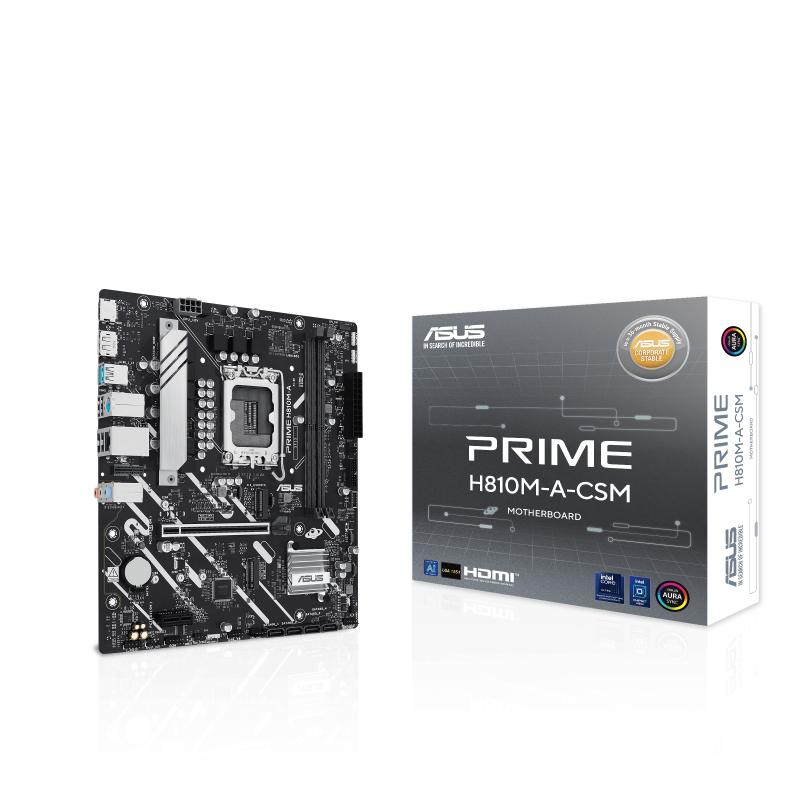

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Black

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

PCI Express x1 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

4.0

Motherboard chipset

Intel H810

Motherboard chipset family

Intel

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard form factor

micro ATX

Audio output channels

7.1 channels

Component for

PC

Parallel processing technology support

Not supported

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of RGB LED pin headers

3

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

USB 2.0 connectors

1

Supported memory clock speed (max)

6400 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Maximum internal memory

128 GB

Memory channels

Dual-channel

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Wake-on-LAN ready

Yes

Wi-Fi

No

LAN controller

Intel I219V

Weight

534 g

Number of M.2 (E) slots

1

Package weight

782 g

Package height

51.5 mm

Package width

270 mm

Package depth

263 mm

DVI-D ports quantity

0

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

DisplayPorts quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

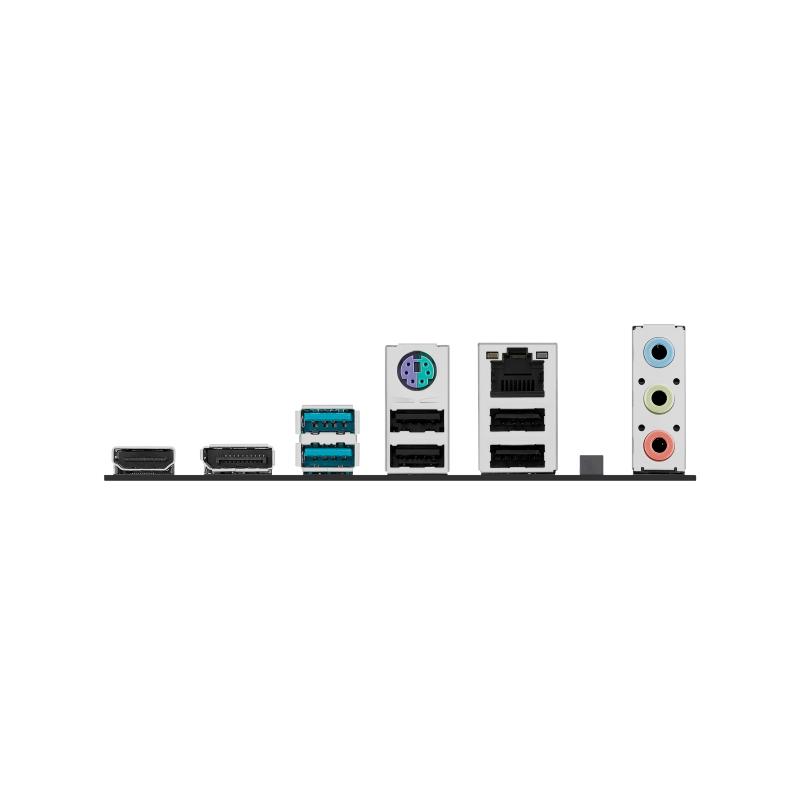

PS/2 ports quantity

1

Line-in

Yes

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

Supported storage drive types

HDD & SSD

Number of storage drives supported

6

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Width

244 mm

Height

37 mm

Depth

222 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
