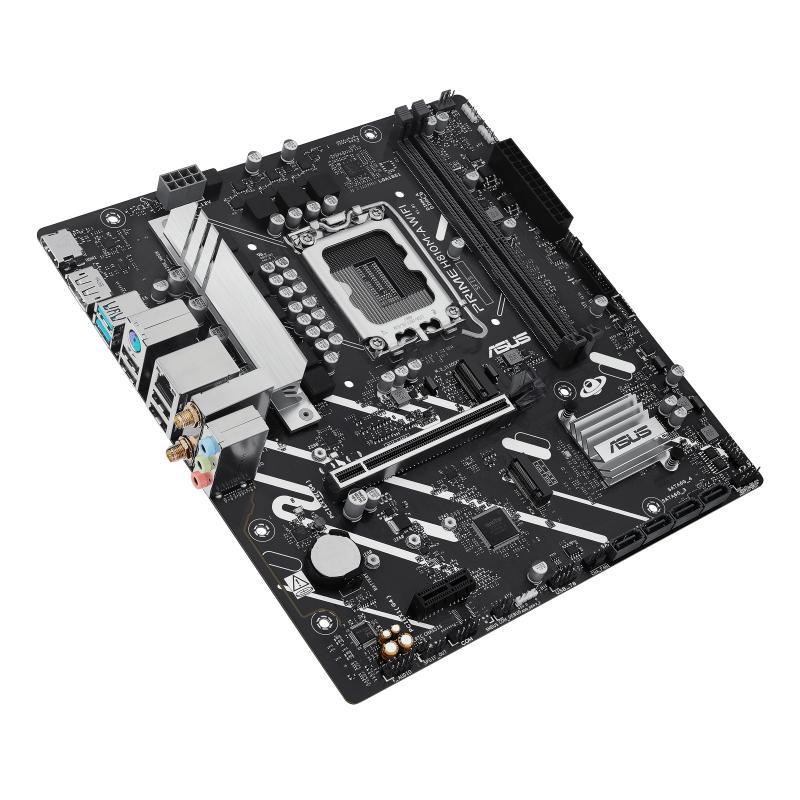

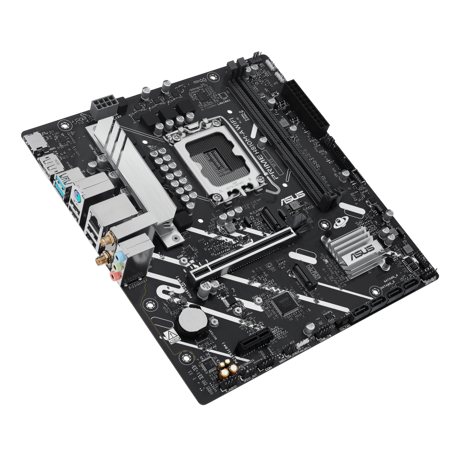

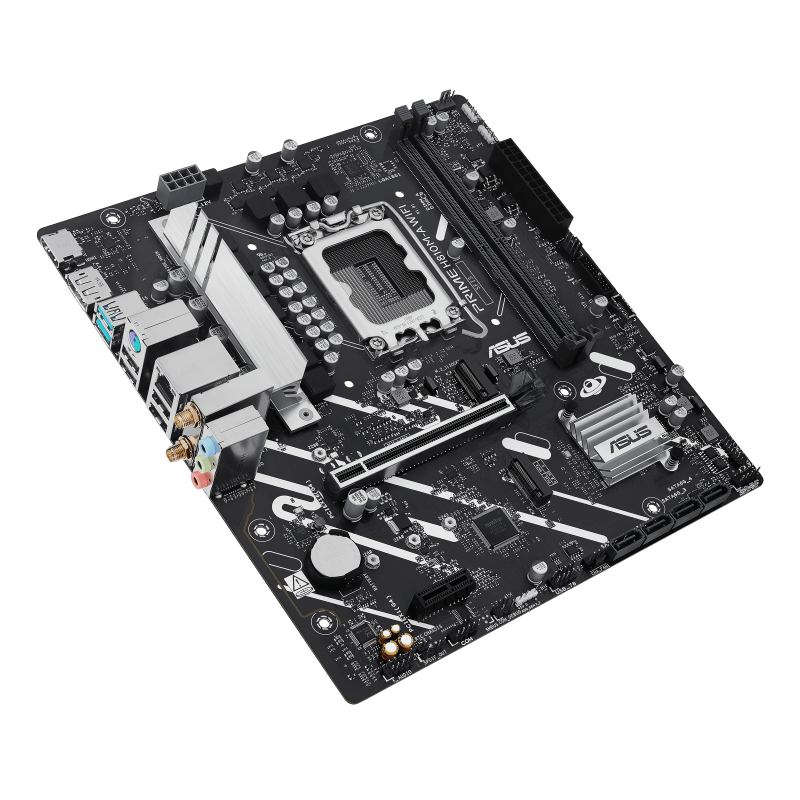

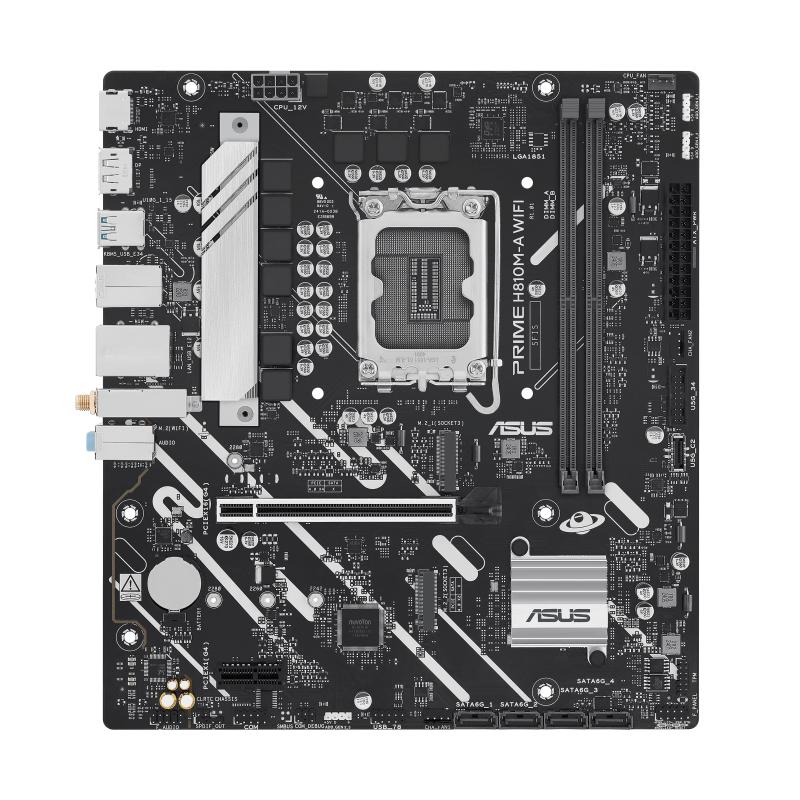

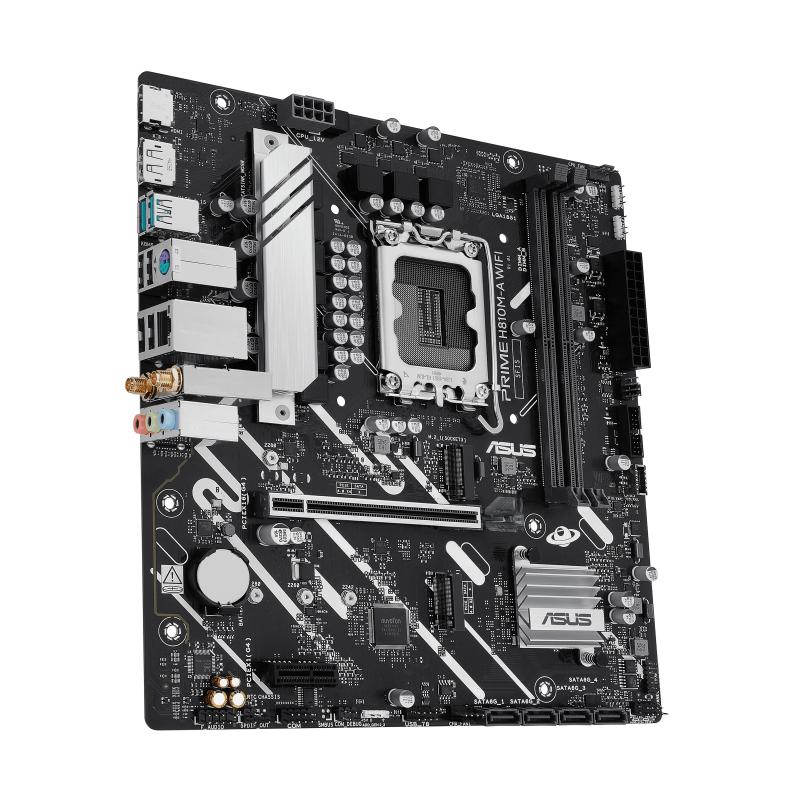

Placa de Baza ASUS PRIME H810M-A WIFI LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
2nd M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
PCI Express x1 (Gen 4.x) slots
1
1st M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Component for
PC
Audio output channels
7.1 channels
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset
Intel H810
Parallel processing technology support
Not supported
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
TPM connector
Yes
12V power connector
Yes
S/PDIF out connector
Yes
Number of COM connectors
1
Number of CPU fan connectors
1
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
ECC сompatibility
Non-ECC
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory channels
Dual-channel
Maximum internal memory
128 GB
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
BLUETOOTH
Yes
Wi-Fi
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Screws included
Yes
Cables included
SATA
DVI-D ports quantity
0
DisplayPorts quantity
1
HDMI ports quantity
1
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
WiFi-AP antenna jack
1
PS/2 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
Ethernet LAN (RJ-45) ports
1
RAID support
Yes
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
Depth
222 mm
Width
244 mm
Onboard-CPU
No
PCI
0
Serial-or-Paralel
No/No
