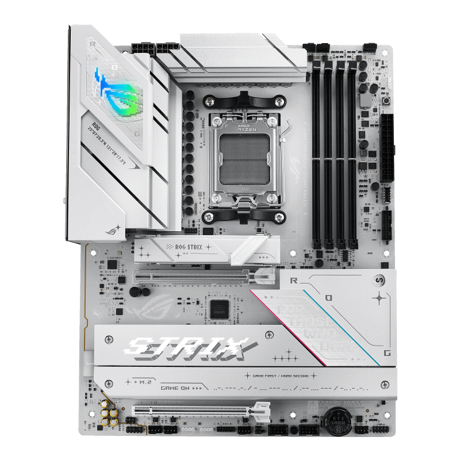

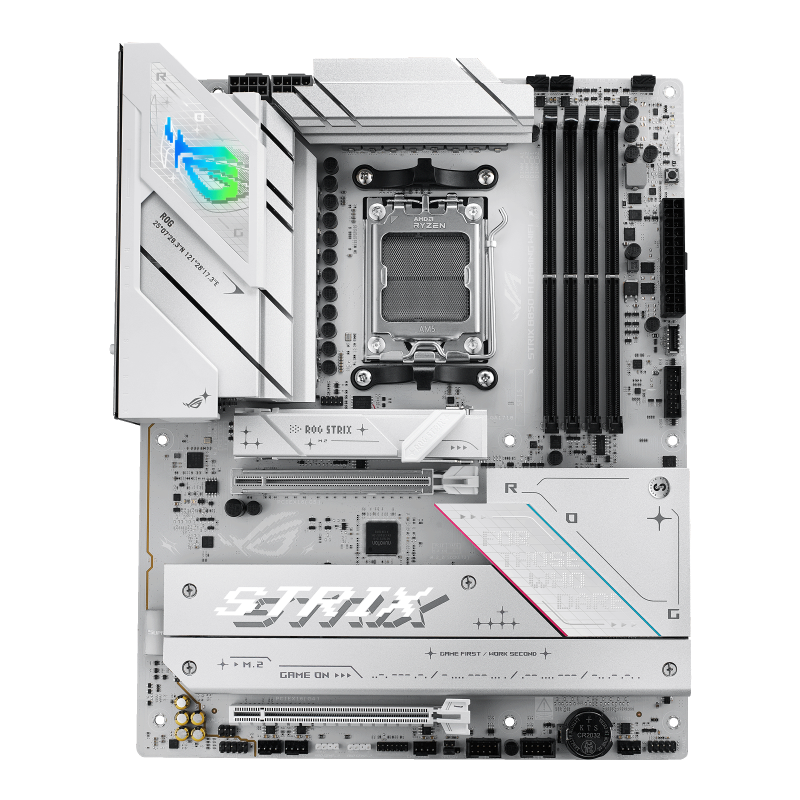

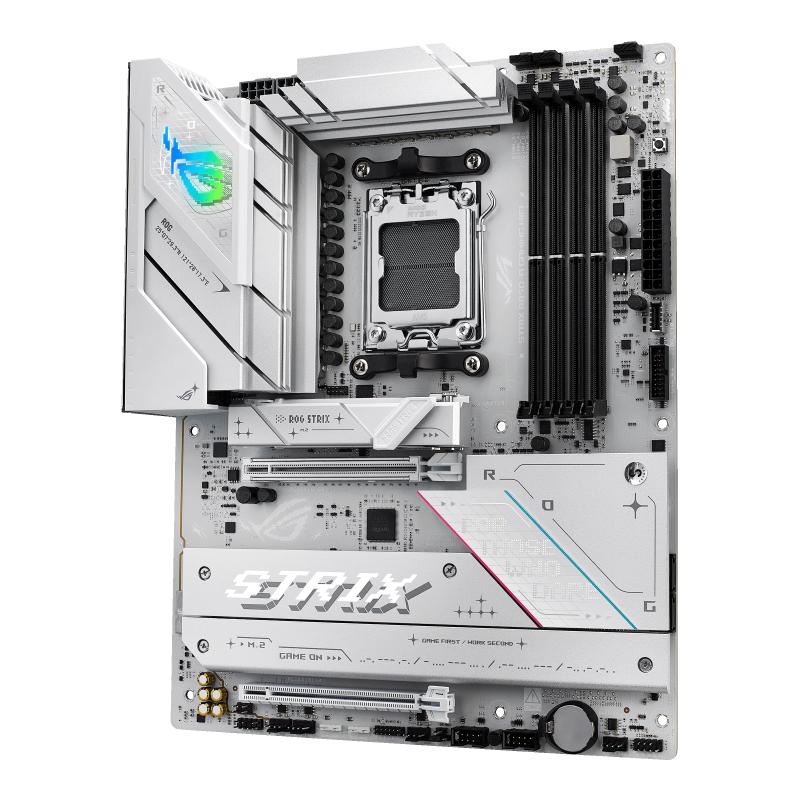

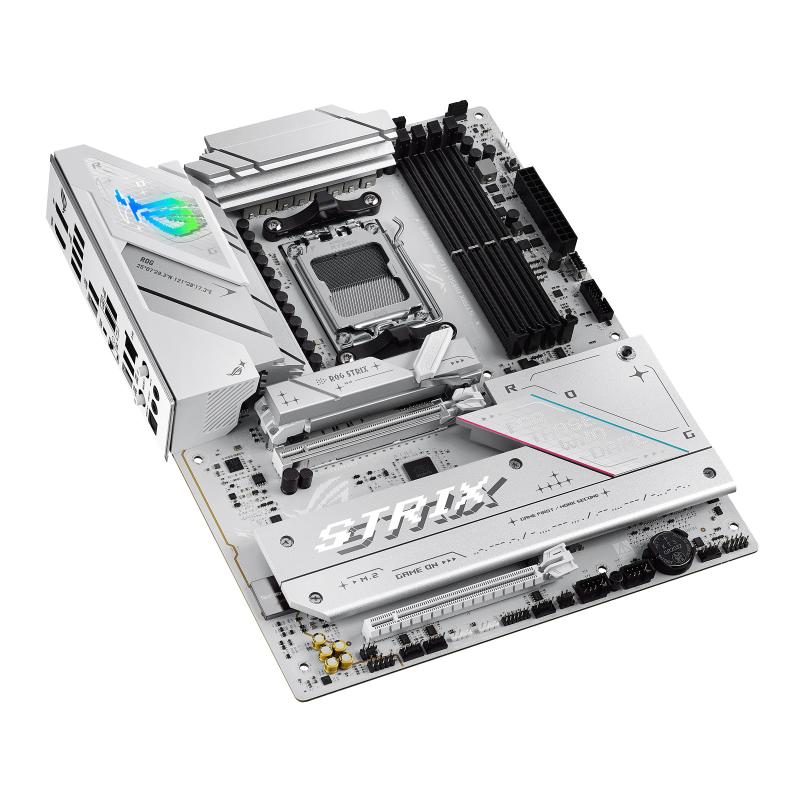

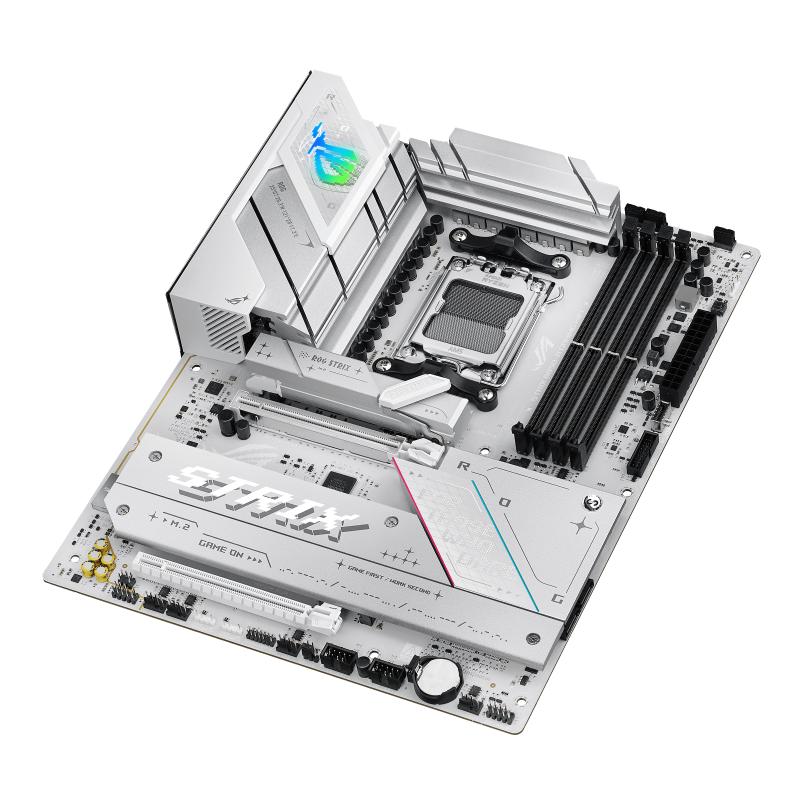

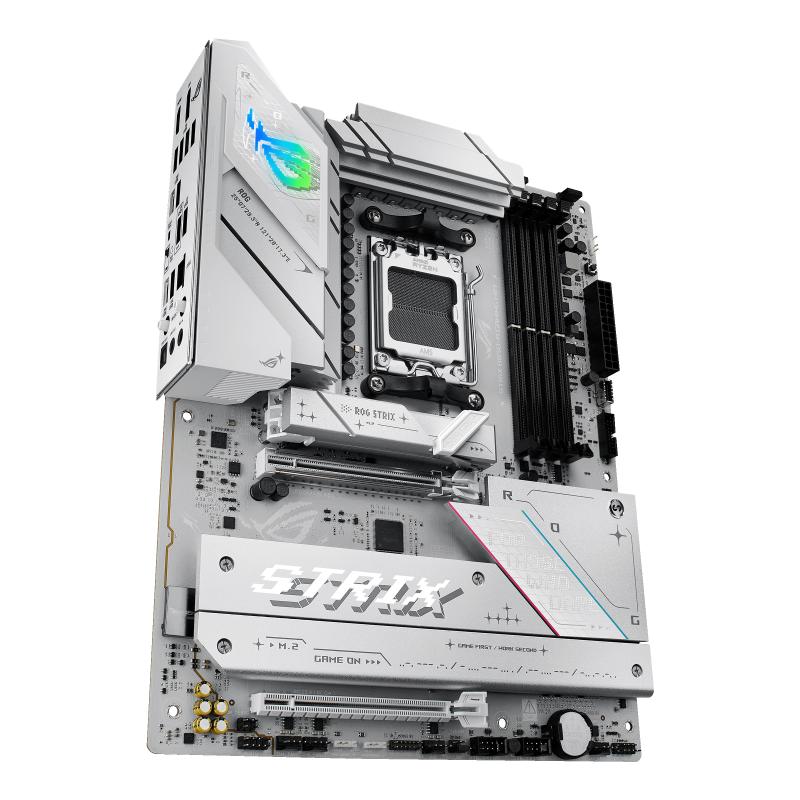

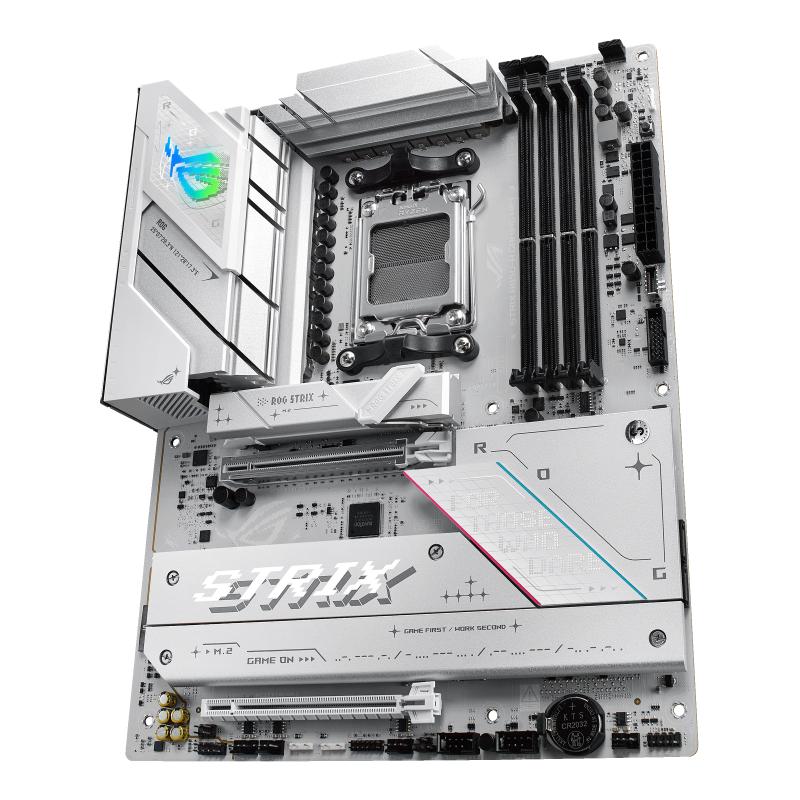

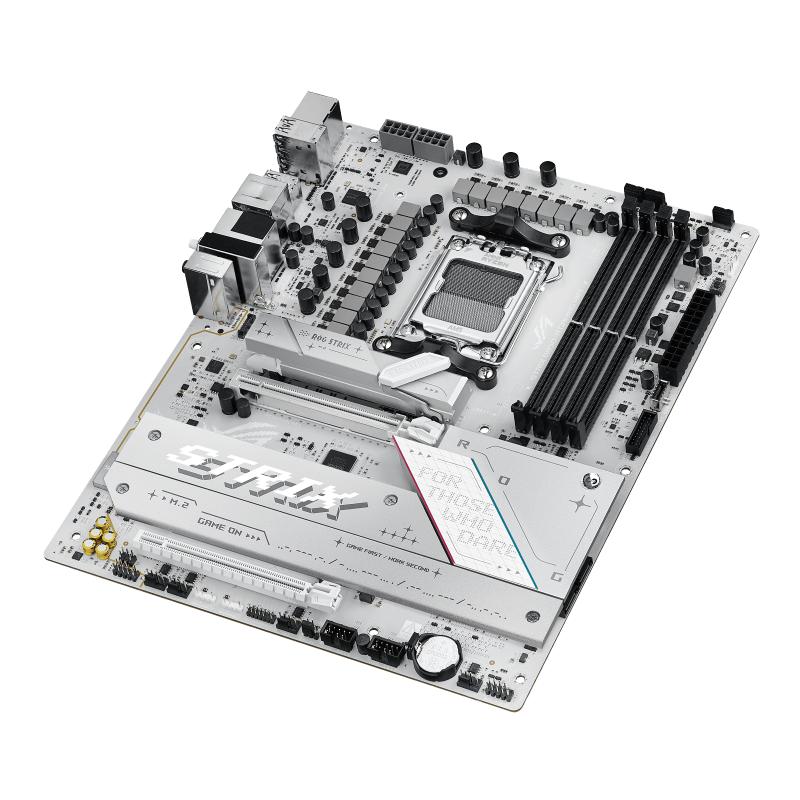

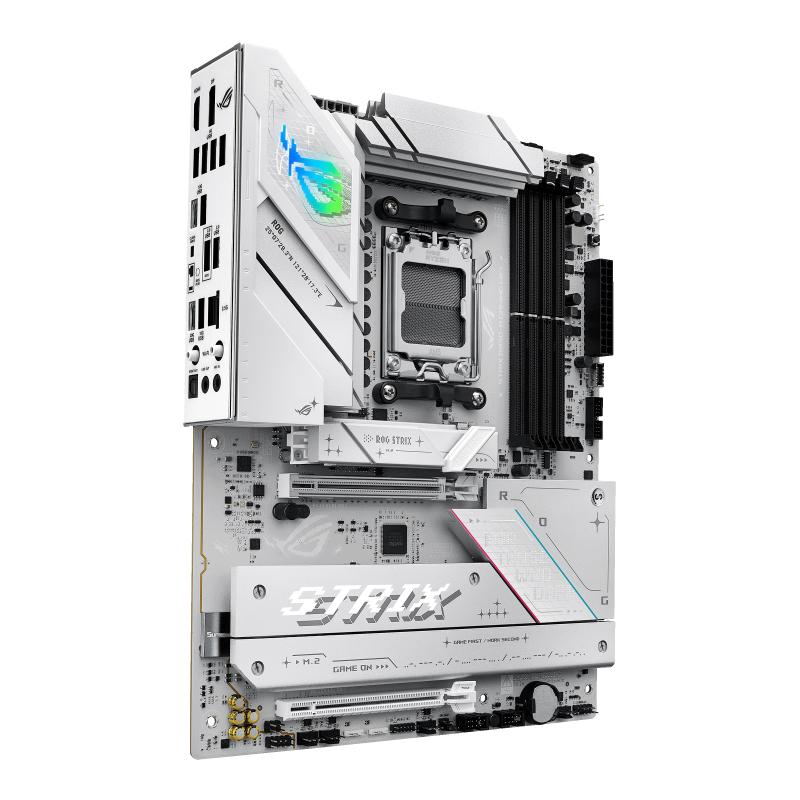

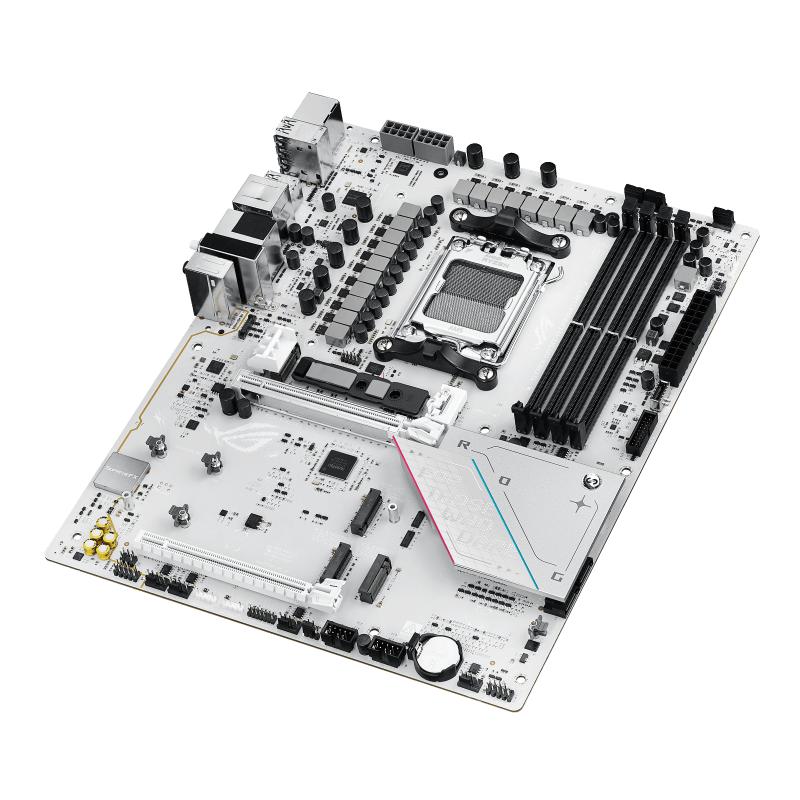

Placa de Baza ASUS ROG STRIX B850-A GAMING WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, ATX

Placa de Baza ASUS ROG STRIX B850-A GAMING WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Yes

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

1st M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Audio Chip

Realtek ALC4080

Motherboard chipset

AMD B850

Motherboard form factor

ATX

Power source type

ATX

Component for

PC

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Windows operating systems supported

Windows 11

Maximum resolution

7680 x 4320 pixels

Parallel processing technology support

Not supported

On-board graphics card

No

Number of SATA III connectors

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

RGB LED pin header

Yes

Thunderbolt headers

1

Number of temperature sensor headers

1

Number of water pump connectors

1

Number of RGB LED pin headers

3

Supported memory clock speed (max)

8000 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Maximum internal memory

192 GB

Memory channels

Dual-channel

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet

Quick installation guide

Yes

Weight

2.04 kg

mSATA ports quantity

0

Cables included

SATA

Antenna included

Yes

Package weight

2.04 kg

Package width

353 mm

Package depth

273 mm

Package height

68 mm

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

WiFi-AP antenna jack

2

S/PDIF out port

Yes

Line-in

Yes

VGA (D-Sub) ports quantity

0

Digital audio optical out

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone outputs

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Number of HDDs supported

2

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
