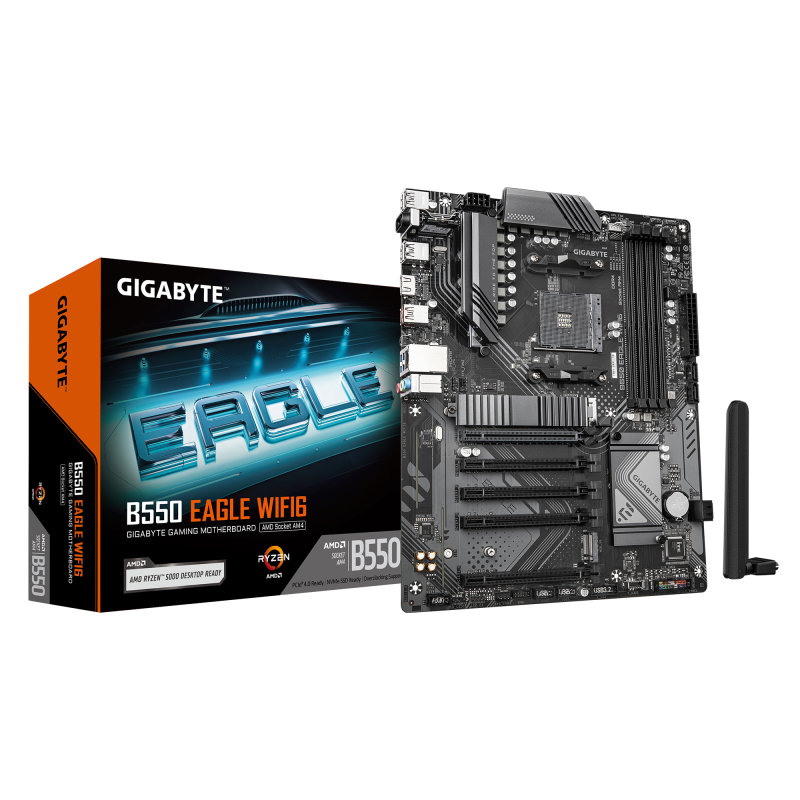

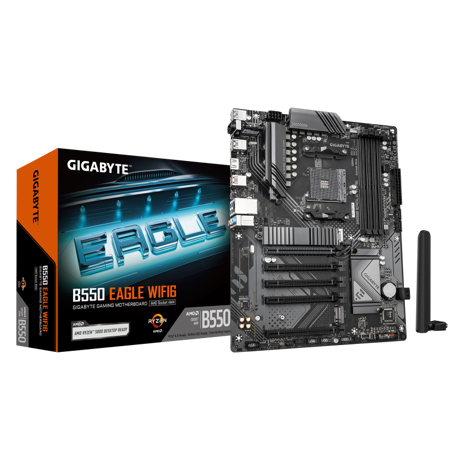

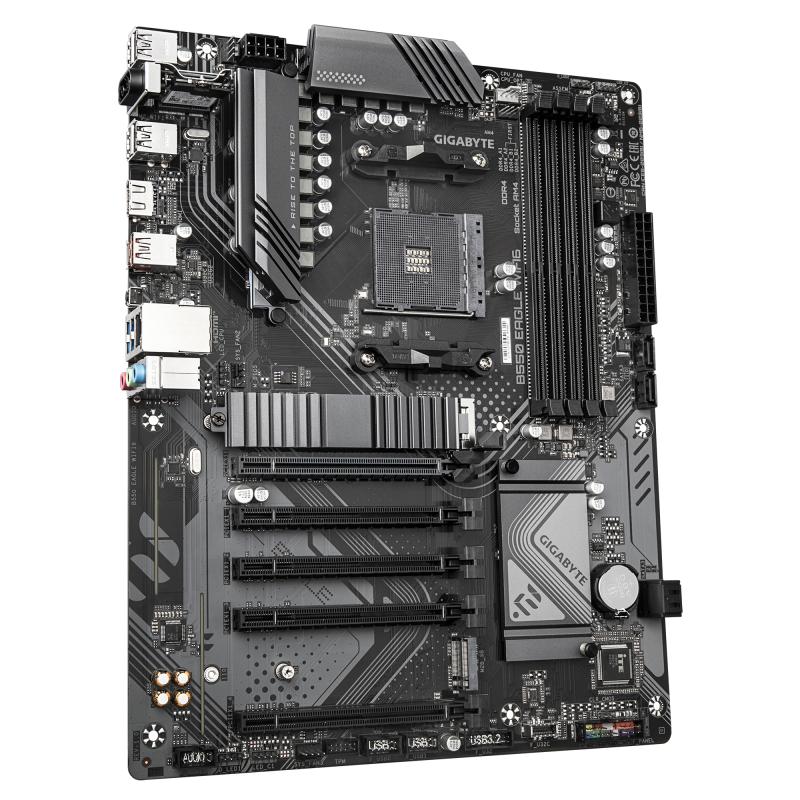

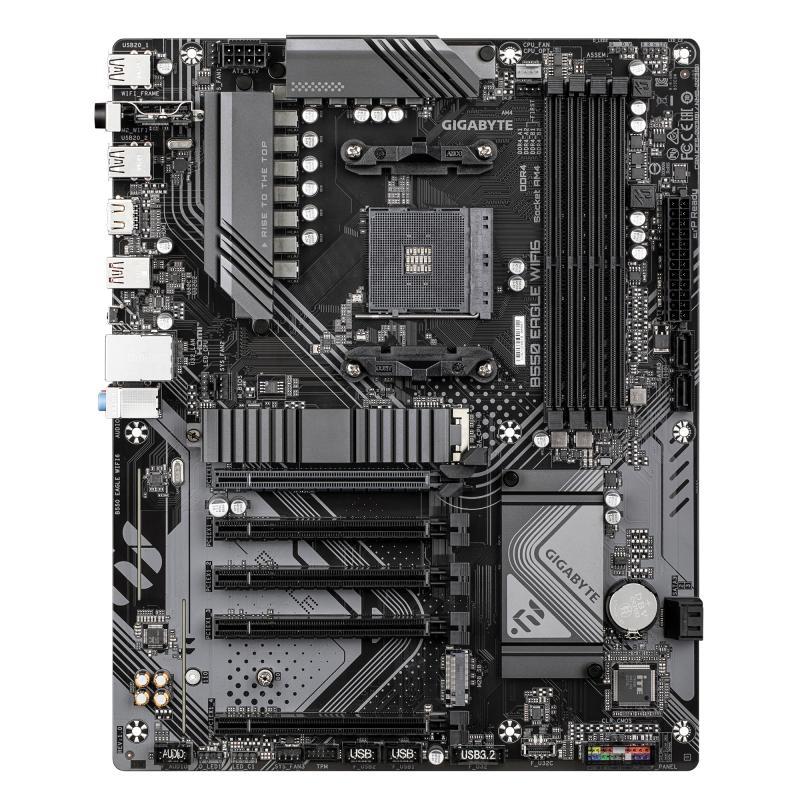

MB Gigabyte B550 EAGLE WIFI6E

MB Gigabyte B550 EAGLE WIFI6E

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

Product colour

Dark brown

Cooling type

Passive

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

2nd M.2 largest key size

22110

PCI Express x1 (Gen 3.x) slots

4

2nd M.2 highest PCI Express generation

3.0

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Motherboard chipset

AMD B550

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Component for

PC

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of water pump connectors

1

Number of RGB LED pin headers

5

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

3

Number of EPS power connectors (8-pin)

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Products per shipping (inner) case

1 pc(s)

Maximum internal memory

128 GB

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

ECC сompatibility

ECC & Non-ECC

Supported memory clock speed (max)

3200 MHz

Maximum internal memory per slot

32 GB

Supported memory clock speeds

3200,2933,2667,2400,2133 MHz

WLAN controller model

Realtek RTL8851BE

LAN controller

Realtek RTL8111H

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

BLUETOOTH

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet LAN

Yes

Weight

1.25 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.48 kg

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

0

HDMI version

2.1

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

WiFi-AP antenna jack

2

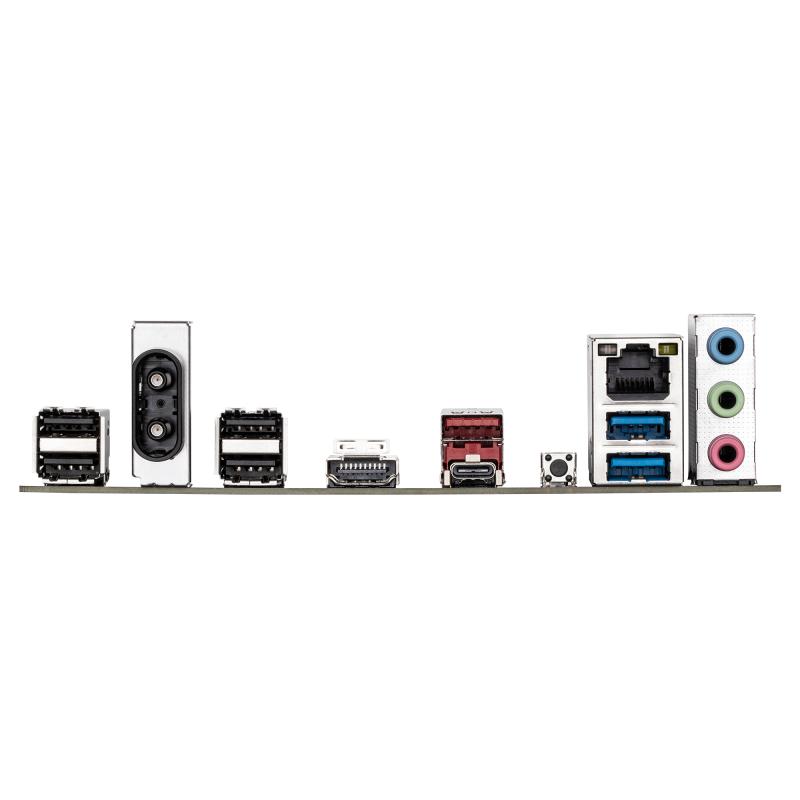

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
