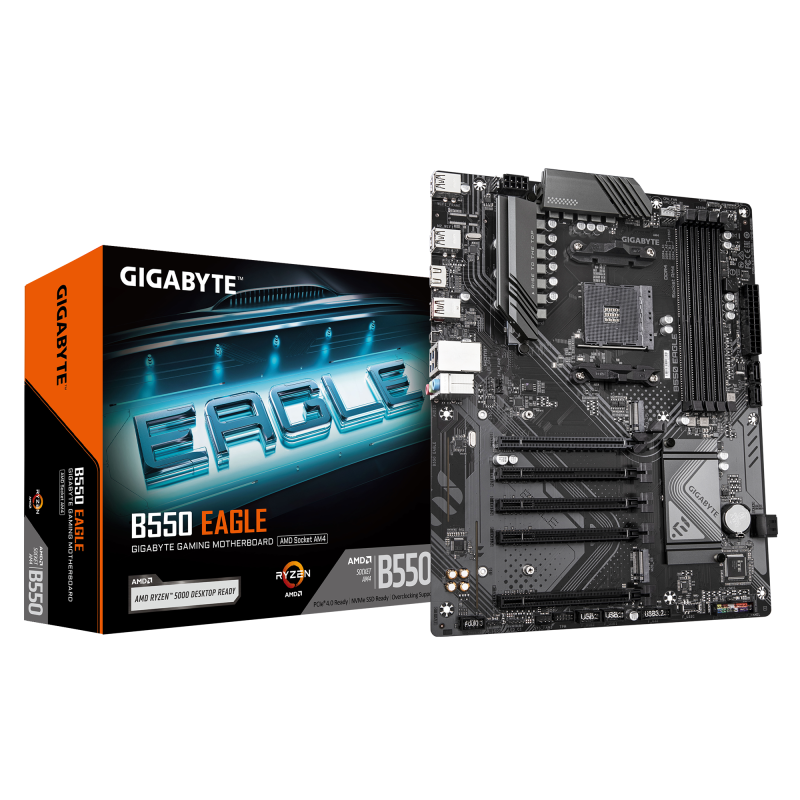

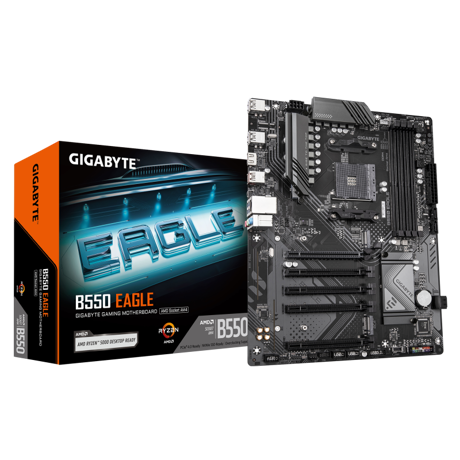

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

PCI Express x1 (Gen 3.x) slots

4

2nd M.2 highest PCI Express generation

3.0

2nd M.2 largest key size

22110

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B550

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Motherboard chipset family

AMD

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of water pump connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

3

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

5

Products per shipping (inner) case

1 pc(s)

Maximum internal memory

128 GB

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Maximum internal memory per slot

32 GB

Supported memory clock speed (max)

3200 MHz

Supported memory clock speeds

3200,2933,2667,2400,2133 MHz

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Weight

1.25 kg

Batteries included

Yes

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.48 kg

Warranty period

3 year(s)

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Line-in

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

Number of HDDs supported

4

RAID support

Yes

Supported storage drive types

HDD & SSD

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Width

305 mm

Depth

244 mm

Height

35 mm

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

5

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
