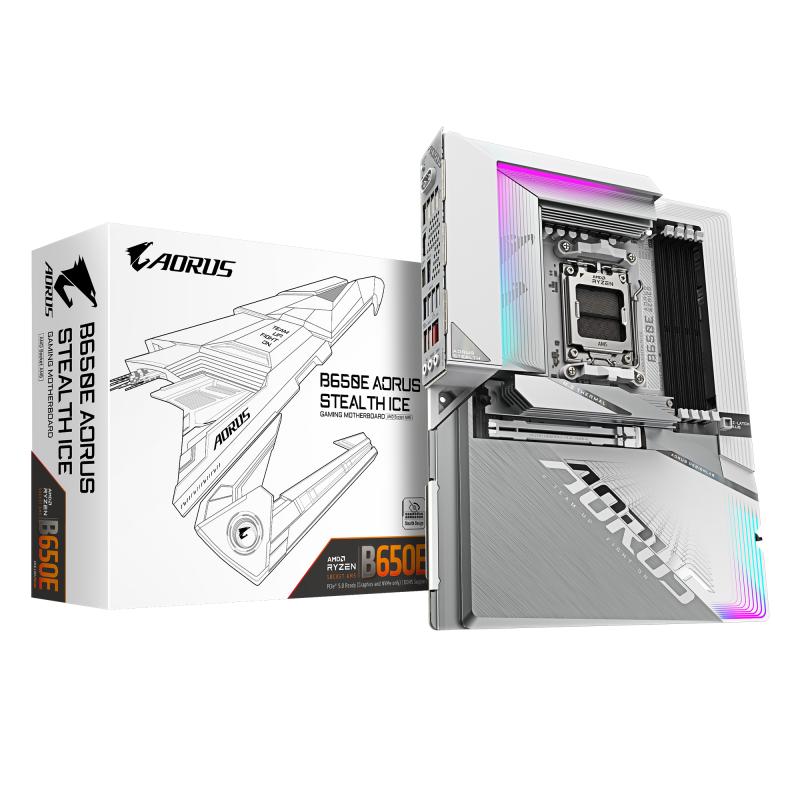

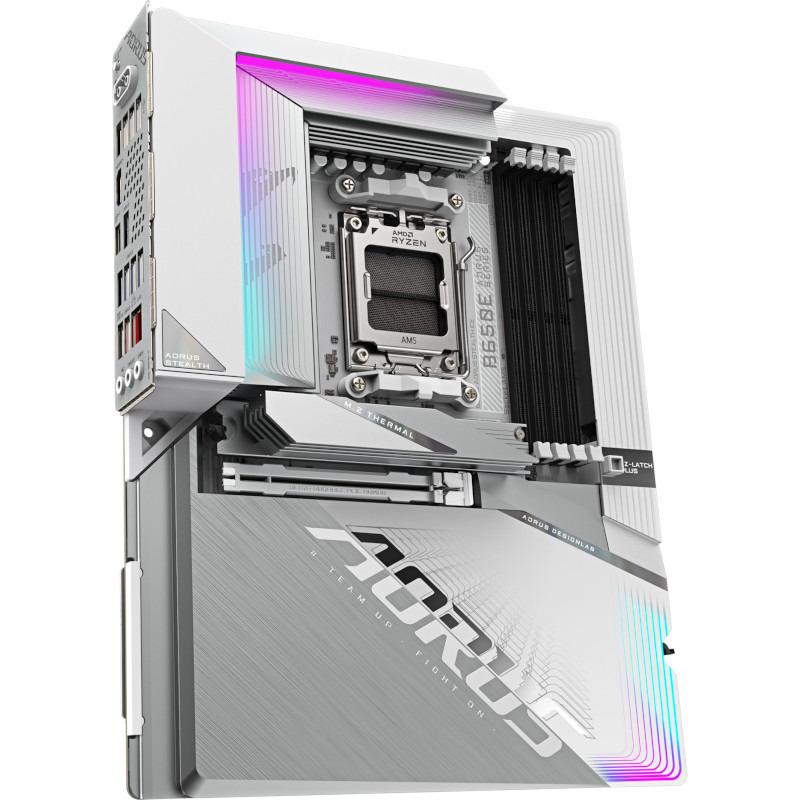

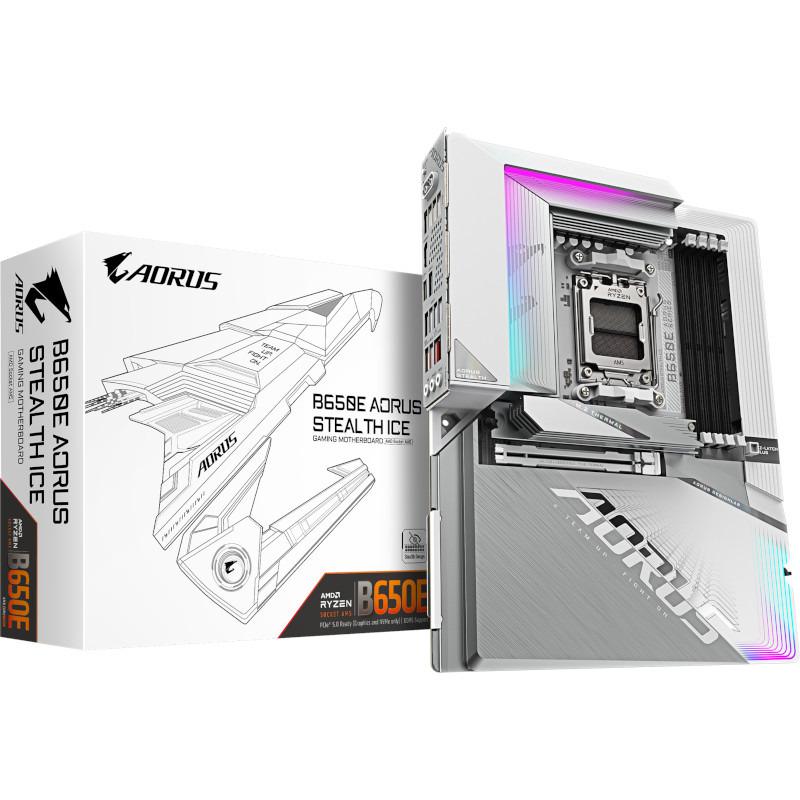

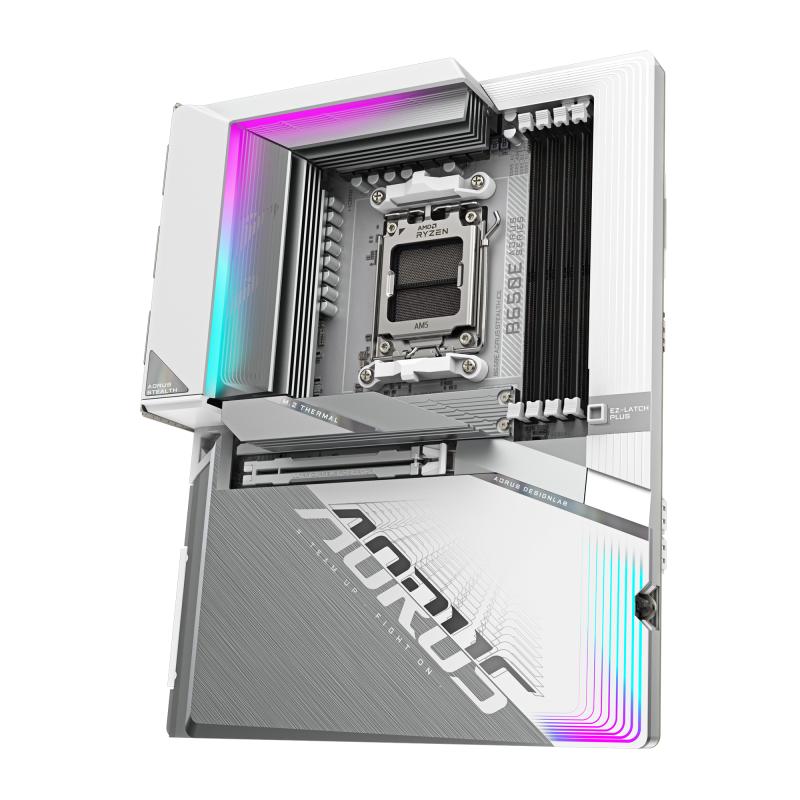

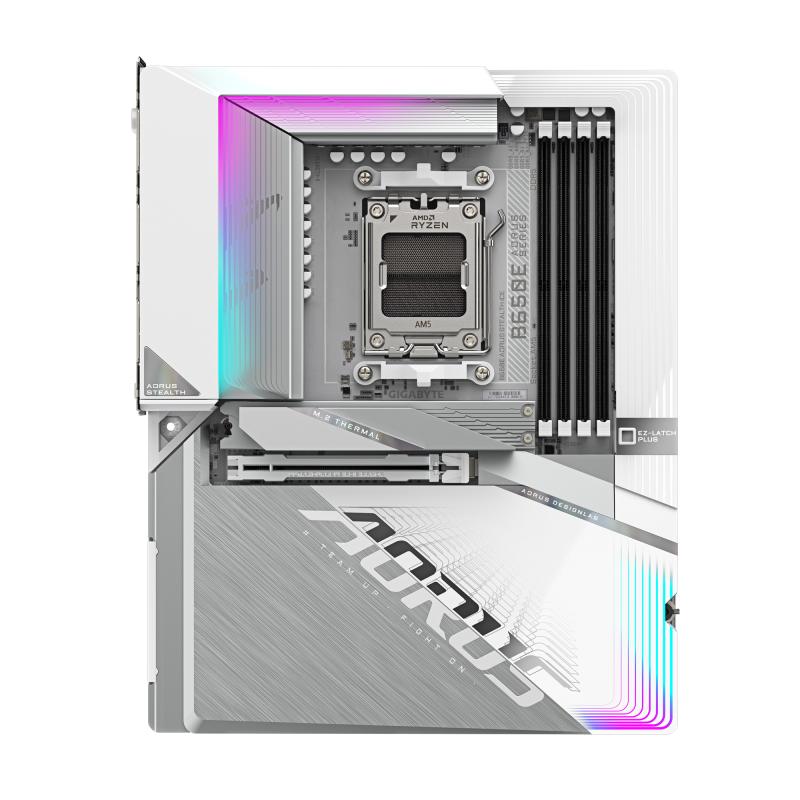

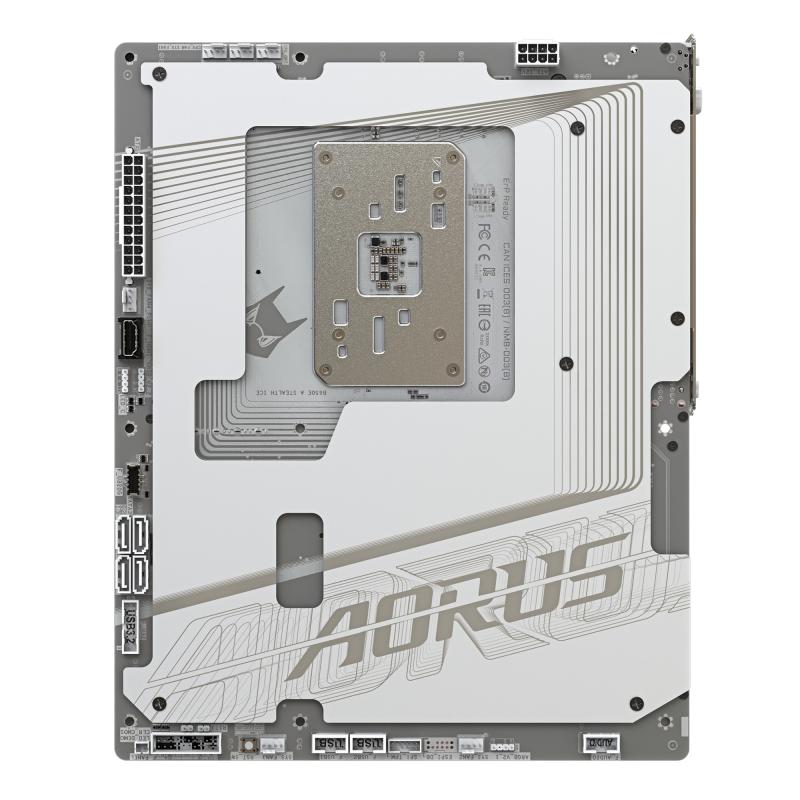

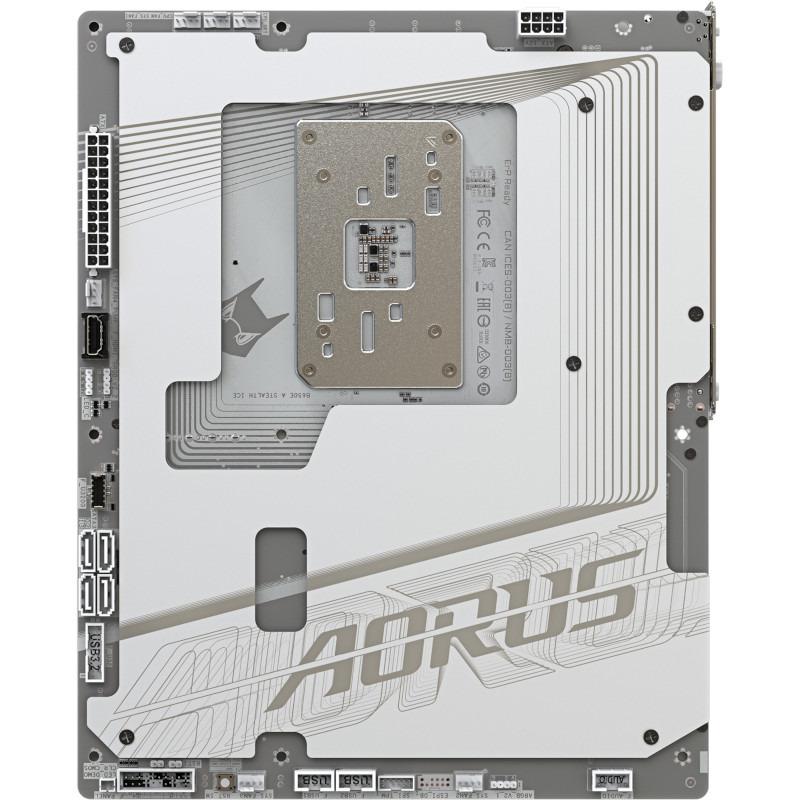

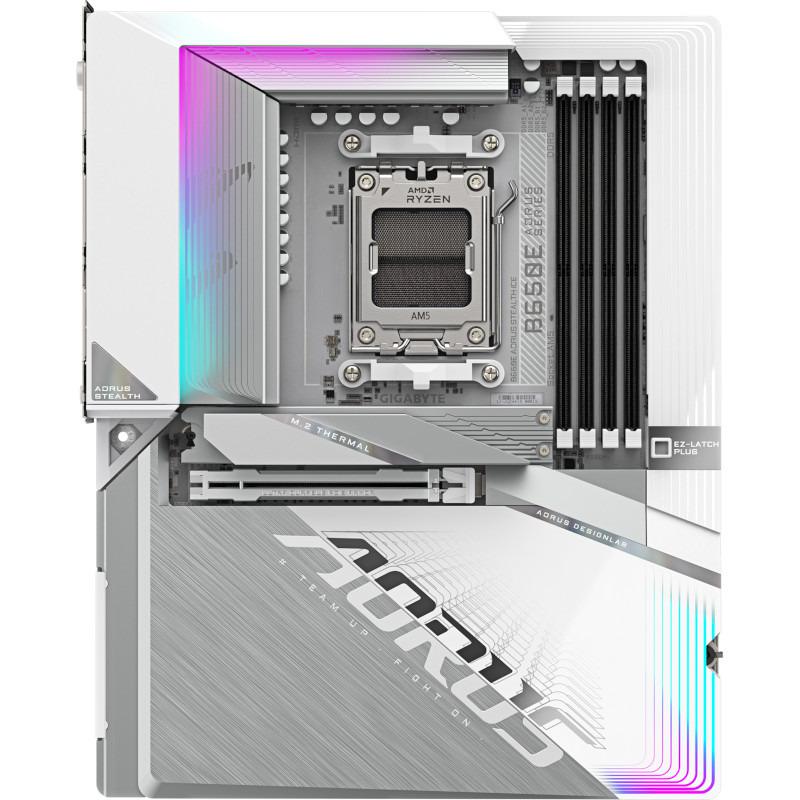

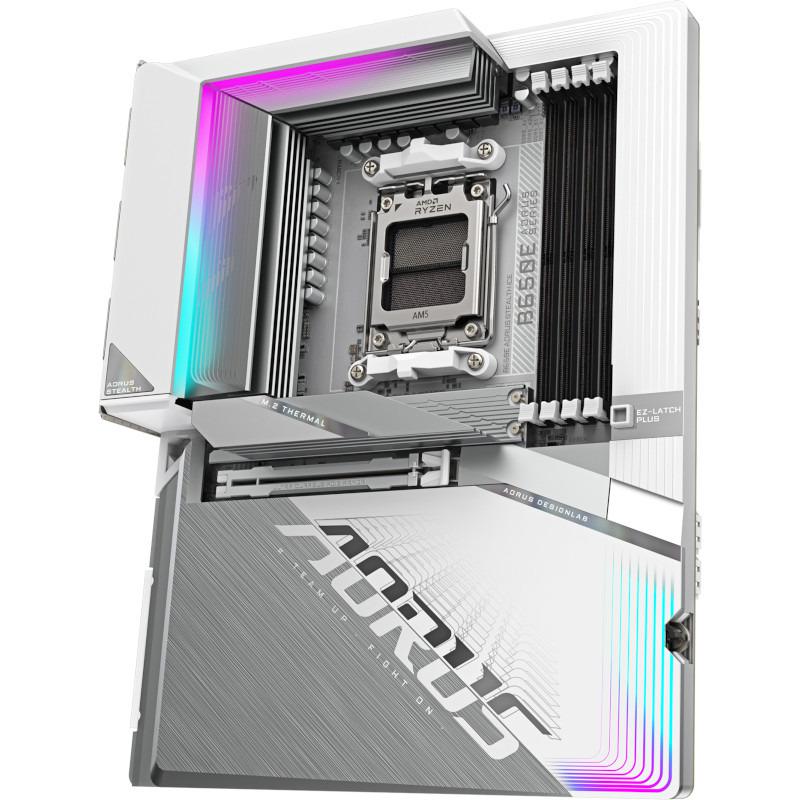

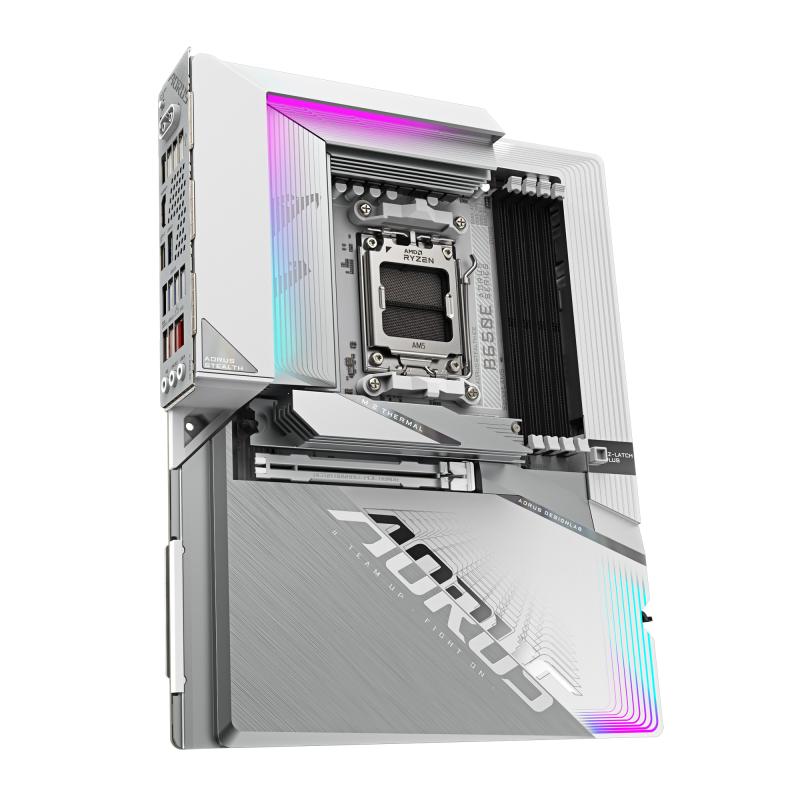

Placa de Baza GIGABYTE B650E AORUS STEALTH ICE AM5

Placa de Baza GIGABYTE B650E AORUS STEALTH ICE AM5, 4x DDR5, 1x USB Typce-C 1x HDMI 1x Front HDMI, 1x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Audio Chip

Realtek ALC897

Component for

PC

Audio output channels

7.1 channels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Discrete graphics support

Yes

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

ECC сompatibility

Non-ECC

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

MediaTek MT7925

Bluetooth version

5.4

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Drivers included

Yes

Package height

80 mm

Package width

345 mm

Package depth

294 mm

Package weight

3.56 kg

Warranty period

3 year(s)

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

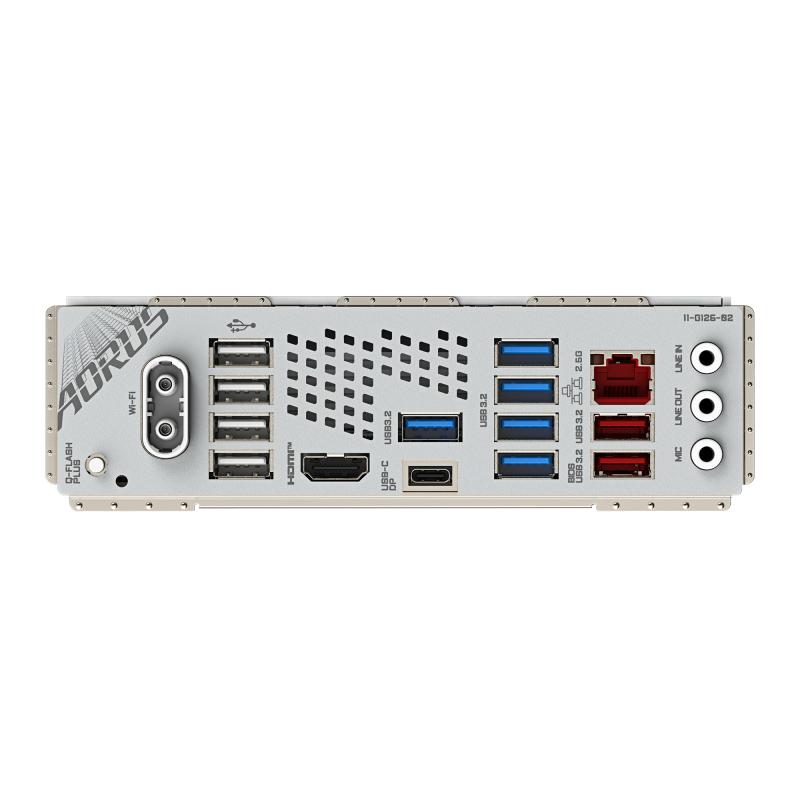

WiFi-AP antenna jack

2

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Yes

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
