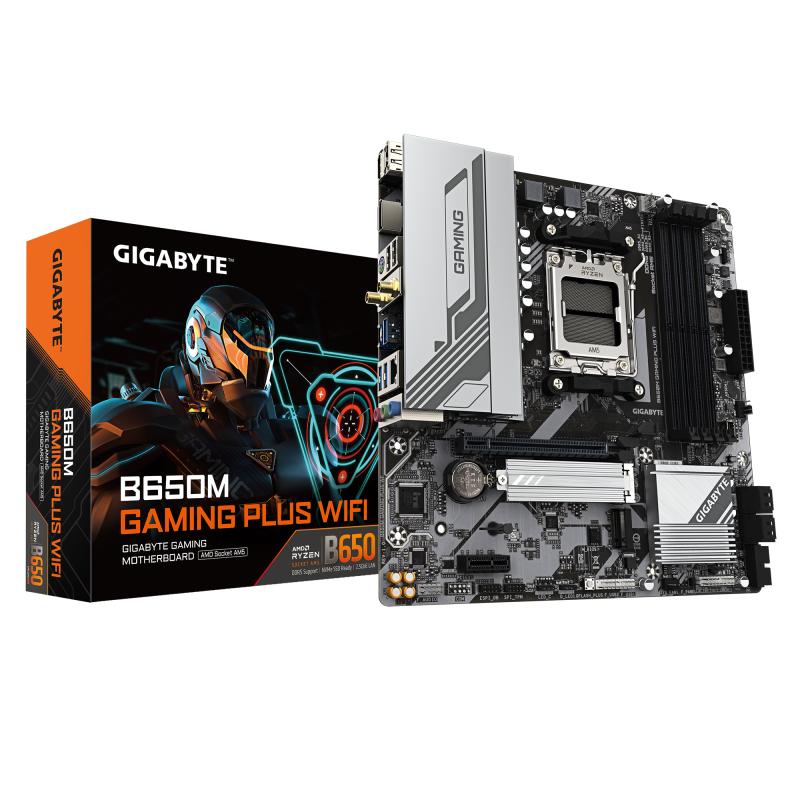

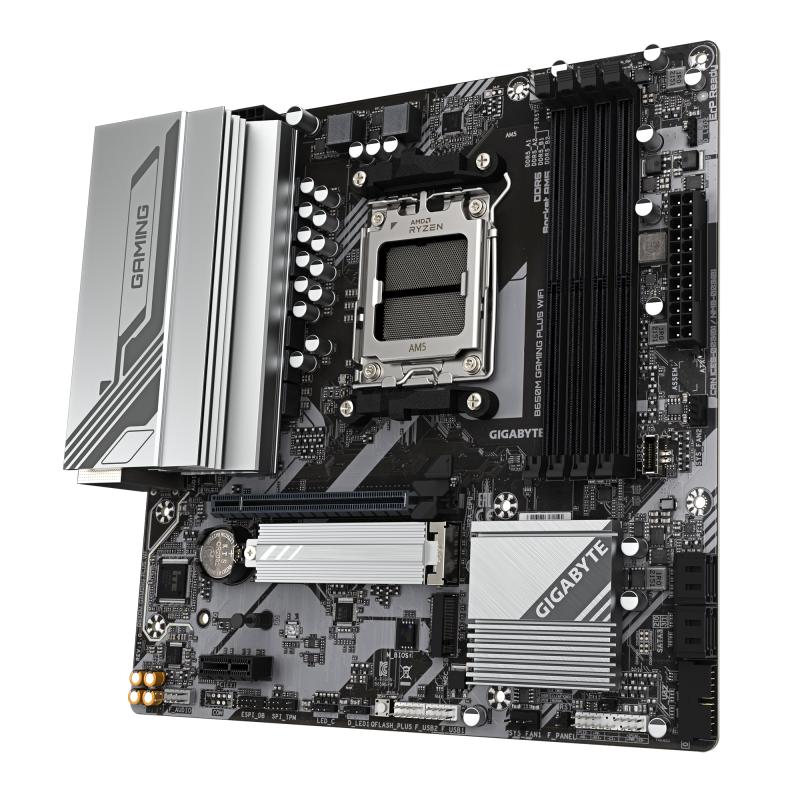

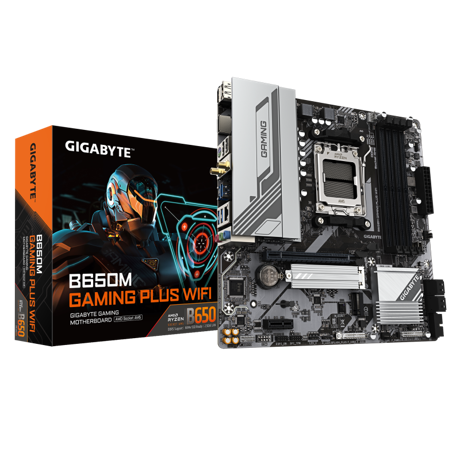

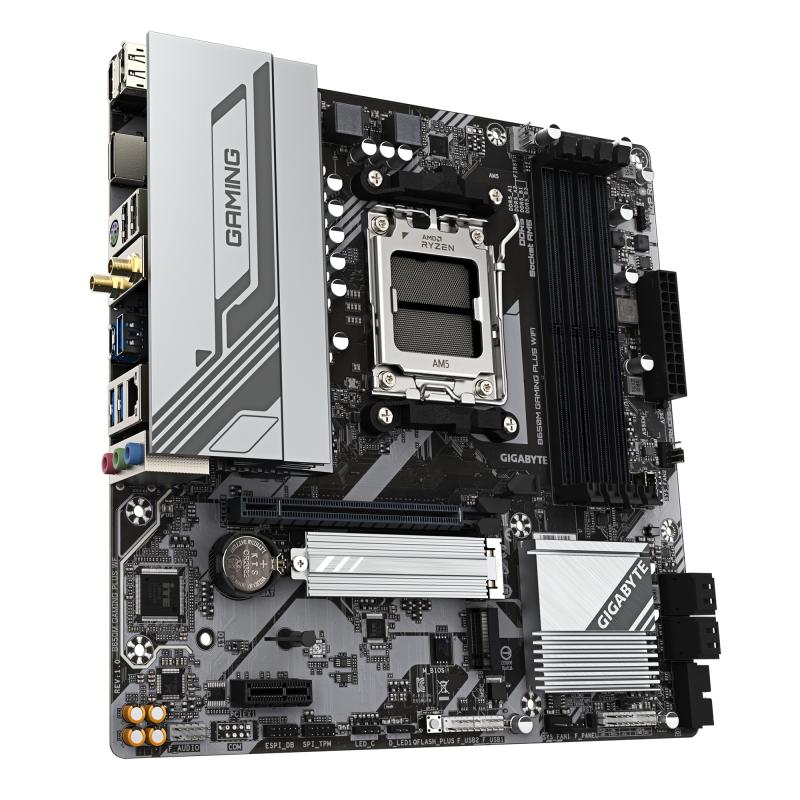

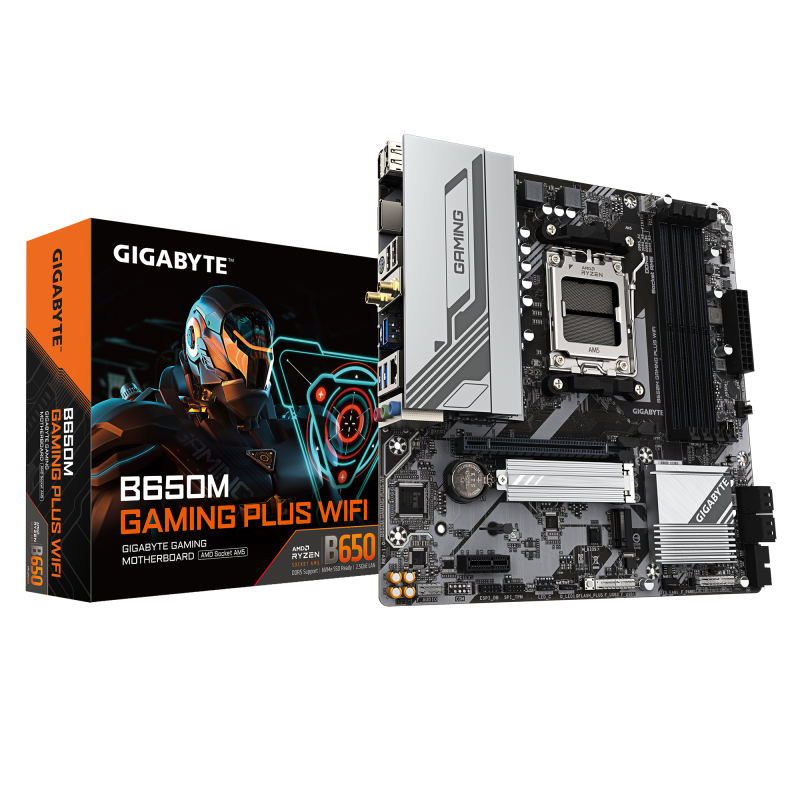

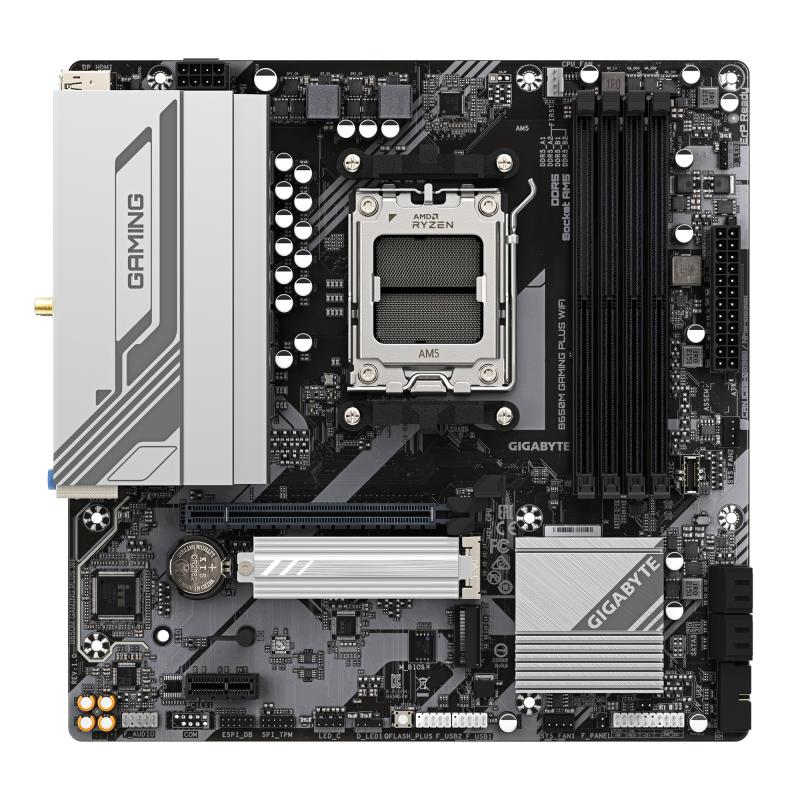

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Dark brown

Cooling type

Passive

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Power source type

ATX

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage

Motherboard chipset

AMD B650

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

Audio output channels

7.1 channels

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory clock speed (max)

8000 MHz

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

WLAN controller model

Realtek RTL8852CE

Bluetooth version

5.3

Weight

1.44 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

270 mm

Package weight

1.53 kg

Package depth

268 mm

Package height

68 mm

Warranty period

3 year(s)

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

2

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

WiFi-AP antenna jack

2

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Depth

244 mm

Height

35 mm

Width

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
