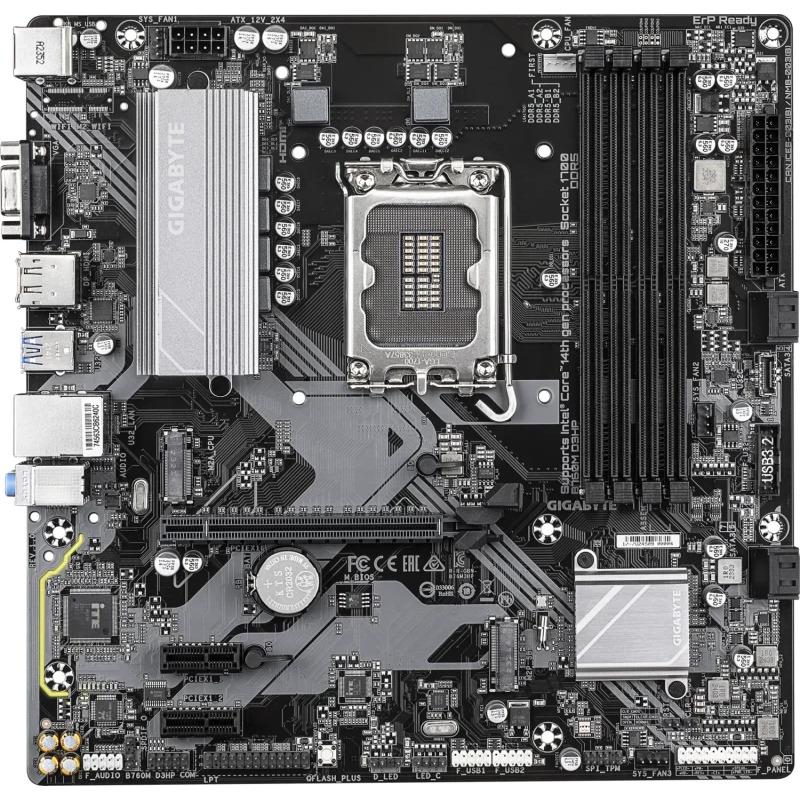

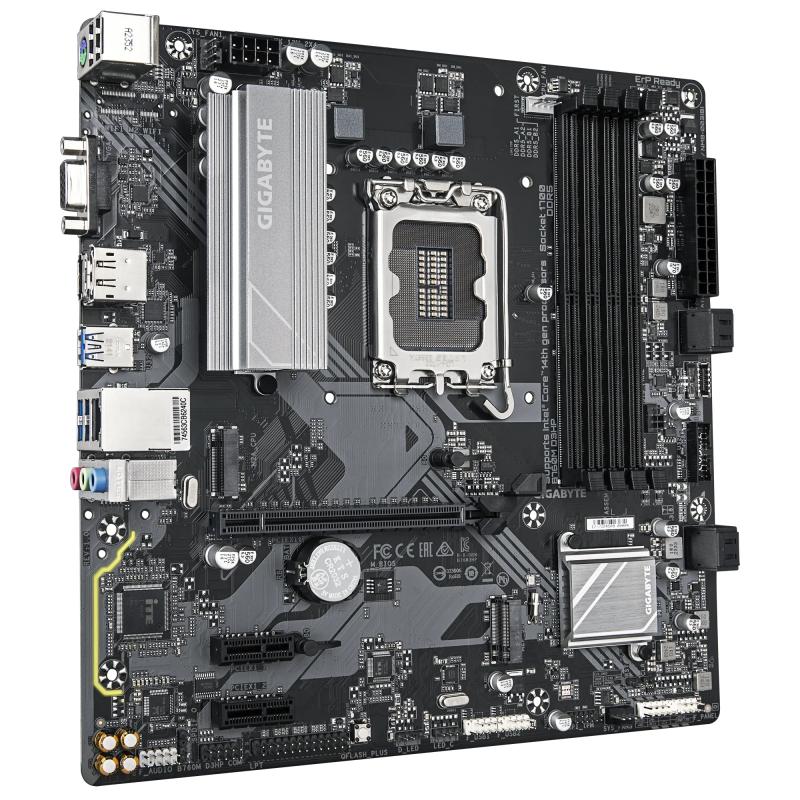

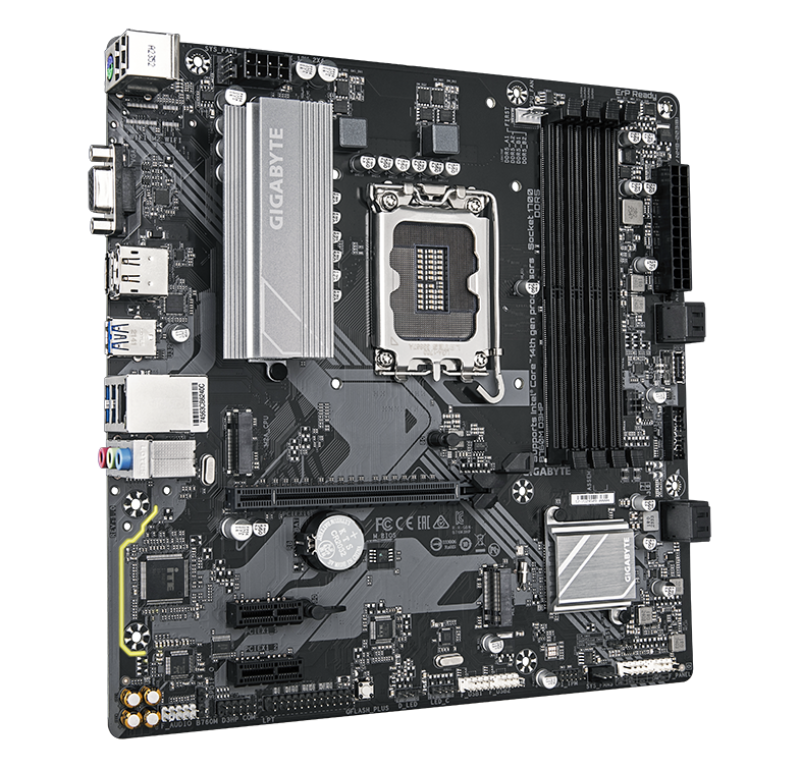

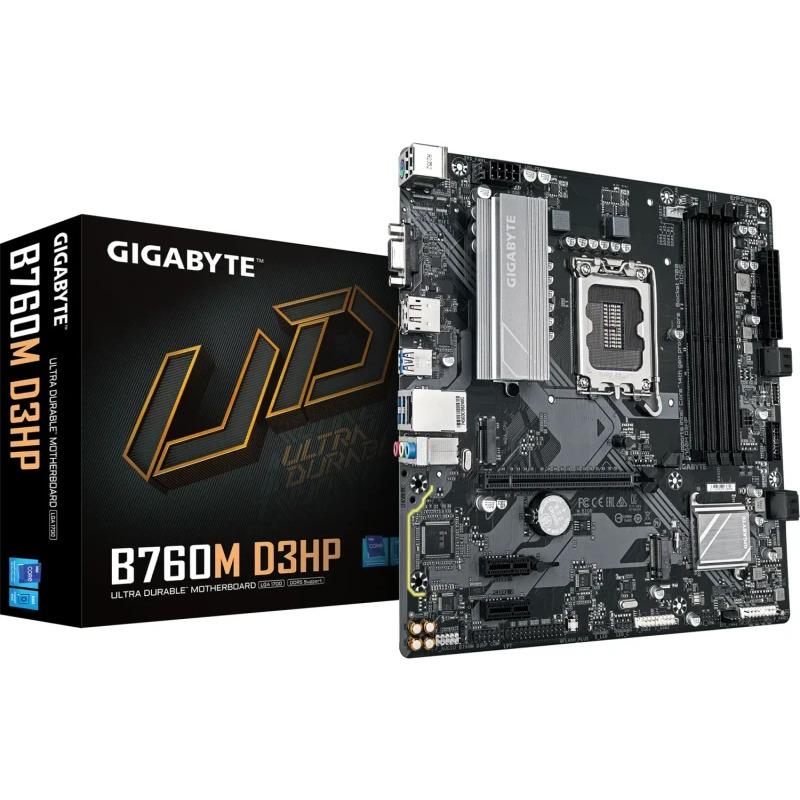

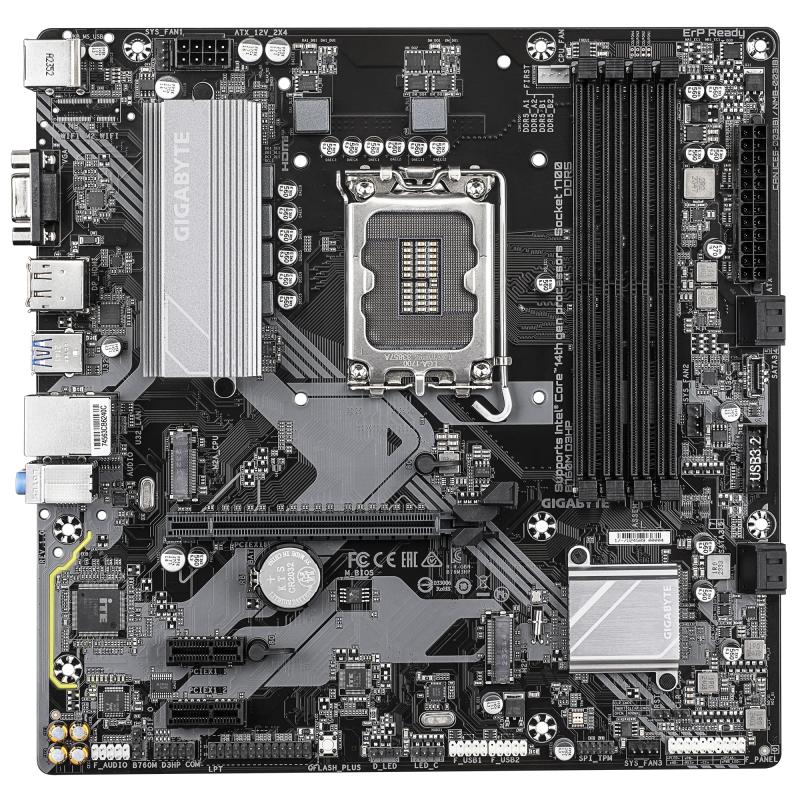

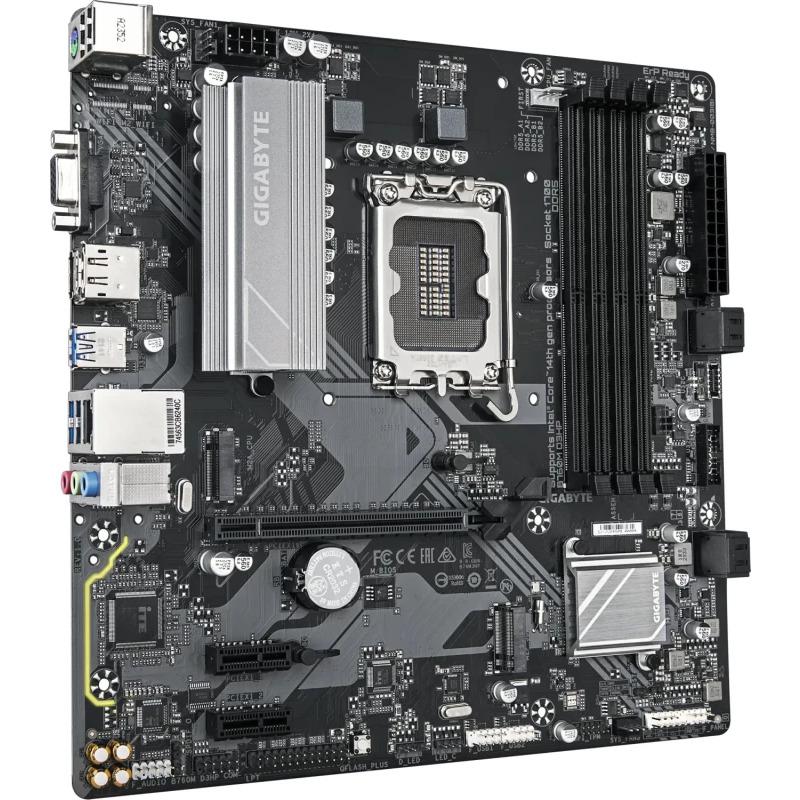

Placa de Baza GIGABYTE B760M D3HP LGA1700

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

Product colour

Brown

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Motherboard chipset

Intel B760 Express

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

Motherboard form factor

micro ATX

DirectX version

12.0

HDCP

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

S/PDIF out connector

Yes

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Parallel connector

Yes

Number of RGB LED pin headers

2

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speeds

4400,4800,5200,5600 MHz

Supported memory clock speed (max)

5600 MHz

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Wi-Fi

No

Weight

720 g

Batteries included

Yes

Screws included

Yes

Bundled software

Norton Internet Security

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Package weight

1.21 kg

Warranty period

3 year(s)

DisplayPort version

1.2

DisplayPorts quantity

1

DVI-D ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

PS/2 ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

1

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

6

Depth

244 mm

Height

35 mm

Width

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
