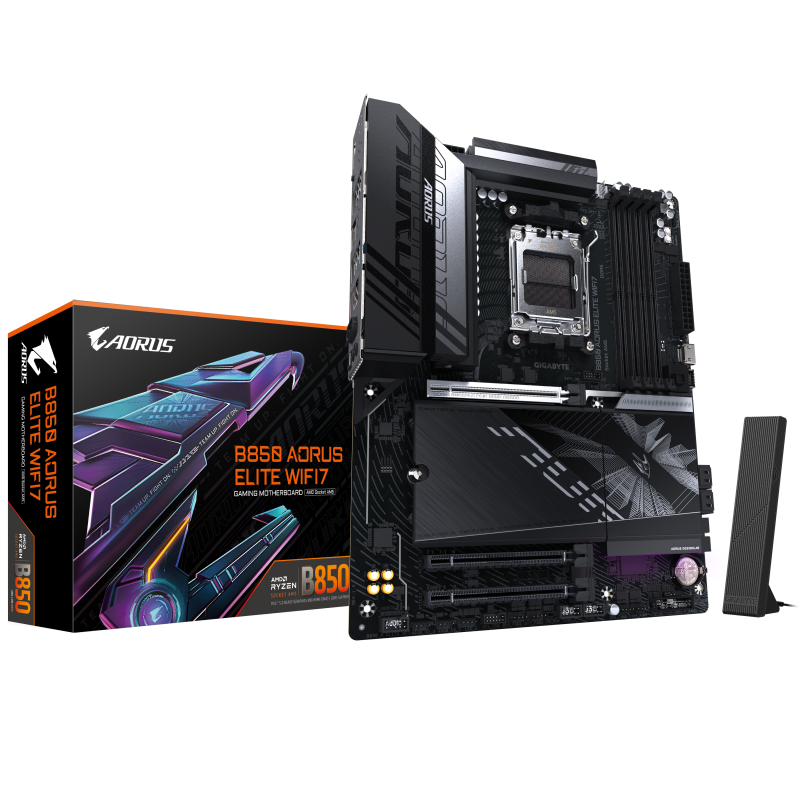

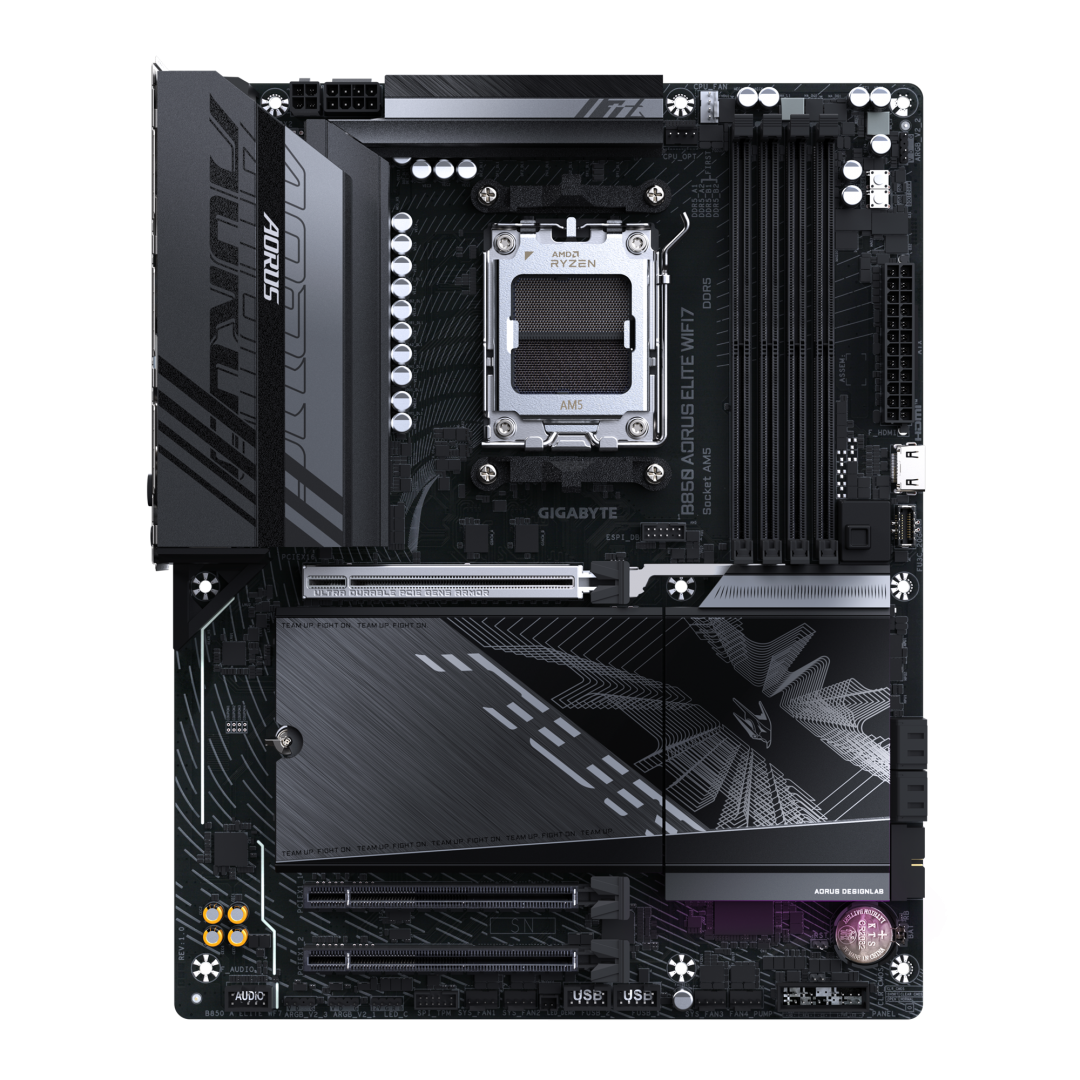

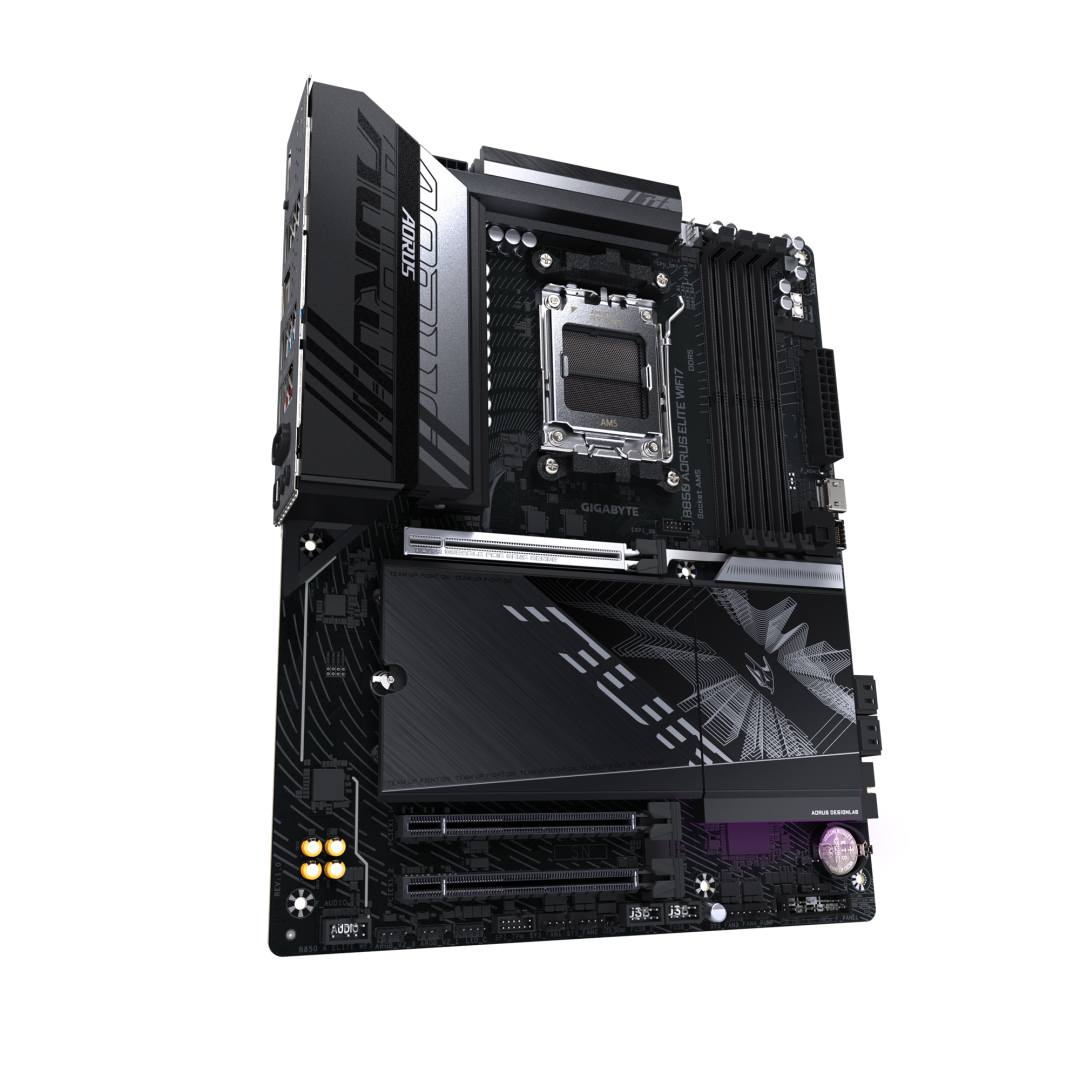

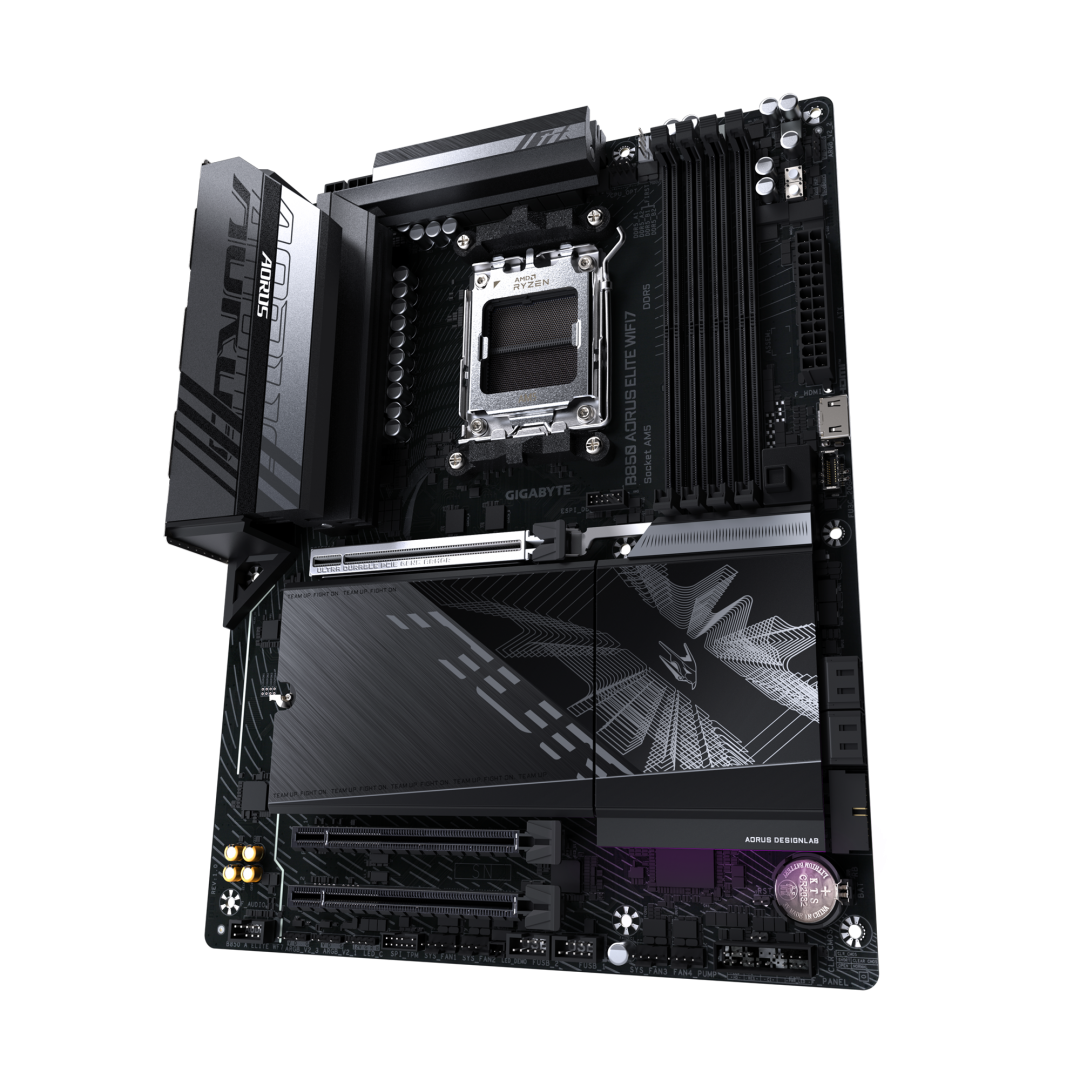

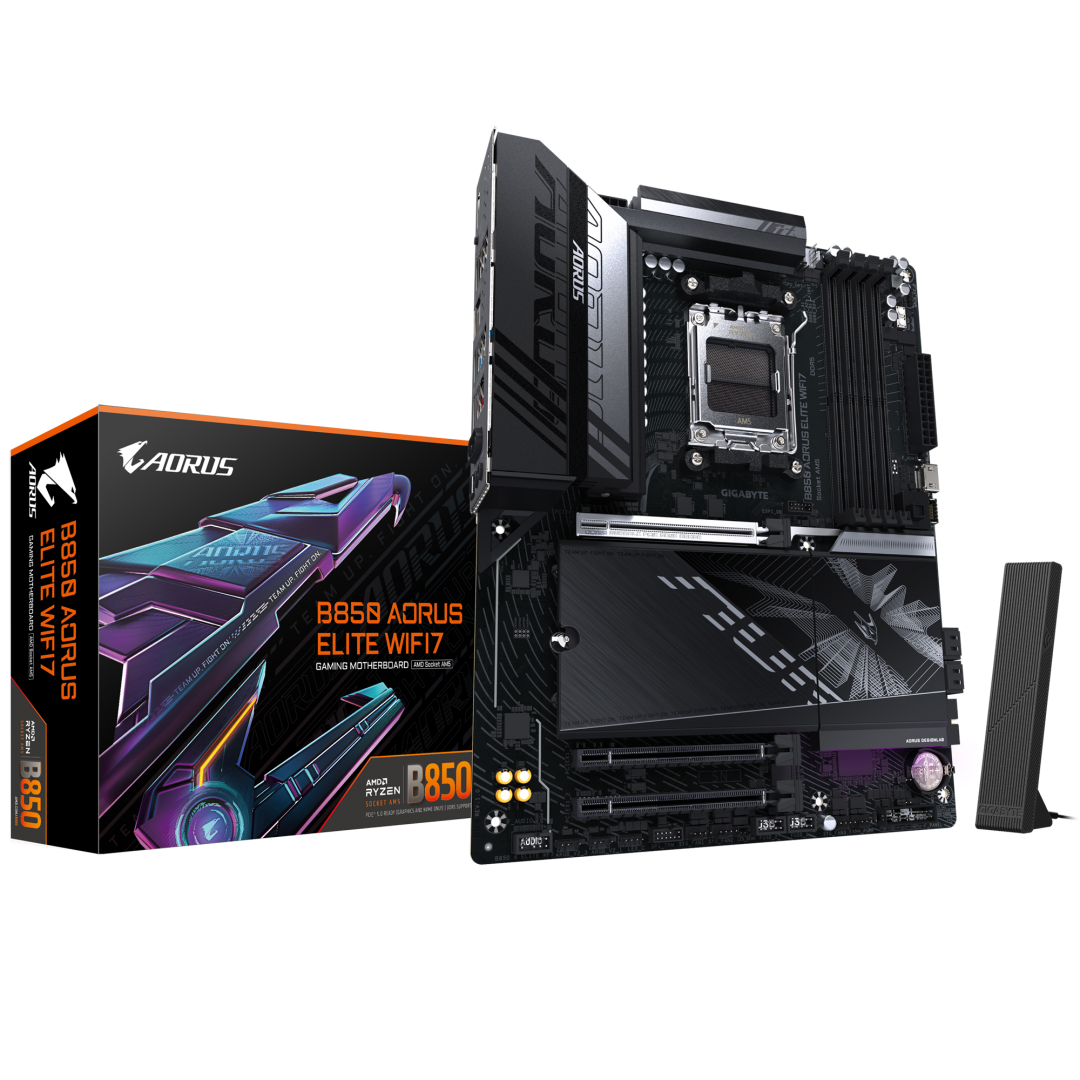

Placa de Baza GIGABYTE B850 AORUS ELITE WIFI7 AM5

Placa de Baza GIGABYTE B850 AORUS ELITE WIFI7 AM5, 4x DDR5, 1x DP 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Black, Brown

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

Serial port headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,8200 MHz

Supported memory clock speed (max)

8200 MHz

Ethernet interface type

2.5 Gigabit Ethernet

WLAN controller model

Realtek RTL8922AE

BLUETOOTH

Yes

Wi-Fi

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Weight

2.13 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.46 kg

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

WiFi-AP antenna jack

2

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone outputs

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Number of HDDs supported

4

Number of storage drives supported

7

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Supported storage drive types

HDD & SSD

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
