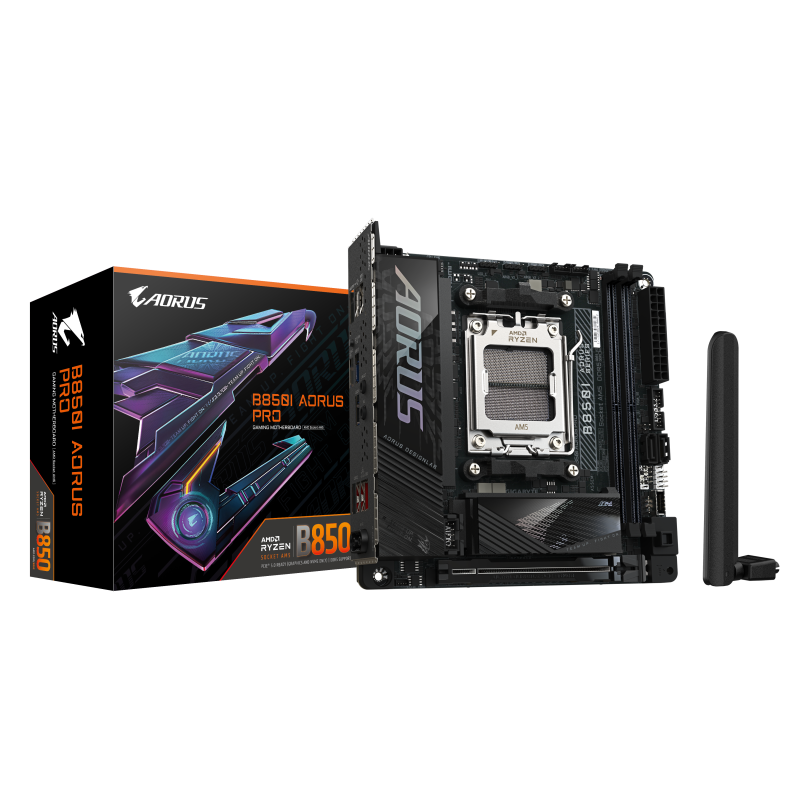

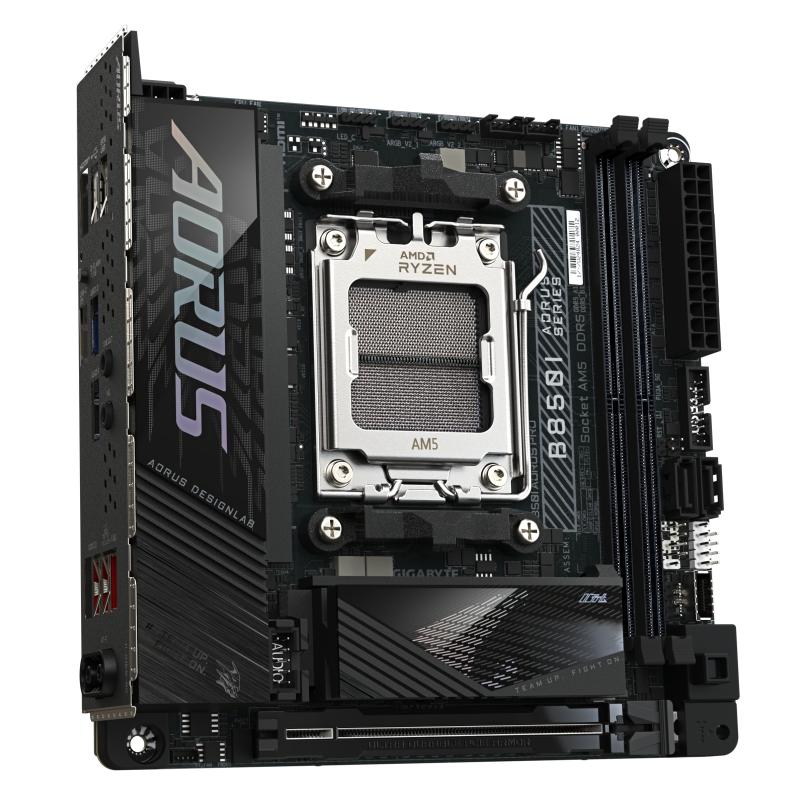

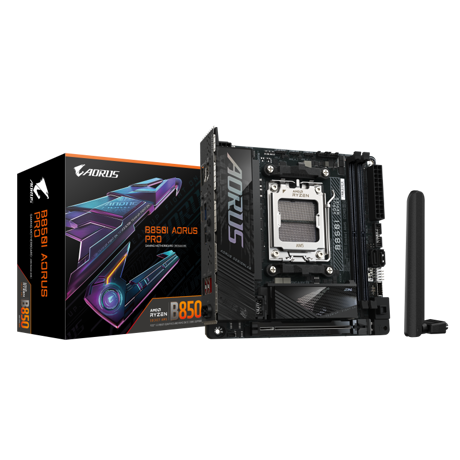

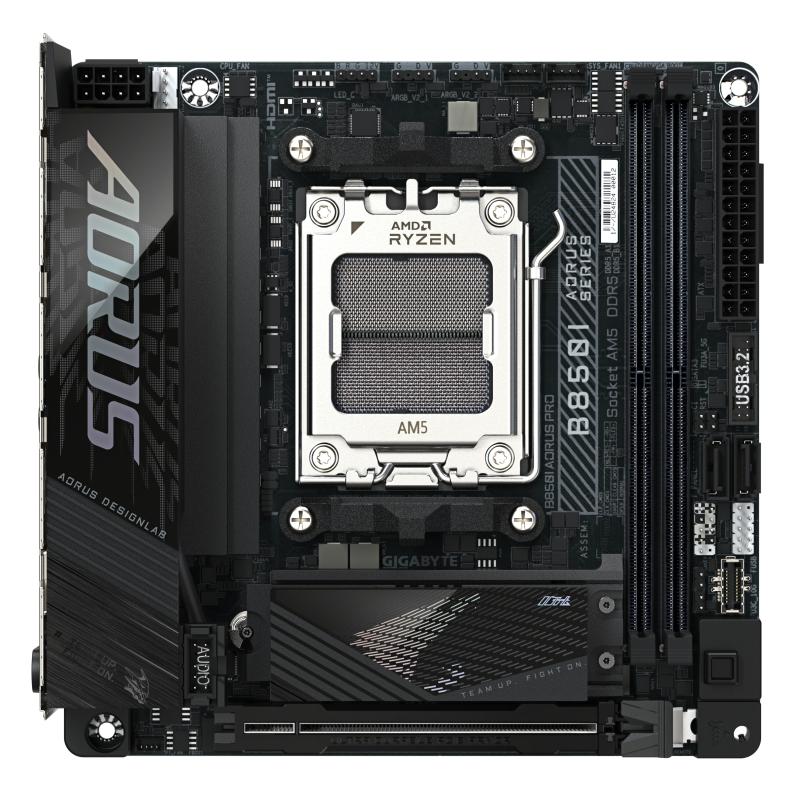

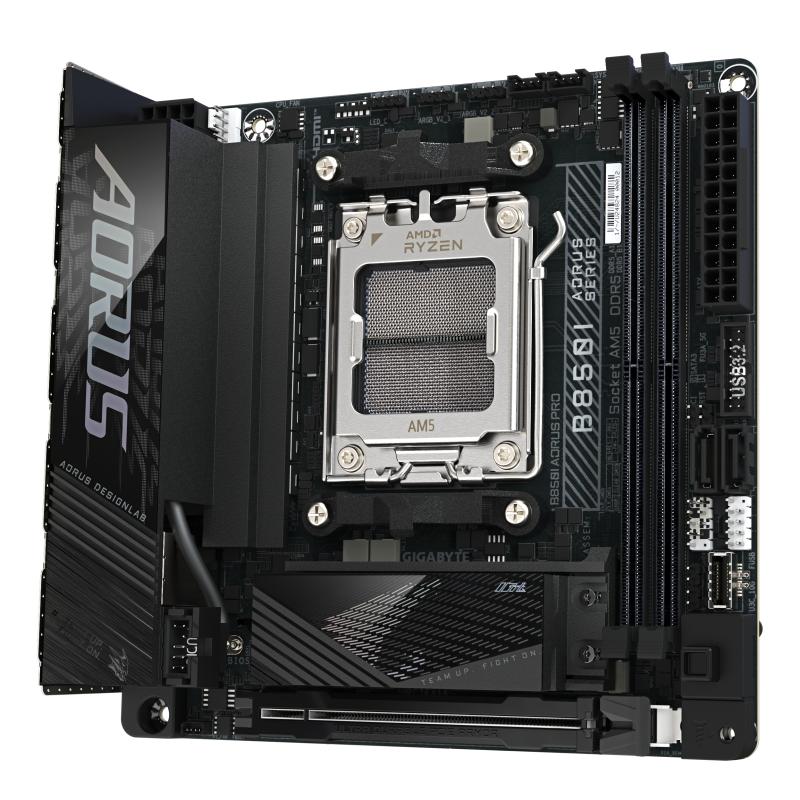

Placa de Baza GIGABYTE B850I AORUS PRO AM5, 2x DDR5, 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini-ITX

Placa de Baza GIGABYTE B850I AORUS PRO AM5, 2x DDR5, 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini-ITX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Black, Brown

Number of M.2 (M) slots

2

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

2

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

Motherboard form factor

mini ITX

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Component for

PC

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of SATA III connectors

2

USB 2.0 connectors

1

Number of EPS power connectors (8-pin)

1

12V power connector

Yes

Number of chassis fan connectors

3

Serial port headers

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory per slot

64 GB

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8400 MHz

Supported memory clock speeds

4400,4800,5200,8400 MHz

WLAN controller model

Realtek RTL8922AE

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

BLUETOOTH

Yes

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Yes

Weight

1.3 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Supported storage drive types

HDD & SSD

RAID levels

0, 1, 10

Number of storage drives supported

4

Number of HDDs supported

2

Depth

170 mm

Width

170 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
