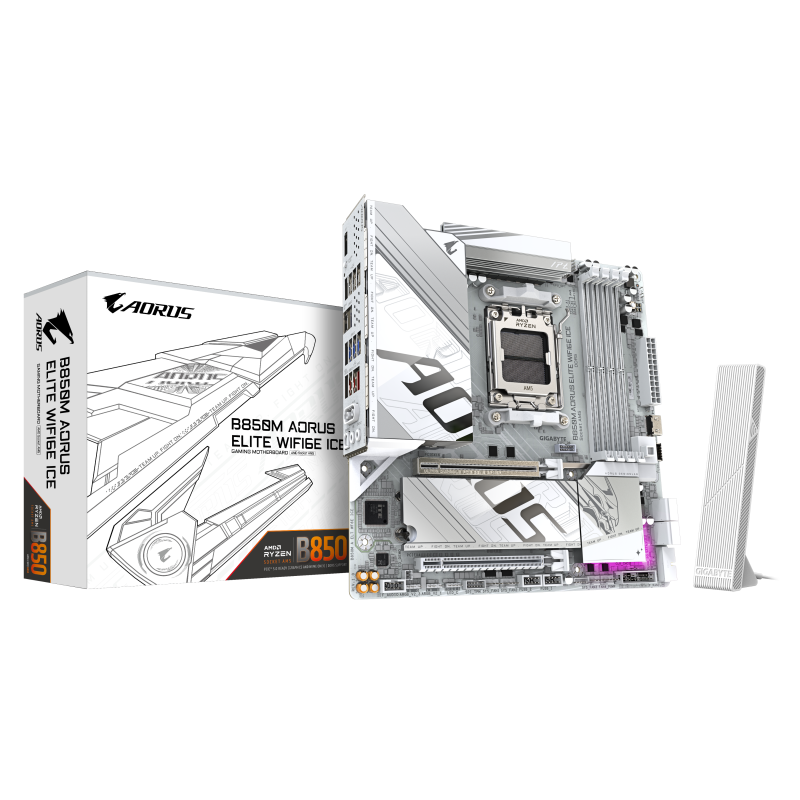

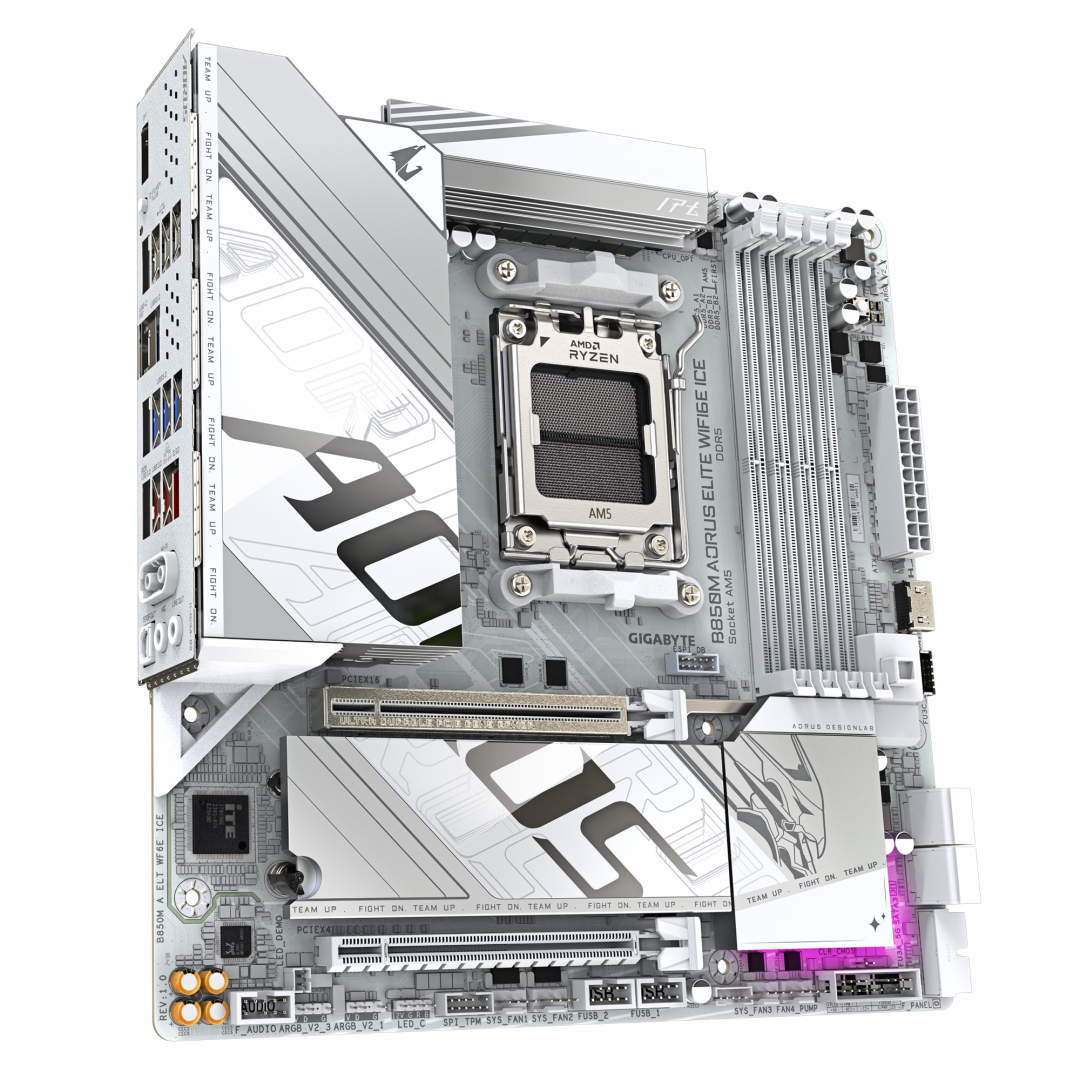

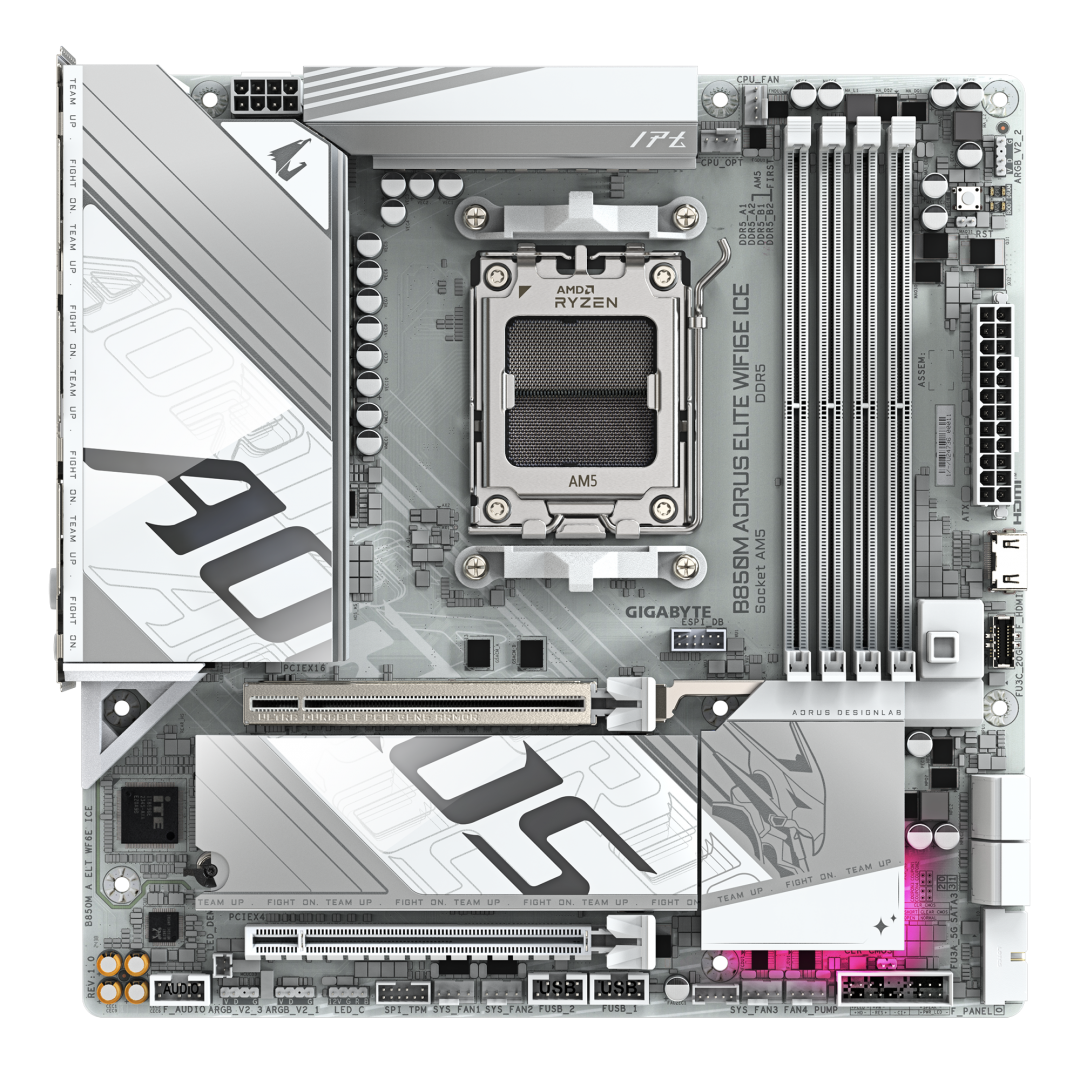

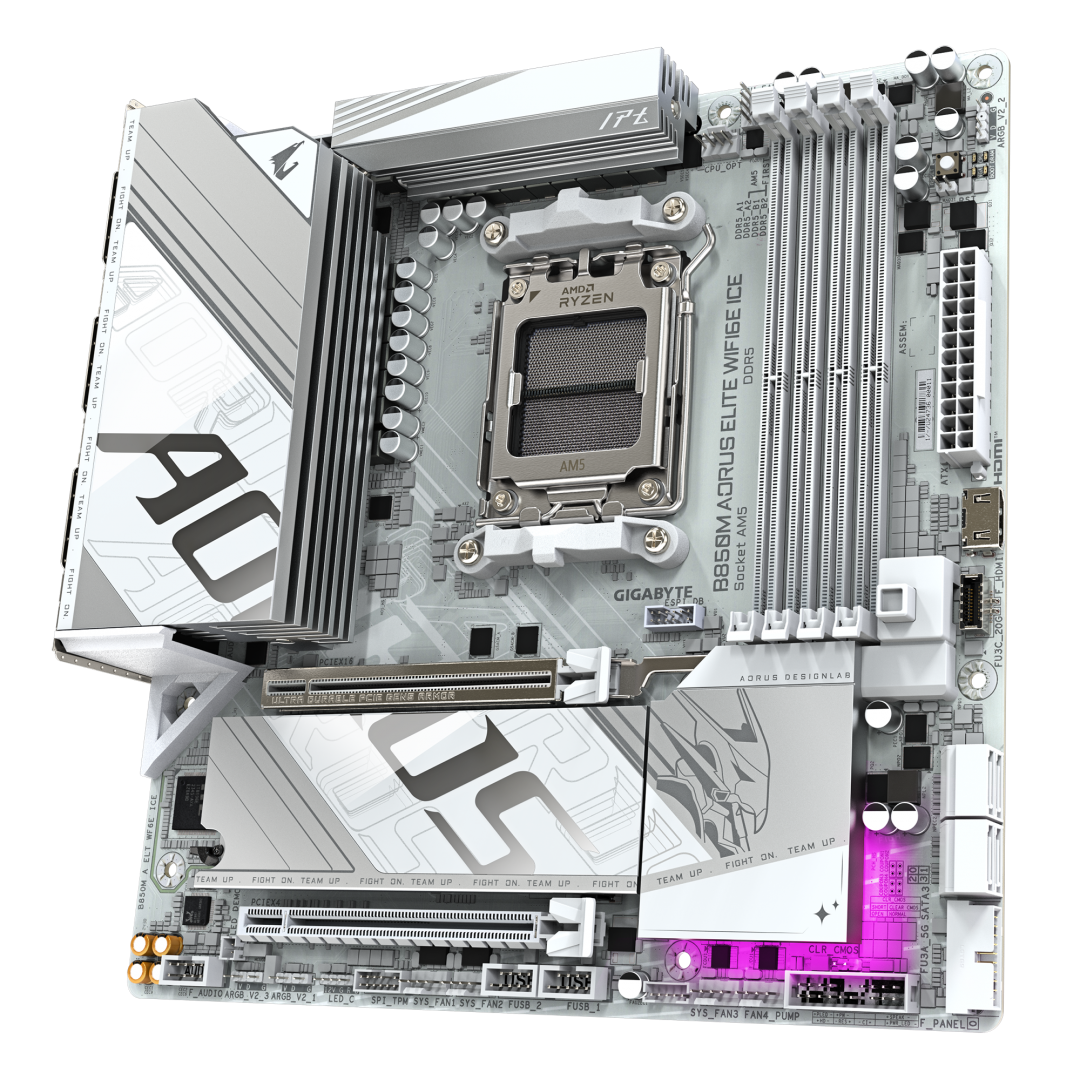

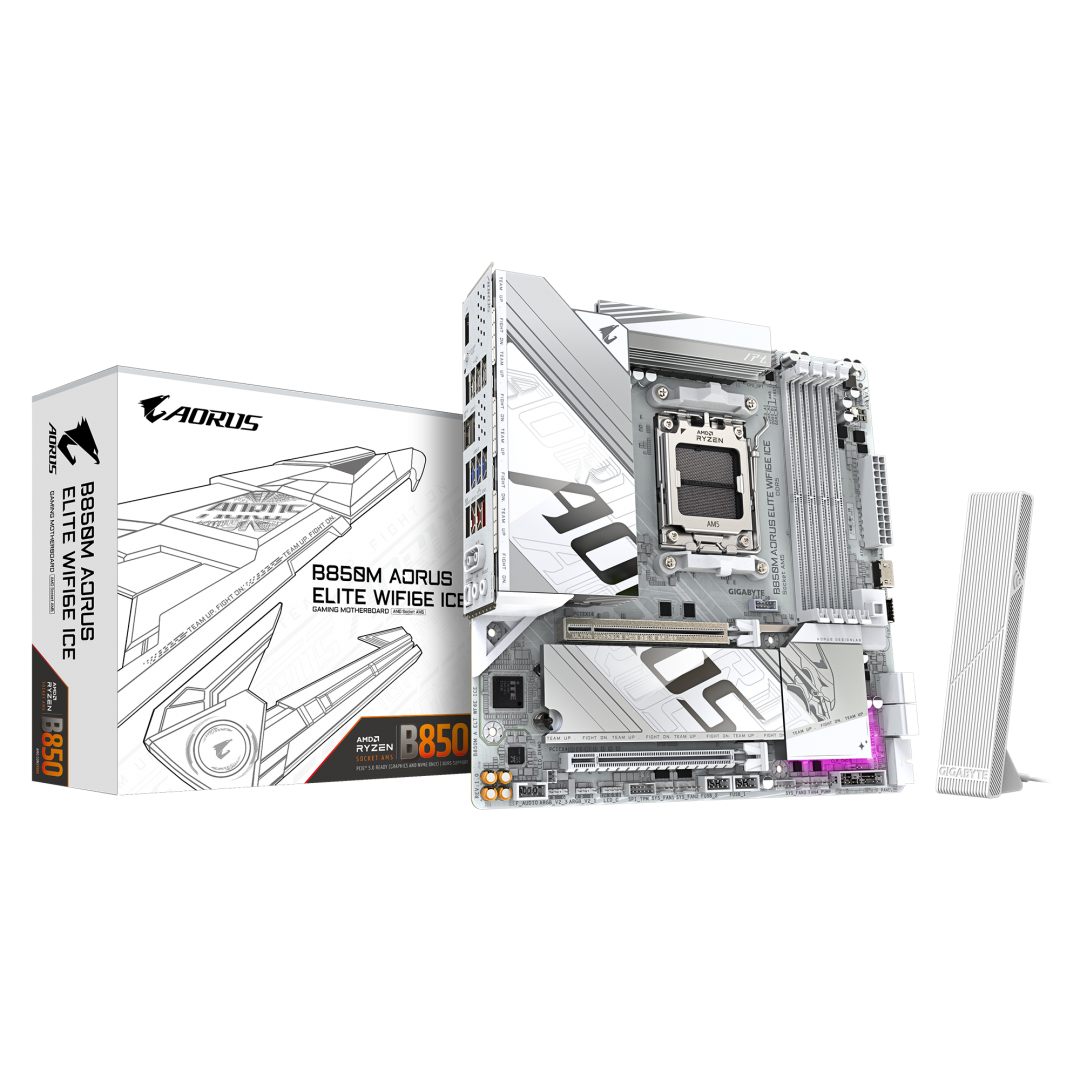

Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E ICE AM5

Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E ICE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

White

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset

AMD B850

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Peripheral (Molex) power connectors (4-pin)

1

Number of chassis fan connectors

3

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Supported memory clock speeds

4400,4800,5200,8200 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Ethernet interface type

2.5 Gigabit Ethernet

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.3

WLAN controller model

Realtek RTL8852CE

Weight

1.77 kg

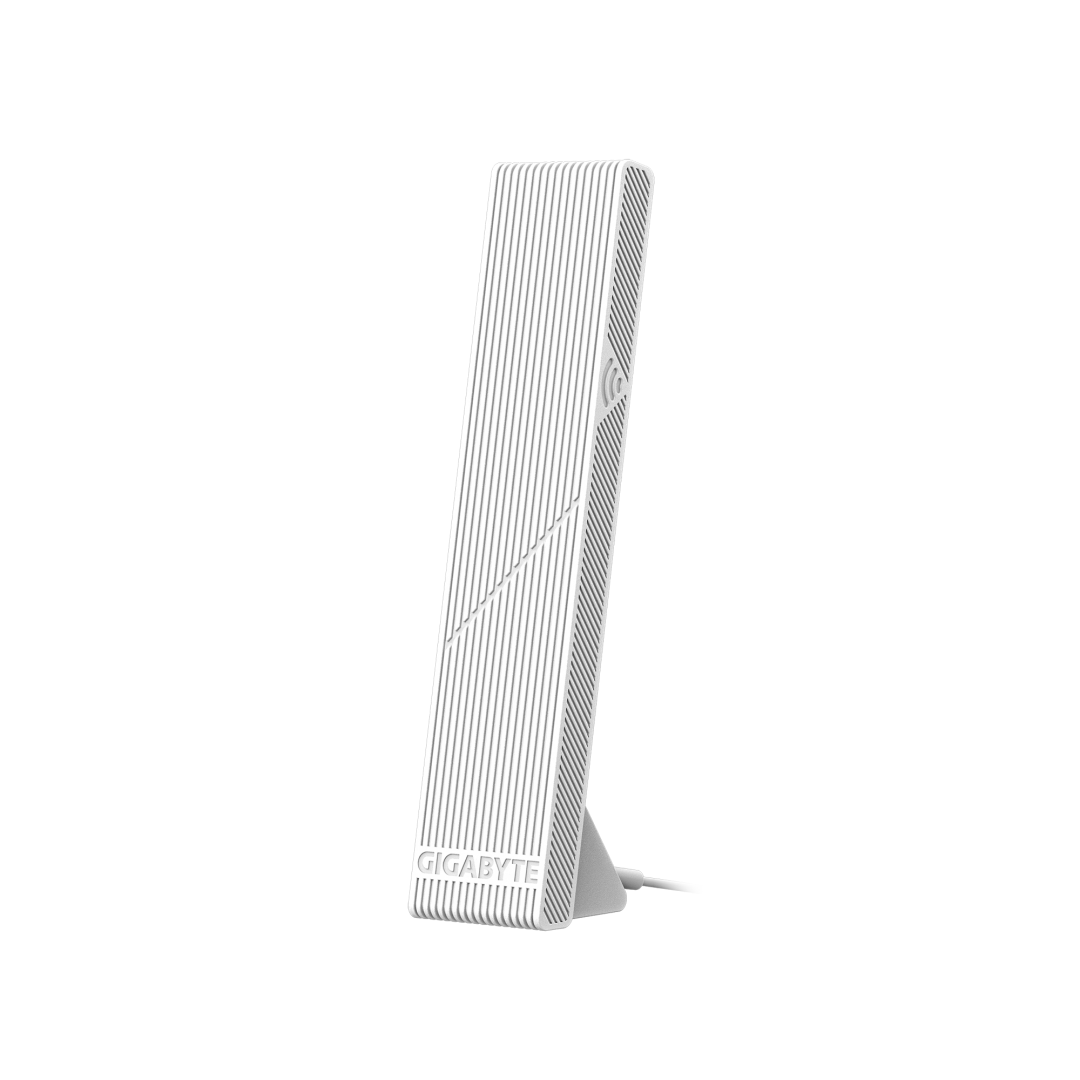

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package depth

268 mm

Package height

68 mm

Package width

270 mm

Package weight

1.97 kg

Warranty period

3 year(s)

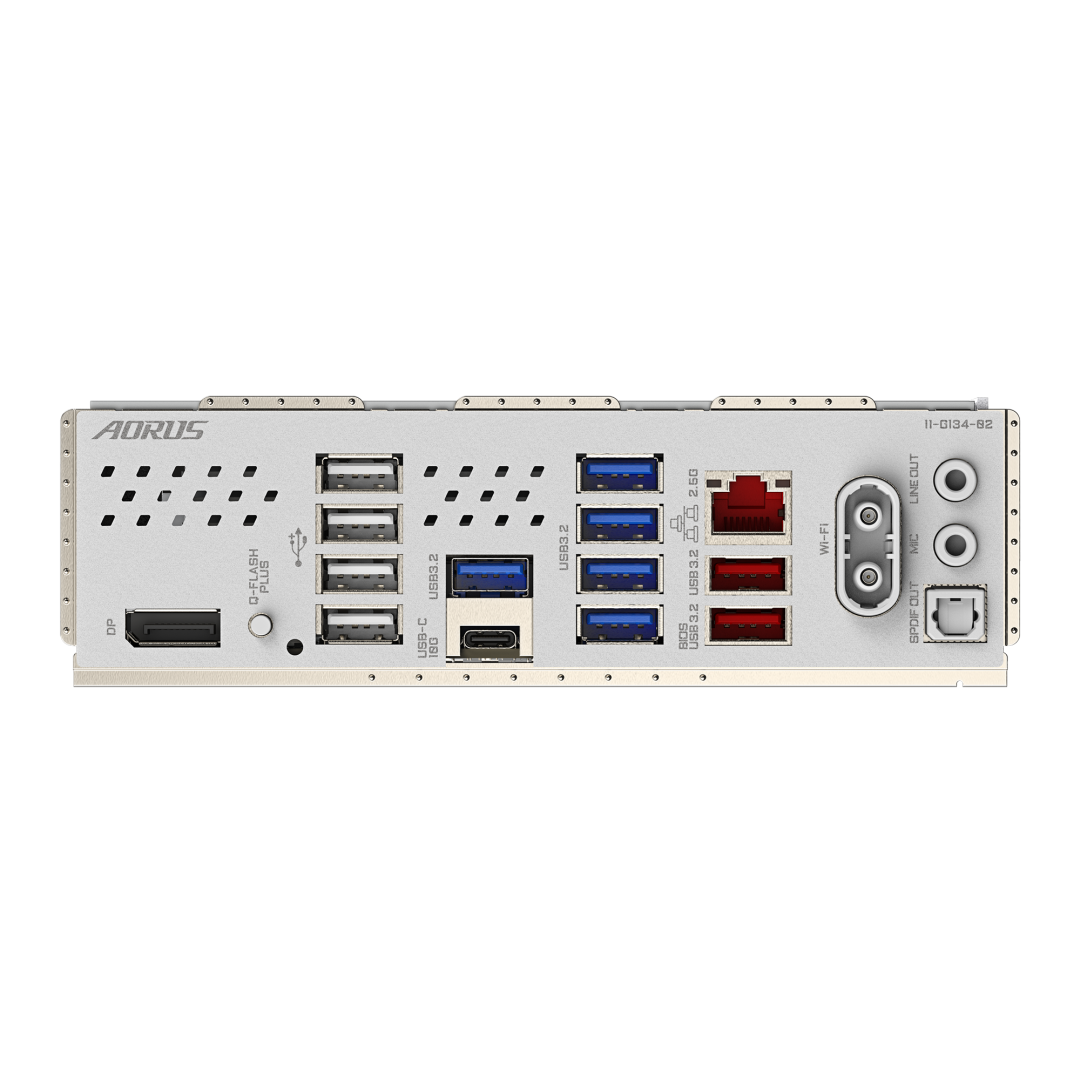

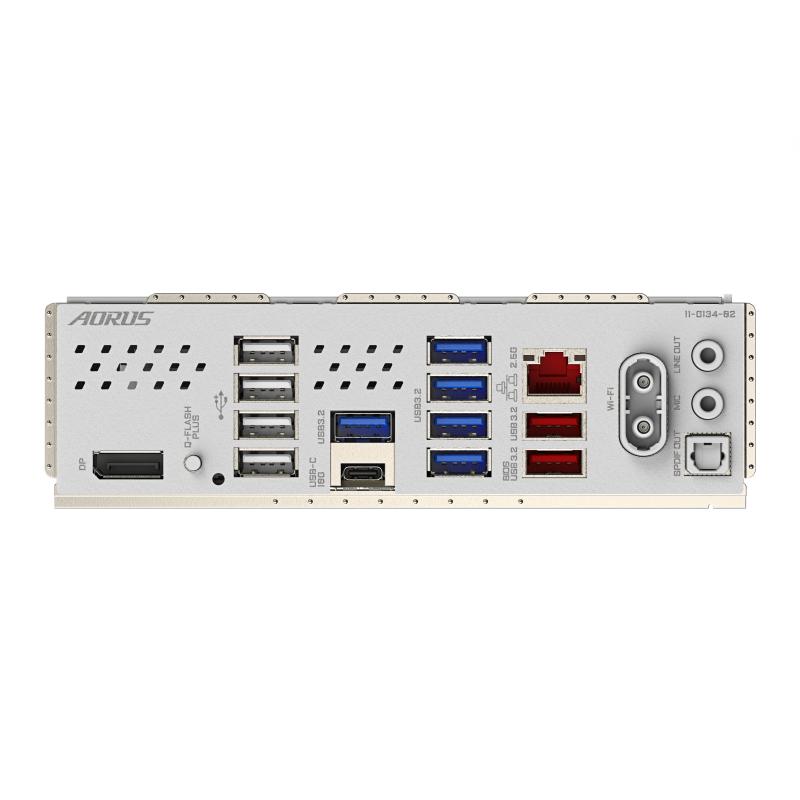

DisplayPorts quantity

1

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Microphone in

Yes

Headphone outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

6

Depth

244 mm

Width

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
