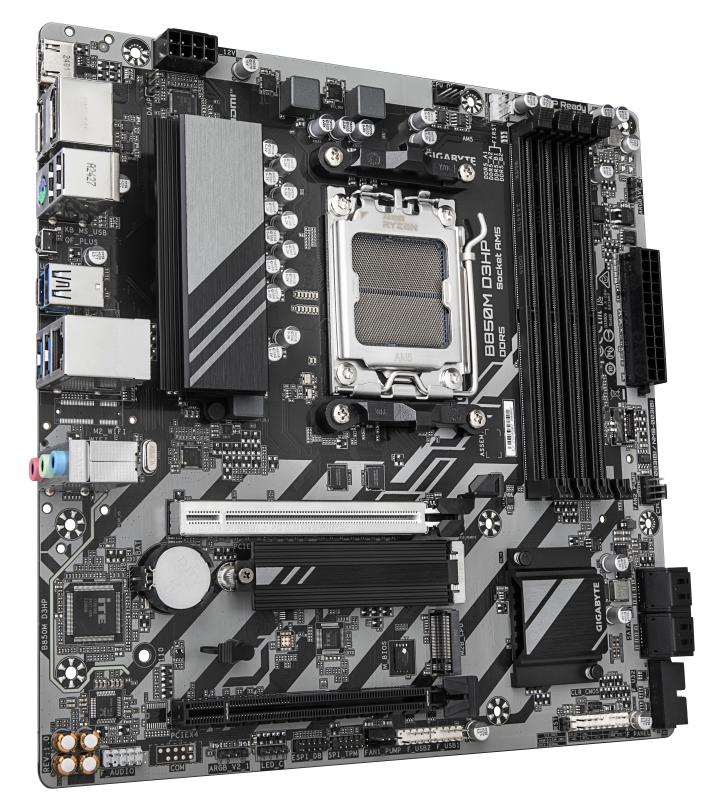

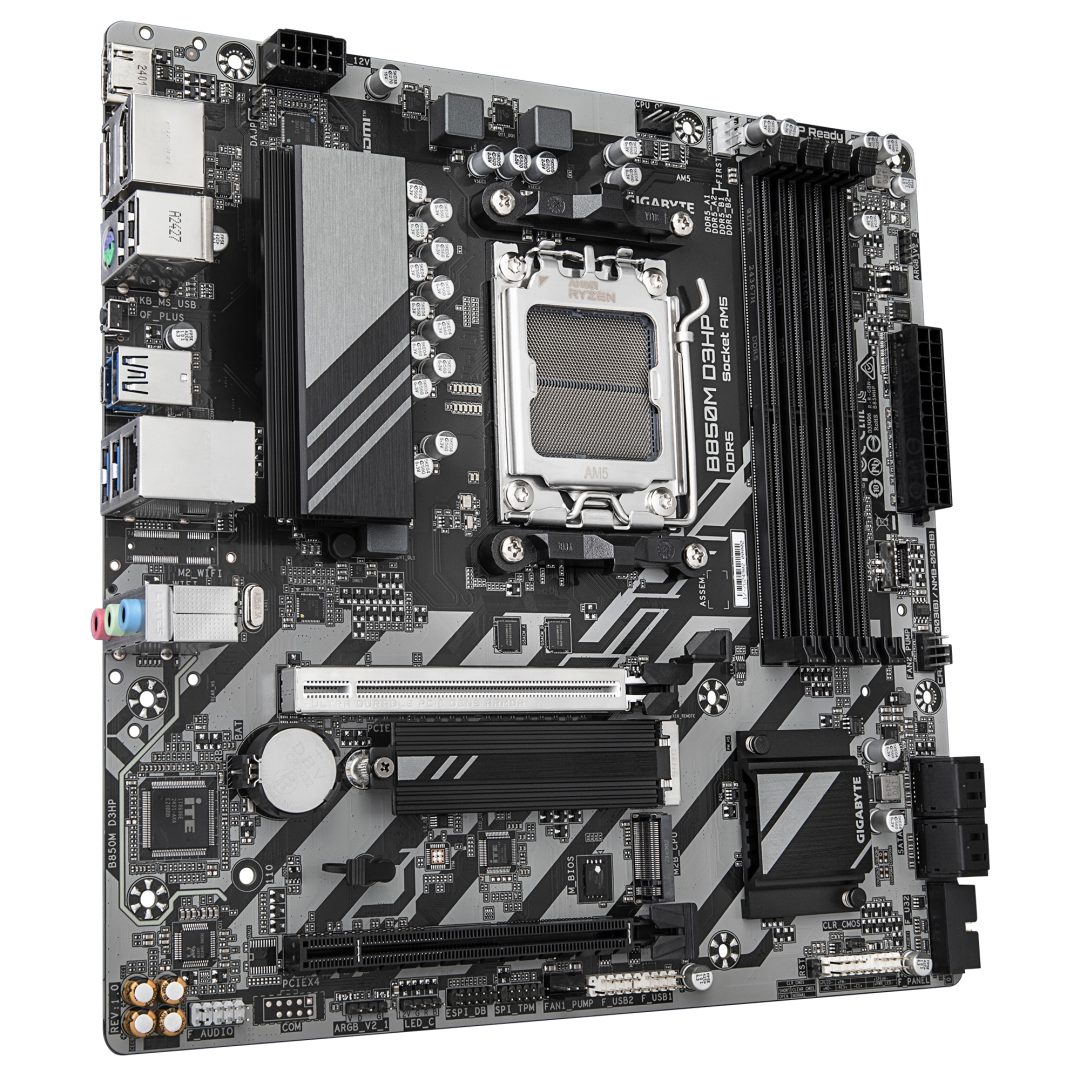

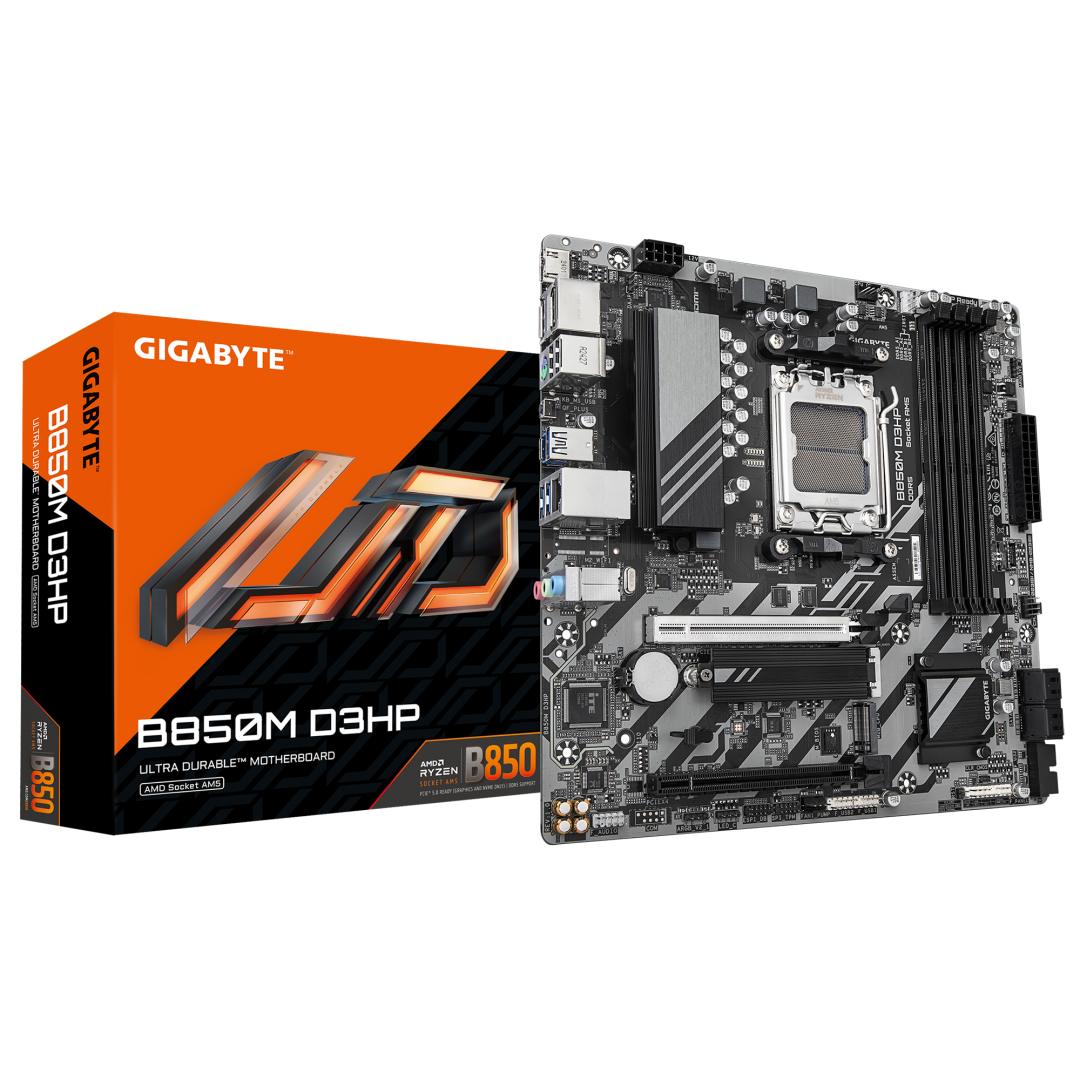

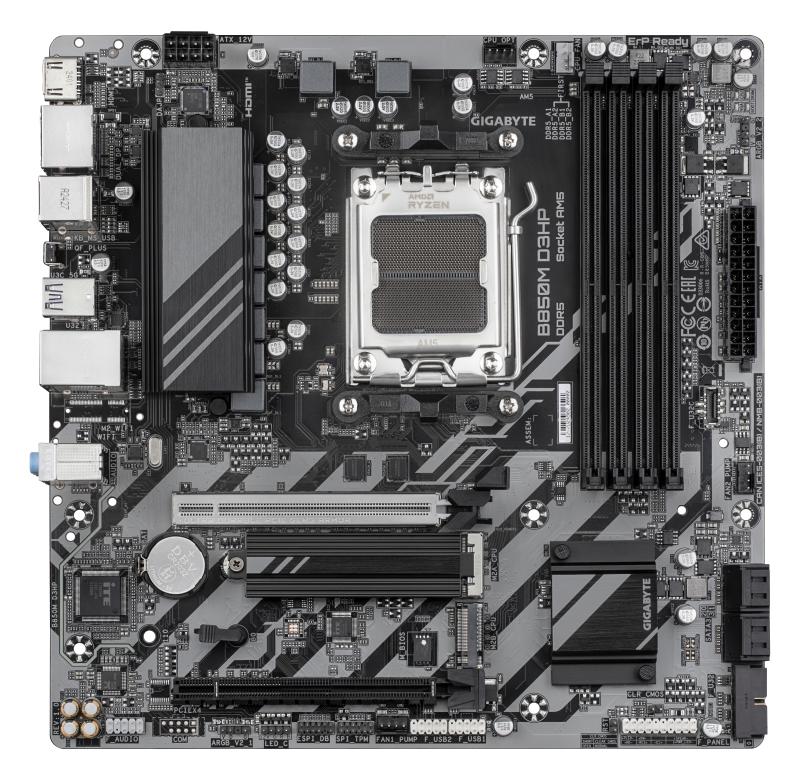

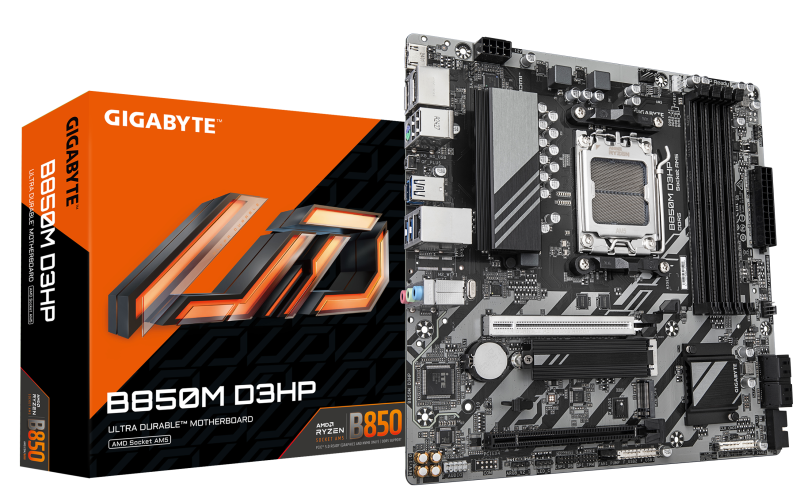

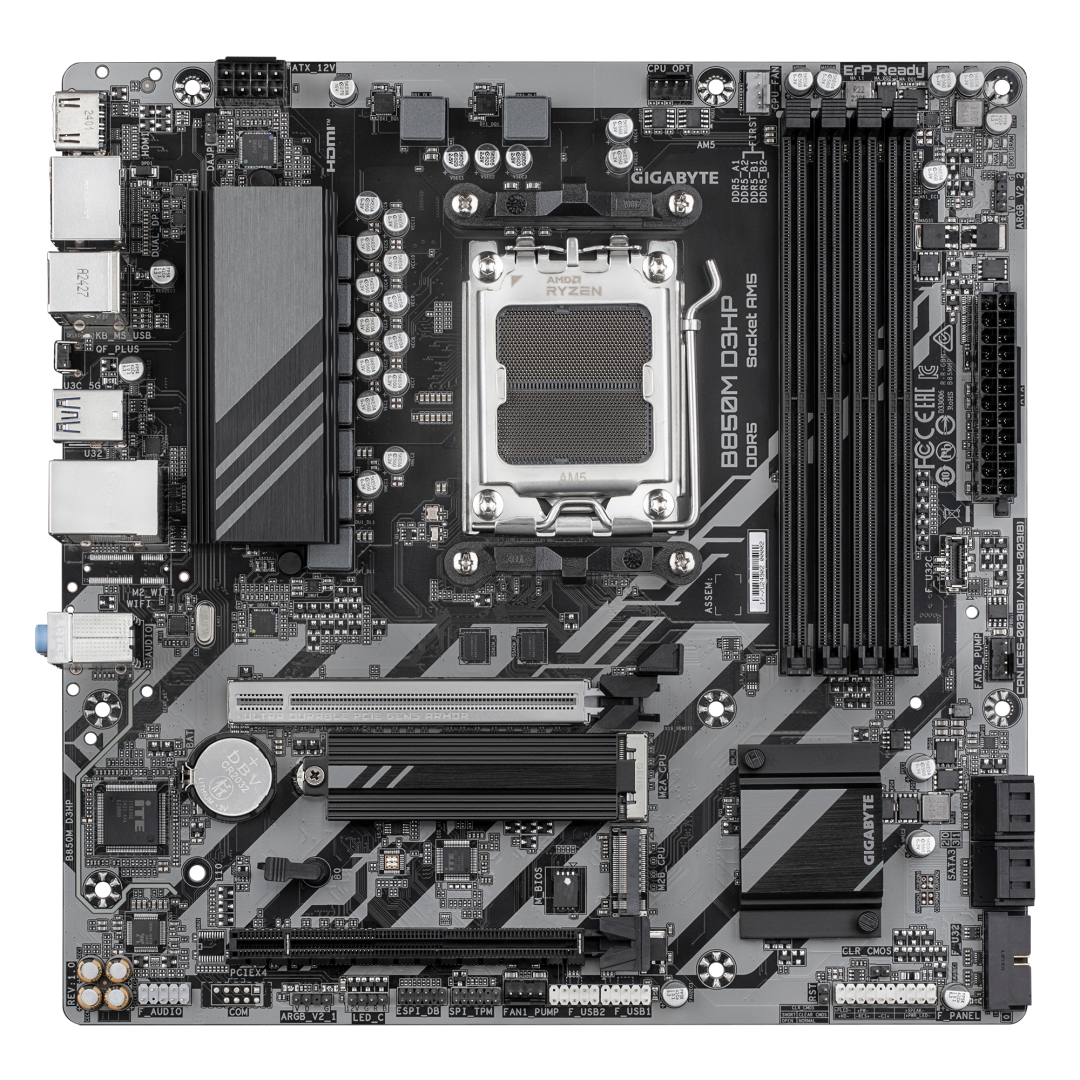

Placa de Baza GIGABYTE B850M D3HP AM5

Placa de Baza GIGABYTE B850M D3HP AM5, 4x DDR5, 1x HDMI 2x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Motherboard chipset

AMD B850

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

12V power connector

Yes

Peripheral (Molex) power connectors (4-pin)

1

Serial port headers

1

Number of chassis fan connectors

3

Number of EPS power connectors (8-pin)

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Supported memory clock speeds

4400,4800,5200,8200 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Weight

1.3 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Microphone in

Yes

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

RAID levels

0, 1, 10

Number of storage drives supported

6

Depth

244 mm

Width

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
