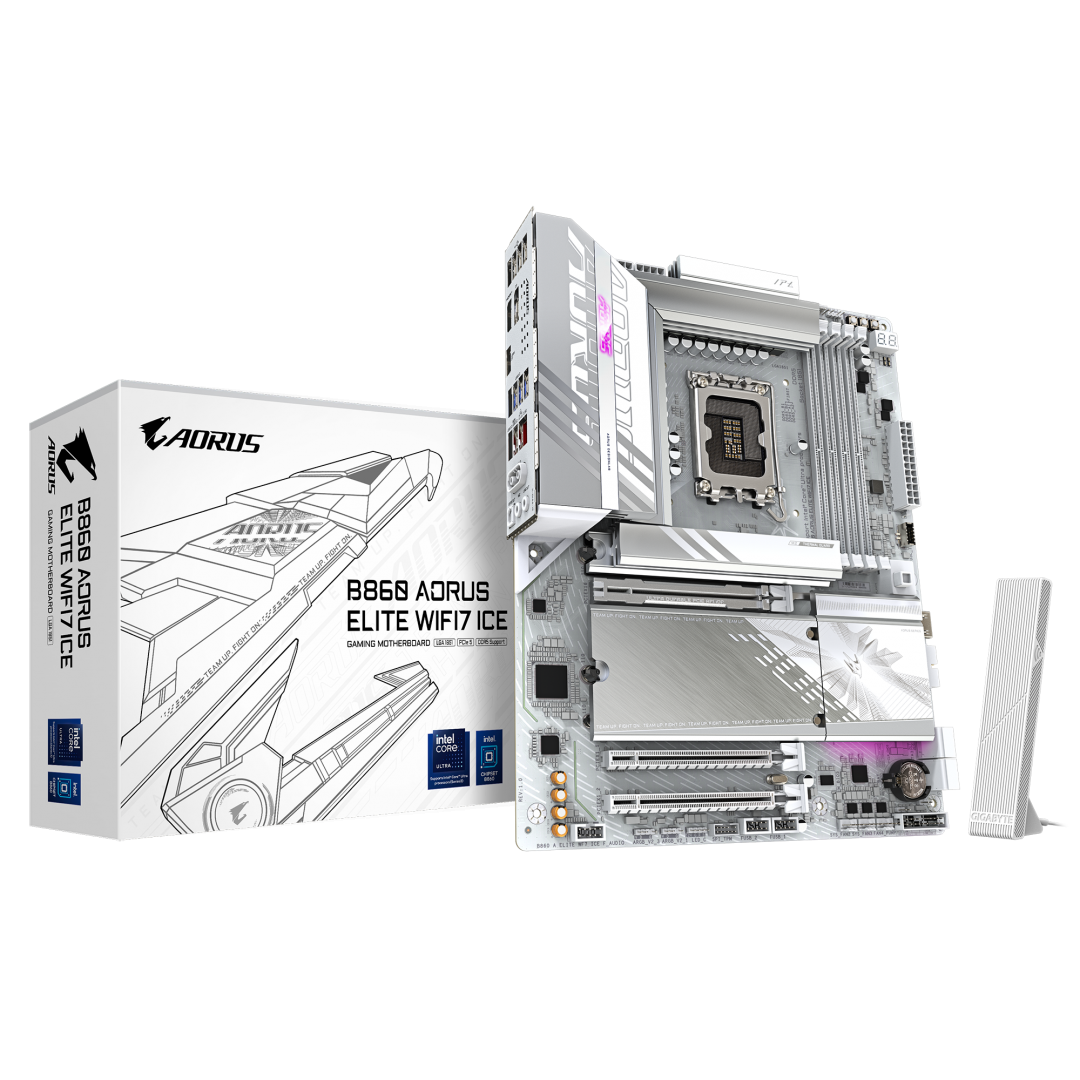

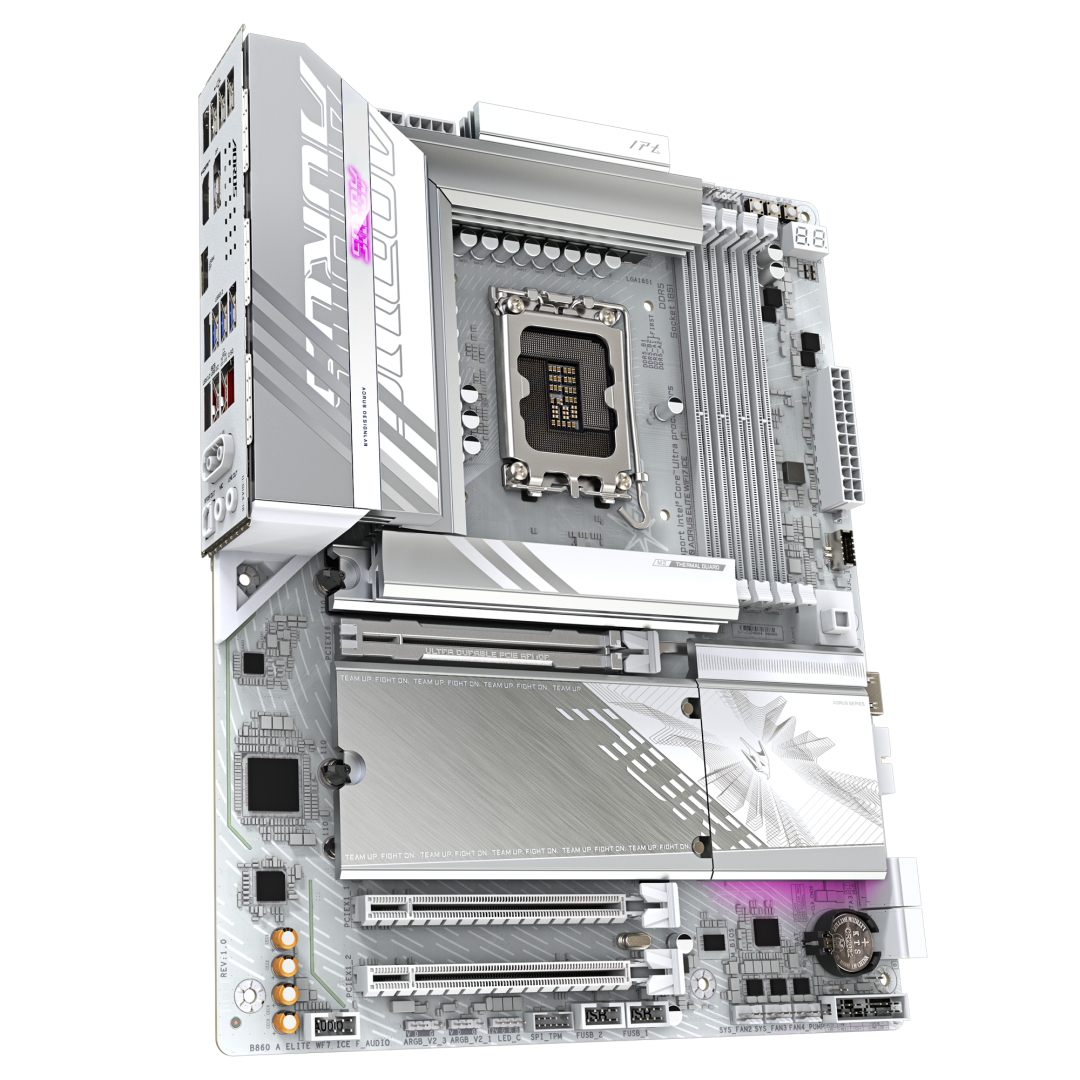

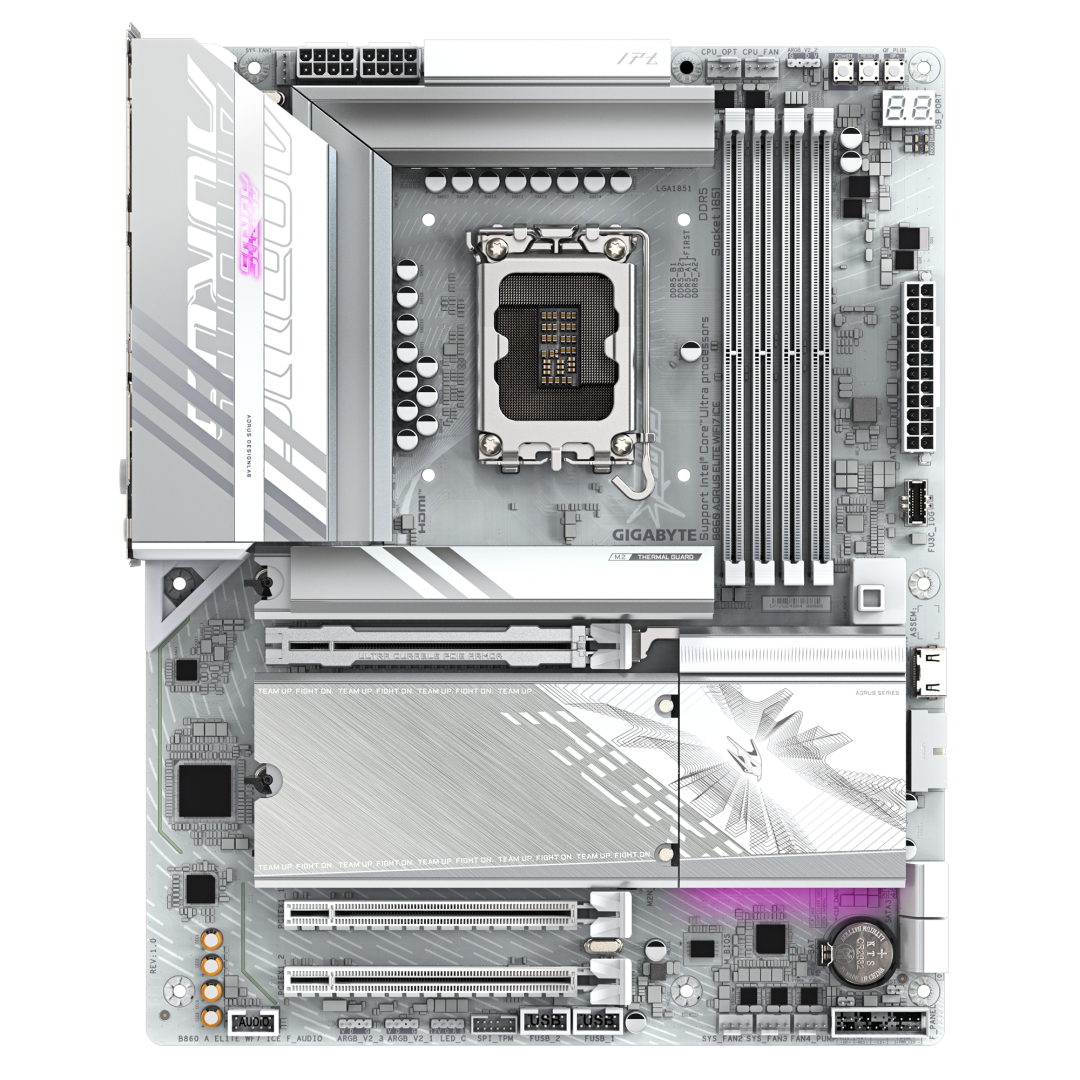

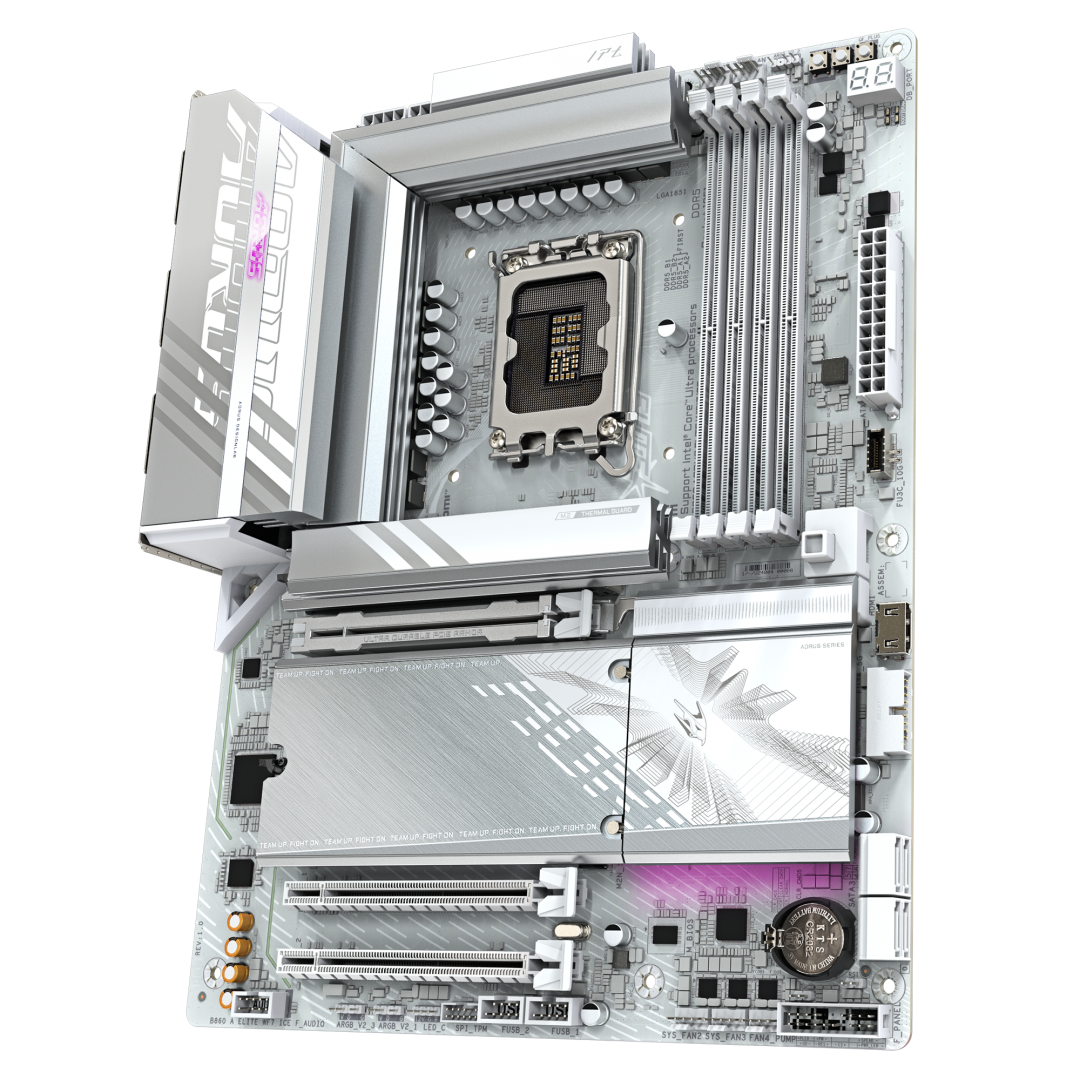

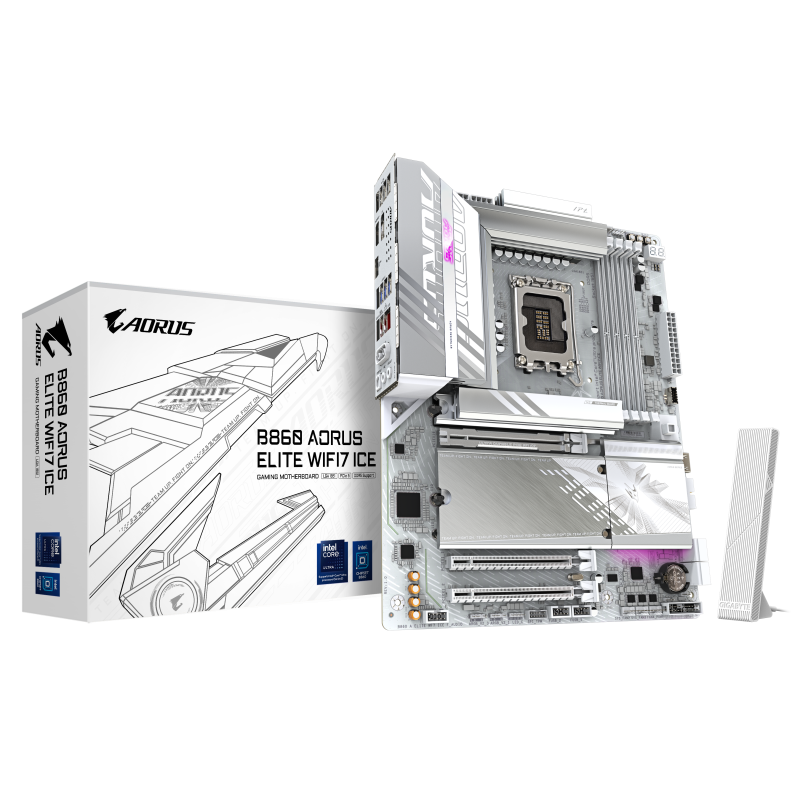

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

5600,6400,9200 MHz

Supported memory clock speed (max)

9200 MHz

Maximum internal memory per slot

64 GB

Bluetooth version

5.4

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Weight

2.21 kg

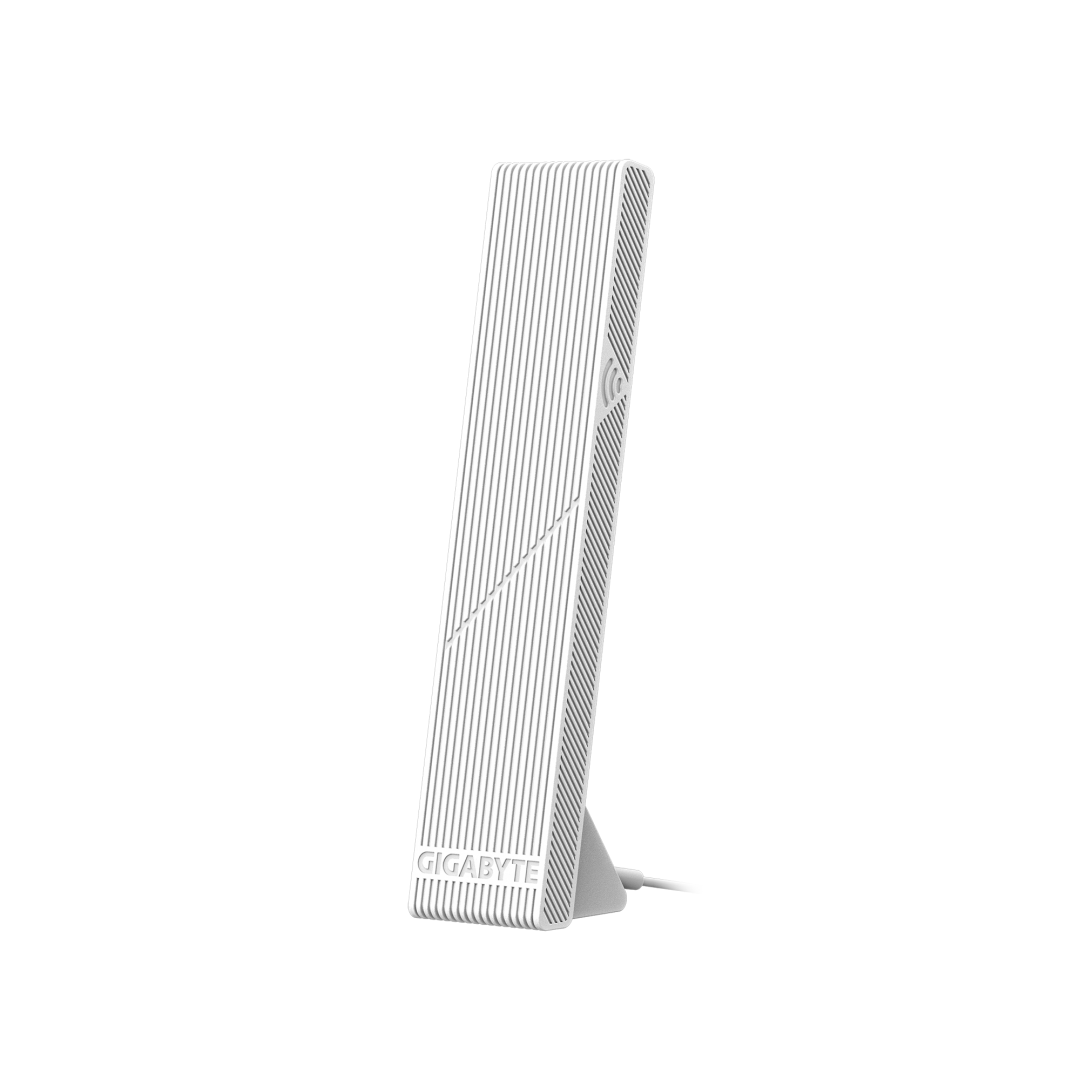

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.49 kg

Warranty period

3 year(s)

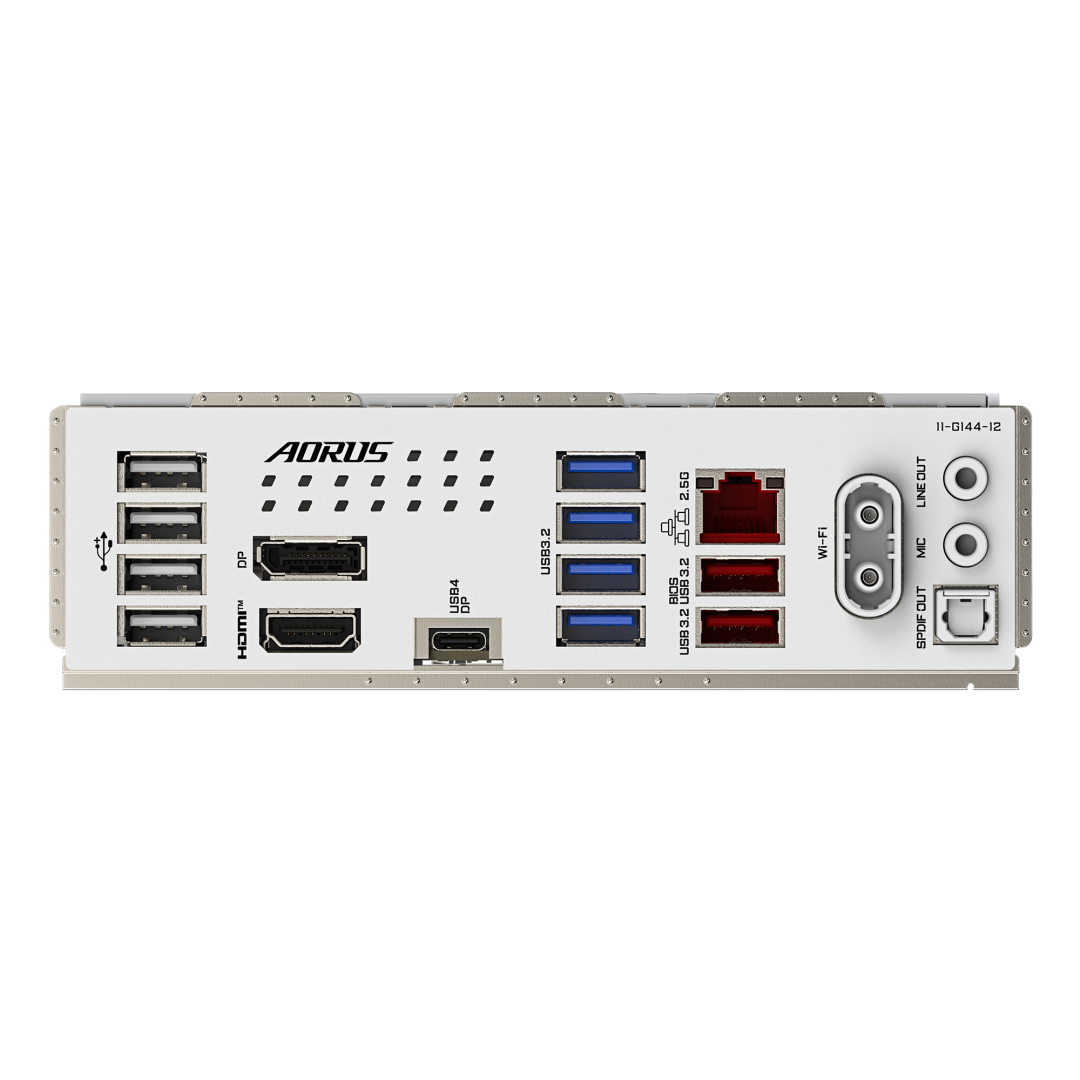

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Line-in

Yes

VGA (D-Sub) ports quantity

0

Digital audio optical out

1

S/PDIF out port

Yes

USB4 Gen 2x2 ports quantity

1

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
