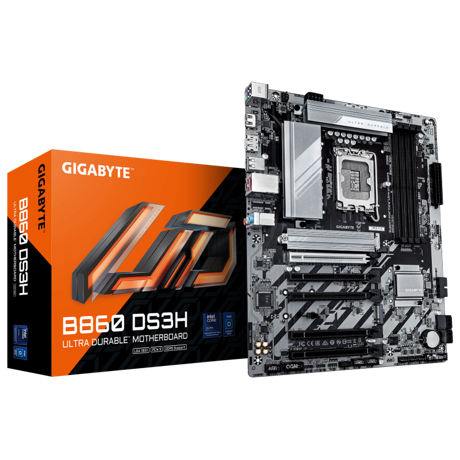

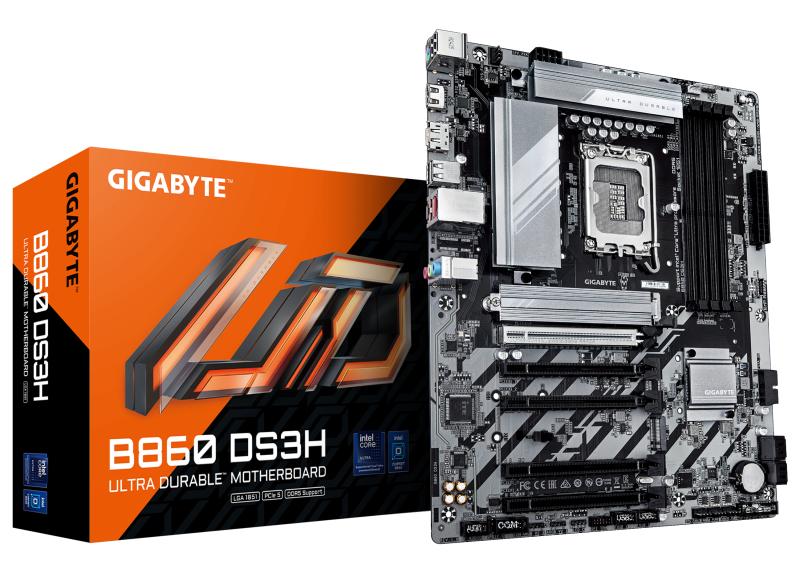

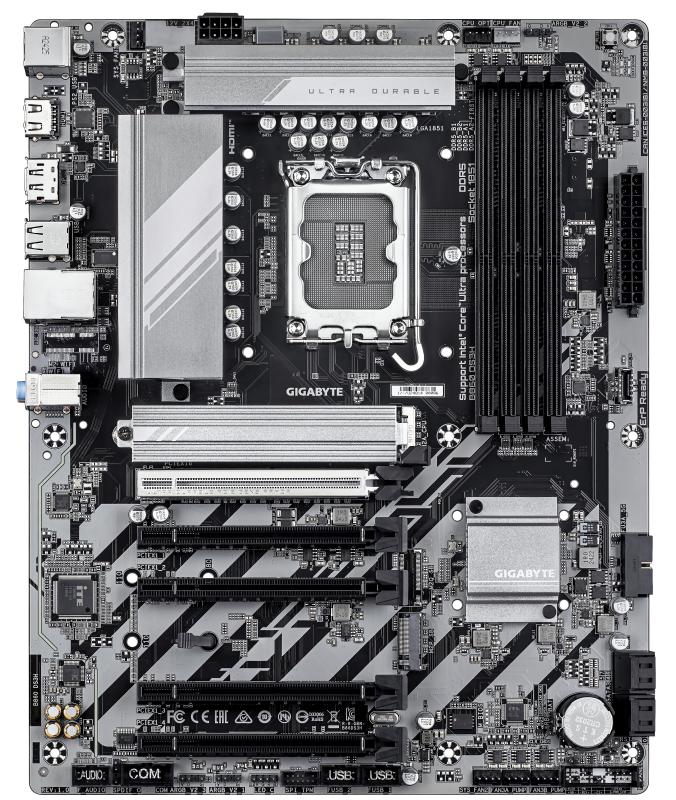

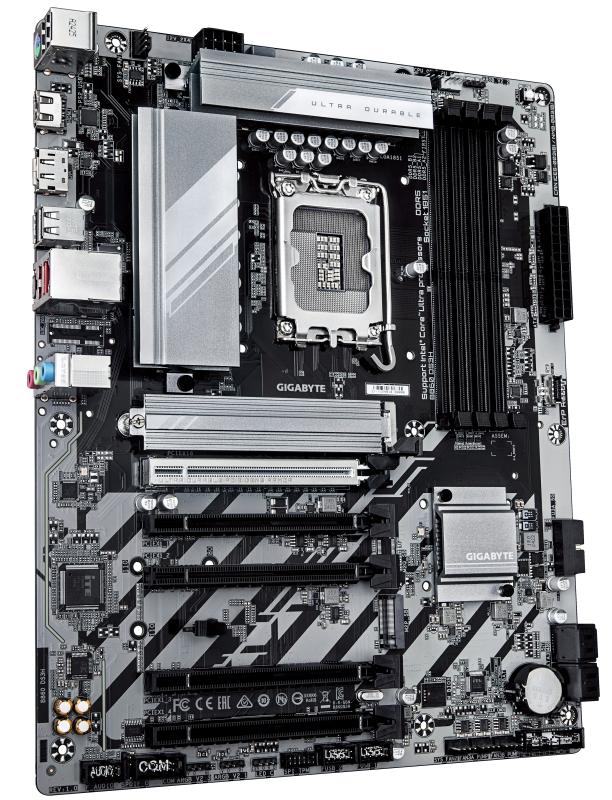

Placa de Baza GIGABYTE B860 DS3H LGA1851, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 4x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Placa de Baza GIGABYTE B860 DS3H LGA1851, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 4x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

25110

PCI Express x16 (Gen 4.x) slots

4

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

3

S/PDIF out connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speed (max)

9066 MHz

Supported memory clock speeds

5600,6400,9066 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Wi-Fi

No

Ethernet LAN

Yes

Weight

2 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

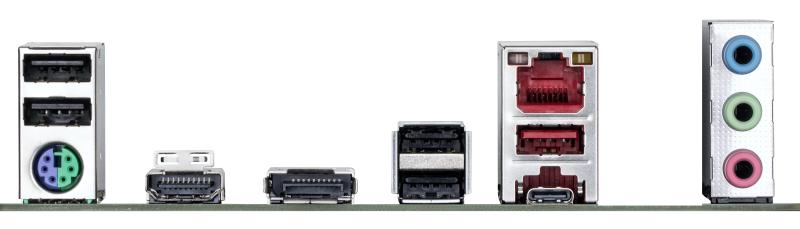

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Line-in

Yes

Headphone outputs

1

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

6

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
