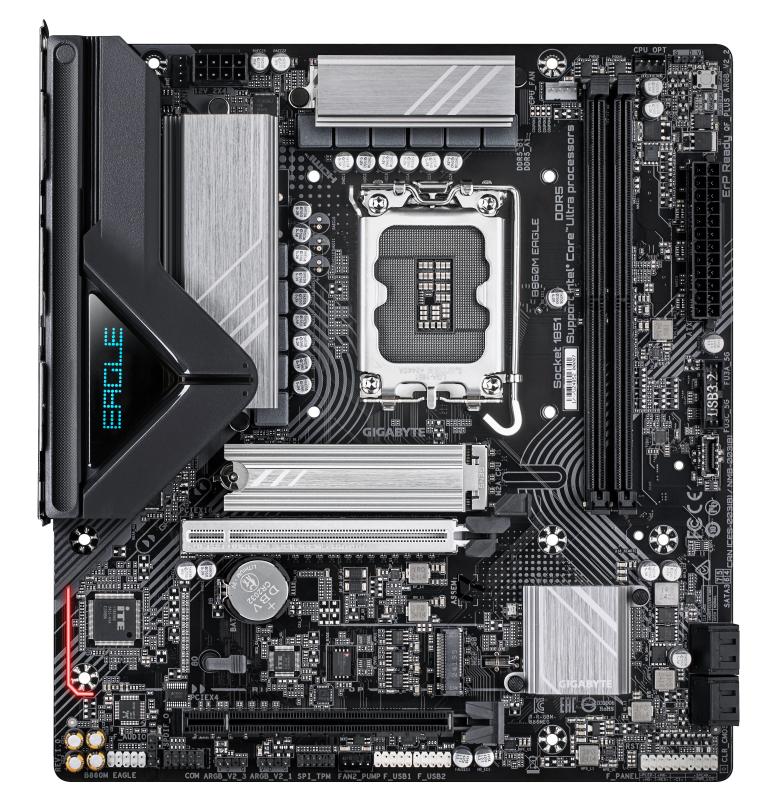

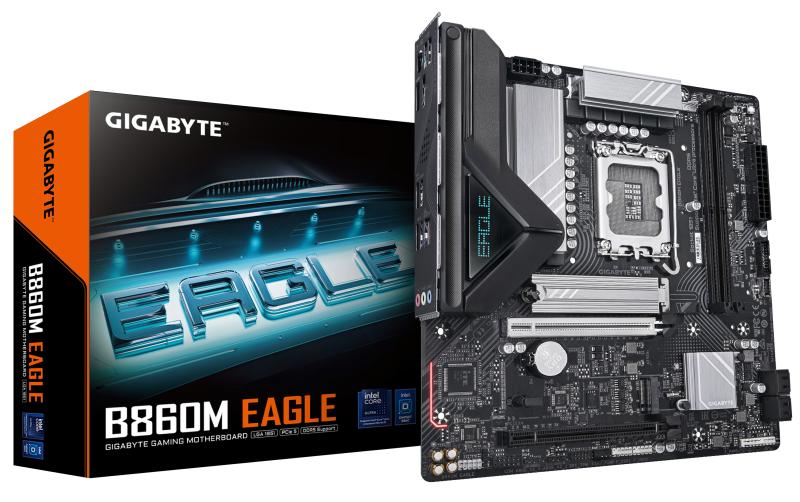

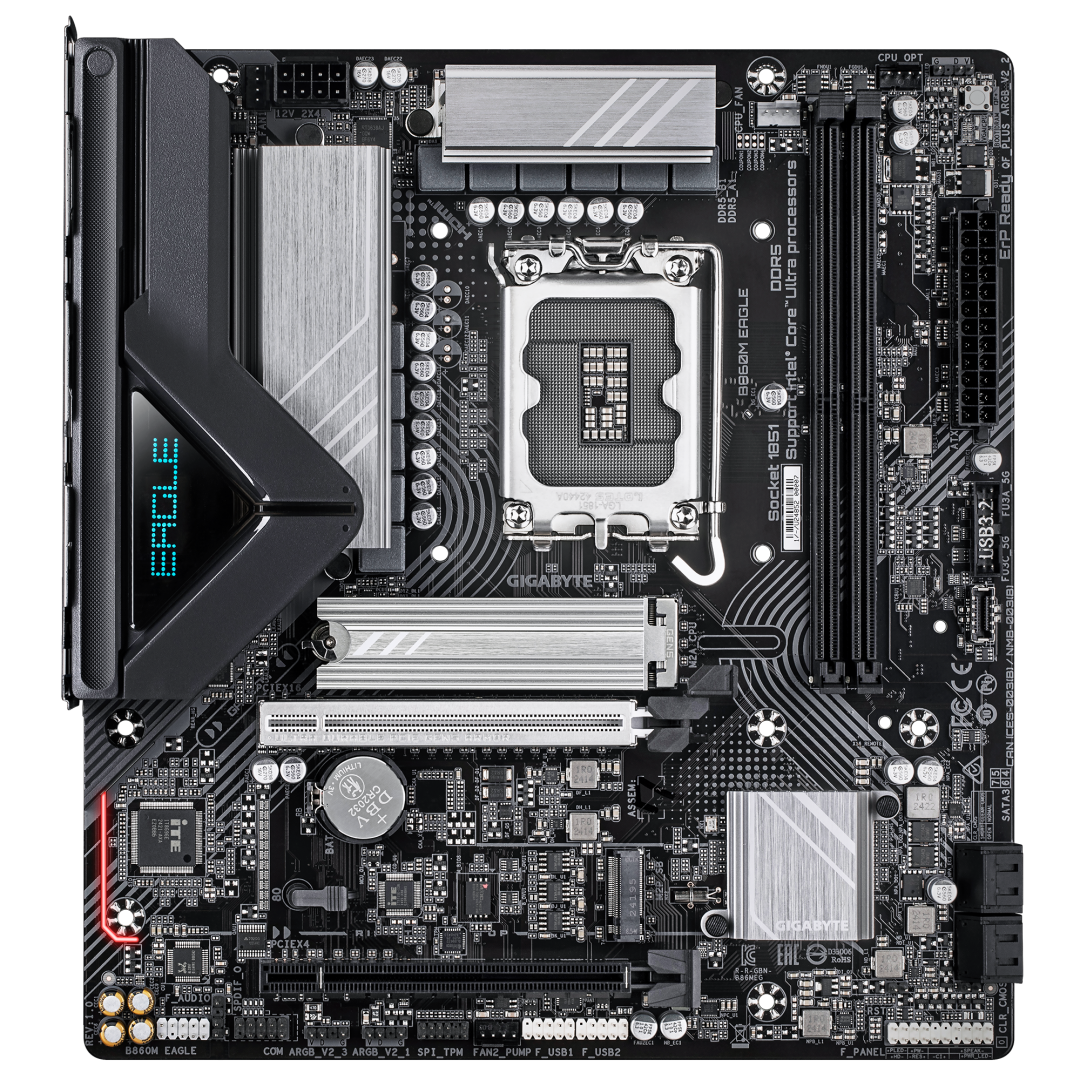

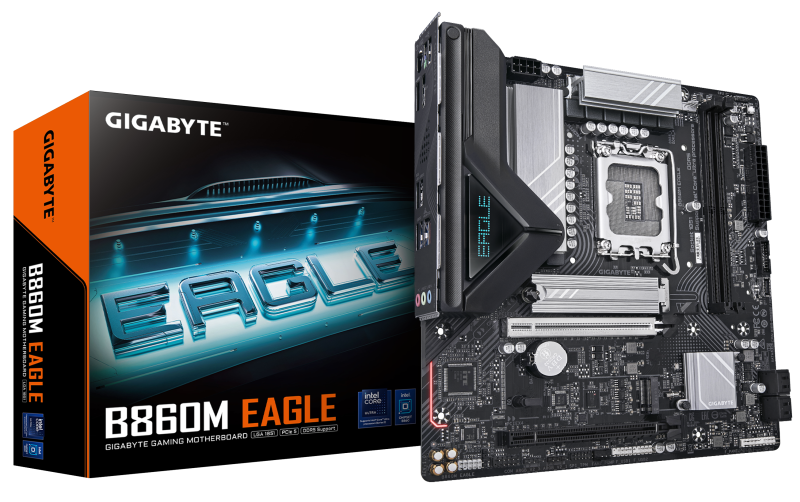

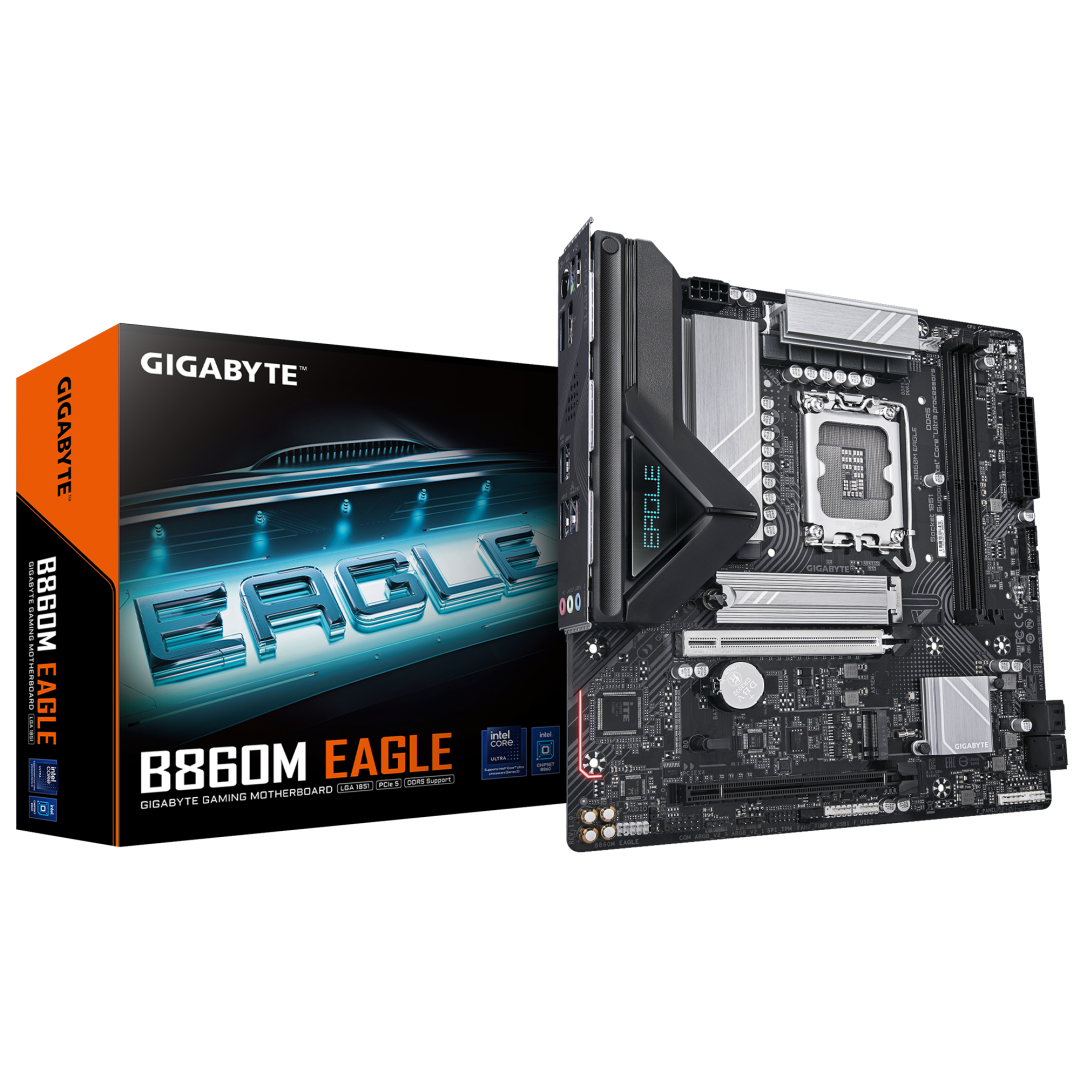

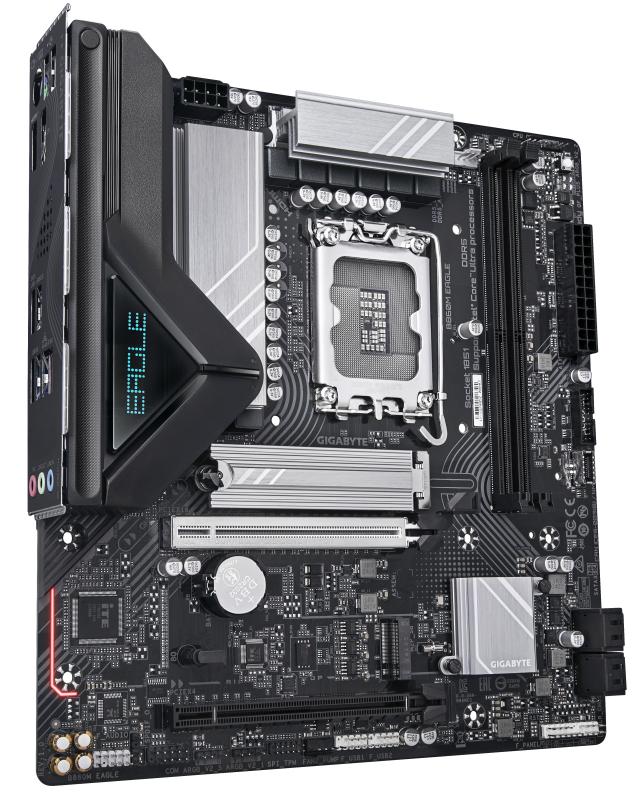

Placa de Baza GIGABYTE B860M EAGLE LGA1851

Placa de Baza GIGABYTE B860M EAGLE LGA1851, 2x DDR5, 1x HDMI 1x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard form factor

micro ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

S/PDIF out connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

3

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

2

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speeds

5600,6400,9066 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

9066 MHz

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Ethernet LAN

Yes

Wi-Fi

No

Weight

1.1 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Batteries included

Yes

Package width

265 mm

Package height

54 mm

Package depth

265 mm

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

0

HDMI version

2.1

DisplayPort version

2.1

DisplayPorts quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

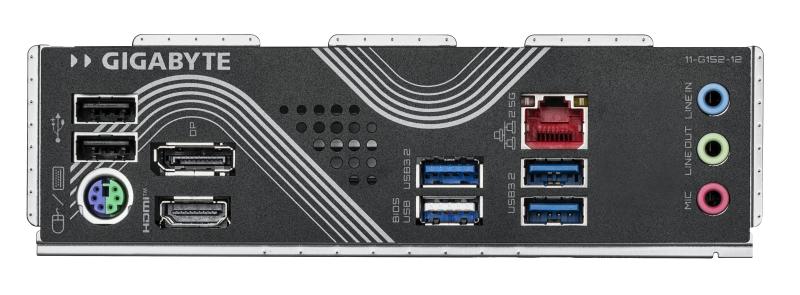

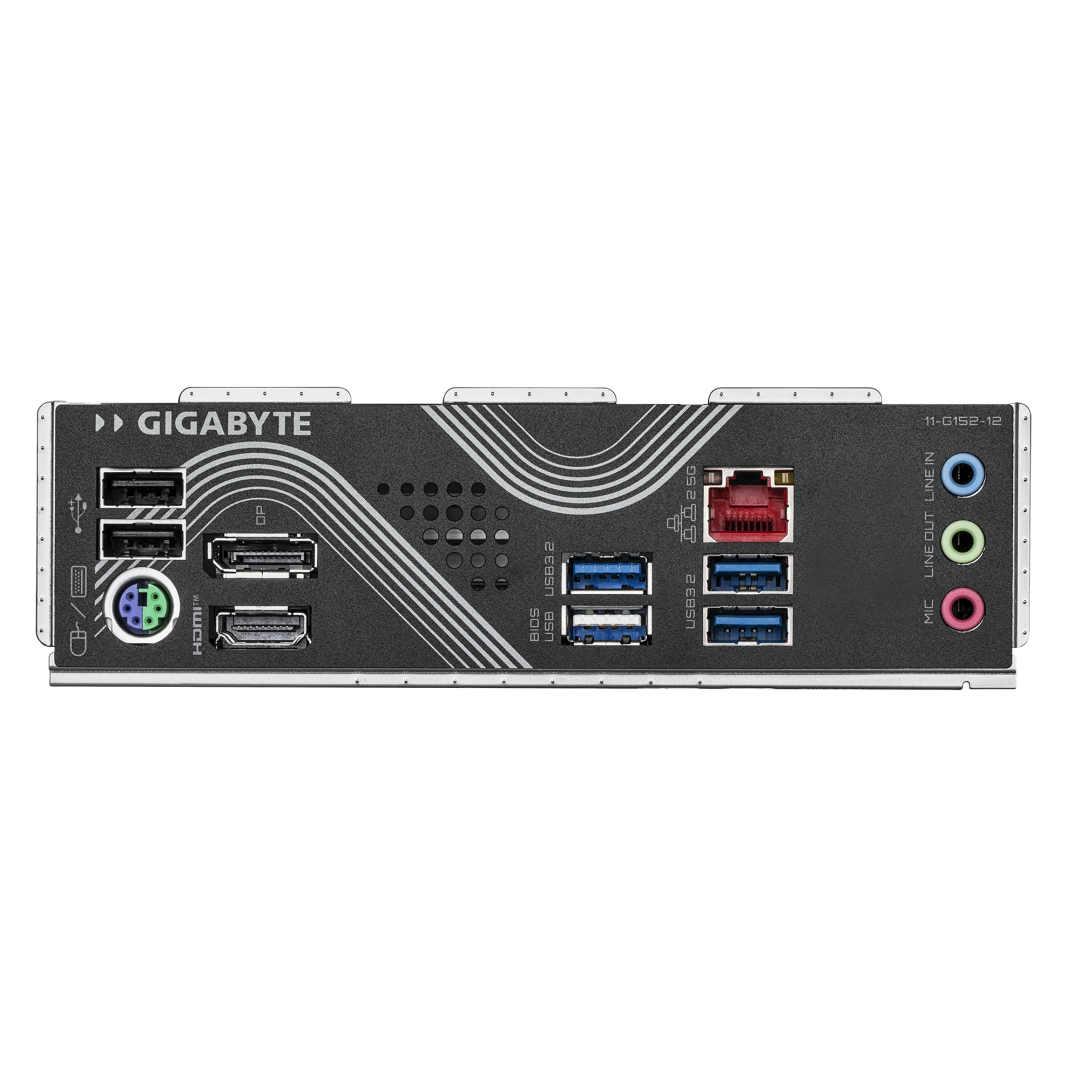

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

3

Line-in

Yes

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Width

244 mm

Height

35 mm

Depth

225 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
