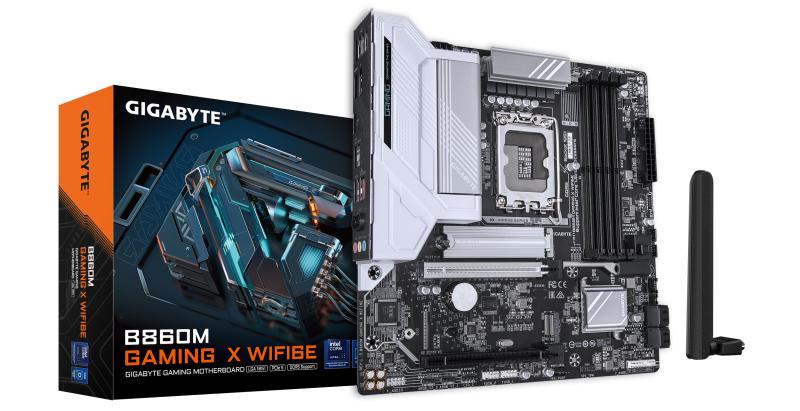

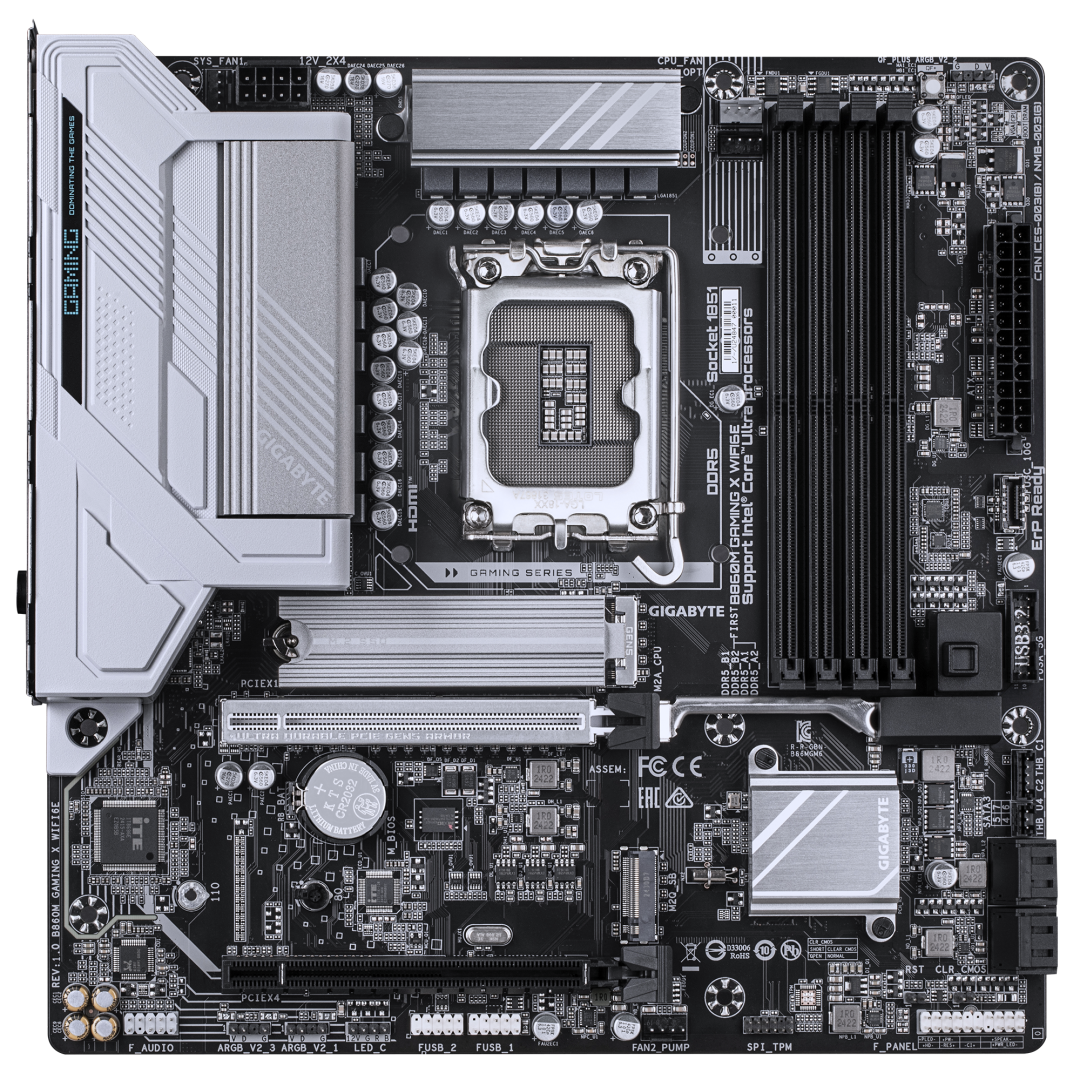

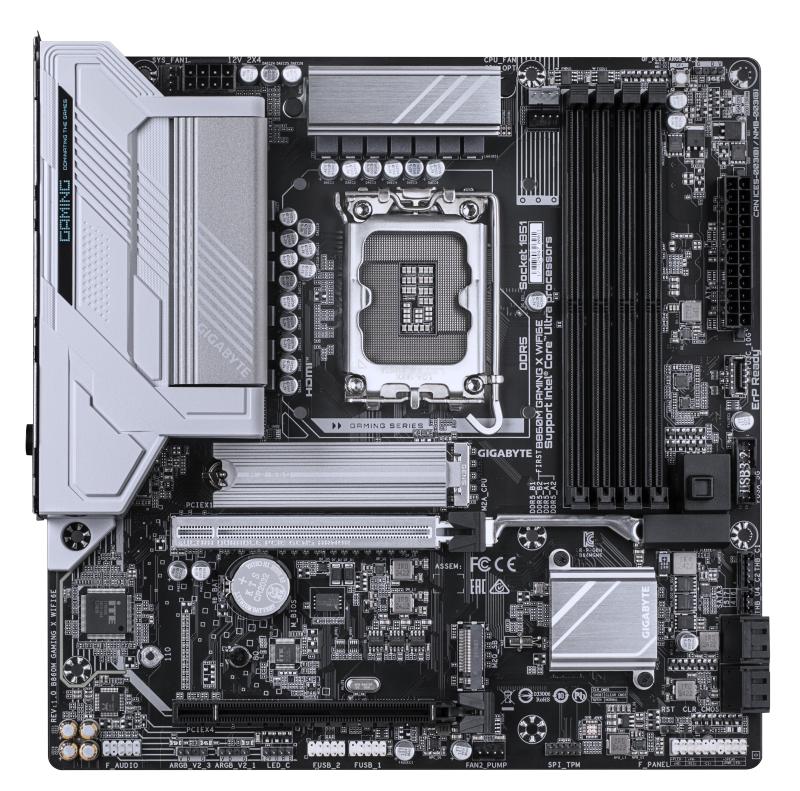

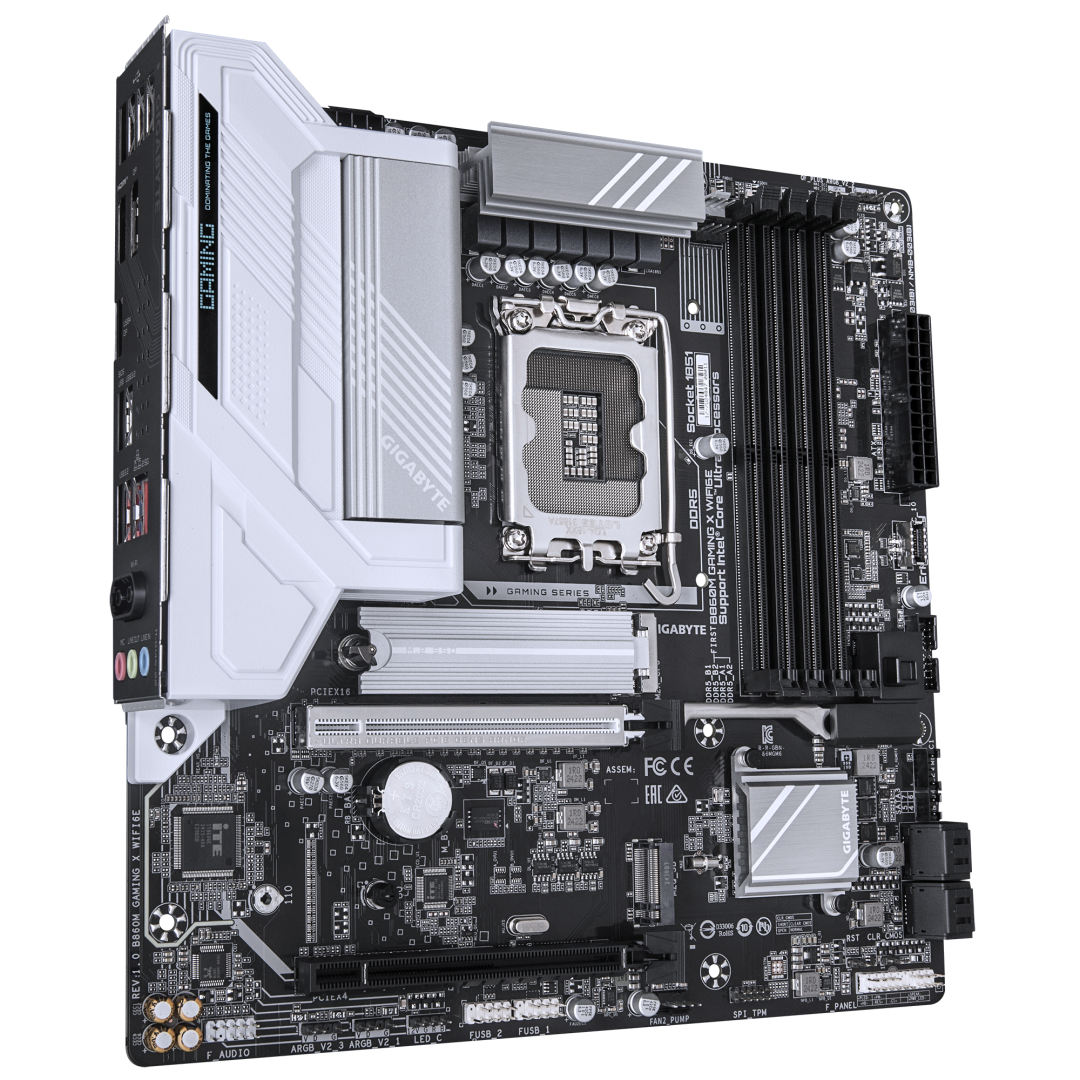

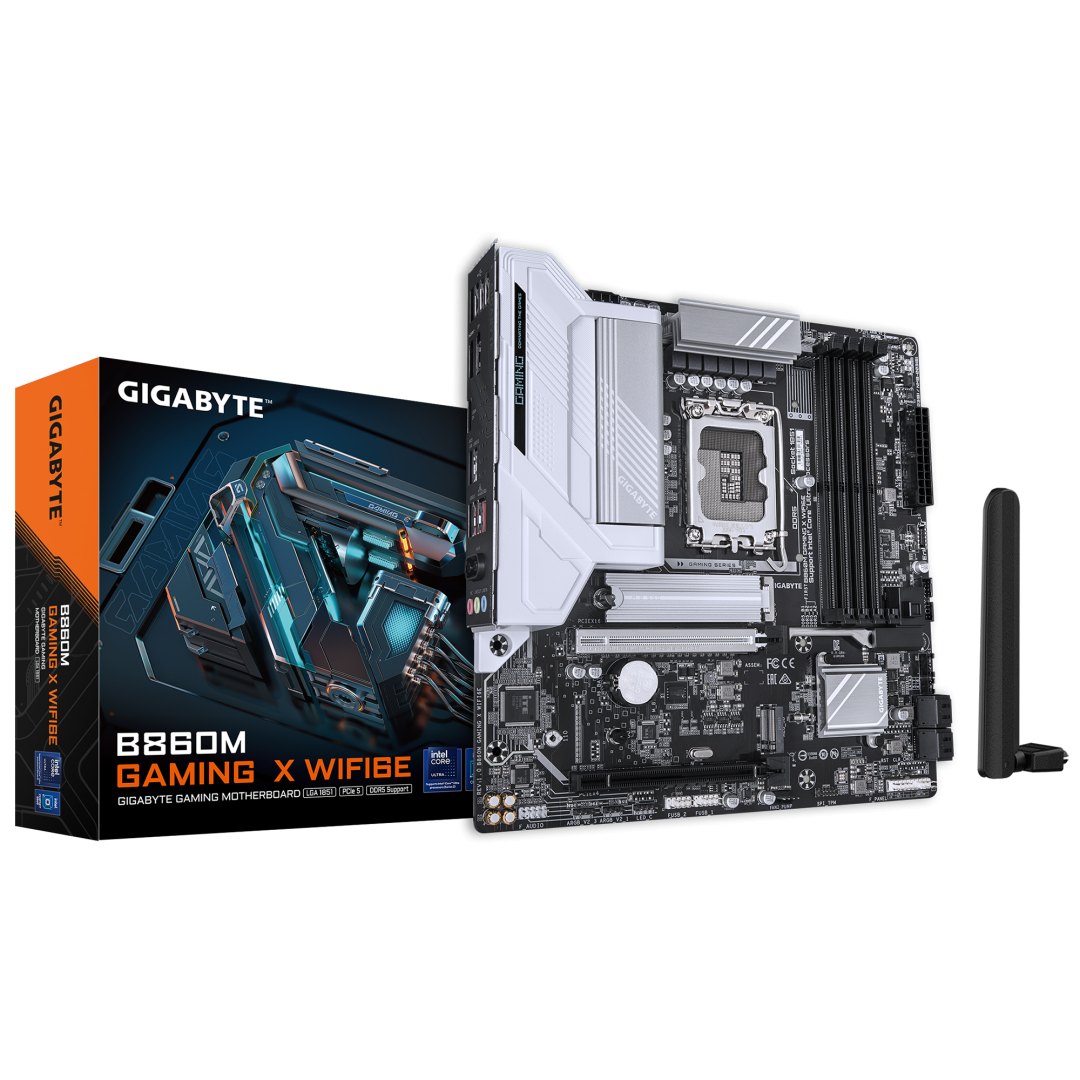

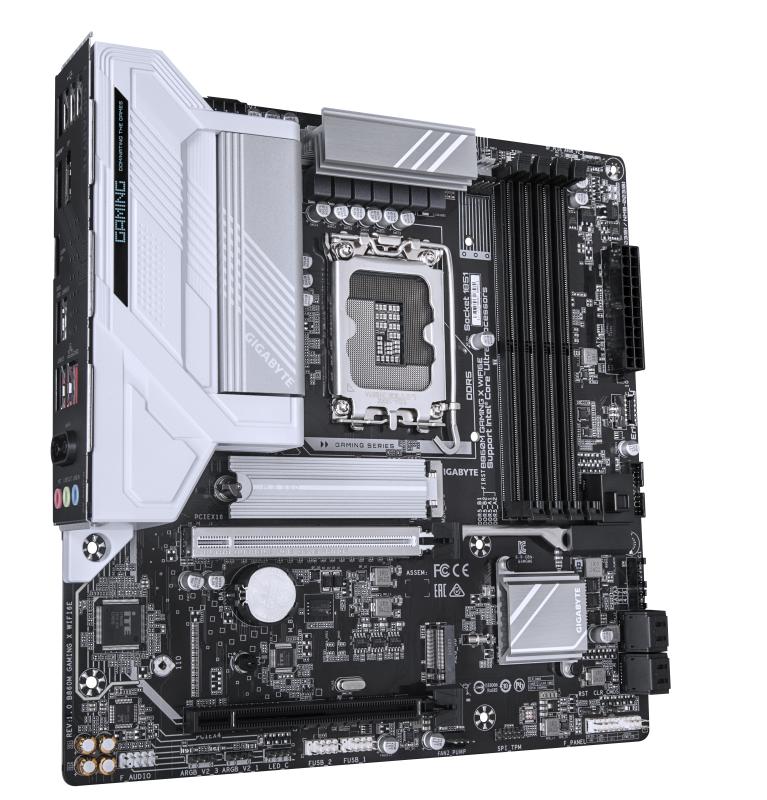

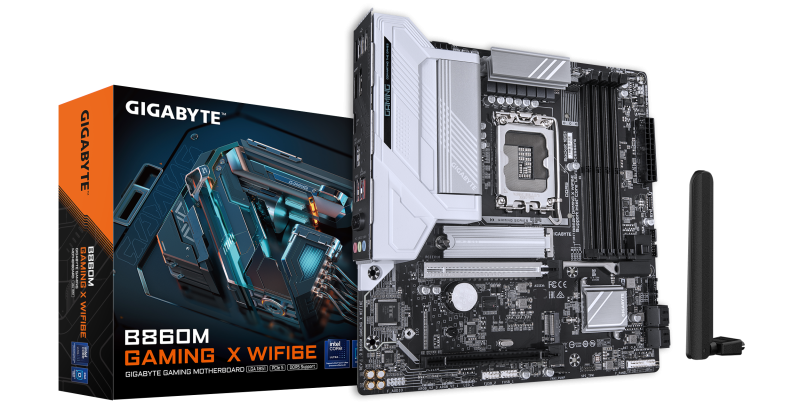

Placa de Baza GIGABYTE B860M GAMING X WIFI6E LGA1851

Placa de Baza GIGABYTE B860M GAMING X WIFI6E LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI, 2x PCIE x16, 2x M2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

25110

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Parallel processing technology support

Not supported

HDCP

Yes

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of EPS power connectors (8-pin)

1

Thunderbolt headers

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

5600,6400,9200 MHz

Supported memory clock speed (max)

9200 MHz

Maximum internal memory per slot

64 GB

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

BLUETOOTH

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Ethernet LAN

Yes

Bluetooth version

5.3

Weight

1.23 kg

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package weight

1.43 kg

Package width

270 mm

Package height

68 mm

Package depth

268 mm

Warranty period

3 year(s)

HDMI version

2.1

HDMI ports quantity

1

DisplayPort version

2.1

DisplayPorts quantity

1

DVI-D ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

WiFi-AP antenna jack

2

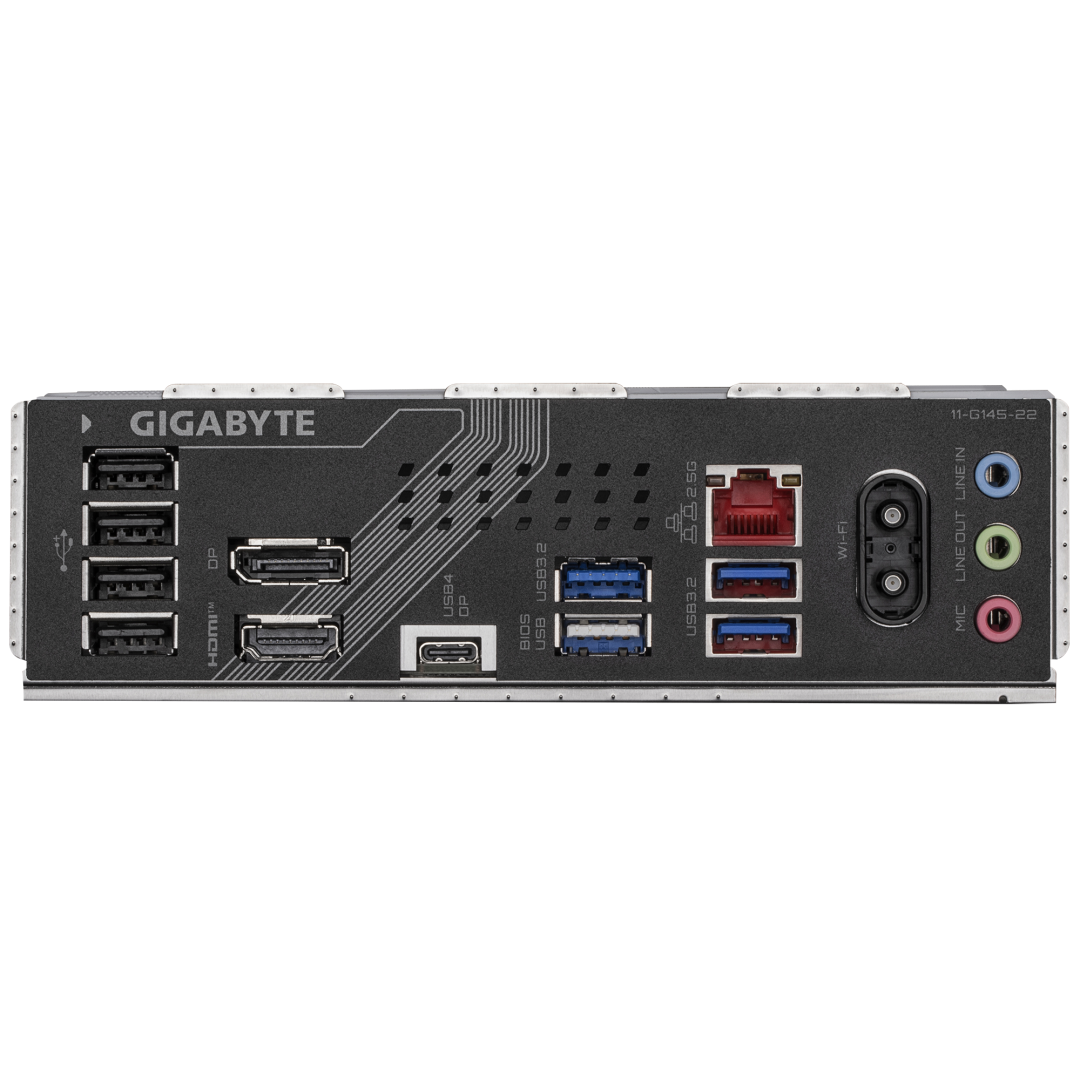

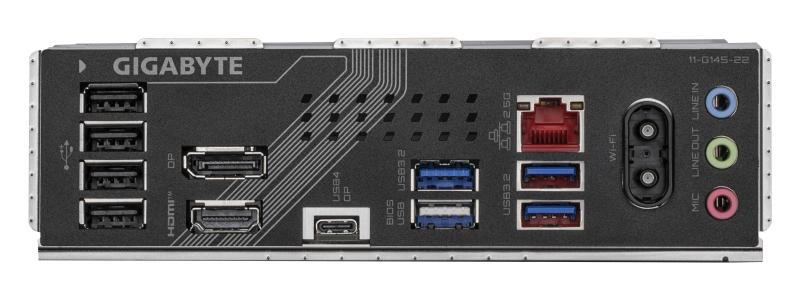

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

0

USB 2.0 ports quantity

5

USB4 Gen 2x2 ports quantity

1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Depth

244 mm

Height

35 mm

Width

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
