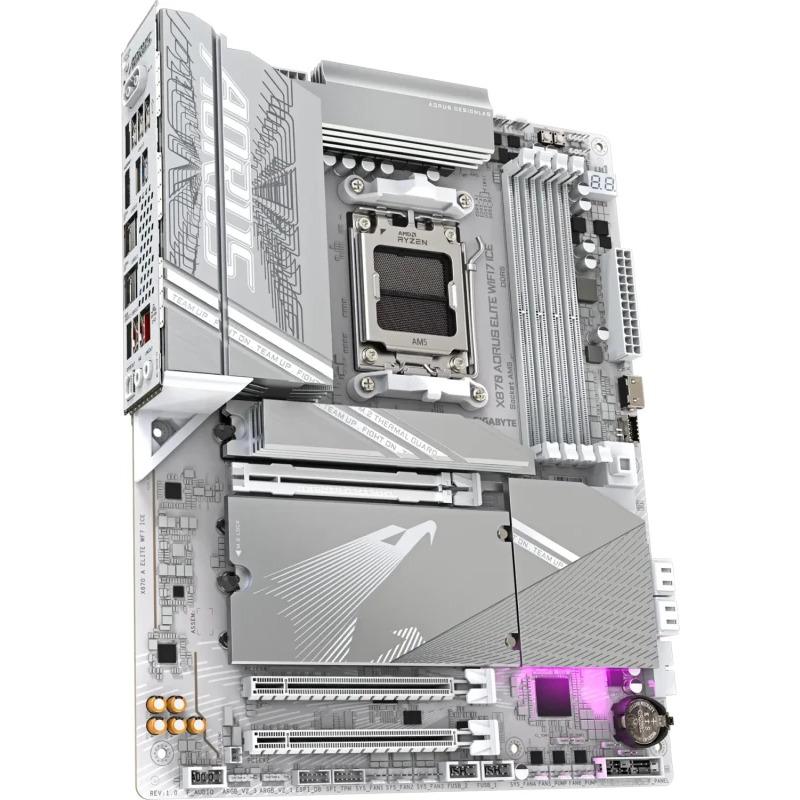

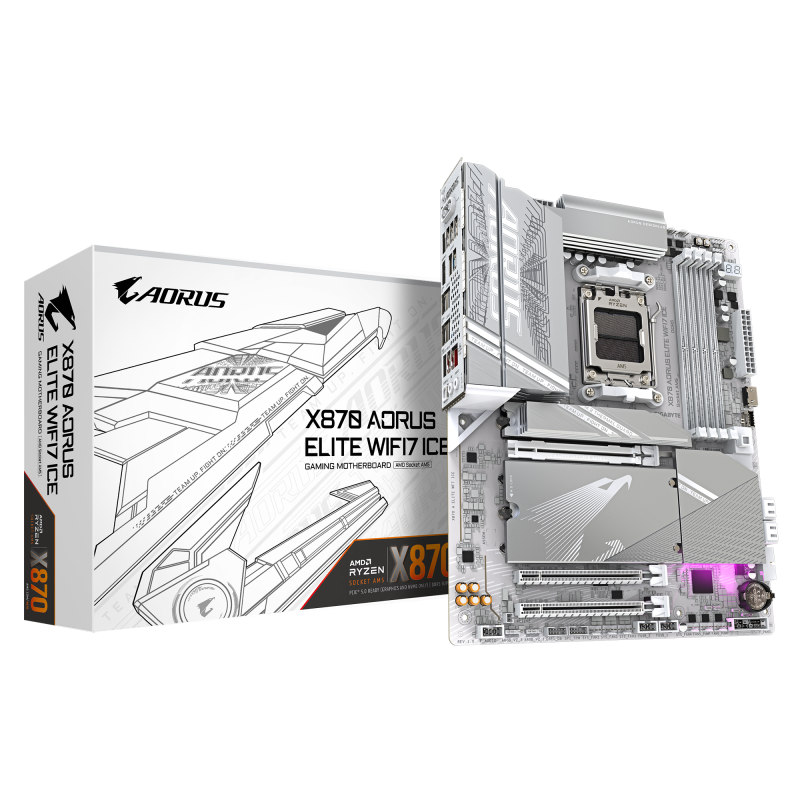

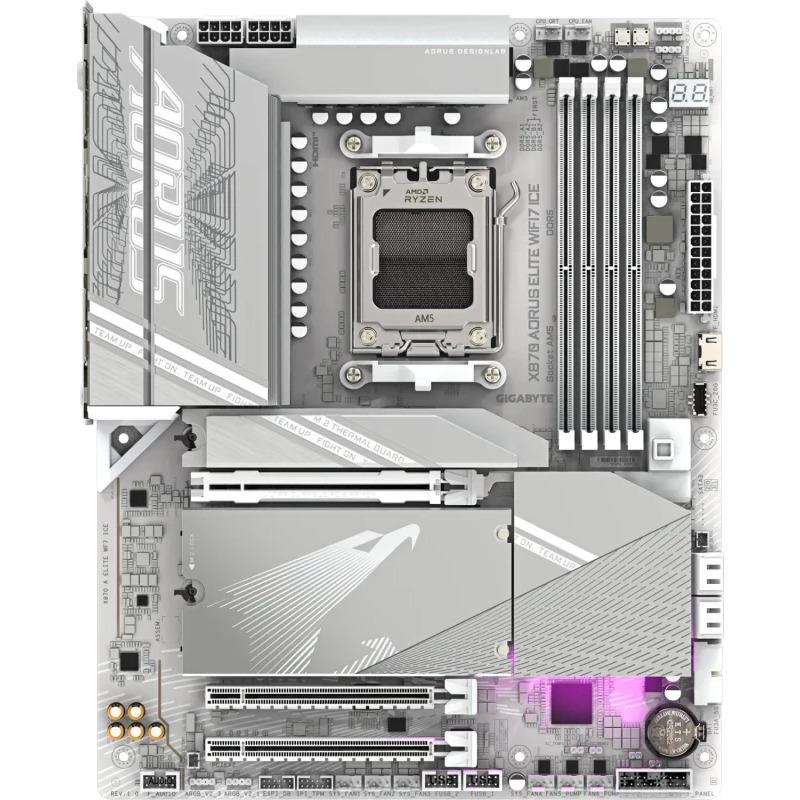

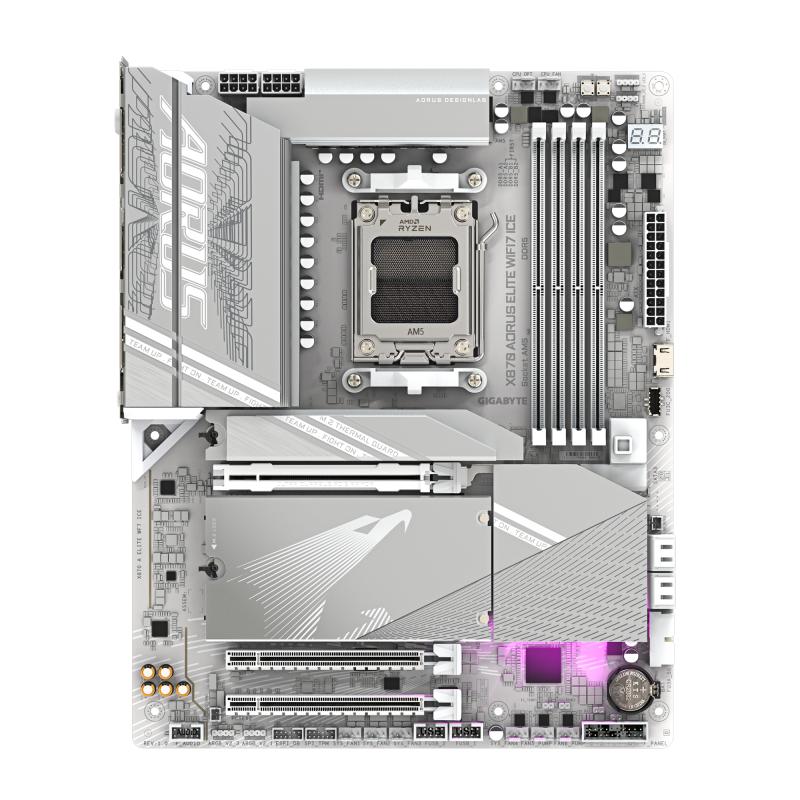

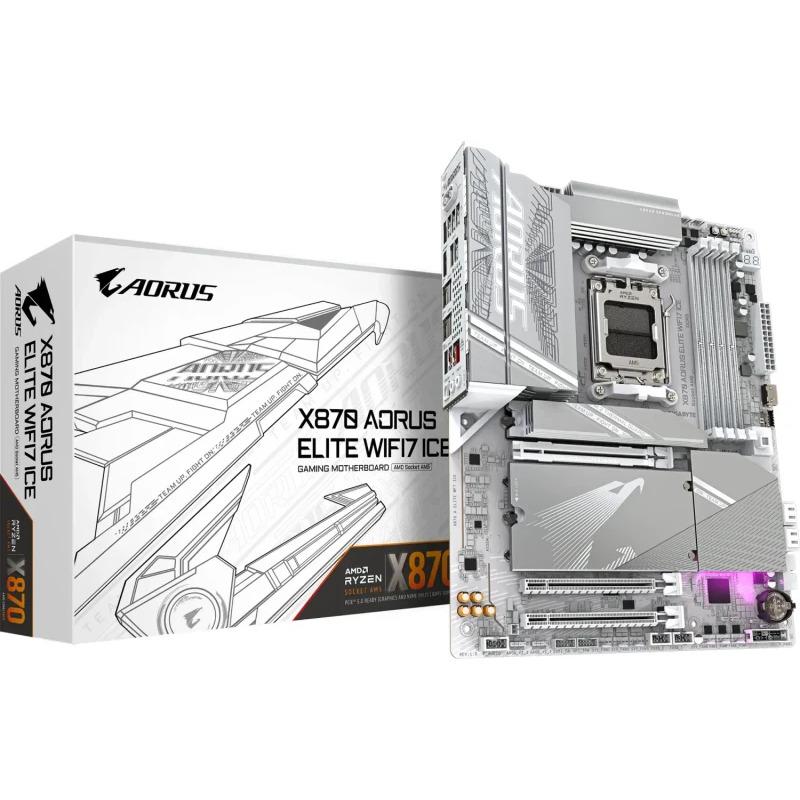

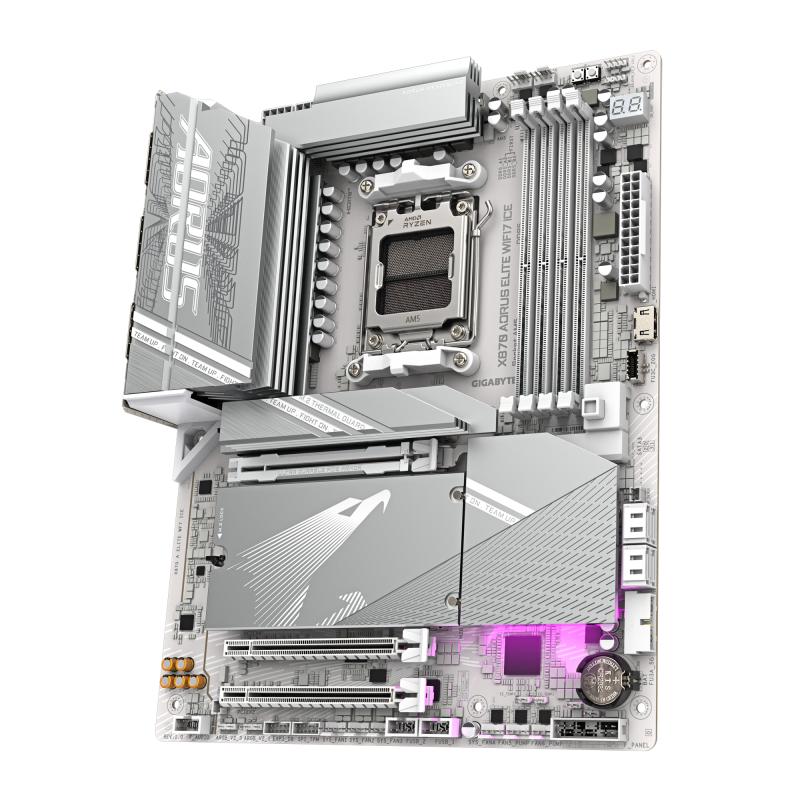

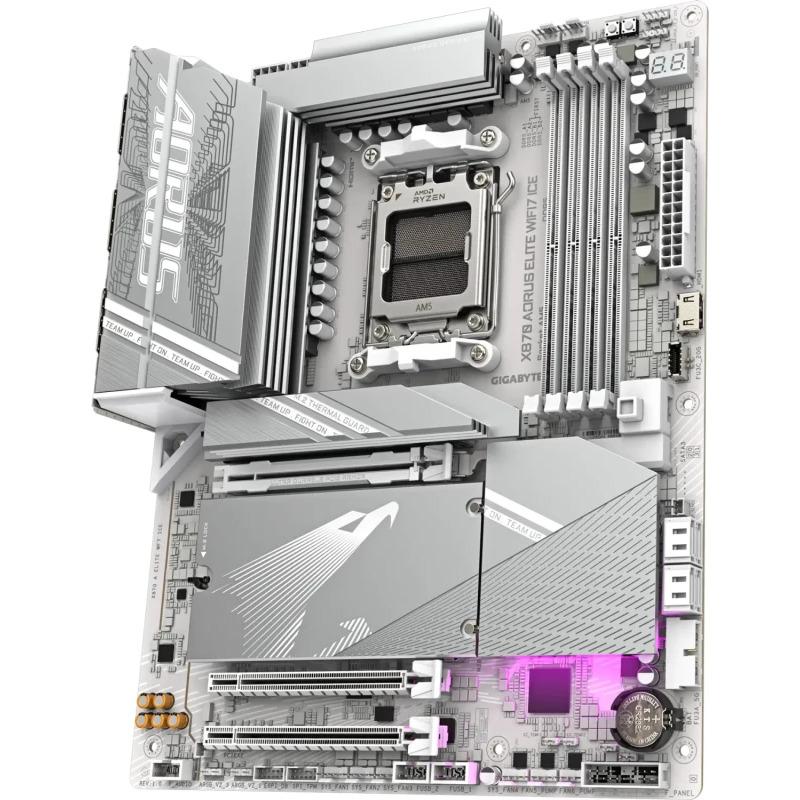

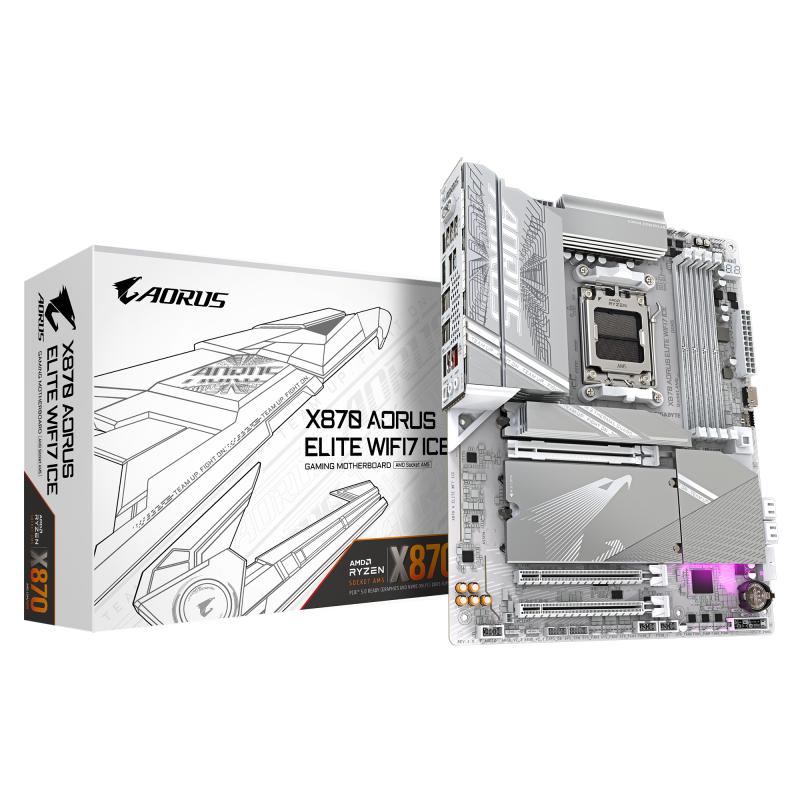

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 4x DDR5, 1x PCIE Gen5 x16 2x PCIE 4.0 x4, 4x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Clear CMOS button

Yes

Product colour

White

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x1 (Gen 3.x) slots

0

PCI Express x1 (Gen 4.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

Number of M.2 (M) slots

4

4th M.2 highest PCI Express generation

4.0

PCI Express x8 (Gen 3.x) slots

0

PCI Express x8 (Gen 4.x) slots

0

PCI Express x8 (Gen 5.x) slots

0

2nd M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio Chip

Realtek ALC1220

PC health monitoring

Fan, Noise, Temperature, Voltage, Water cooling

Audio output channels

7.1 channels

Component for

PC

On-board graphics card

Yes

On-board graphics card model

AMD Radeon Graphics

HDCP

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

Number of displays supported

4

Discrete graphics support

Yes

DirectX version

12.0

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 3.2 Gen 2x2 connectors

1

Total number of SATA connectors

4

12V power connector

Yes

Number of water pump connectors

3

Number of chassis fan connectors

6

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

MediaTek MT7925

BLUETOOTH

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Weight

2.4 kg

PCI Express x4 (Gen 3.x) slots

0

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package weight

2.74 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

0

Processor manufacturer

AMD

Maximum internal memory supported by processor

256 GB

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

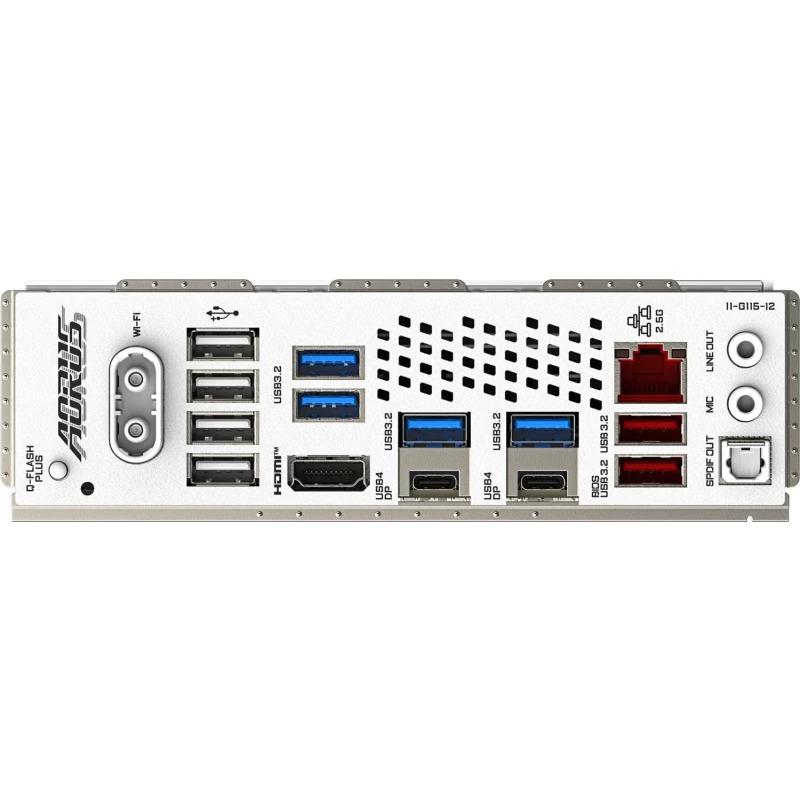

PS/2 ports quantity

0

WiFi-AP antenna jack

2

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Microphone in

Yes

USB4 Gen 3x2 ports quantity

2

S/PDIF out port

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

USB4 Gen 2x2 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2

Number of HDDs supported

4

Number of storage drives supported

8

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
