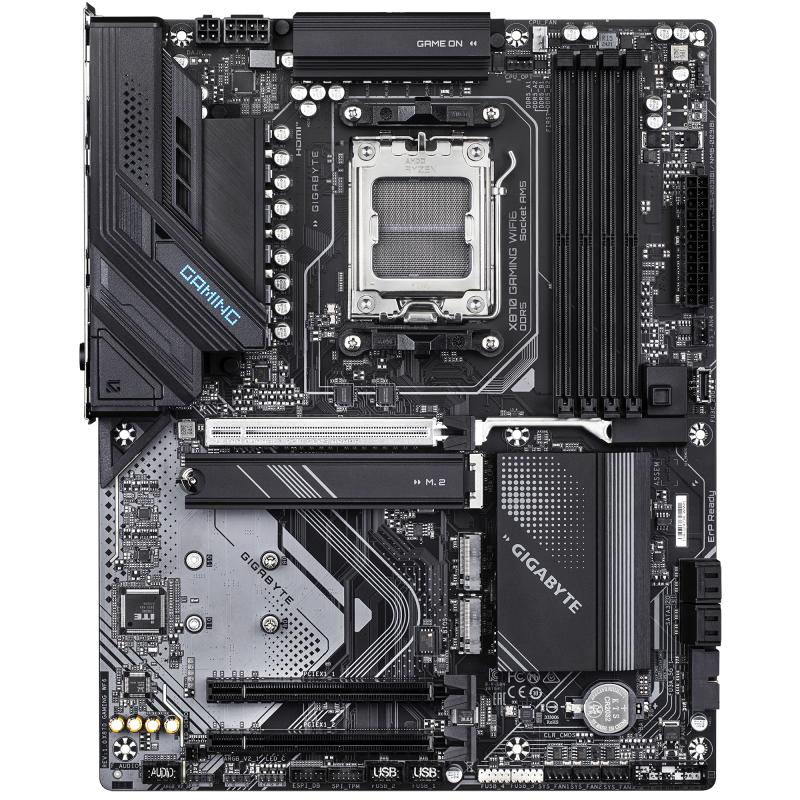

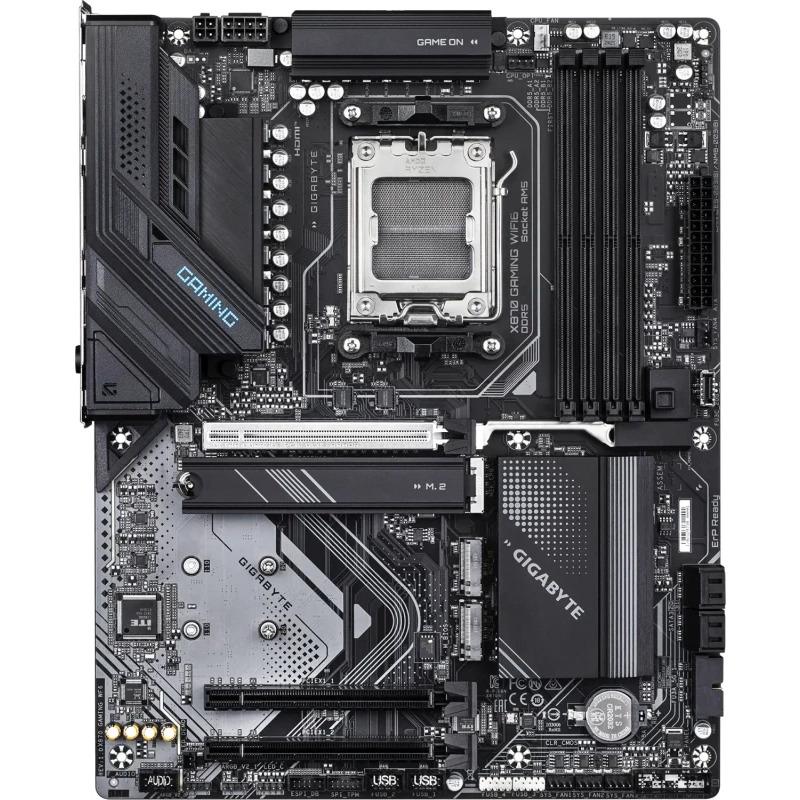

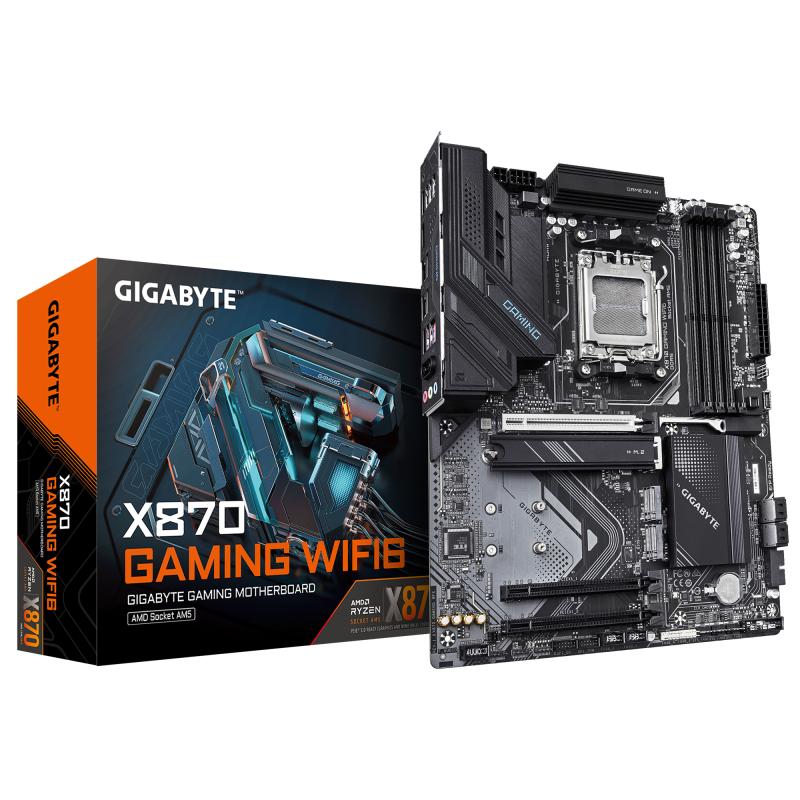

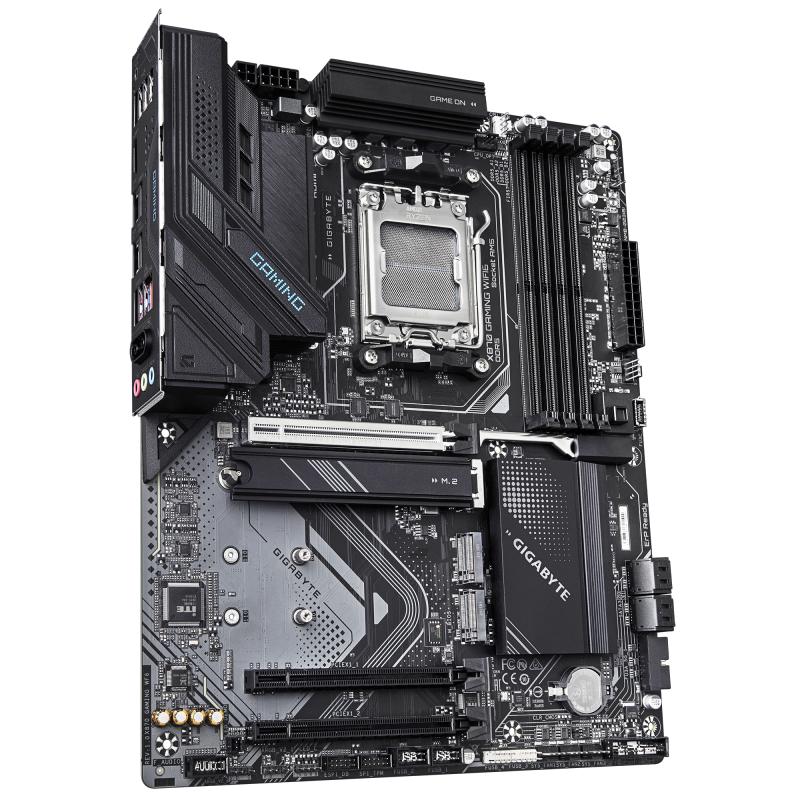

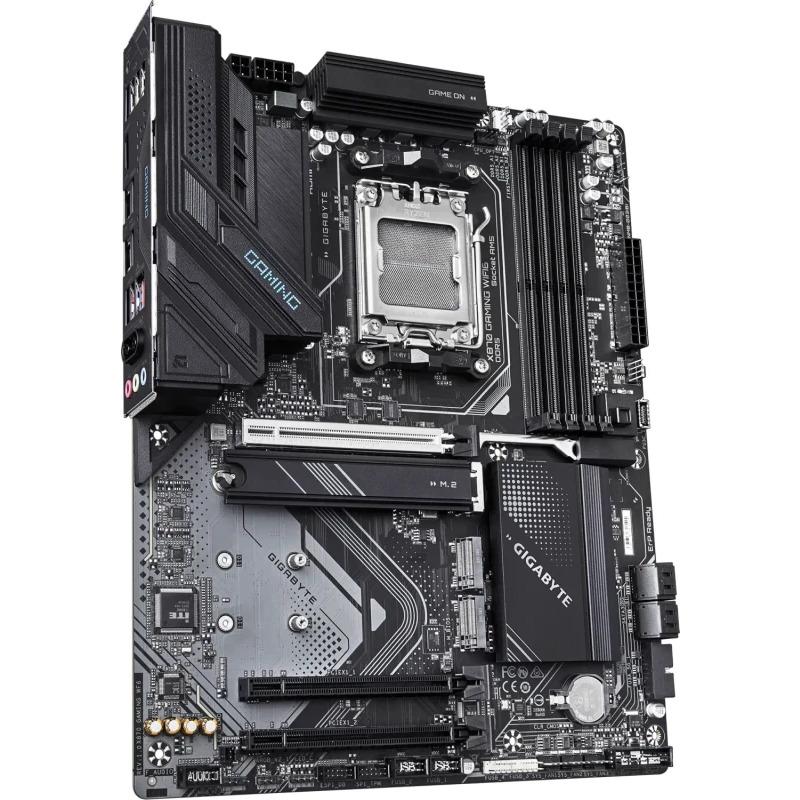

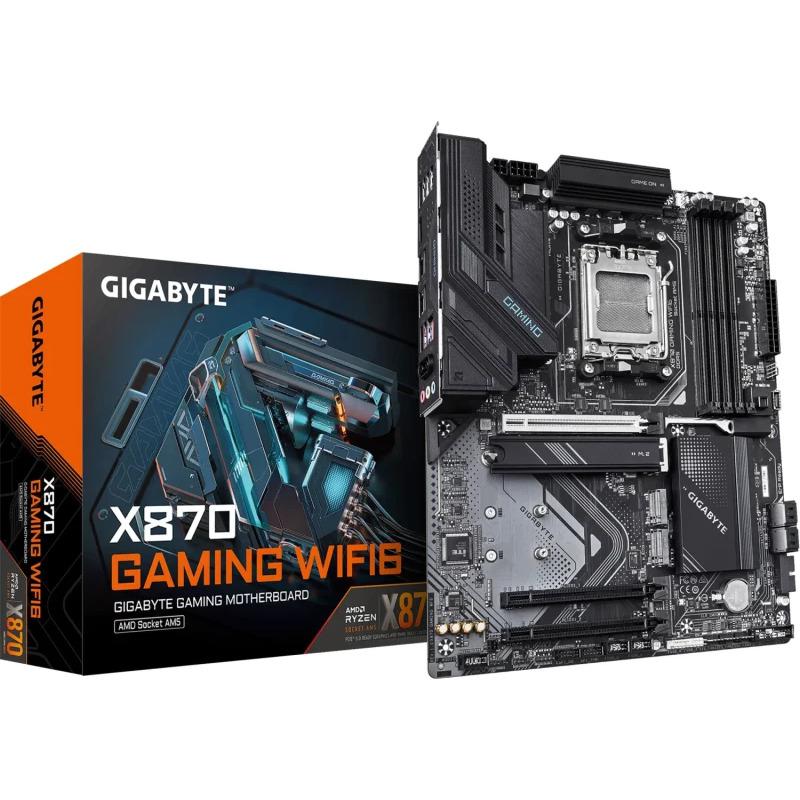

Placa de Baza GIGABYTE X870 GAMING WIFI6 AM5

Placa de Baza GIGABYTE X870 GAMING WIFI6 AM5, 4x DDR5, 2x USB4 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

PCI Express x4 slots

2

PC health monitoring

Fan, Temperature, Voltage

Motherboard chipset

AMD X870

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

4

USB 3.2 Gen 2x2 connectors

1

Total number of SATA connectors

4

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Supported memory clock speed (max)

8000 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller model

Realtek RTL8851BE

Ethernet interface type

2.5 Gigabit Ethernet

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

BLUETOOTH

Yes

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet LAN

Yes

Weight

2.23 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.53 kg

Warranty period

3 year(s)

HDMI ports quantity

1

DisplayPorts quantity

2

DVI-D ports quantity

0

Processor manufacturer

AMD

Maximum internal memory supported by processor

256 GB

Compatible processor series

AMD Ryzen™ 7

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

USB4 Gen 2x2 ports quantity

2

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Number of storage drives supported

4

Number of HDDs supported

7

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
