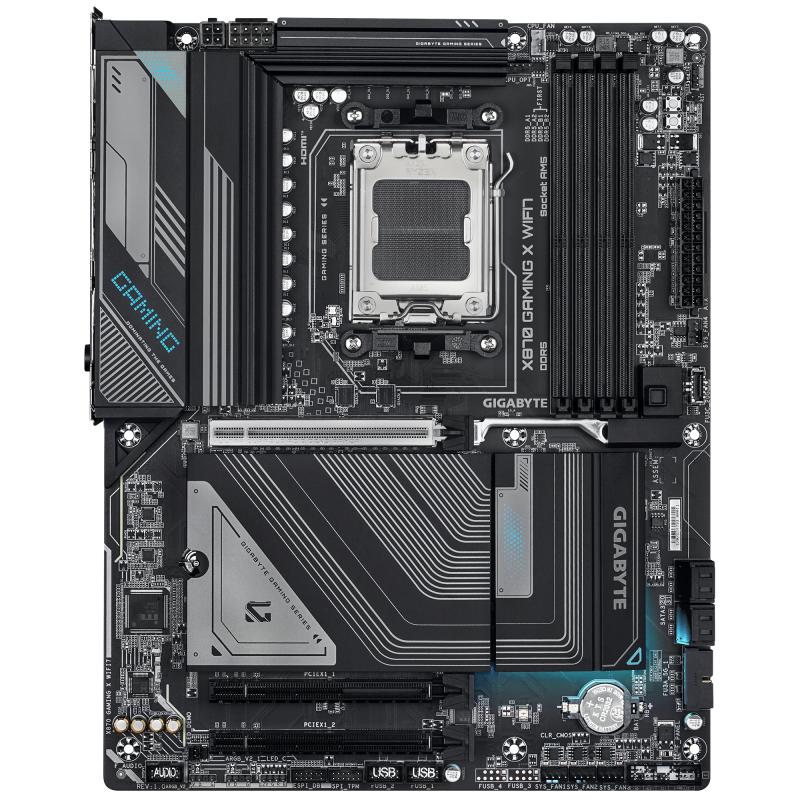

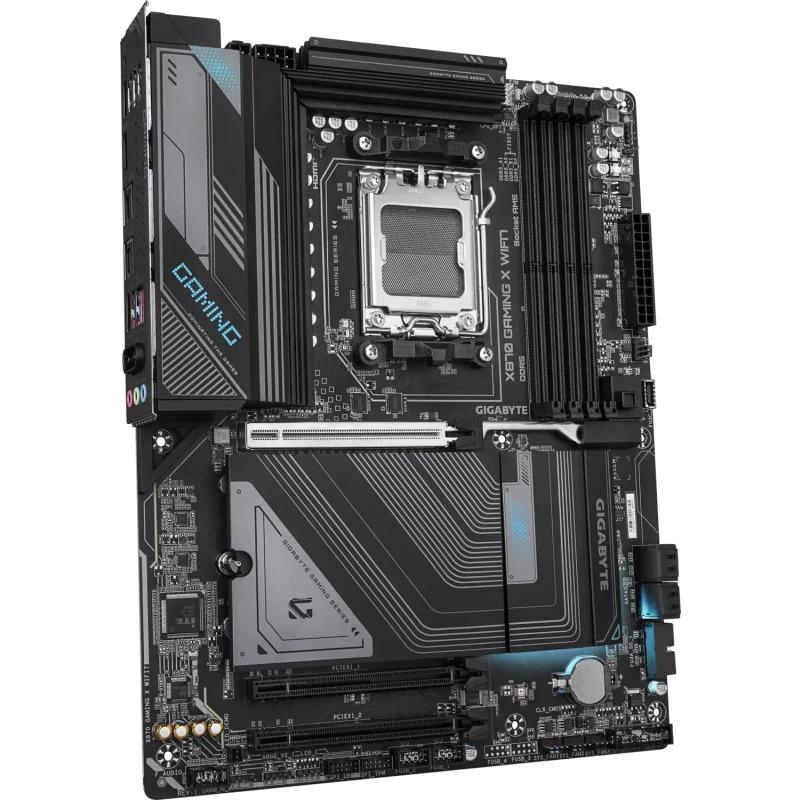

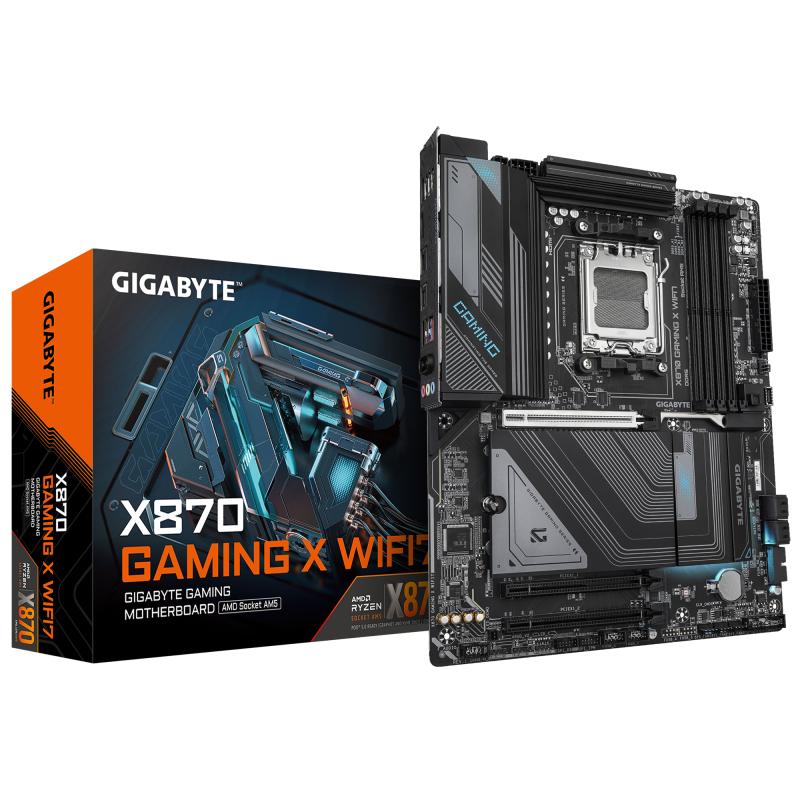

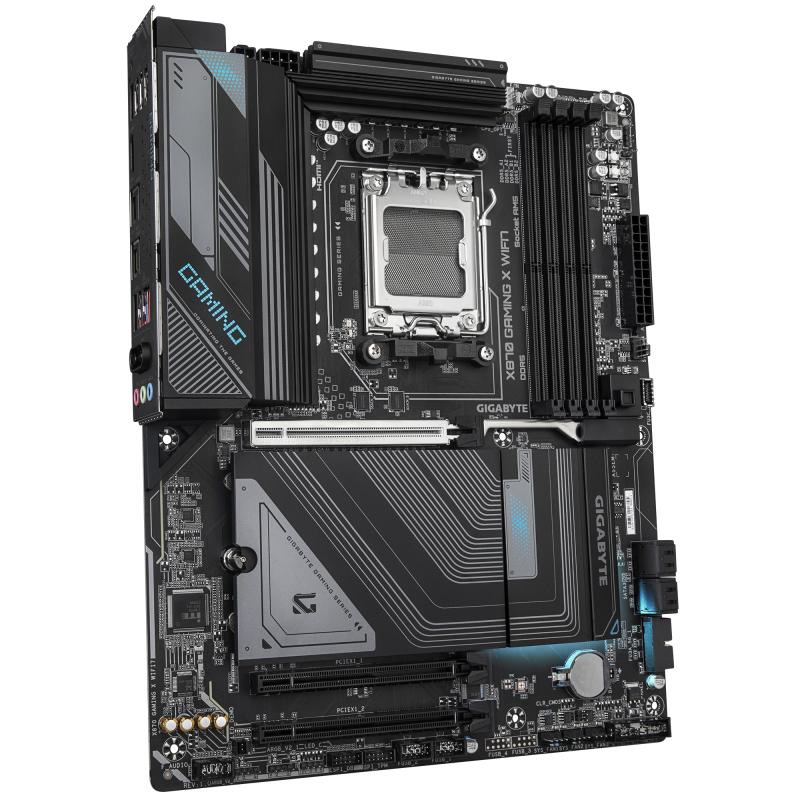

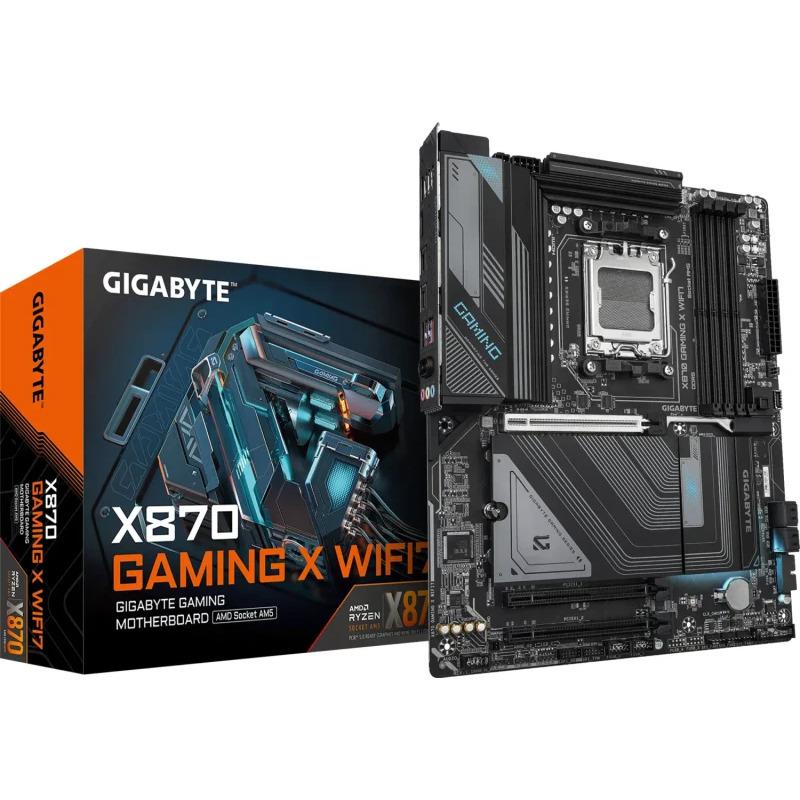

Placa de Baza GIGABYTE X870 GAMING X WIFI7 AM5

Placa de Baza GIGABYTE X870 GAMING X WIFI7 AM5, 4x DDR5, 2x USB4 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

PCI Express x1 (Gen 3.x) slots

0

PCI Express x1 (Gen 4.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

PCI Express x4 slots

2

PCI Express x8 (Gen 3.x) slots

0

PCI Express x8 (Gen 4.x) slots

0

PCI Express x8 (Gen 5.x) slots

0

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

0

2nd M.2 largest key size

25110

3rd M.2 largest key size

25110

Motherboard chipset

AMD X870

PC health monitoring

Fan, Temperature, Voltage

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Motherboard chipset family

AMD

Component for

PC

On-board graphics card

No

Parallel processing technology support

Not supported

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Peripheral (Molex) power connectors (4-pin)

1

Number of EPS power connectors (8-pin)

1

USB 3.2 Gen 2x2 connectors

1

Number of water pump connectors

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

MediaTek MT7925

Bluetooth version

5.4

BLUETOOTH

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

PCI Express x4 (Gen 3.x) slots

0

Weight

2.23 kg

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.53 kg

Warranty period

3 year(s)

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

0

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Maximum internal memory supported by processor

256 GB

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

PS/2 ports quantity

0

WiFi-AP antenna jack

2

USB4 Gen 2x2 ports quantity

2

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

0

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Number of HDDs supported

7

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
