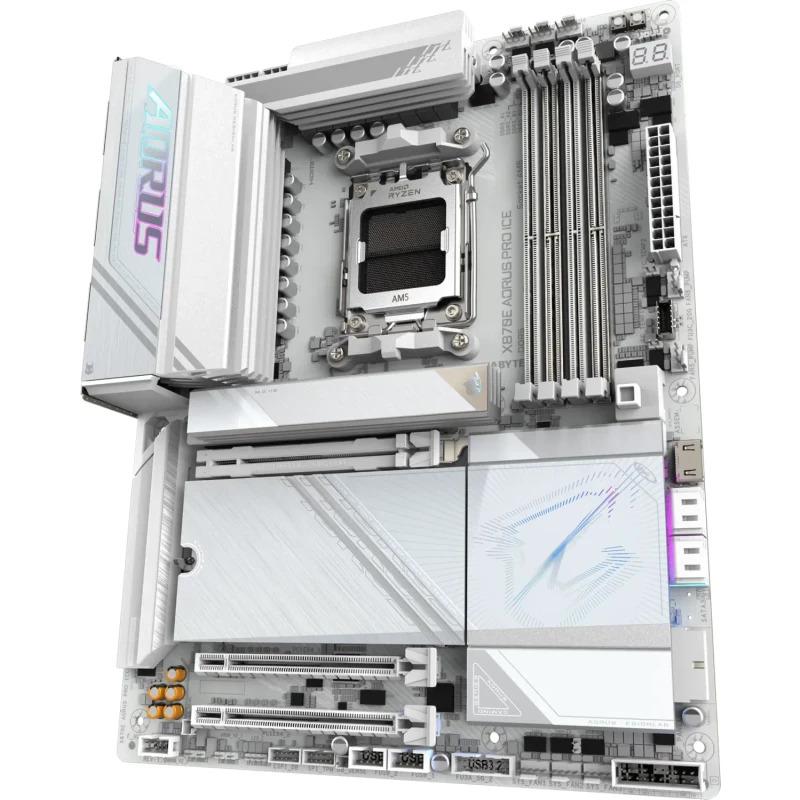

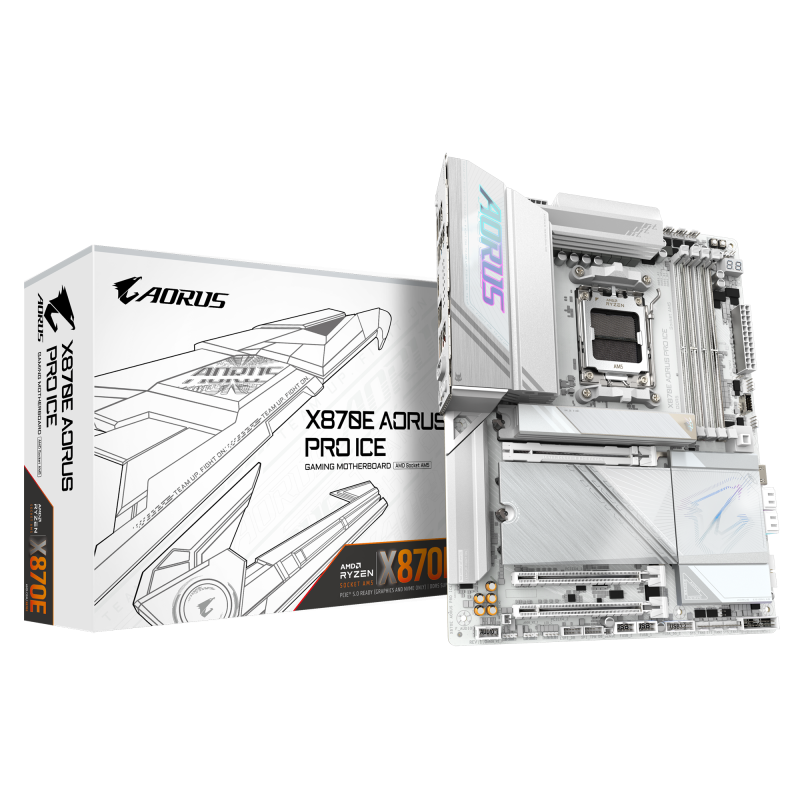

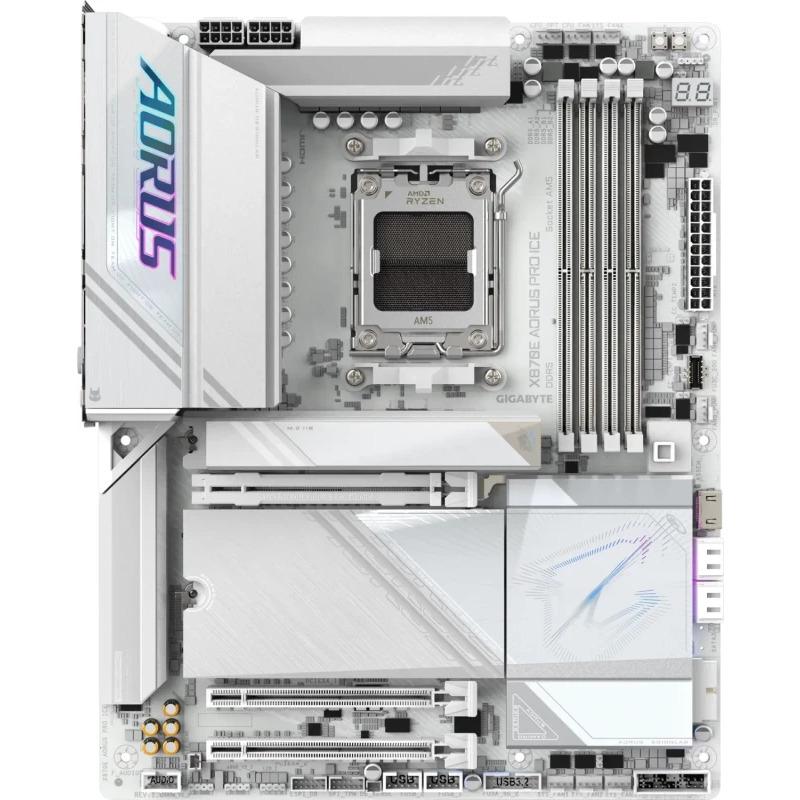

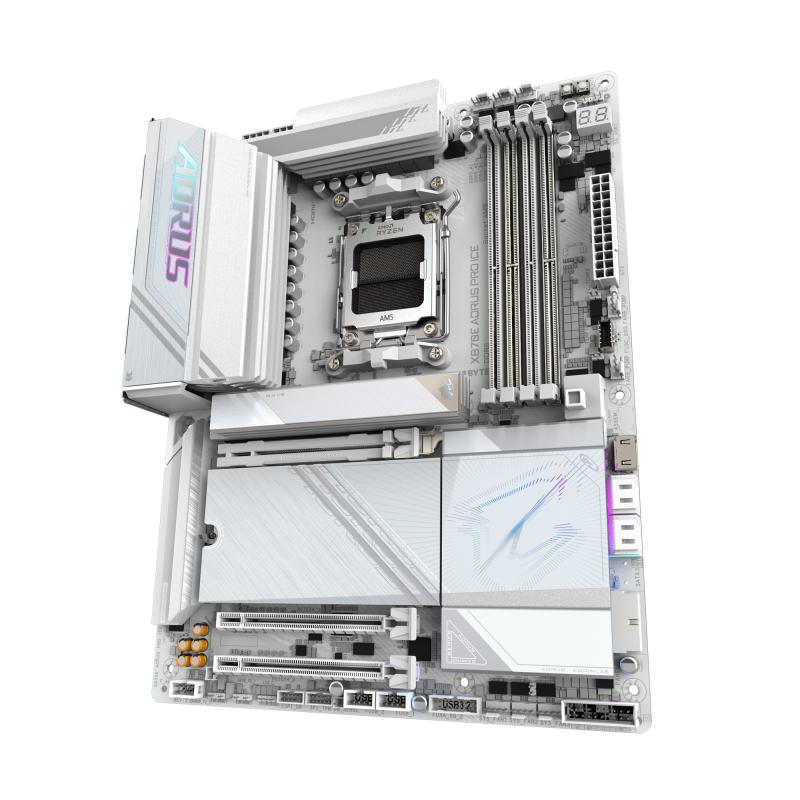

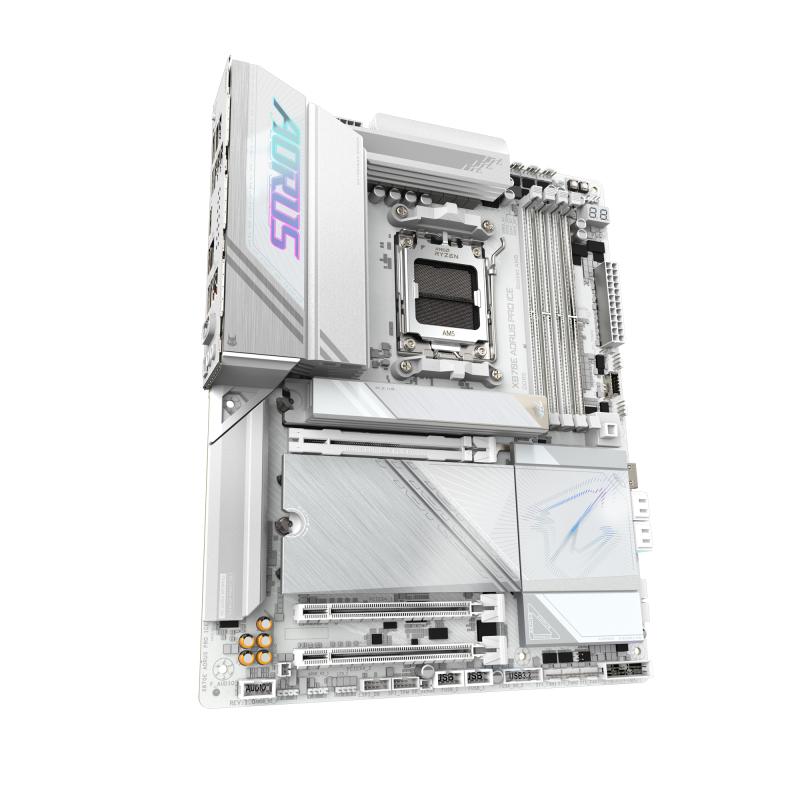

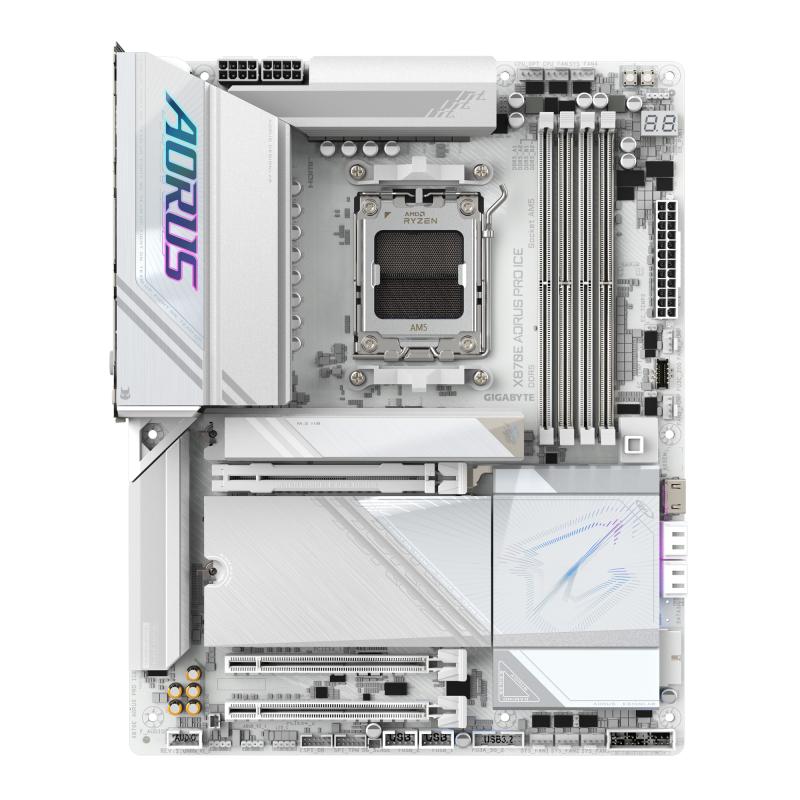

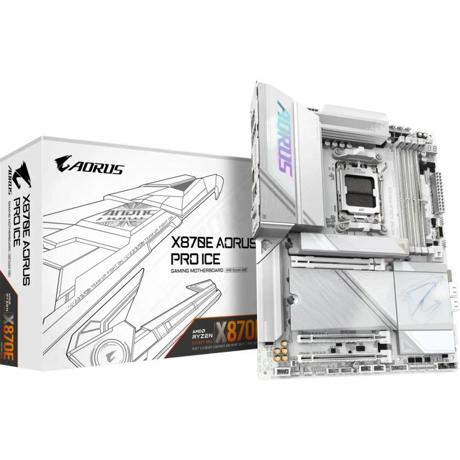

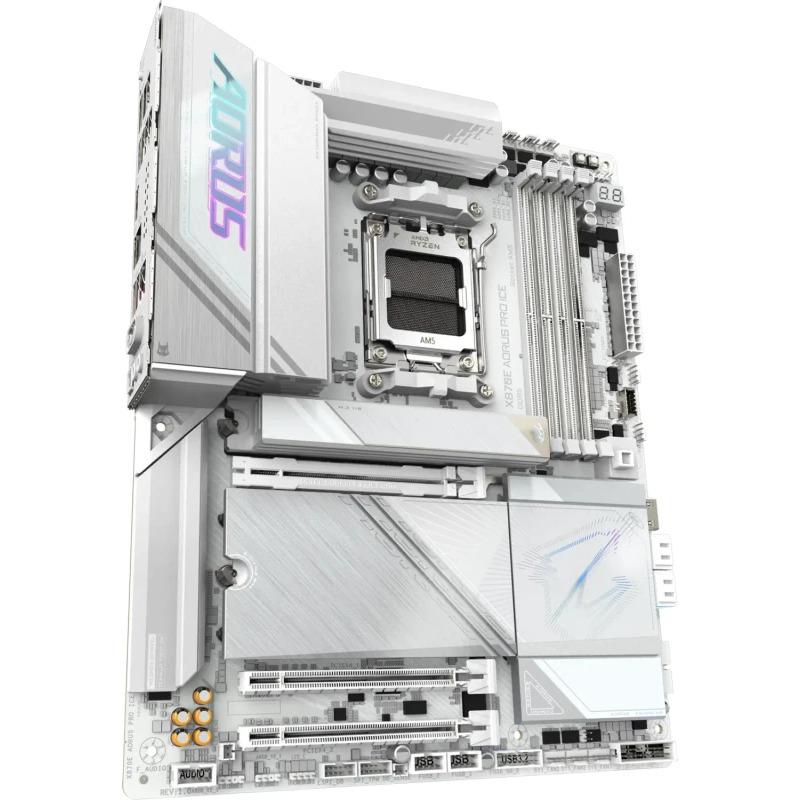

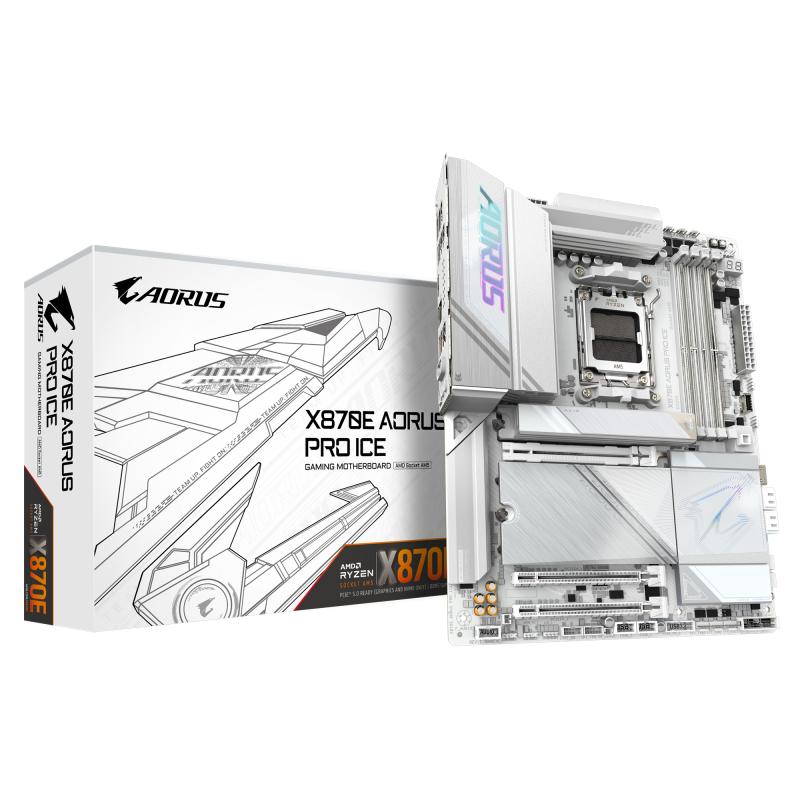

Placa de Baza GIGABYTE X870E AORUS PRO ICE AM5

Placa de Baza GIGABYTE X870E AORUS PRO ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Number of M.2 (M) slots

4

PCI Express x1 (Gen 3.x) slots

0

PCI Express x1 (Gen 4.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

PCI Express x4 slots

2

PCI Express x8 (Gen 3.x) slots

0

PCI Express x8 (Gen 4.x) slots

0

PCI Express x8 (Gen 5.x) slots

0

2nd M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

PC health monitoring

Fan, Temperature, Voltage

Audio Chip

Realtek ALC1220

Motherboard chipset

AMD X870E

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

On-board graphics card

No

Parallel processing technology support

Not supported

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2x2 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Audio connector

Yes

Number of chassis fan connectors

6

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

4400,4800,5600,6000,6200,6400,6600,6800,7000,7600,7800,8000,8200 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB

ECC сompatibility

Non-ECC

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Qualcomm QCNCM865

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.3

Wi-Fi standards

Wi-Fi 7 (802.11be)

Weight

2.4 kg

mSATA ports quantity

0

PCI Express x4 (Gen 3.x) slots

0

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Batteries included

Yes

Package height

80 mm

Package width

345 mm

Package depth

294 mm

Package weight

2.74 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

0

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

Processor manufacturer

AMD

Maximum internal memory supported by processor

256 GB

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

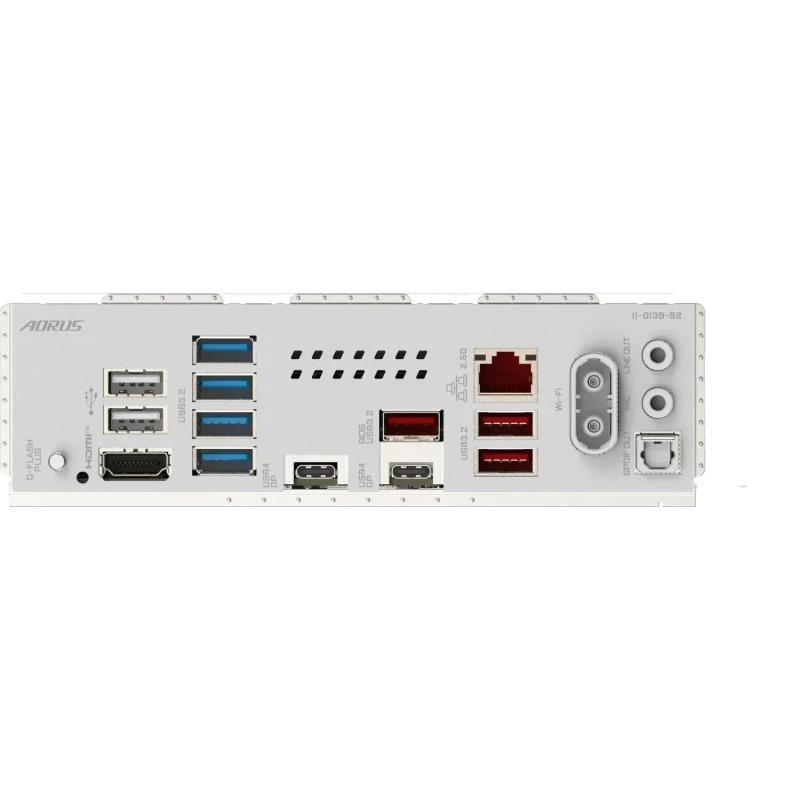

USB4 Gen 2x2 ports quantity

2

WiFi-AP antenna jack

2

PS/2 ports quantity

0

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Microphone in

Yes

USB 2.0 ports quantity

2

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

8

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
