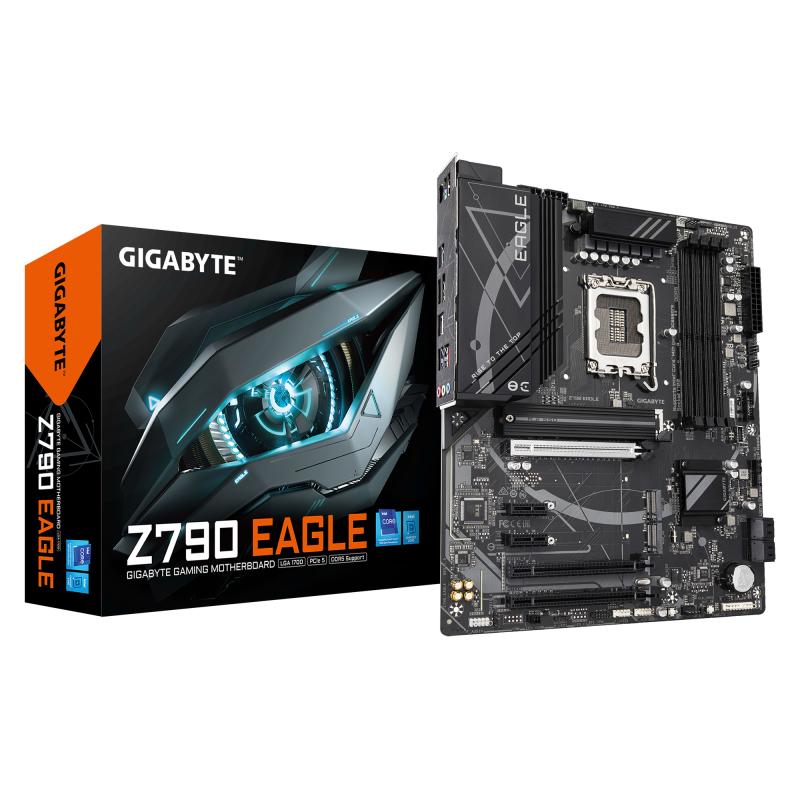

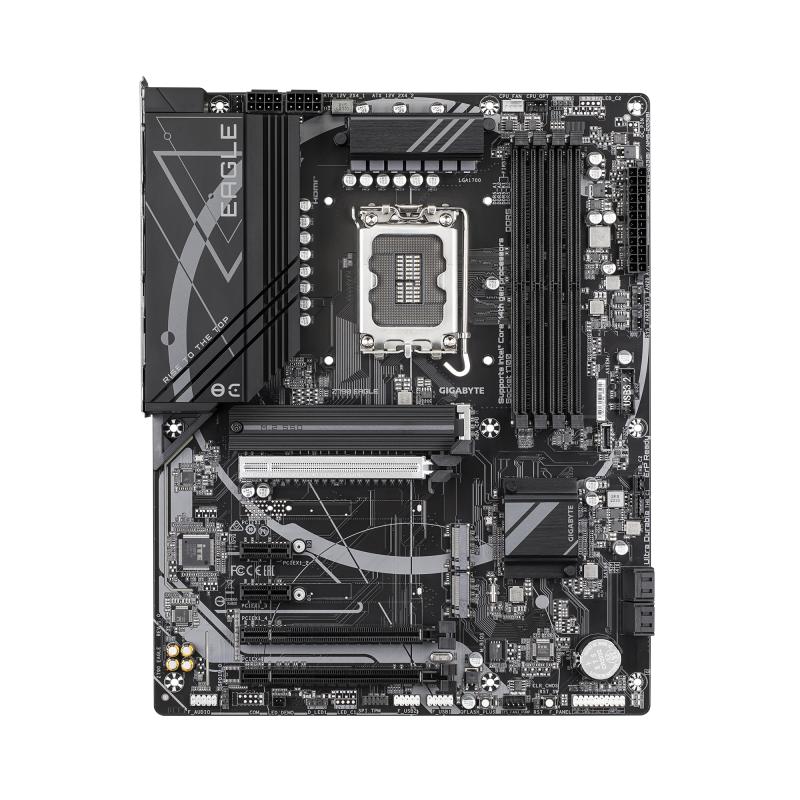

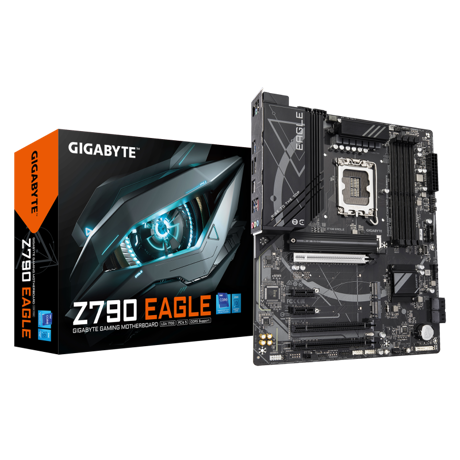

Placa de Baza GIGABYTE Z790 EAGLE LGA1700, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza GIGABYTE Z790 EAGLE LGA1700, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Black

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

Motherboard chipset

Intel Z790

Motherboard form factor

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Parallel processing technology support

Not supported

HDCP

Yes

DirectX version

12.0

Maximum resolution

4096 x 2304 pixels

Thunderbolt headers

2

S/PDIF out connector

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of RGB LED pin headers

2

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speeds

7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4400 MHz

Supported memory clock speed (max)

7600 MHz

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Wi-Fi

No

Ethernet LAN

Yes

Batteries included

Yes

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.79 kg

Warranty period

3 year(s)

HDMI ports quantity

1

HDMI version

2.1

DisplayPort version

1.2

DisplayPorts quantity

1

DVI-D ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Line-in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone outputs

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
