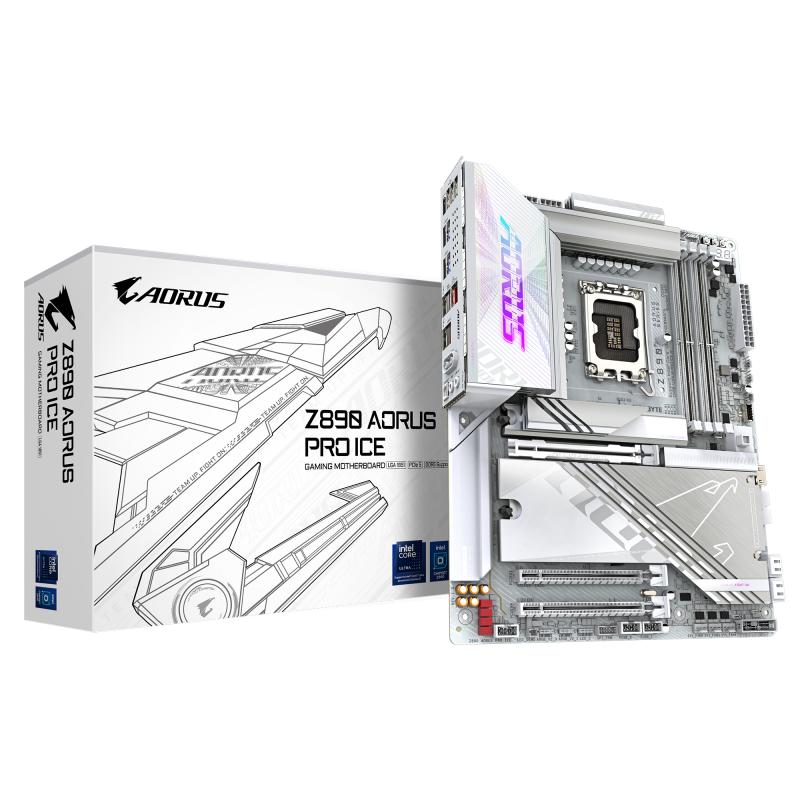

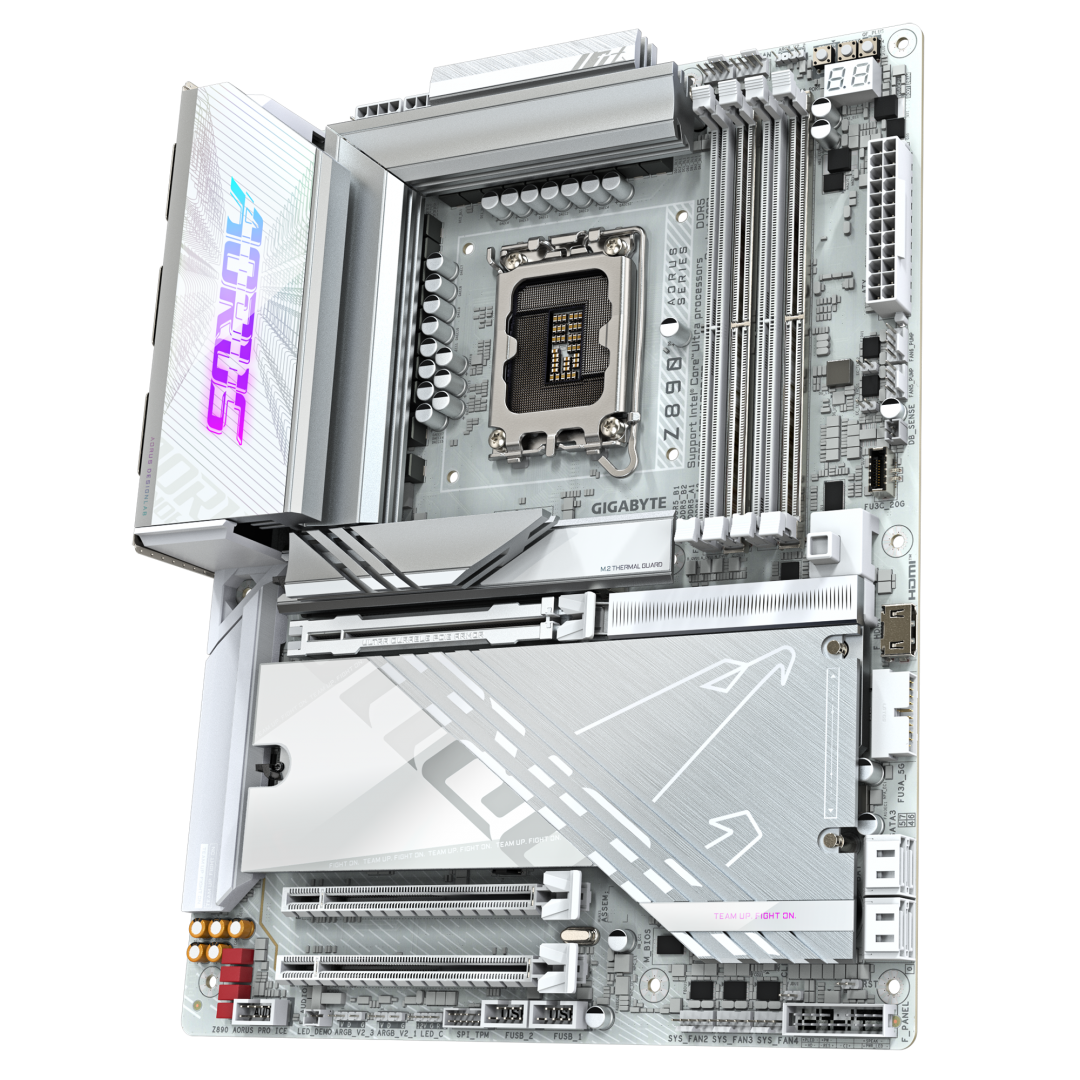

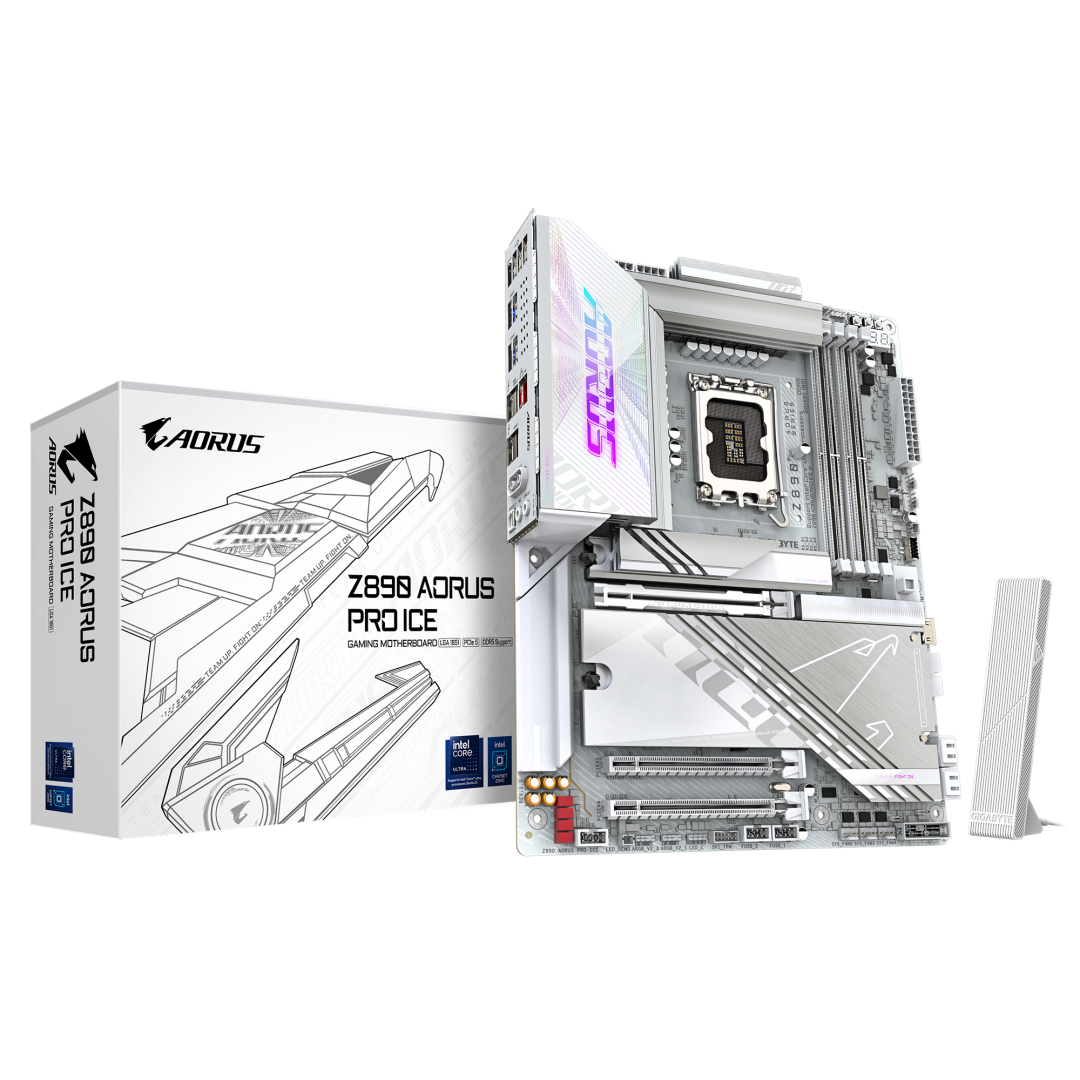

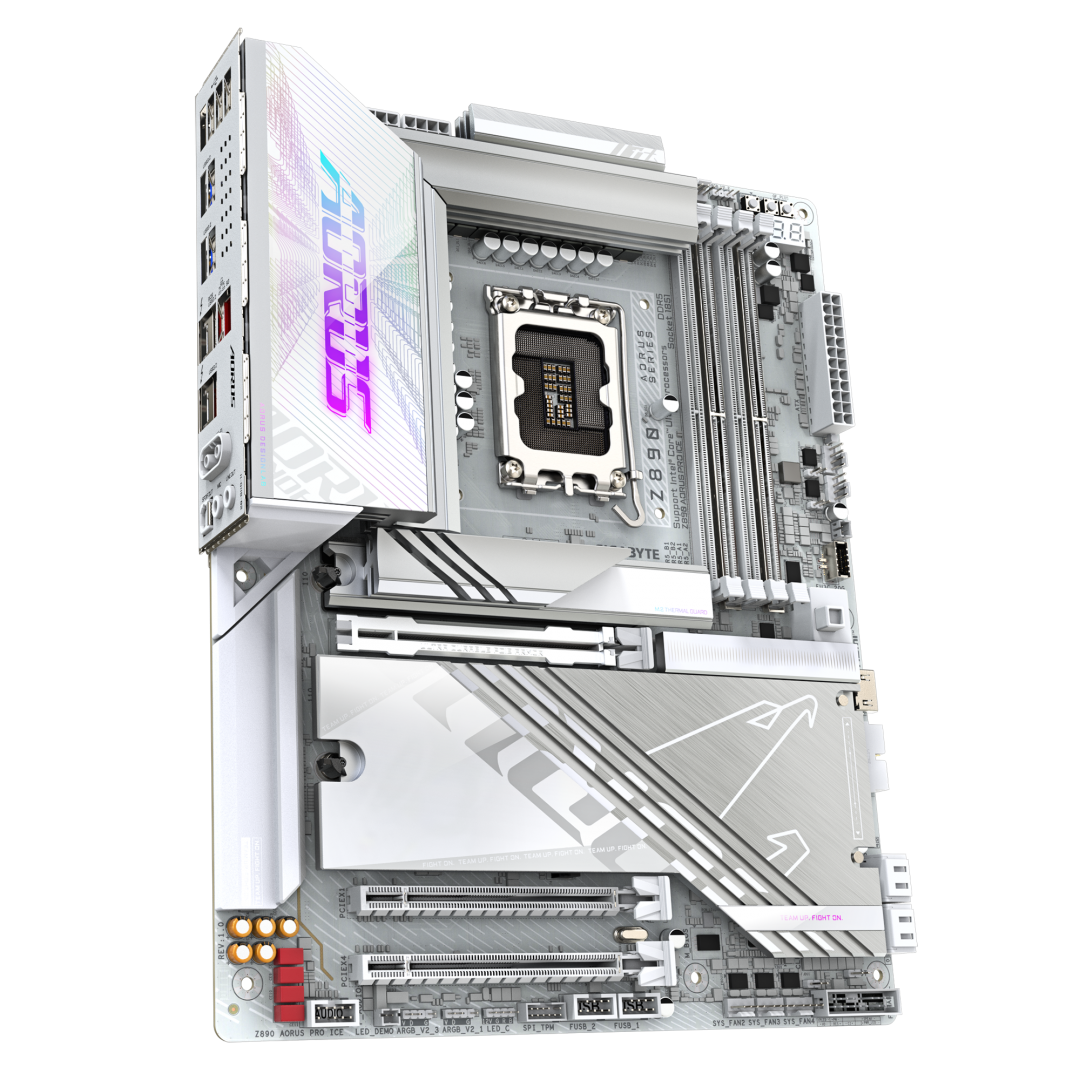

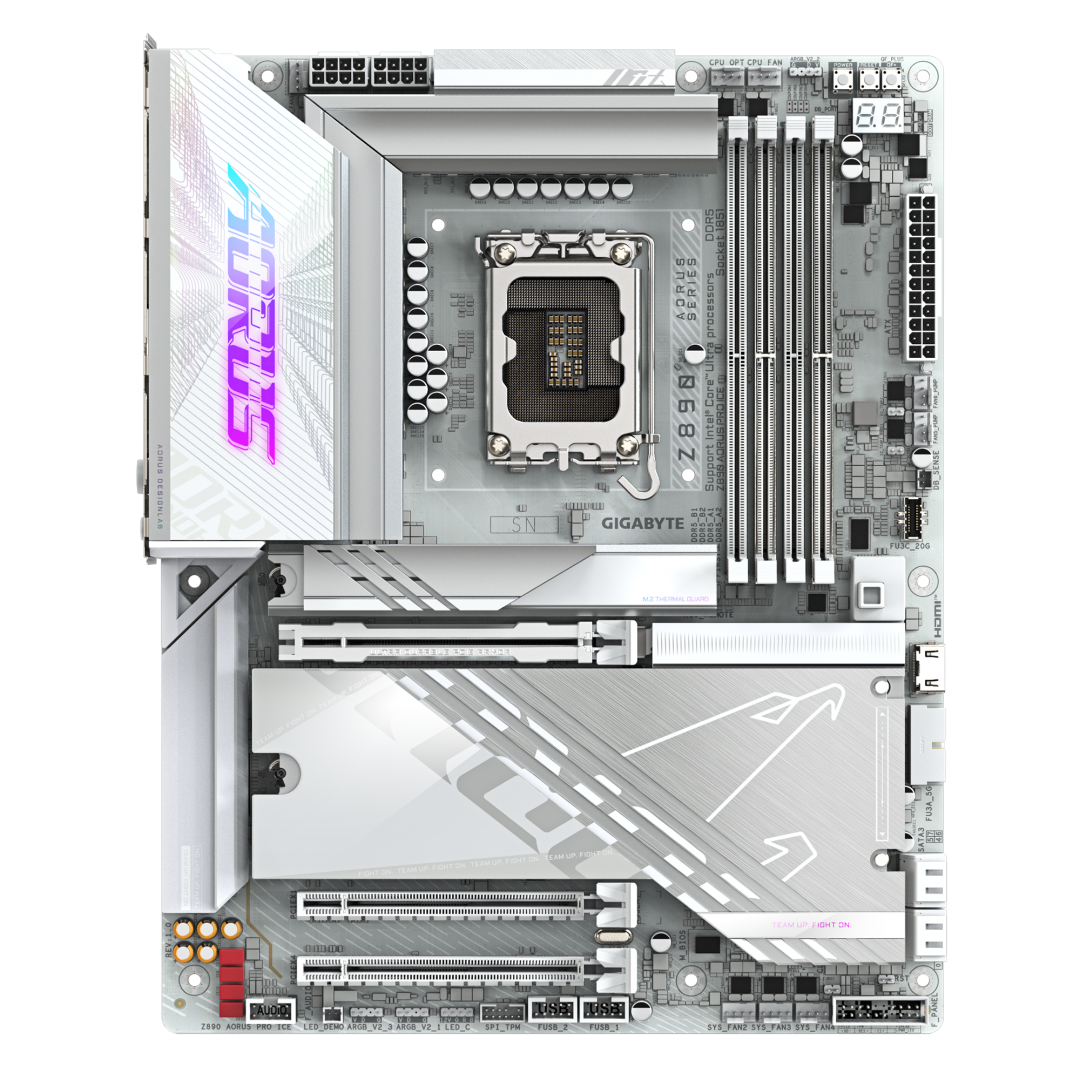

Placa de Baza GIGABYTE Z890 AORUS PRO ICE LGA1851

Placa de Baza GIGABYTE Z890 AORUS PRO ICE LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x HDMI, 3x PCIE x16, 5x M.2, 4x SATA III, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

5

Motherboard chipset

Intel Z890

Motherboard form factor

ATX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 11 x64

Audio Chip

Realtek ALC1220

PC health monitoring

Fan, Temperature, Voltage

Audio output channels

7.1 channels

Component for

PC

On-board graphics card

No

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2x2 connectors

1

Total number of SATA connectors

4

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

9500 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Ethernet interface type

5 Gigabit Ethernet

BLUETOOTH

Yes

Ethernet LAN

Yes

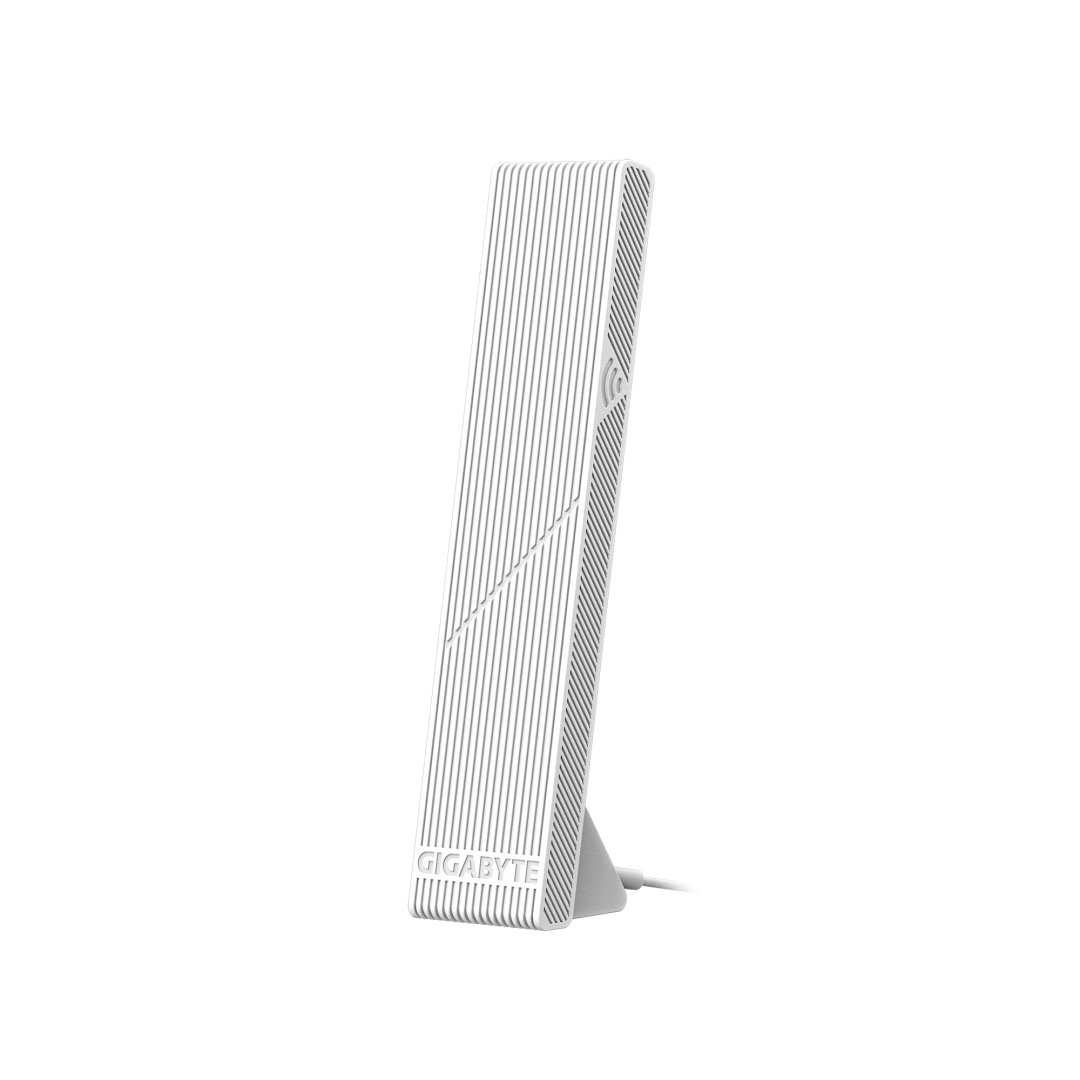

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

mSATA ports quantity

0

Weight

2.27 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.55 kg

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

2

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Processor manufacturer

Intel

Compatible processor series

Intel Core Ultra (Series 2)

Maximum internal memory supported by processor

256 GB

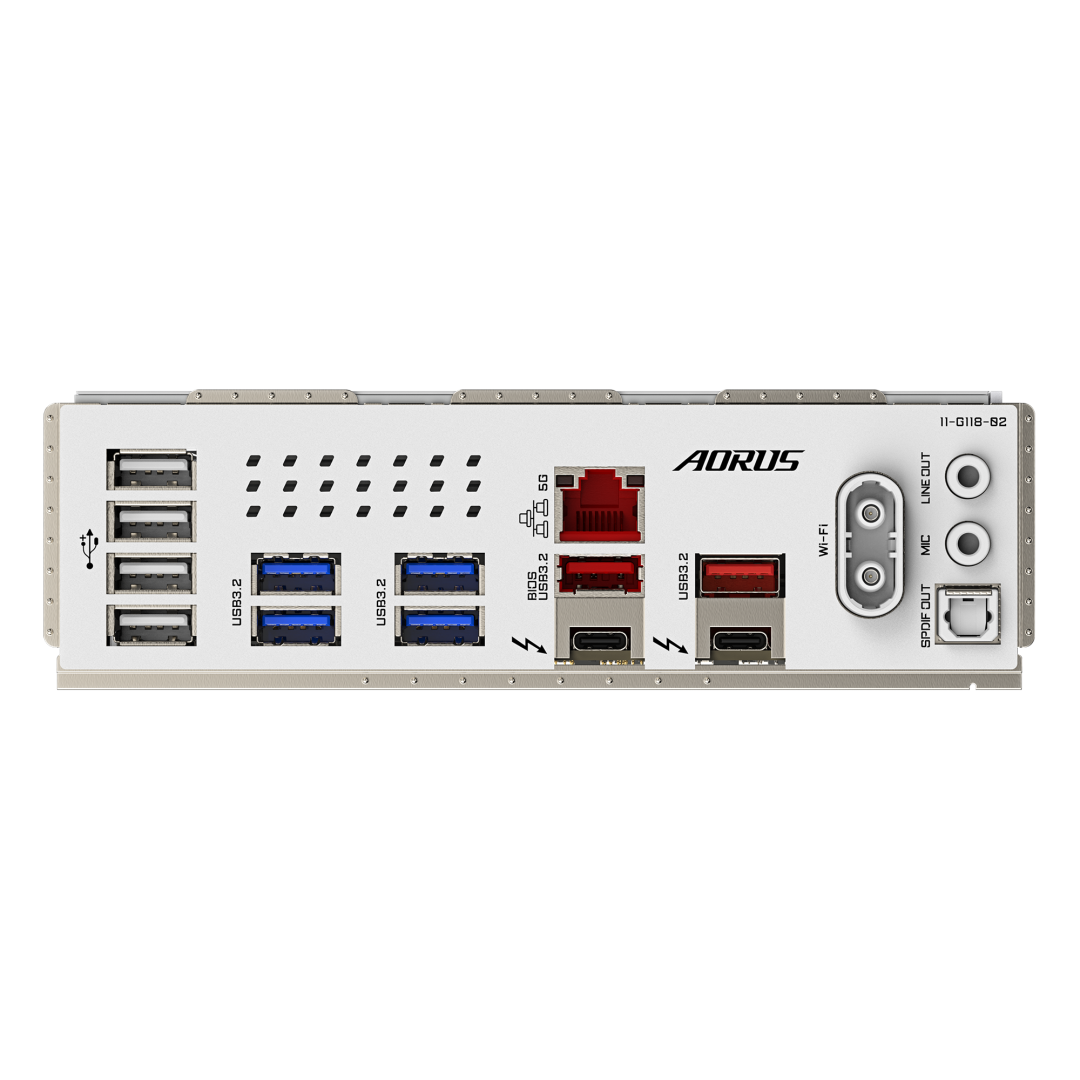

Thunderbolt ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of storage drives supported

4

Number of HDDs supported

9

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
