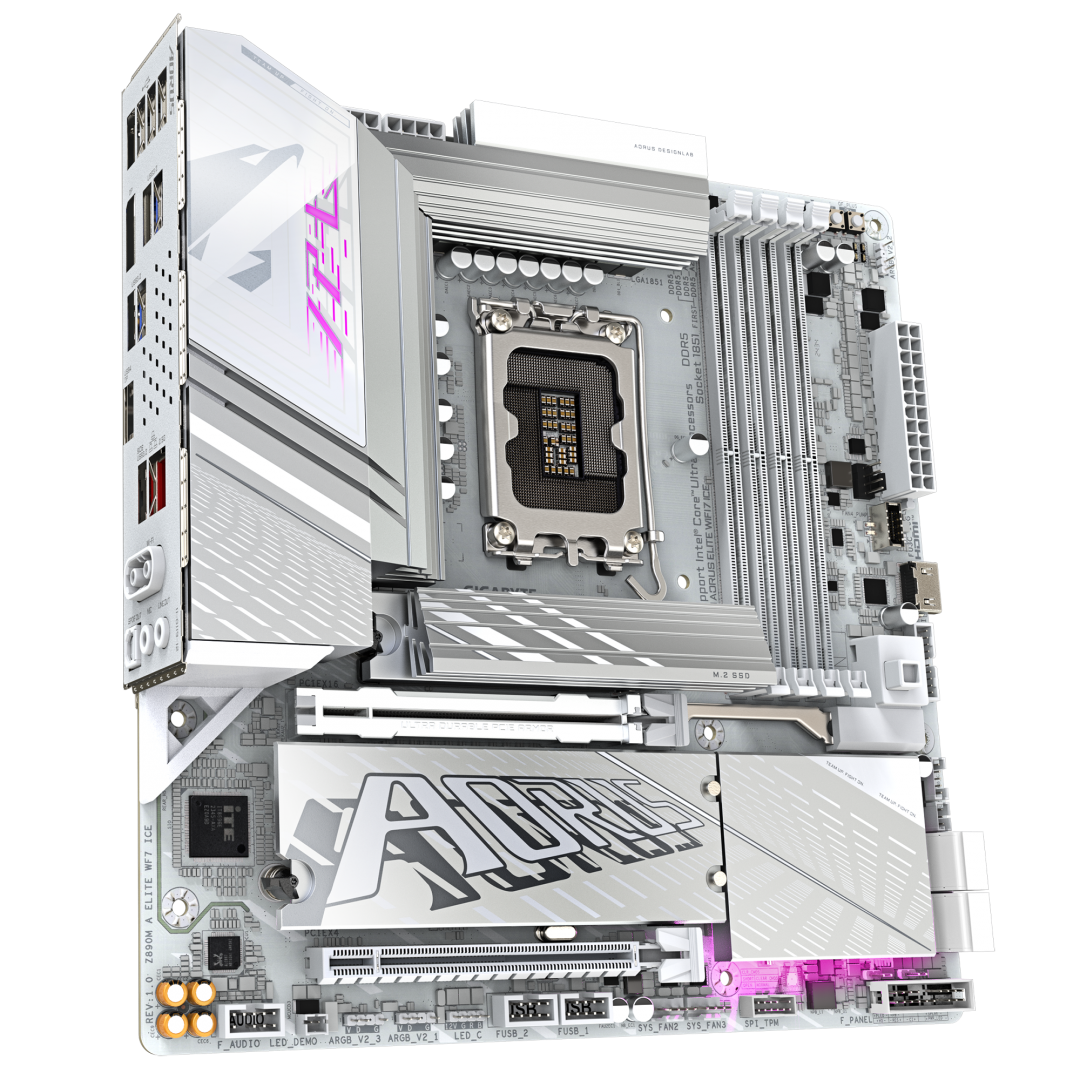

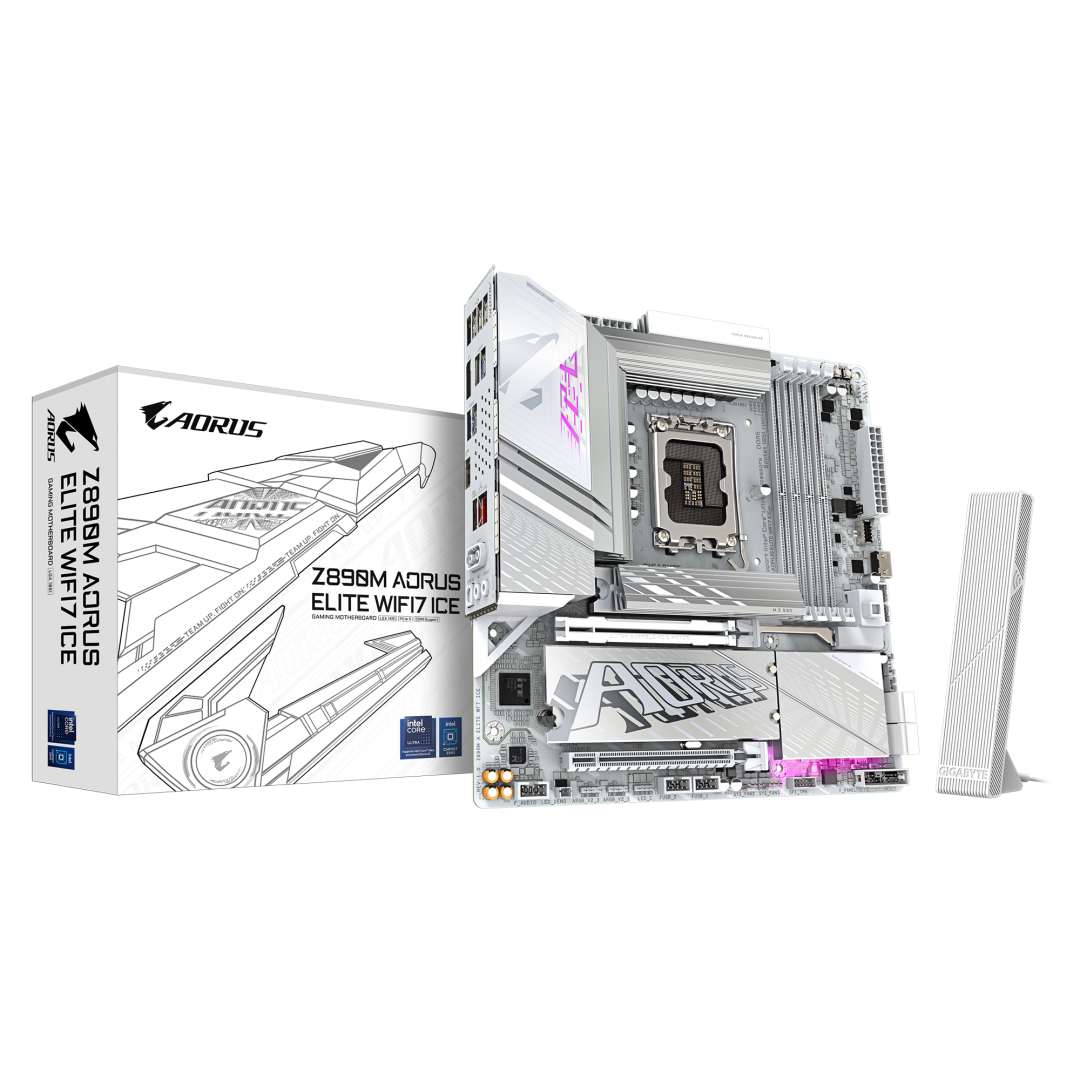

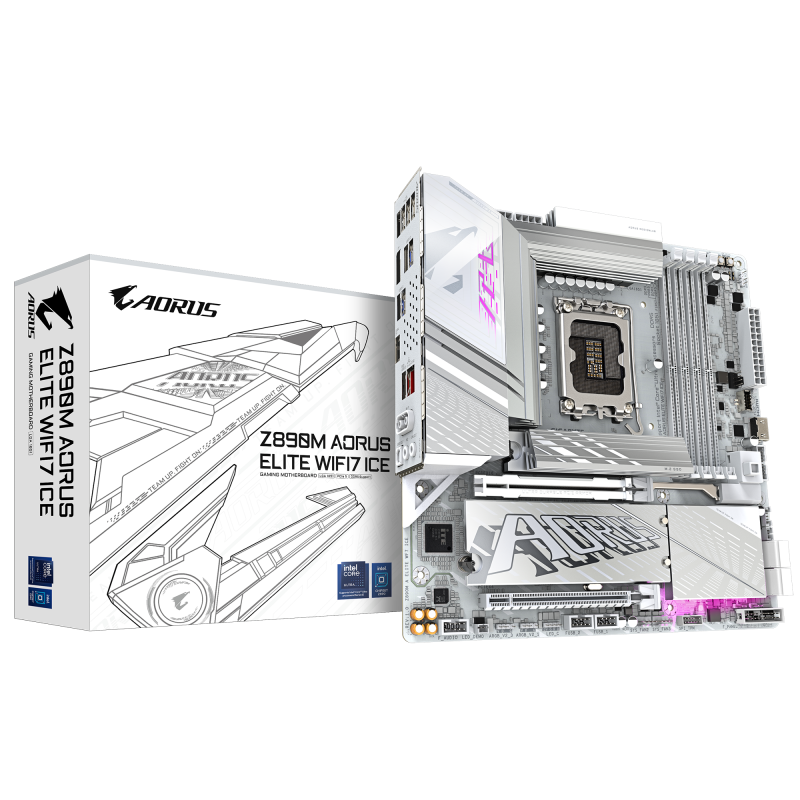

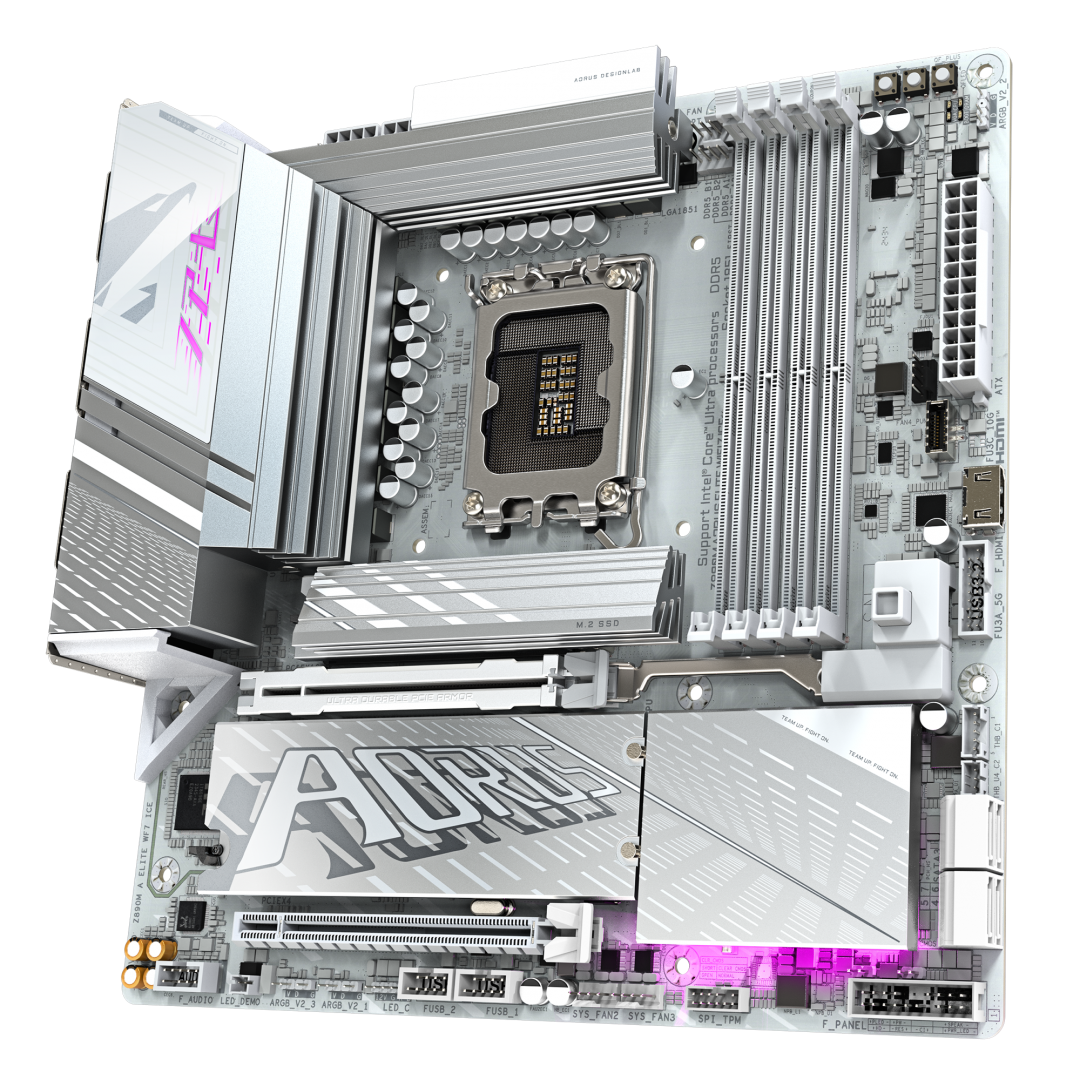

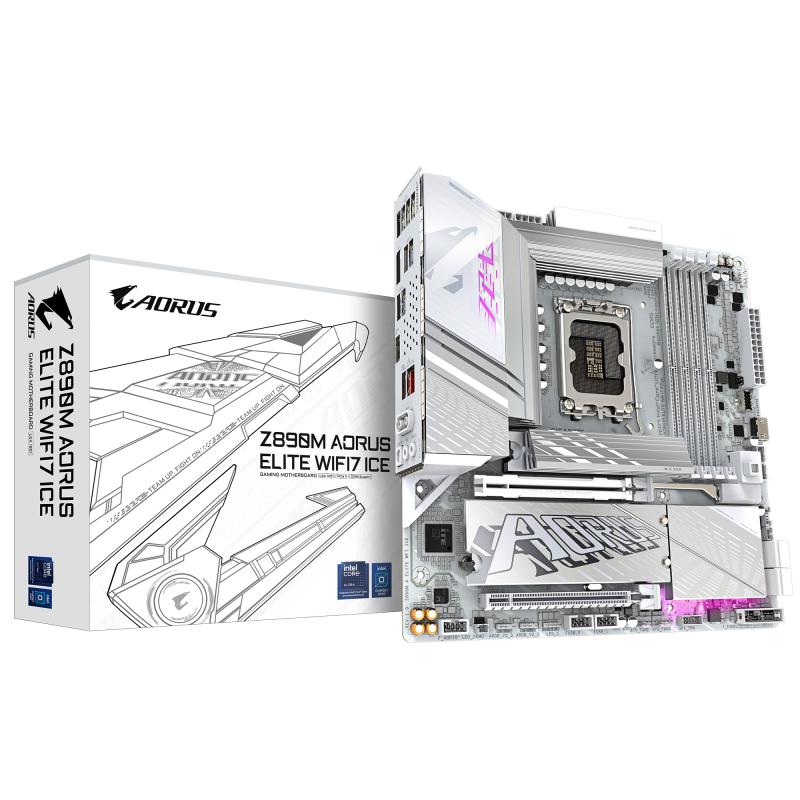

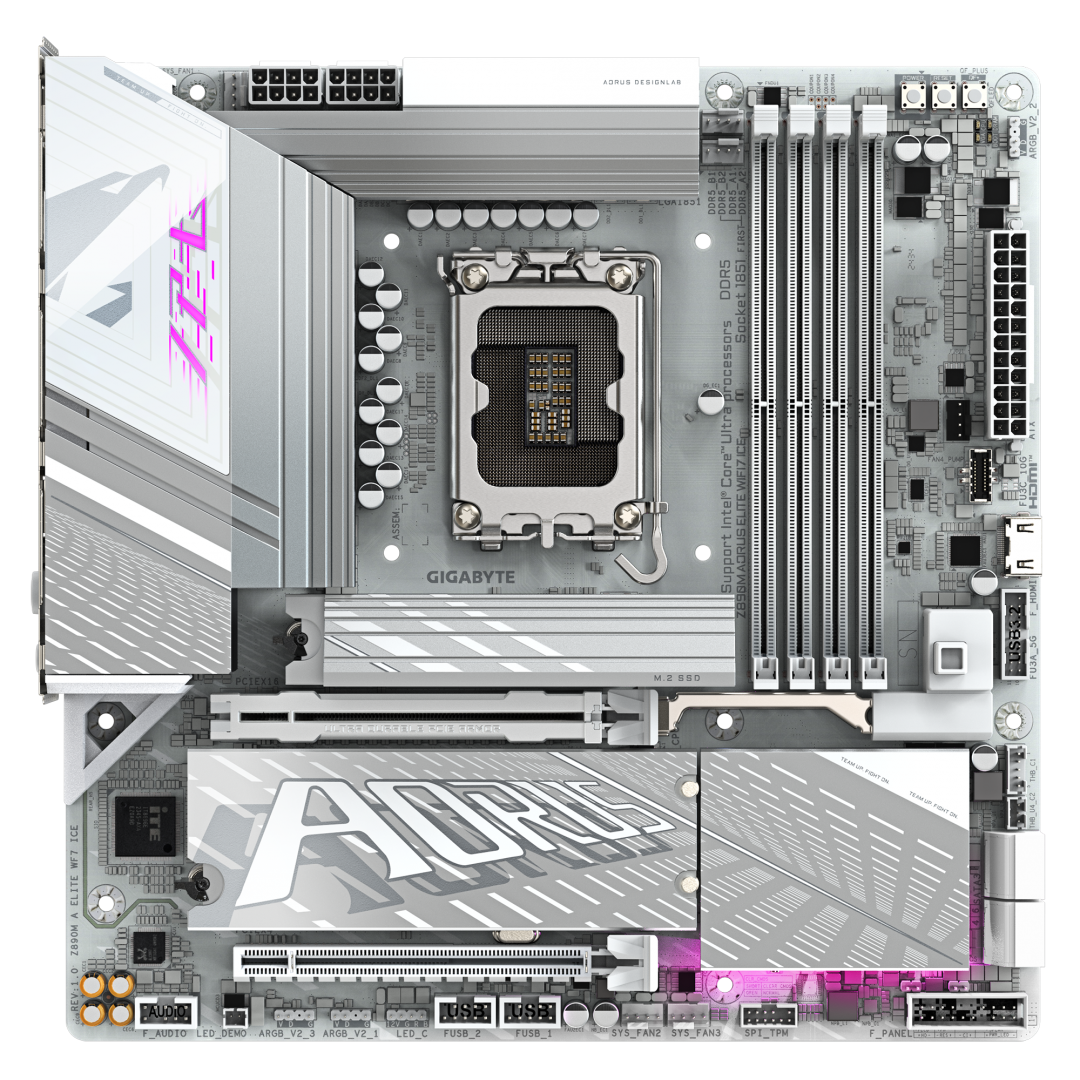

Placa de Baza GIGABYTE Z890M AORUS ELITE WIFI7 ICE LGA1851

Placa de Baza GIGABYTE Z890M AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB5 1x DP 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

White

Number of M.2 (M) slots

3

Motherboard form factor

ATX

Motherboard chipset family

Intel

Component for

PC

Audio output channels

7.1 channels

Motherboard chipset

Intel Z890

PC health monitoring

Fan, Temperature, Voltage

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

TPM connector

Yes

RGB LED pin header

Yes

Total number of SATA connectors

4

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Supported memory clock speed (max)

8800 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory clock speeds

5600,5800,6000,6200,6600,6800,7200,7400,7600,7800,7900,7950,8000,8200,8400,8600 MHz

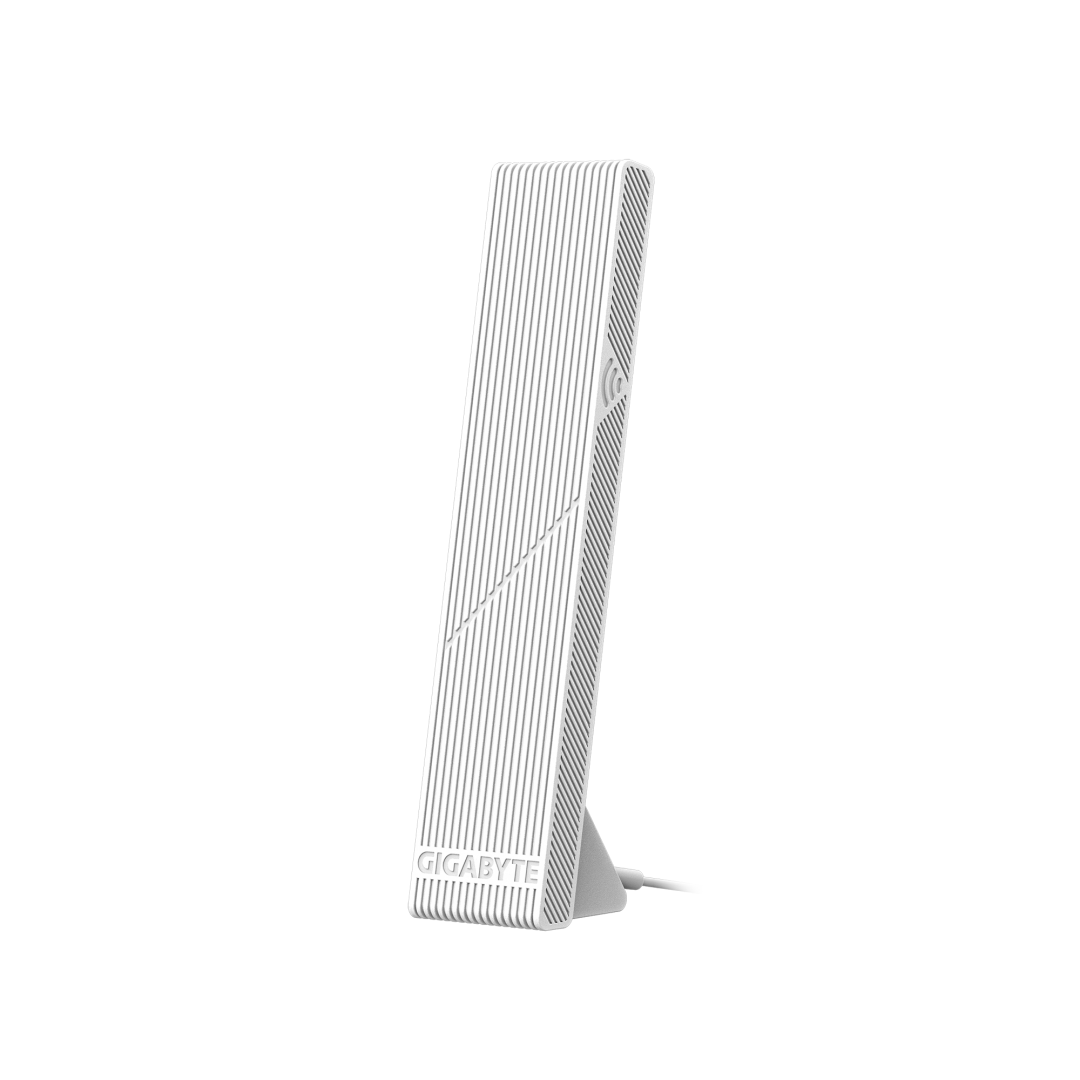

WLAN controller model

MediaTek MT7925

Ethernet interface type

2.5 Gigabit Ethernet

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Weight

1.55 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package width

270 mm

Package height

68 mm

Package weight

1.75 kg

Package depth

268 mm

Warranty period

3 year(s)

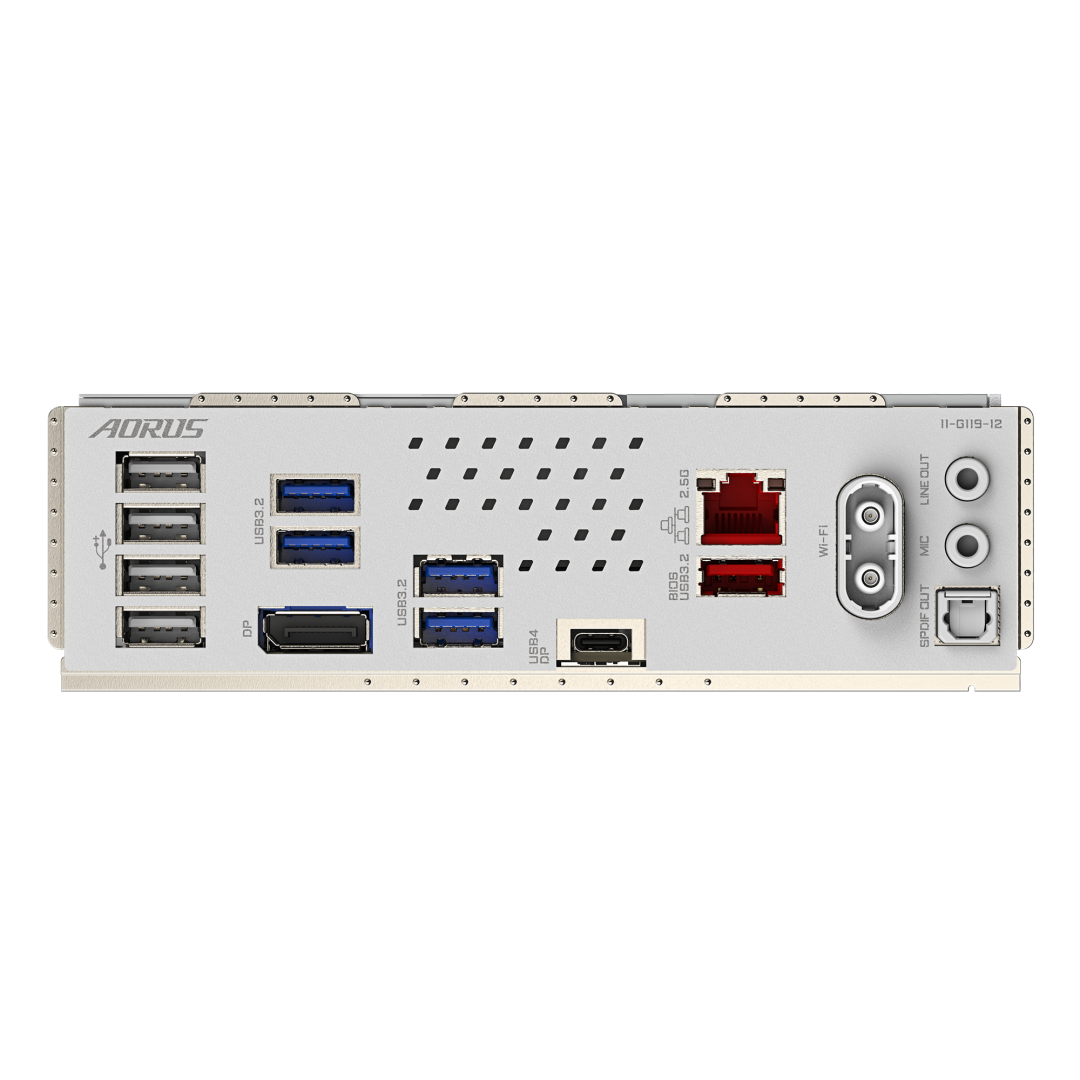

DisplayPorts quantity

2

HDMI ports quantity

1

DVI-D ports quantity

0

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Processor manufacturer

Intel

Compatible processor series

Intel Core Ultra (Series 2)

Maximum internal memory supported by processor

256 GB

Thunderbolt ports quantity

1

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of storage drives supported

4

Number of HDDs supported

7

Depth

244 mm

Width

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
