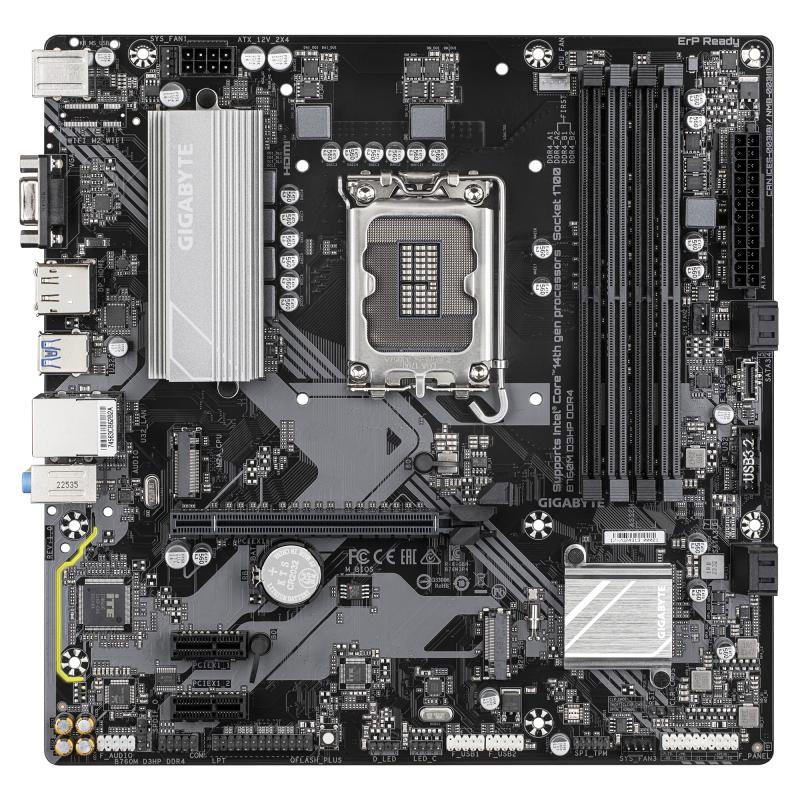

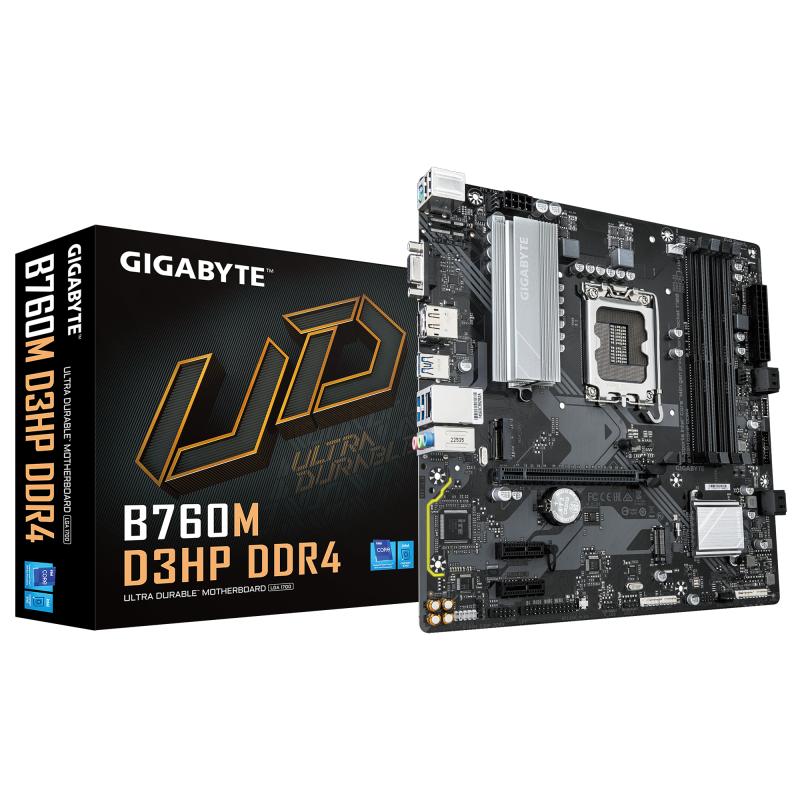

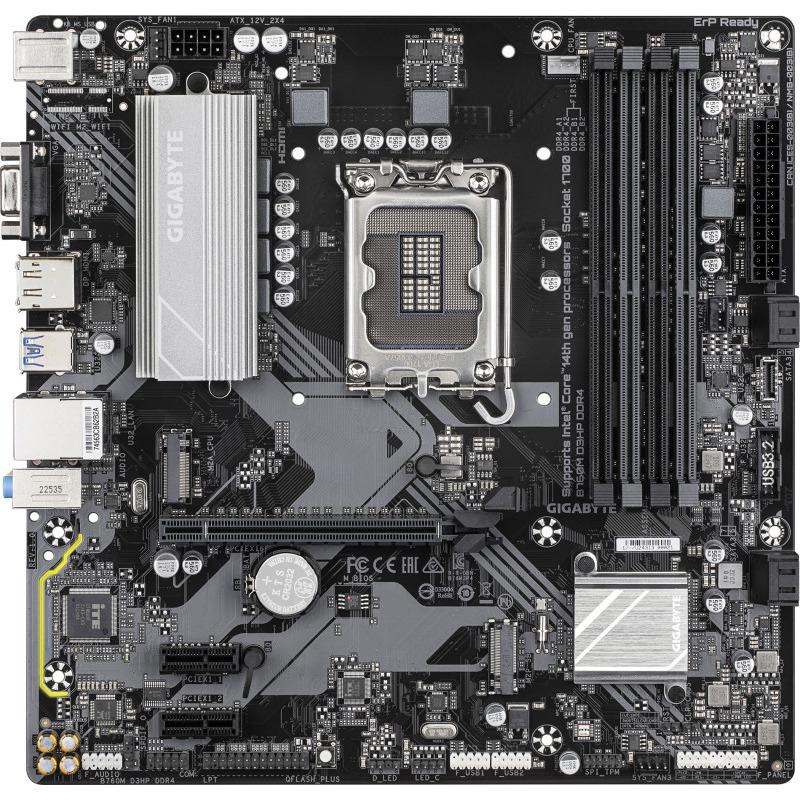

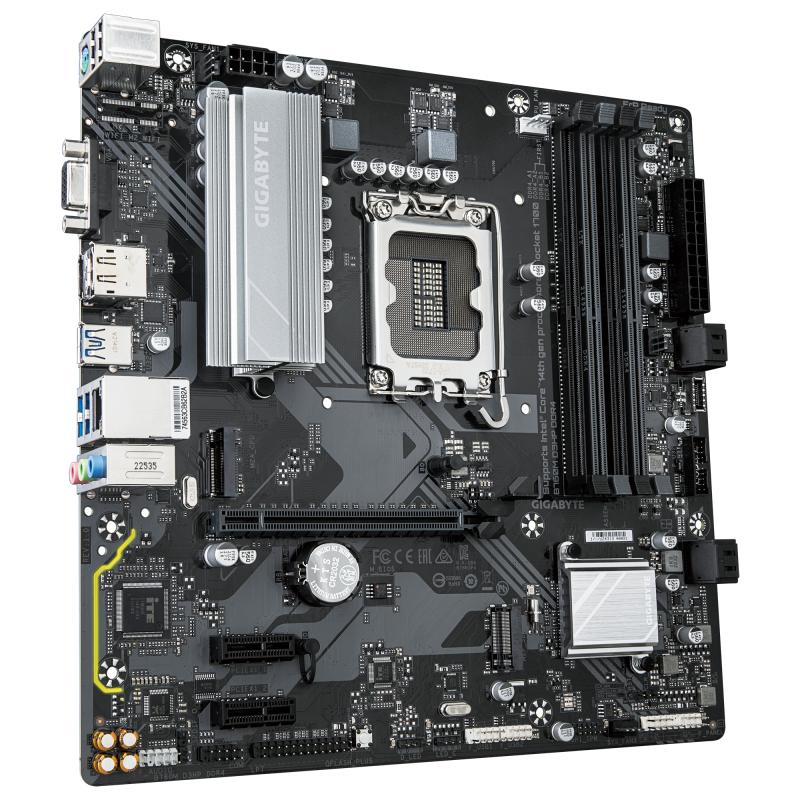

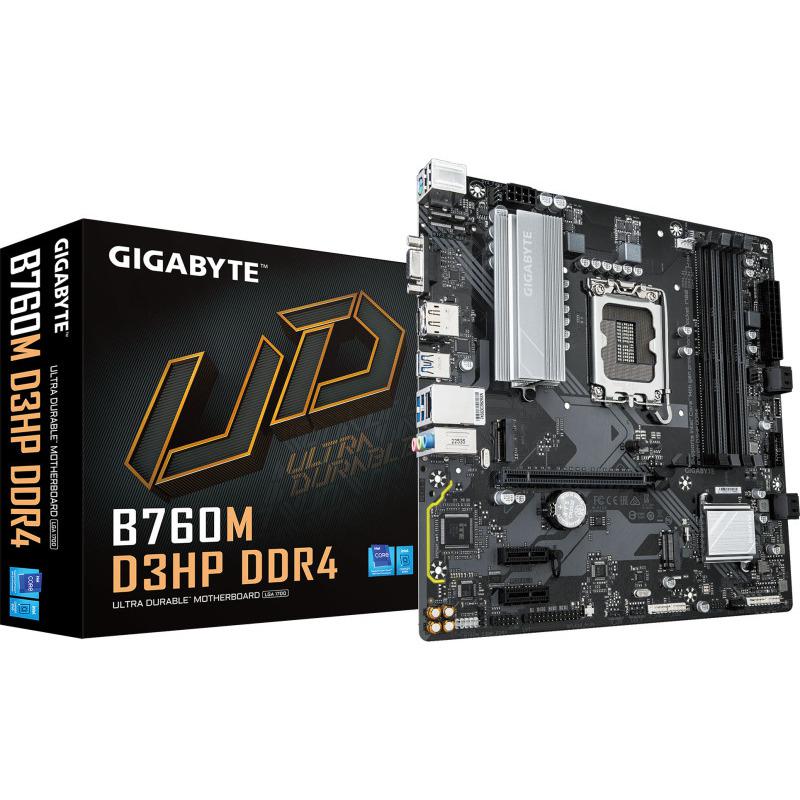

Placa de baza GIGABYTE B760M D3HP LGA1700

Placa de baza GIGABYTE B760M D3HP LGA1700 4x DDR4, 1x D-Sub 1x HDMI 1x DP, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

Product colour

Brown

PCI Express x1 slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x4 slots

1

Motherboard chipset

Intel B760 Express

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2304 pixels

Total number of SATA connectors

4

12V power connector

Yes

S/PDIF out connector

Yes

Serial port headers

1

Number of chassis fan connectors

3

Audio connector

Yes

Power fan connector

Yes

Parallel connector

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of Parallel ATA connectors

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Maximum internal memory

128 GB

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

ECC сompatibility

ECC & Non-ECC

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speed (max)

5333 MHz

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Ethernet LAN

Yes

Batteries included

Yes

Bundled software

Norton Internet Security

Package weight

990 g

Package width

265 mm

Package height

54 mm

Package depth

265 mm

Warranty period

3 year(s)

HDMI version

2.1

HDMI ports quantity

1

DisplayPort version

1.4

DVI-D ports quantity

0

DisplayPorts quantity

2

Processor manufacturer

Intel

Maximum internal memory supported by processor

128 GB

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Digital audio optical out

3

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Depth

244 mm

Width

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
