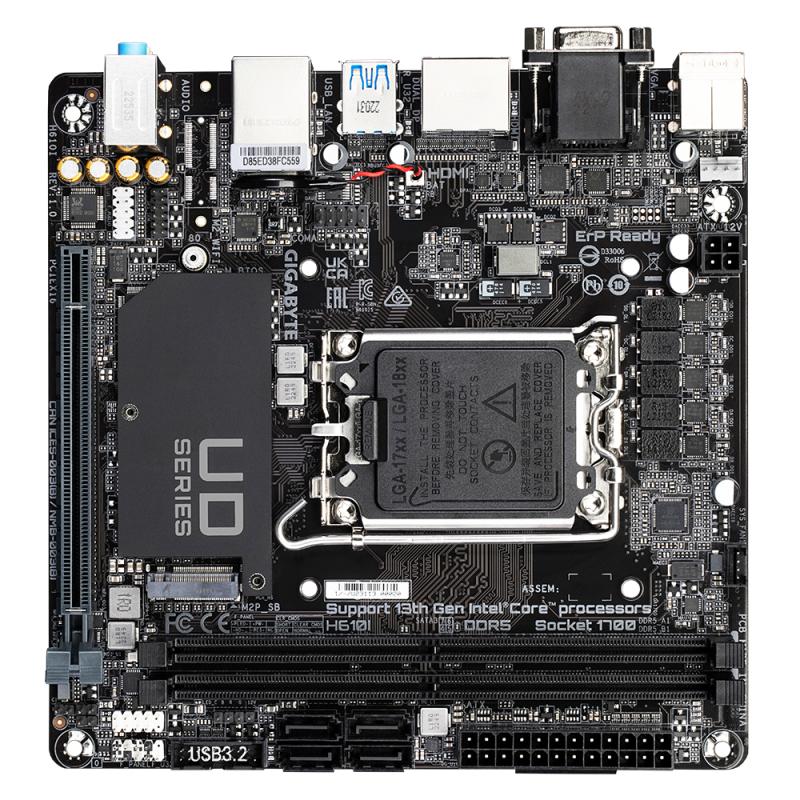

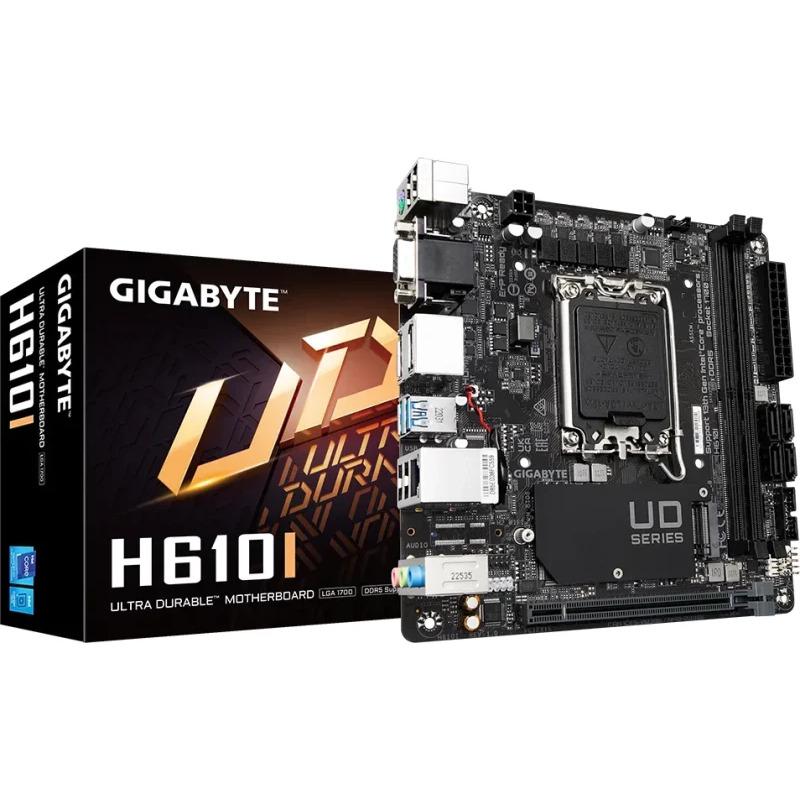

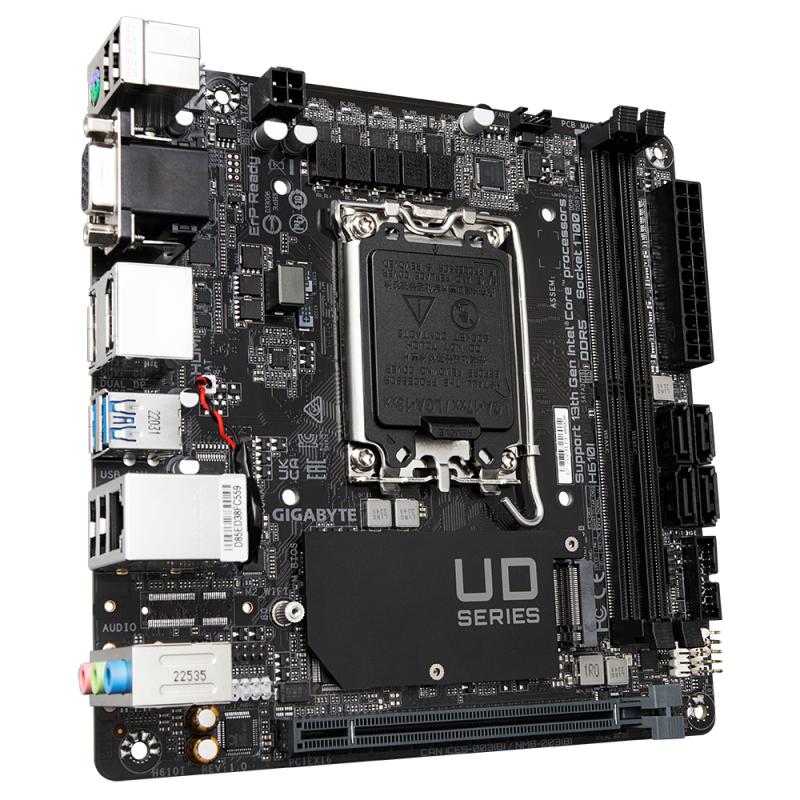

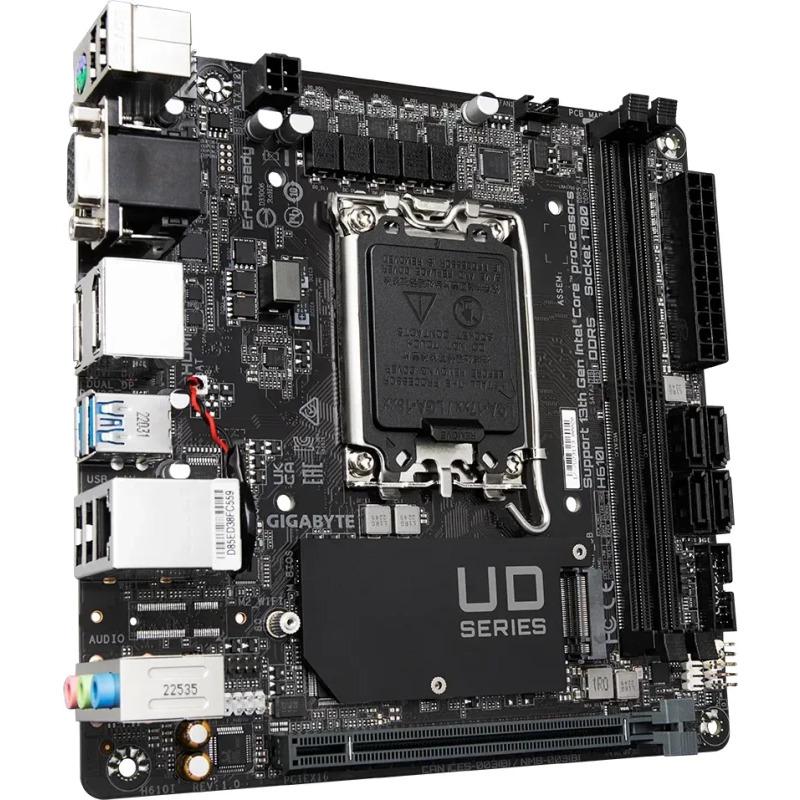

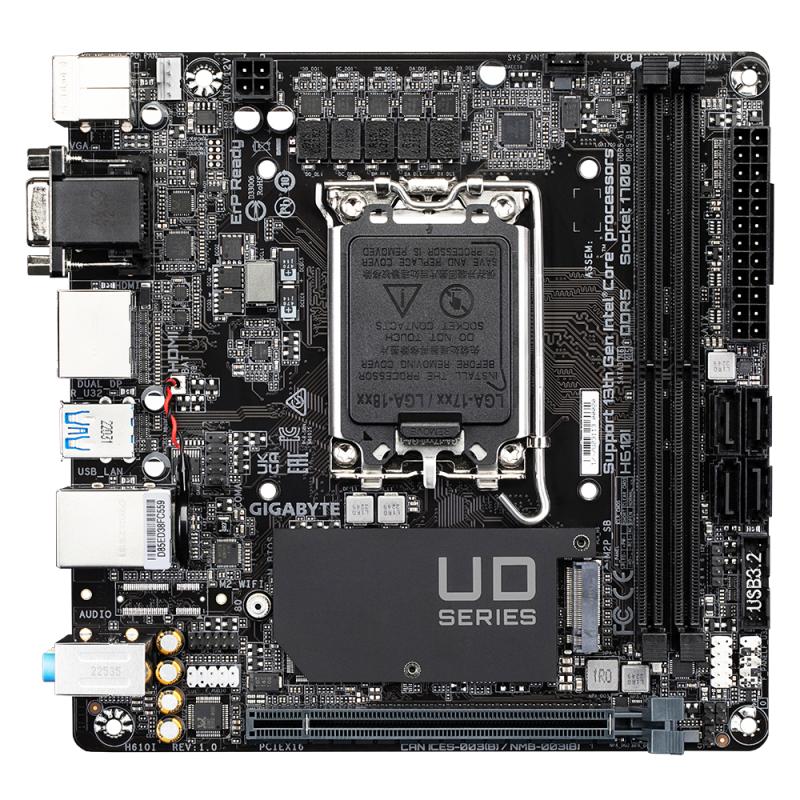

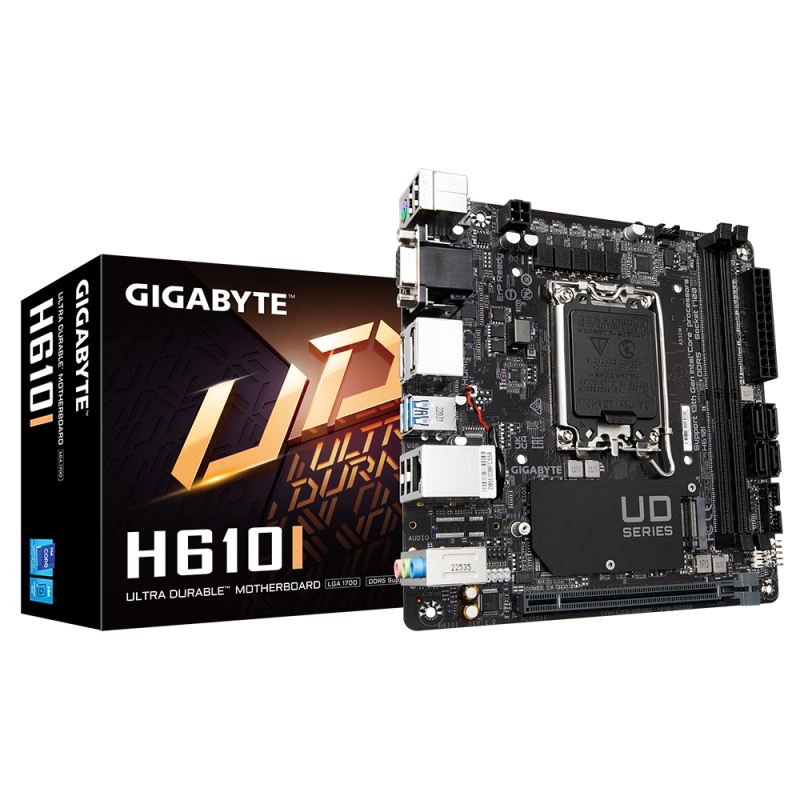

Placa de baza GIGABYTE H610I

Placa de Baza GIGABYTE H610I LGA1700, 2x DDR5, 1x D-Sub 1x HDMI 2x DP, 1x PCIE X16, 1x M.2, 4x SATA 6GB/s, Mini-ITX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Black

Cooling type

Active

PCI Express x16 slots

1

Number of M.2 (M) slots

1

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Power source type

ATX

Component for

PC

Audio output channels

7.1 channels

PC health monitoring

Fan, Temperature, Voltage

Motherboard form factor

mini ITX

Motherboard chipset

Intel H610 Express

Graphics card

HD Graphics

Maximum resolution

4096 x 2304 pixels

Graphics card family

Intel

Parallel processing technology support

Not supported

HDCP

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

12V power connector

Yes

Serial port headers

1

Chassis intrusion connector

Yes

USB 2.0 connectors

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Maximum internal memory

64 GB

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

2

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speeds

5600, 5200, 4800, 4400 MHz

Supported memory clock speed (max)

5600 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Batteries included

Yes

Cables included

SATA

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package weight

590 g

Package depth

180 mm

Package width

222 mm

Package height

65 mm

Warranty period

3 year(s)

DisplayPorts quantity

2

HDMI ports quantity

1

HDMI version

2.0

DisplayPort version

1.2

DVI-D ports quantity

0

Maximum internal memory supported by processor

64 GB

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Processor manufacturer

Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB connector type

USB Type-A

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Headphone outputs

3

Number of storage drives supported

5

Number of HDDs supported

1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Depth

170 mm

Width

170 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
