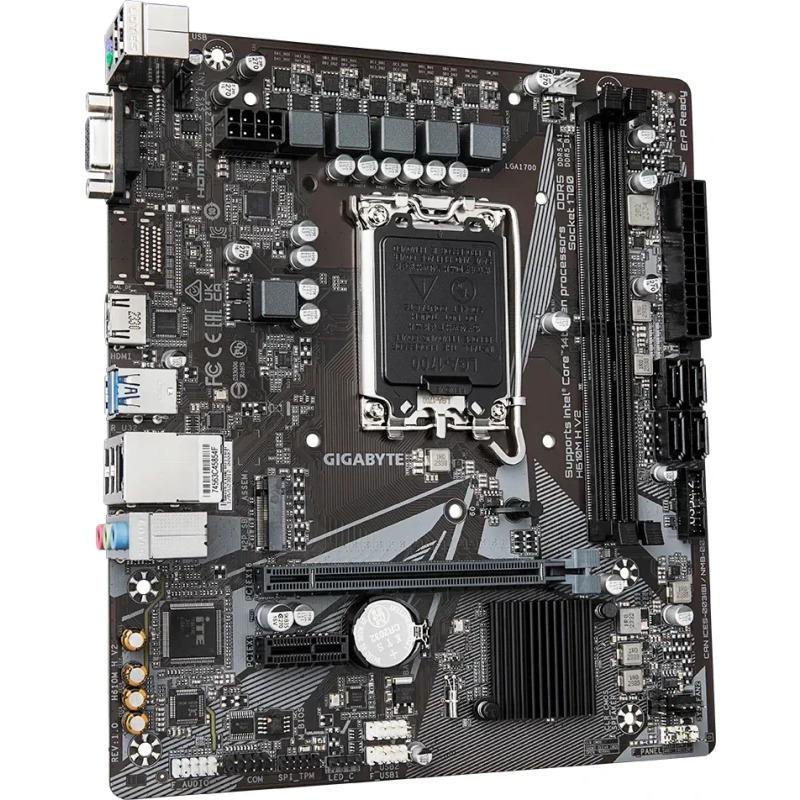

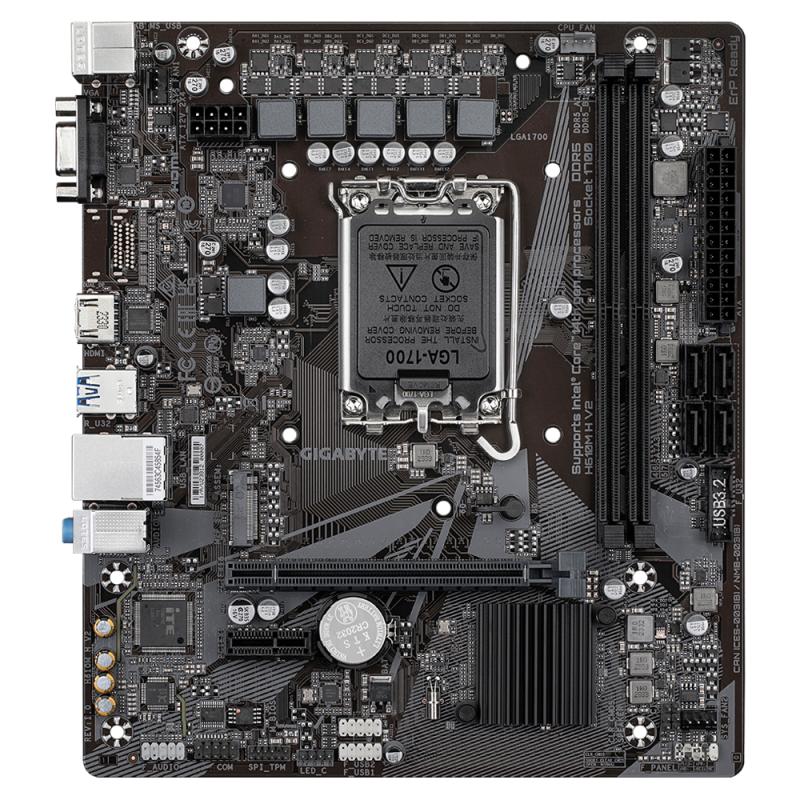

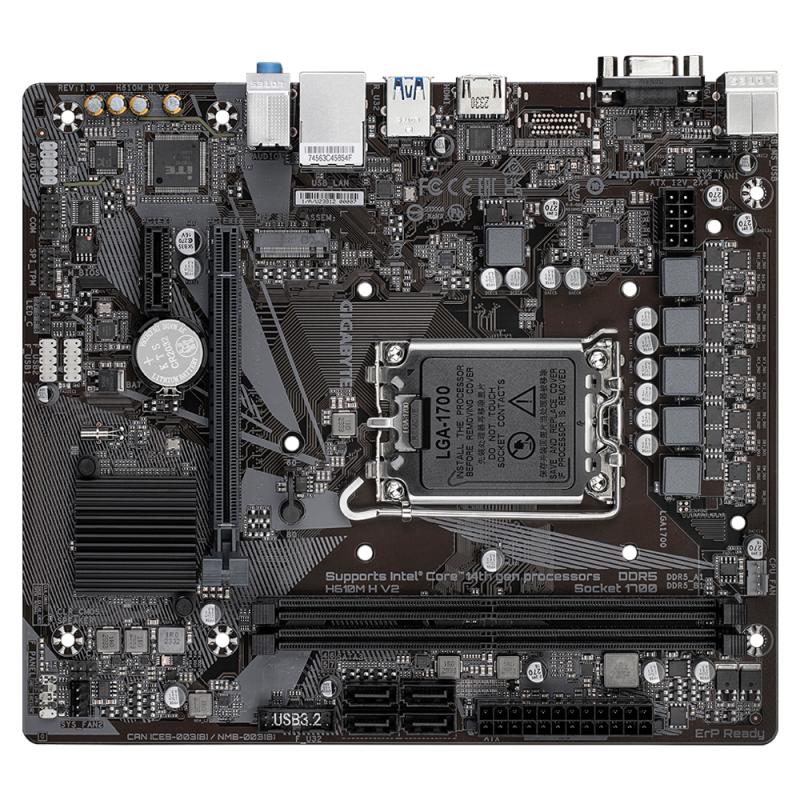

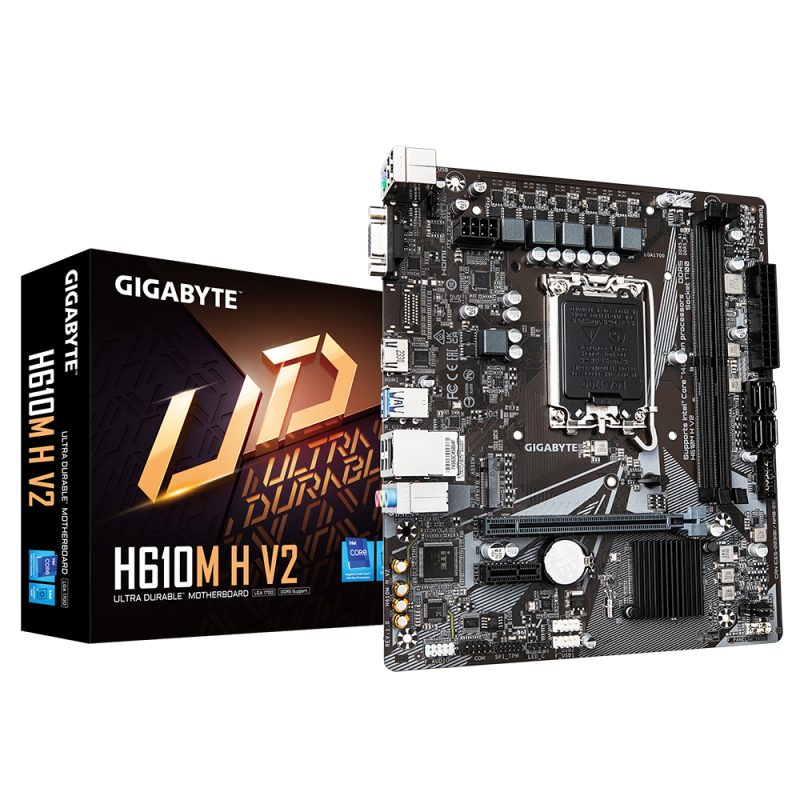

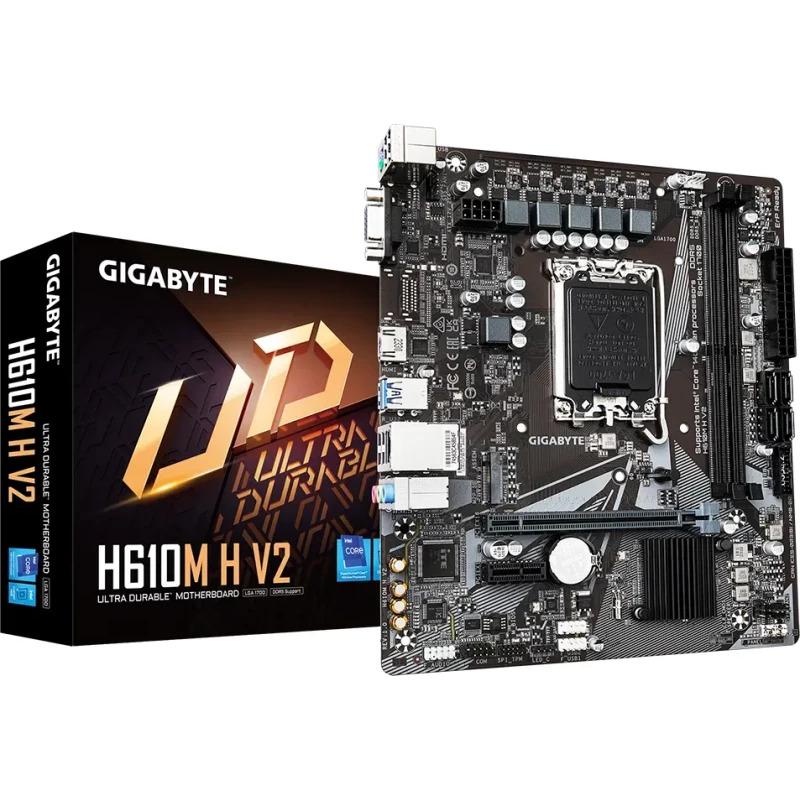

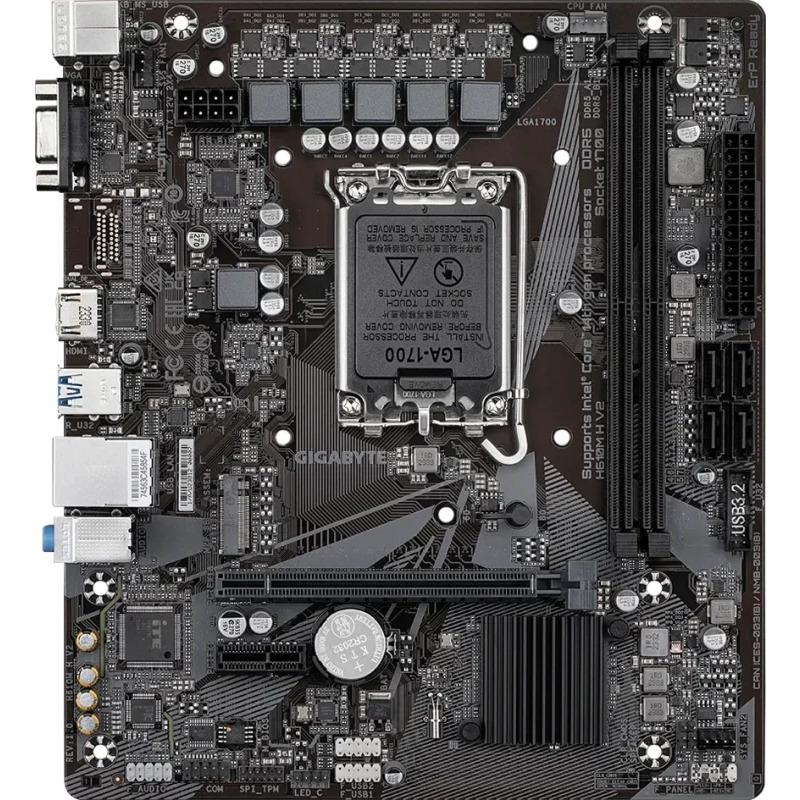

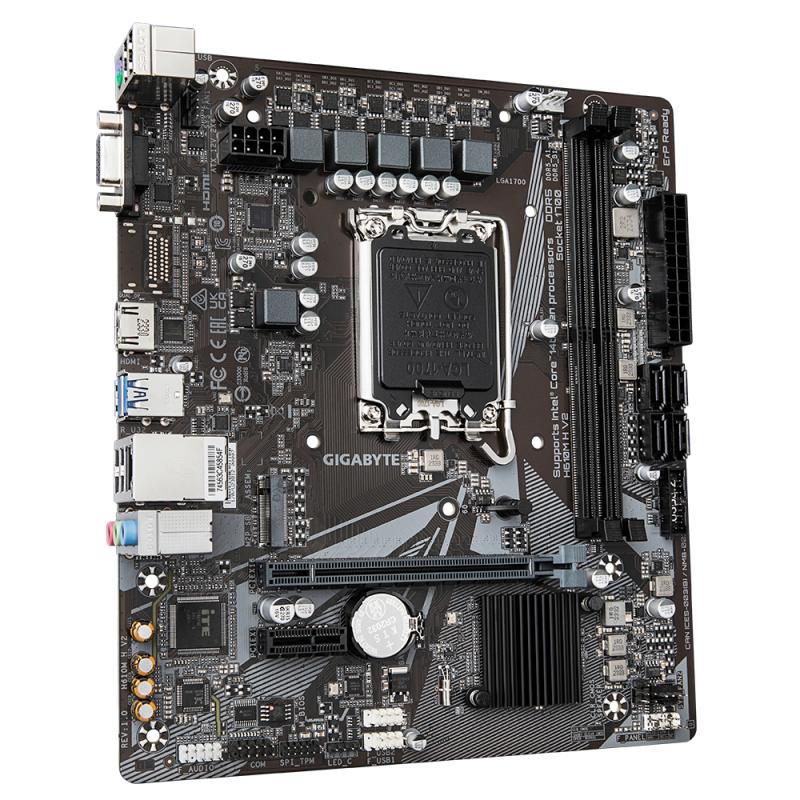

Placa de baza GIGABYTE H610M H V2 LGA1700

Placa de baza GIGABYTE H610M H V2 LGA1700, 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-Sub 1x HDMI, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

Black

Cooling type

Active

PCI Express x16 slots

1

Number of M.2 (M) slots

1

PCI Express x1 slots

1

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard form factor

micro ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel H610 Express

Graphics card

HD Graphics

Maximum resolution

4096 x 2304 pixels

Graphics card family

Intel

Parallel processing technology support

Not supported

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Serial port headers

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Maximum internal memory

96 GB

Number of memory slots

2

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

5600, 5200, 4800, 4400 MHz

Supported memory clock speed (max)

5600 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Batteries included

Yes

Cables included

SATA

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package weight

694 g

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Warranty period

3 year(s)

HDMI ports quantity

1

DVI-D ports quantity

1

DisplayPorts quantity

2

Processor manufacturer

Intel

Maximum internal memory supported by processor

96 GB

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Headphone outputs

3

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Microphone in

Yes

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of HDDs supported

1

Number of storage drives supported

5

Depth

196 mm

Width

230 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
