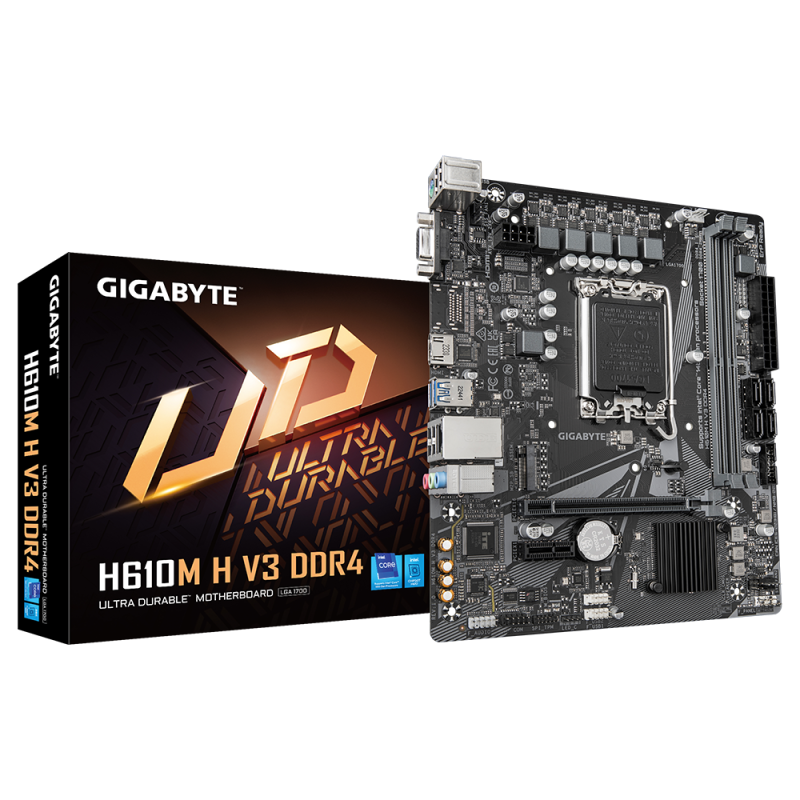

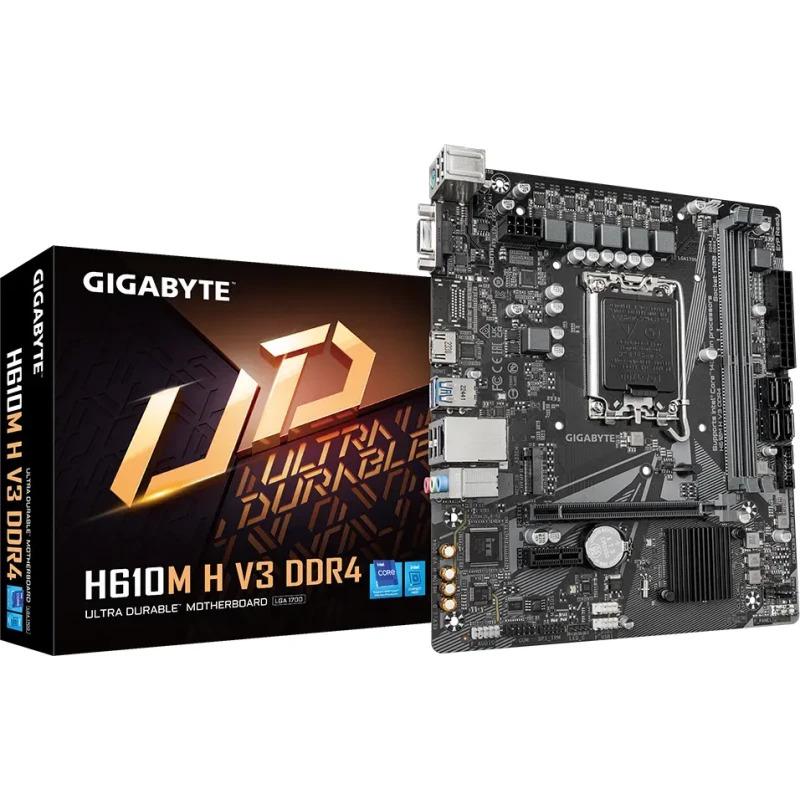

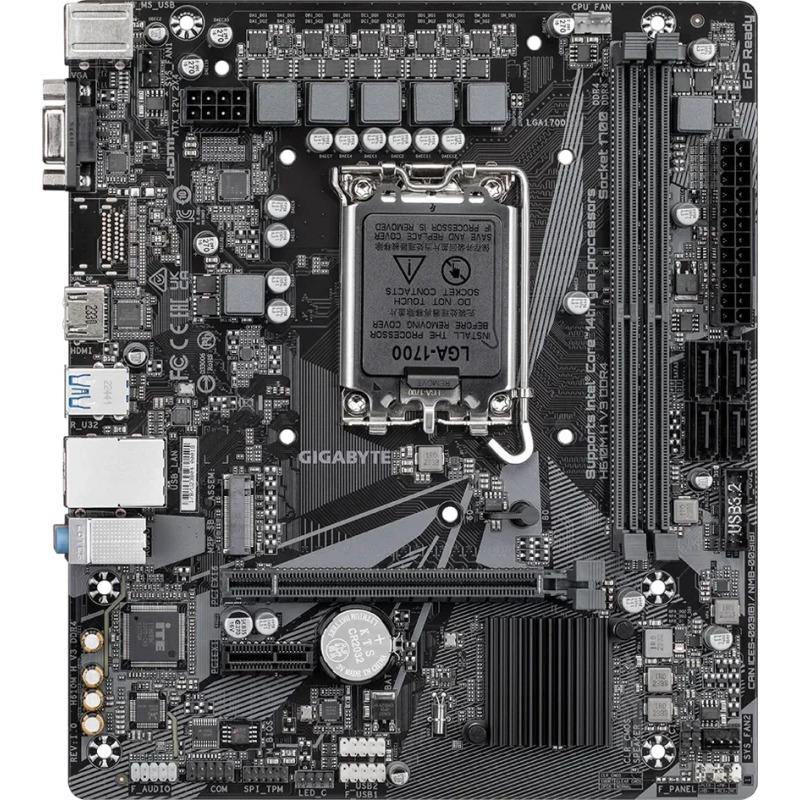

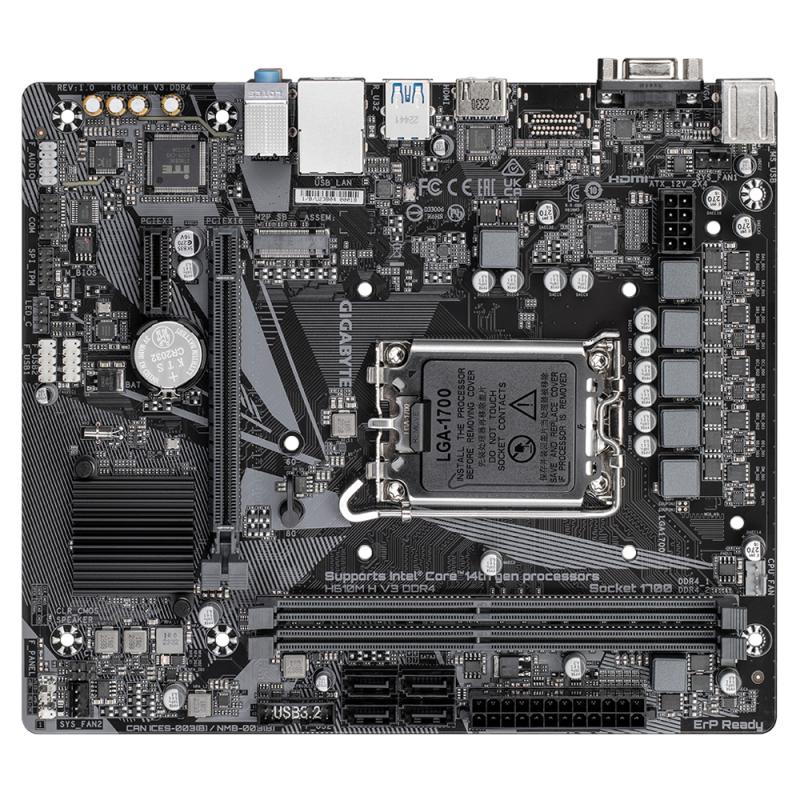

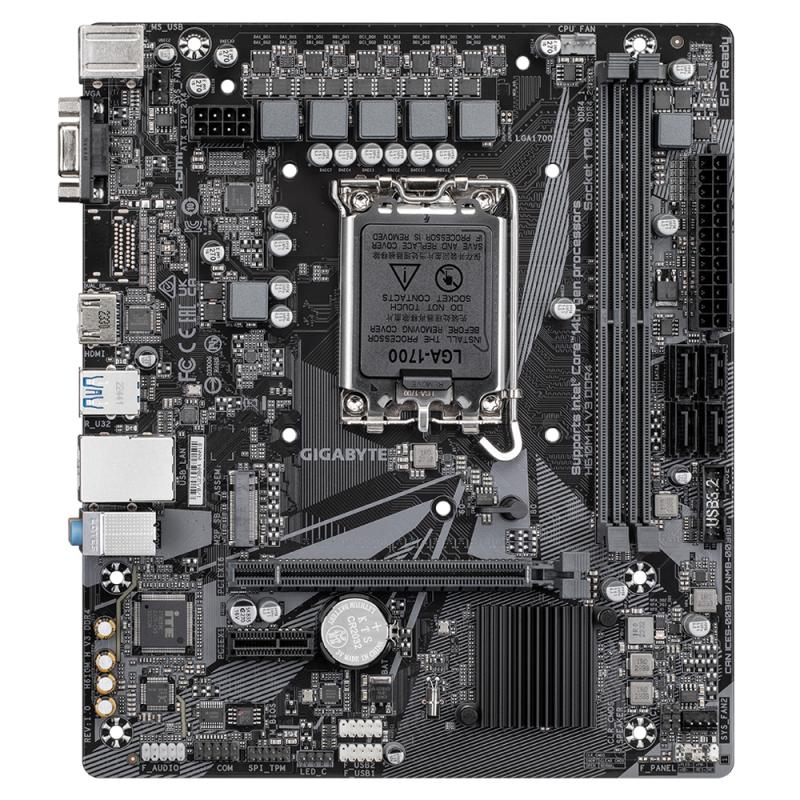

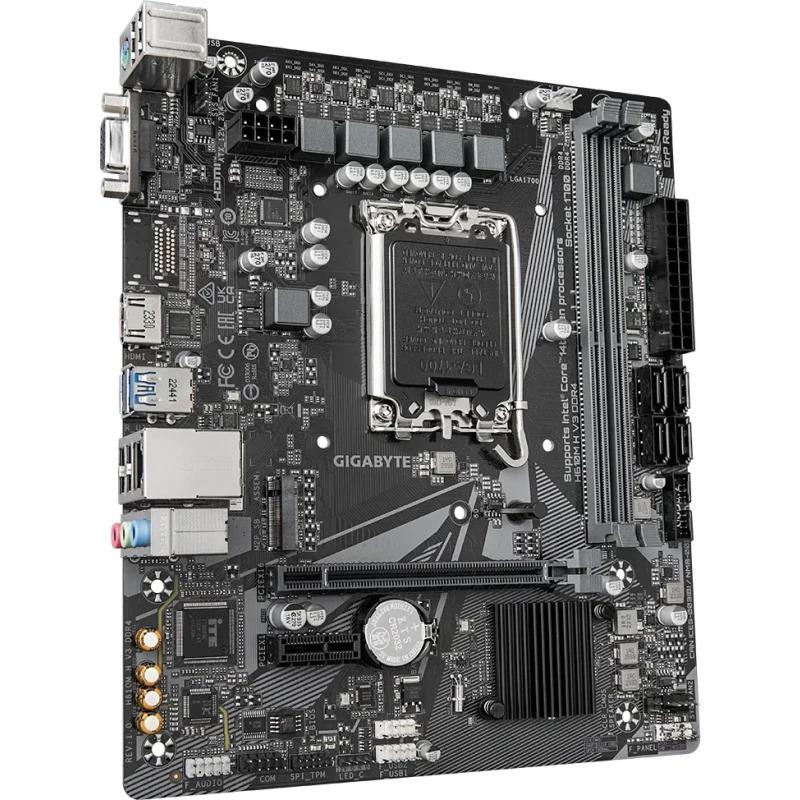

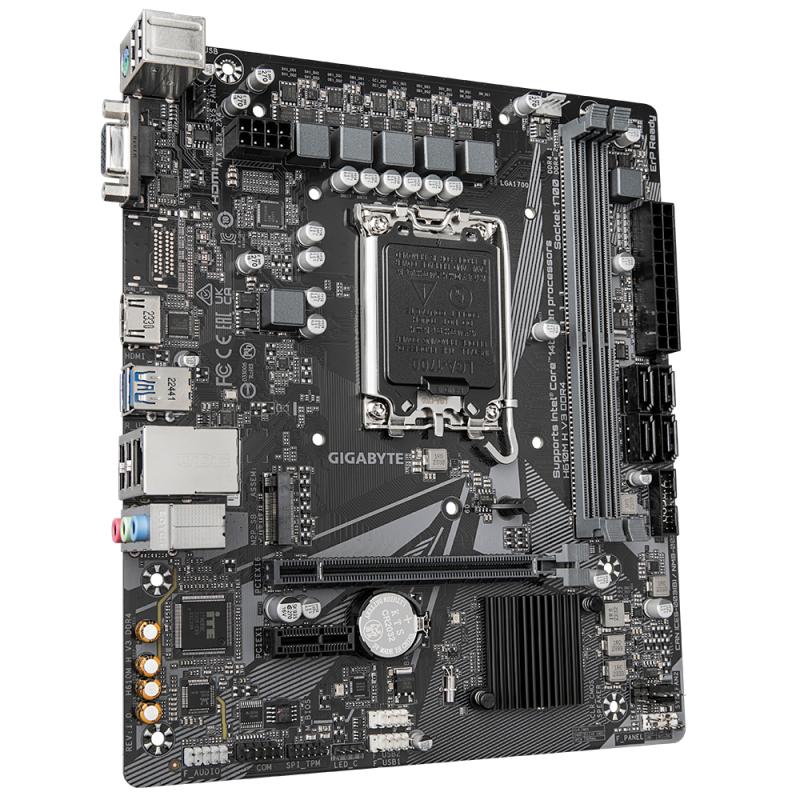

Placa de baza GIGABYTE H610M H V3 DDR4

Placa de Baza GIGABYTE H610M H V3 LGA1700, 2x DDR4, 1x D-Sub 1x HDMI, 1x PCIE x16 1x PCIE x1, 1x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

Black

Cooling type

Active

PCI Express x16 slots

1

Number of M.2 (M) slots

1

PCI Express x1 slots

1

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel H610 Express

Graphics card

HD Graphics

Maximum resolution

4096 x 2304 pixels

Graphics card family

Intel

Parallel processing technology support

Not supported

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Serial port headers

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Maximum internal memory

64 GB

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported memory clock speed (max)

3200 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speeds

3200, 3000, 2933, 2666, 2400, 2133 MHz

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Batteries included

Yes

Cables included

SATA

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package weight

684 g

Package depth

235 mm

Package height

52 mm

Package width

265 mm

Warranty period

3 year(s)

HDMI ports quantity

1

DisplayPorts quantity

2

DVI-D ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Headphone outputs

3

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

1

Number of storage drives supported

5

Depth

215 mm

Width

230 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
