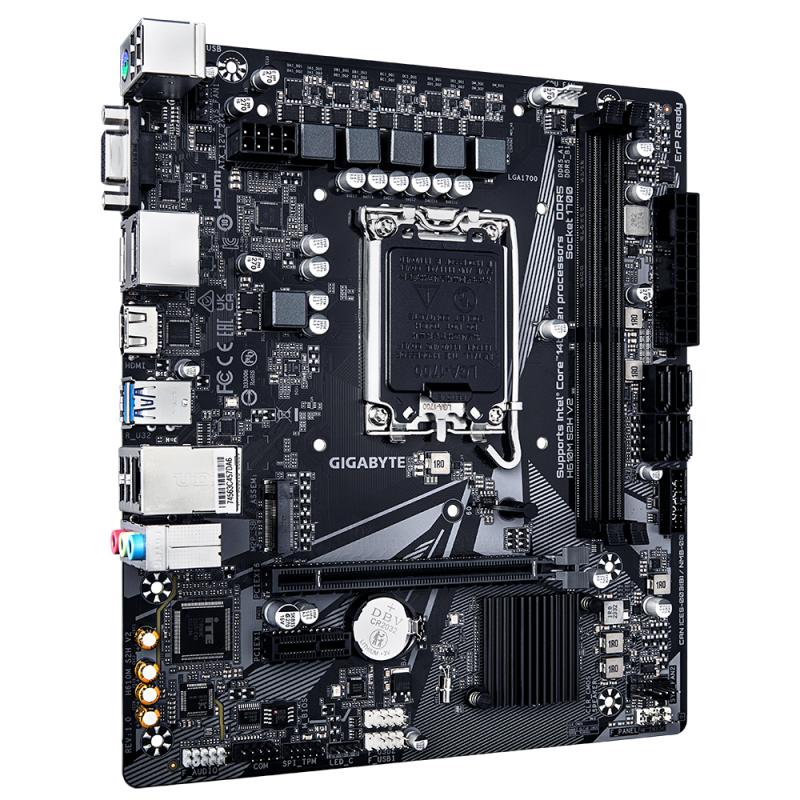

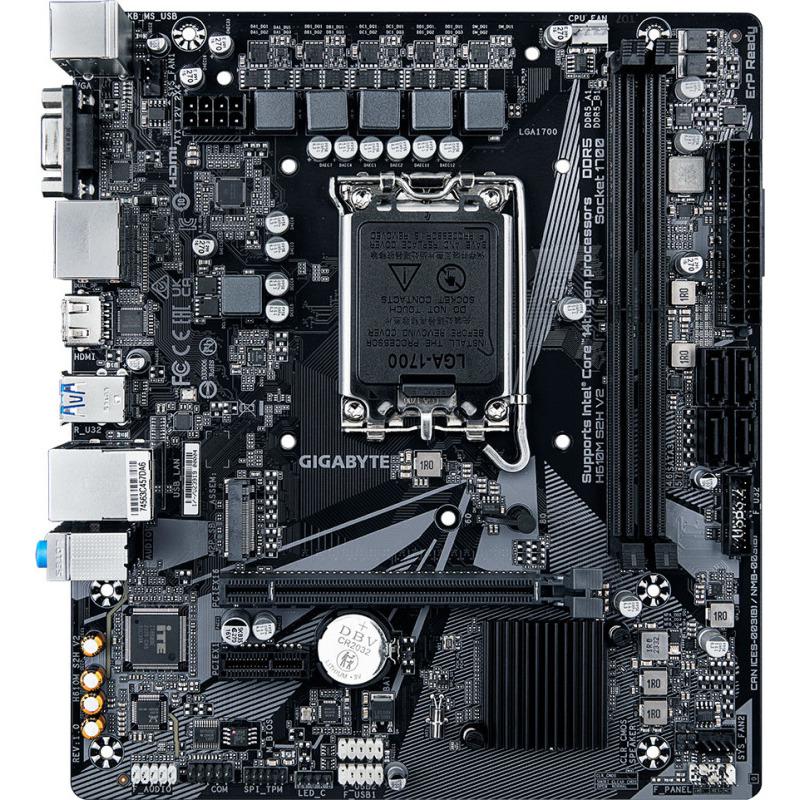

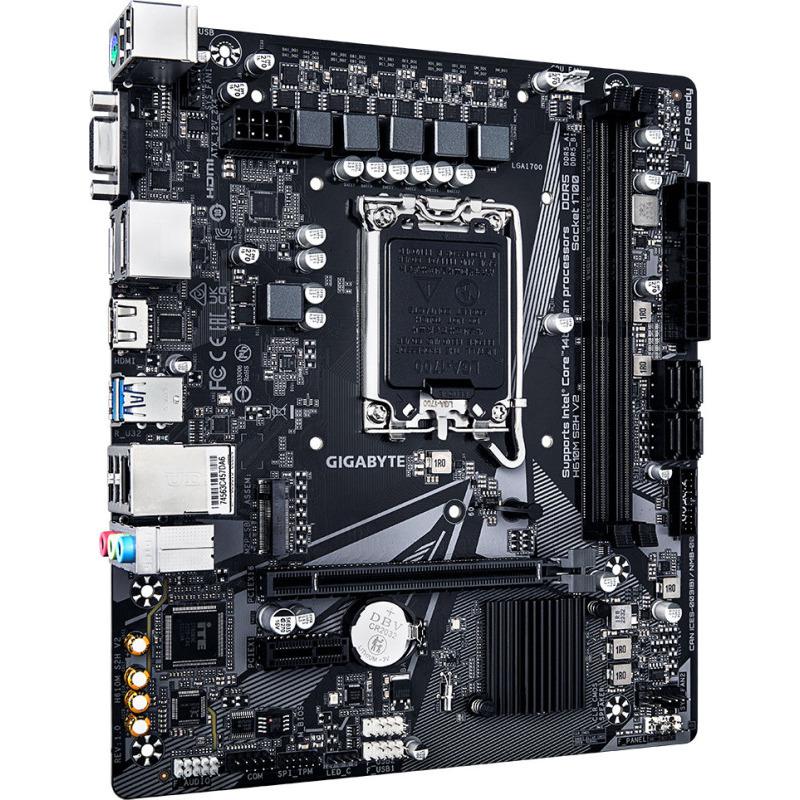

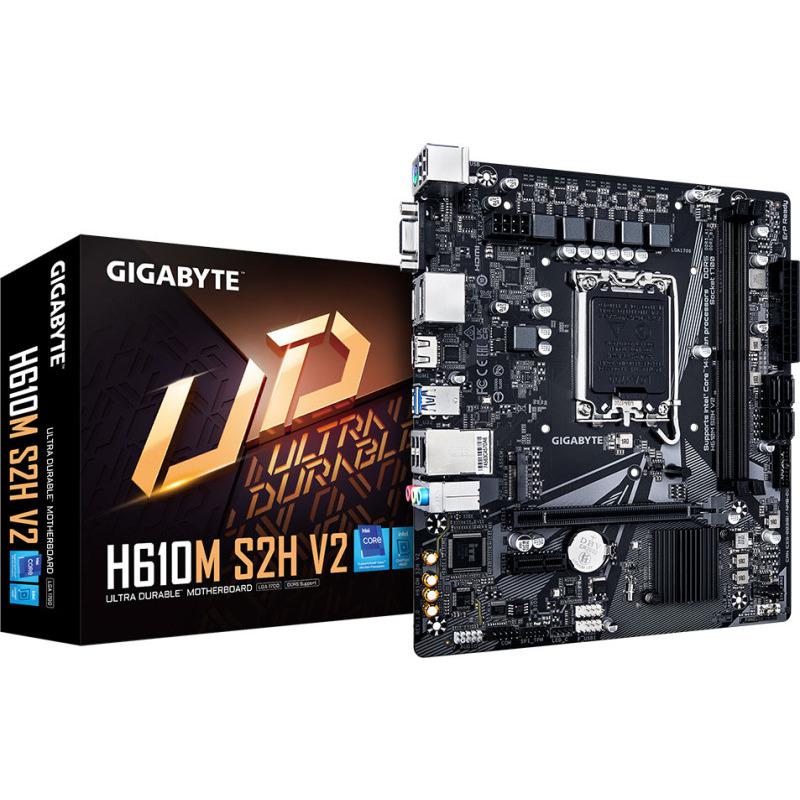

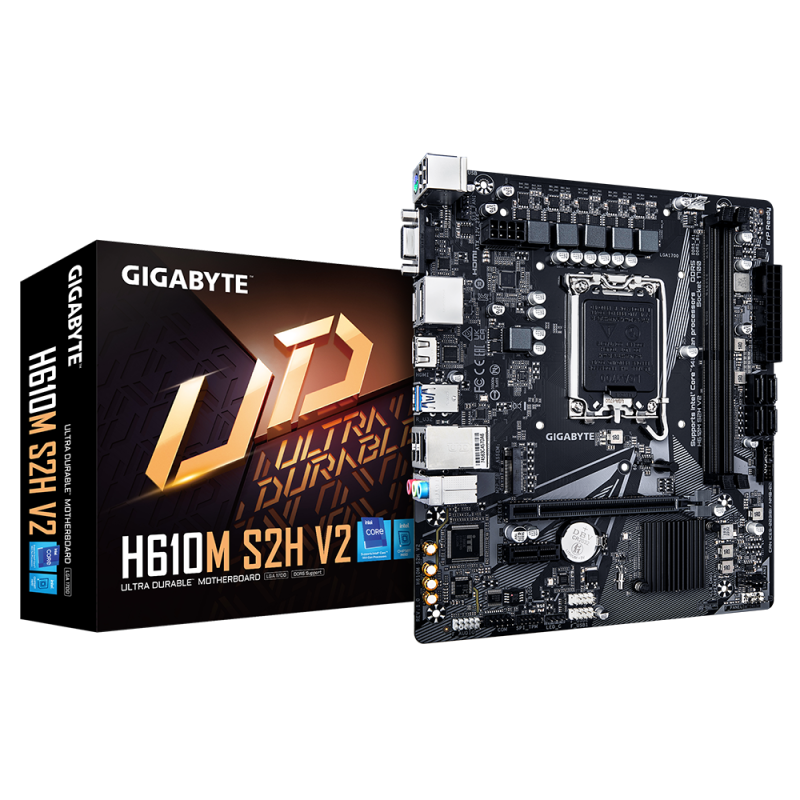

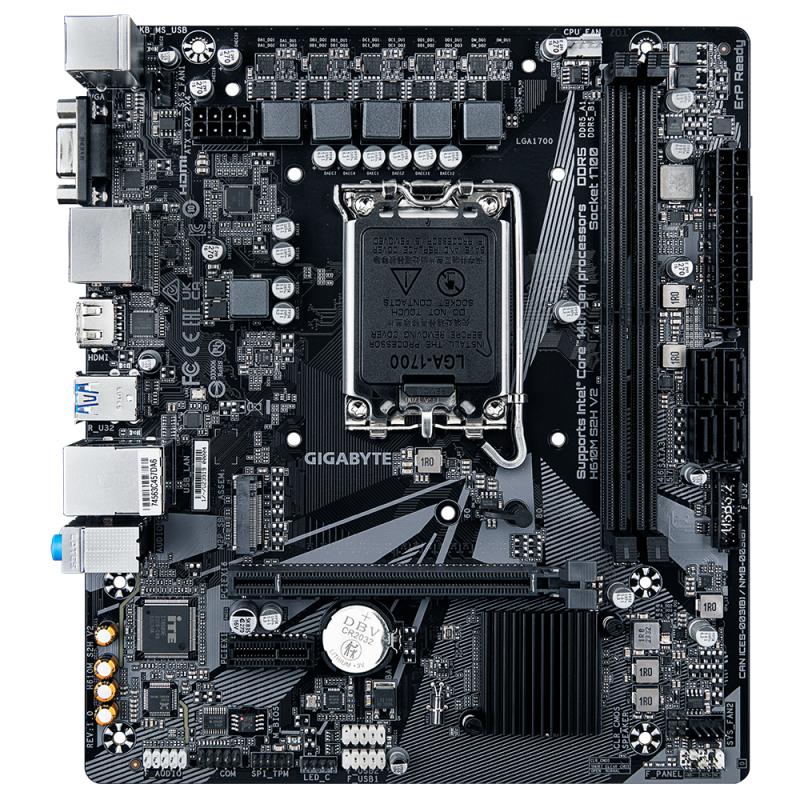

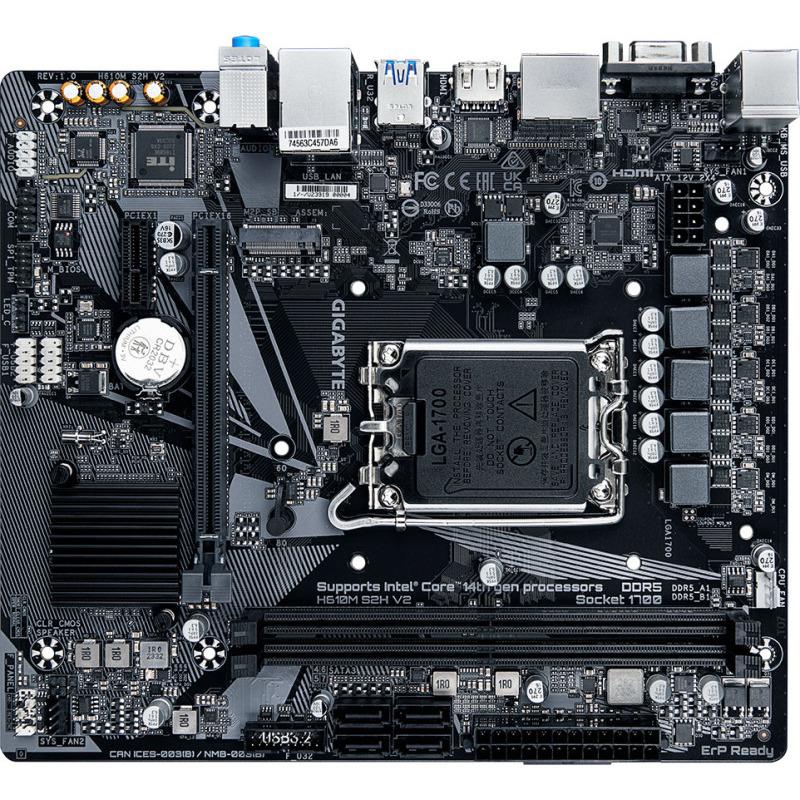

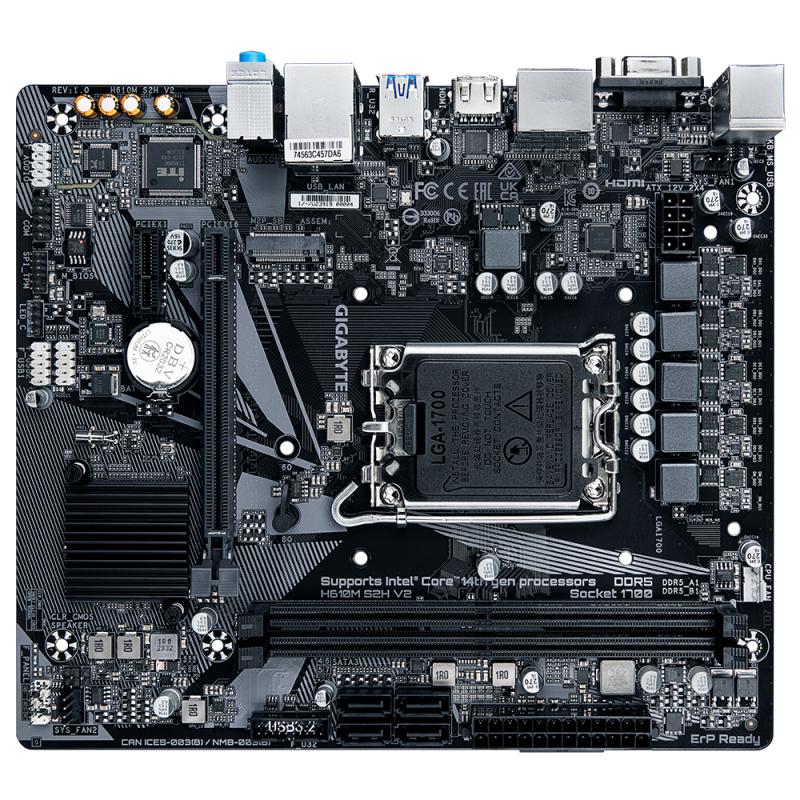

Placa de baza GIGABYTE H610M S2H V2 LGA170

Placa de baza GIGABYTE H610M S2H V2 LGA1700 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Clear CMOS button

Yes

BIOS memory size

128 Mbit

Product colour

Black

Cooling type

Active

PCI Express x16 slots

1

Number of M.2 (M) slots

1

PCI Express x1 slots

1

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Power source type

ATX

Audio Chip

Realtek ALC897

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset

Intel H610 Express

PC health monitoring

Fan, LED, Temperature, Voltage, Water cooling

Graphics card

HD Graphics

On-board graphics card model

Intel® HD Graphics

Maximum resolution

4096 x 2304 pixels

Graphics card family

Intel

On-board graphics card

Yes

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Number of COM connectors

1

Serial port headers

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Memory channels

Dual-channel

Number of memory slots

2

Maximum internal memory

96 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

5600, 5200, 4800, 4400 MHz

Supported memory clock speed (max)

5600 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Supported DIMM module capacities

8GB, 16GB

Cables included

SATA

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Package depth

235 mm

Package width

265 mm

Package height

52 mm

Package weight

690 g

Warranty period

3 year(s)

HDMI ports quantity

1

DisplayPorts quantity

1

DVI-D ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Maximum number of SMP processors

1

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

96 GB

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Number of storage drives supported

1

Supported storage drive interfaces

M.2, SATA

Depth

215 mm

Height

35 mm

Width

230 mm

Onboard-CPU

No

Serial-or-Paralel

No/No
