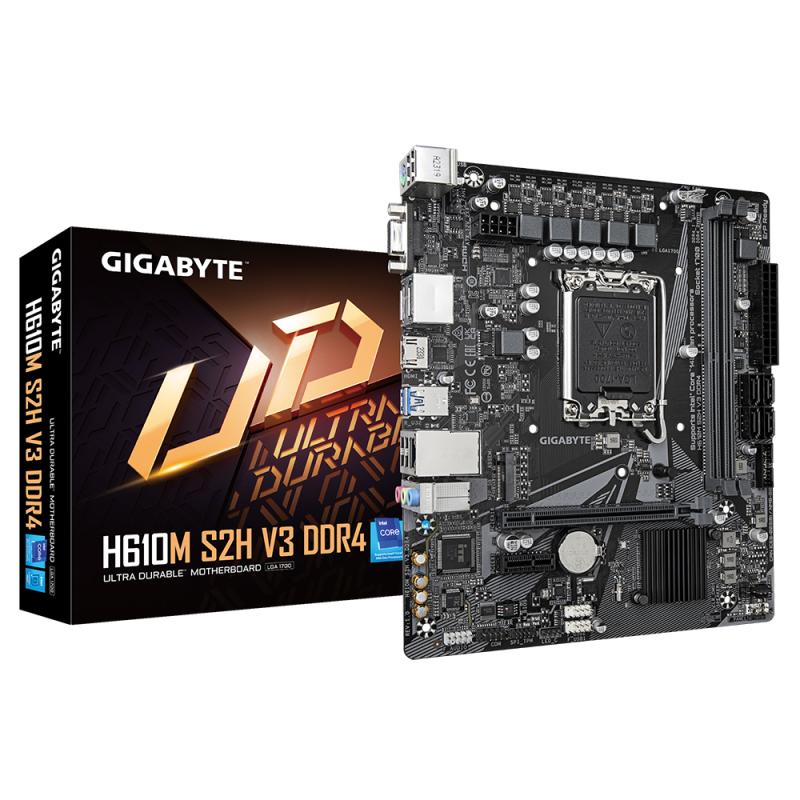

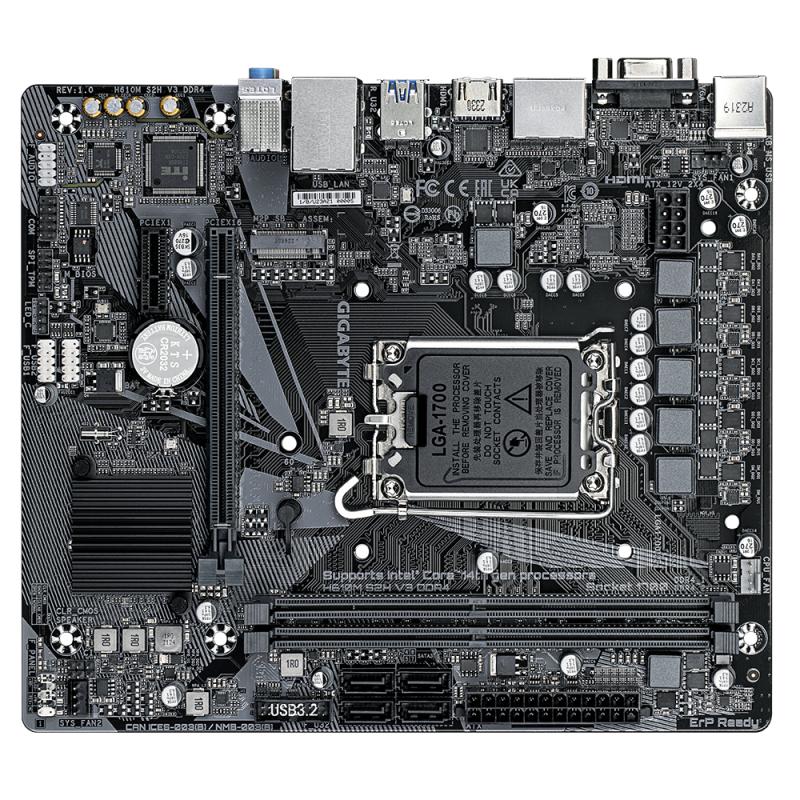

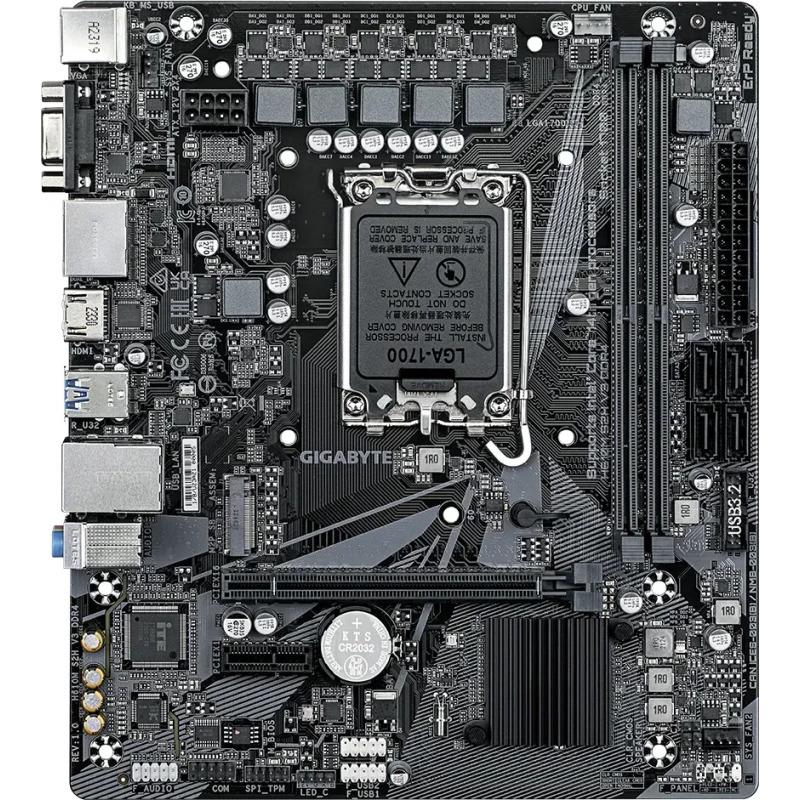

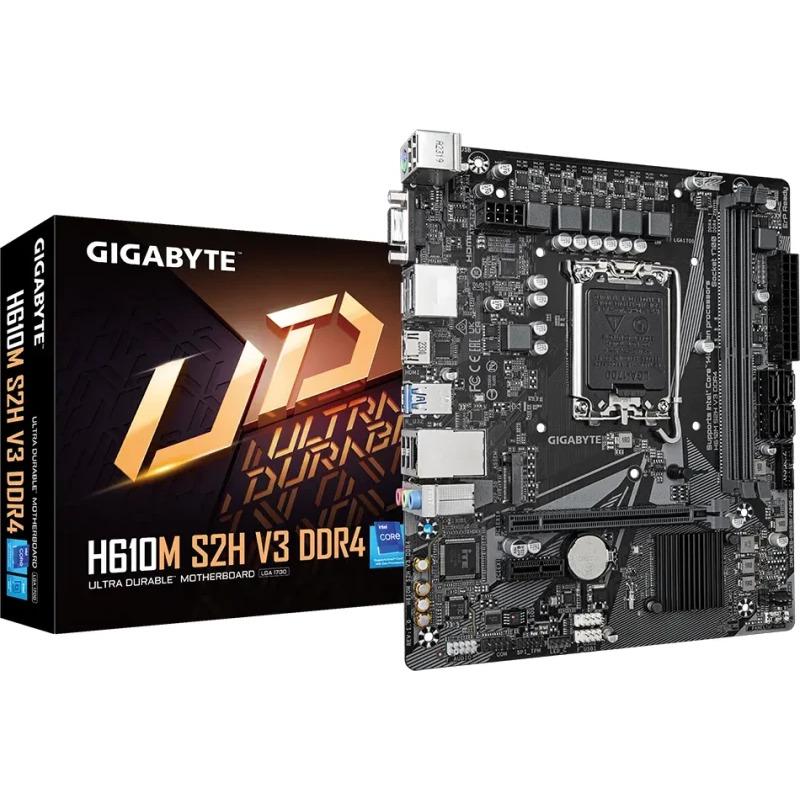

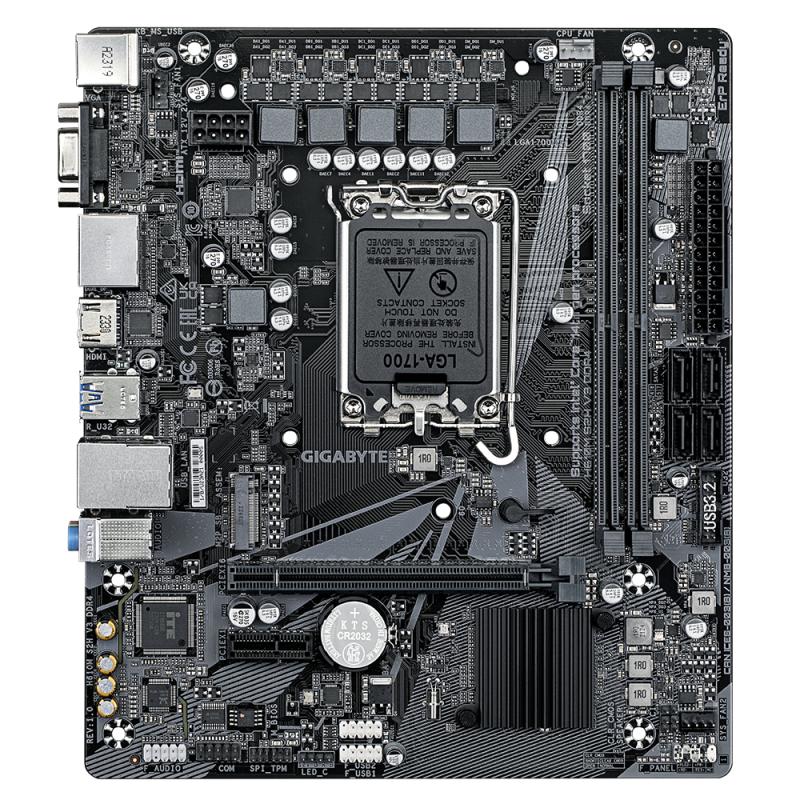

Placa de baza GIGABYTE H610M S2H V3 LGA1700

Placa de baza GIGABYTE H610M S2H V3 LGA1700, 2x DDR4, 1x PCIE x16 1x PCIE x1, 1x D-Sub 1x HDMI 2x DP, 1x M.2, 4x SATA 6GB/s, mATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Product colour

Black

Cooling type

Active

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

Motherboard chipset

Intel H610 Express

Audio output channels

7.1 channels

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Component for

PC

Parallel processing technology support

Not supported

HDCP

Yes

Maximum resolution

4096 x 2304 pixels

Total number of SATA connectors

4

12V power connector

Yes

Serial port headers

1

Chassis intrusion connector

Yes

Number of RGB LED pin headers

1

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Number of memory slots

2

Maximum internal memory

64 GB

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Supported memory clock speed (max)

3200 MHz

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

HDMI ports quantity

1

DisplayPorts quantity

2

HDMI version

2.1

DisplayPort version

1.2

DVI-D ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Compatible processor series

Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Microphone in

Yes

Line-in

Yes

USB connector type

USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Number of storage drives supported

5

Depth

193 mm

Width

223 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
