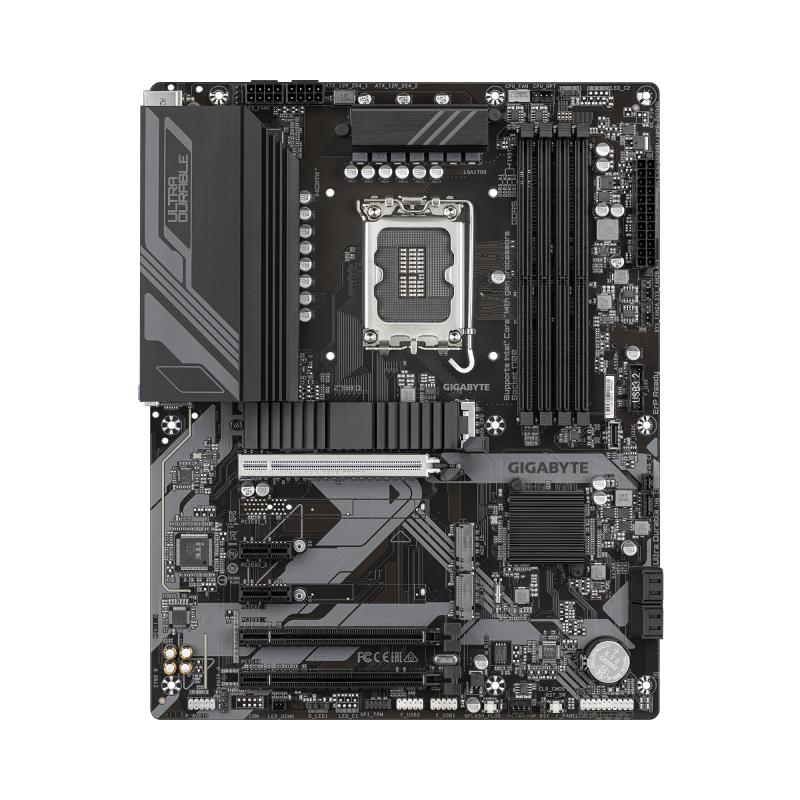

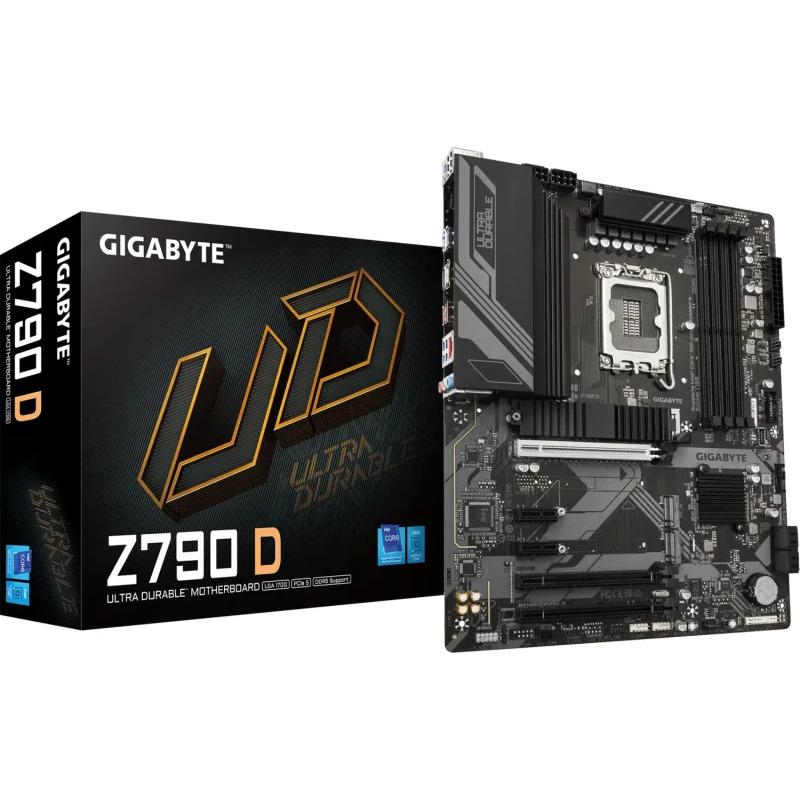

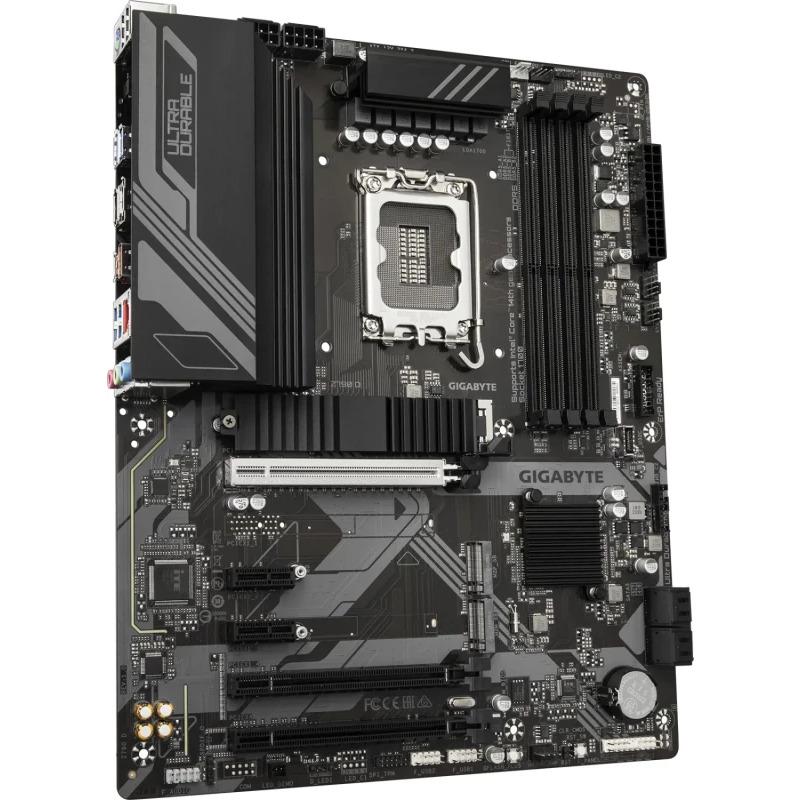

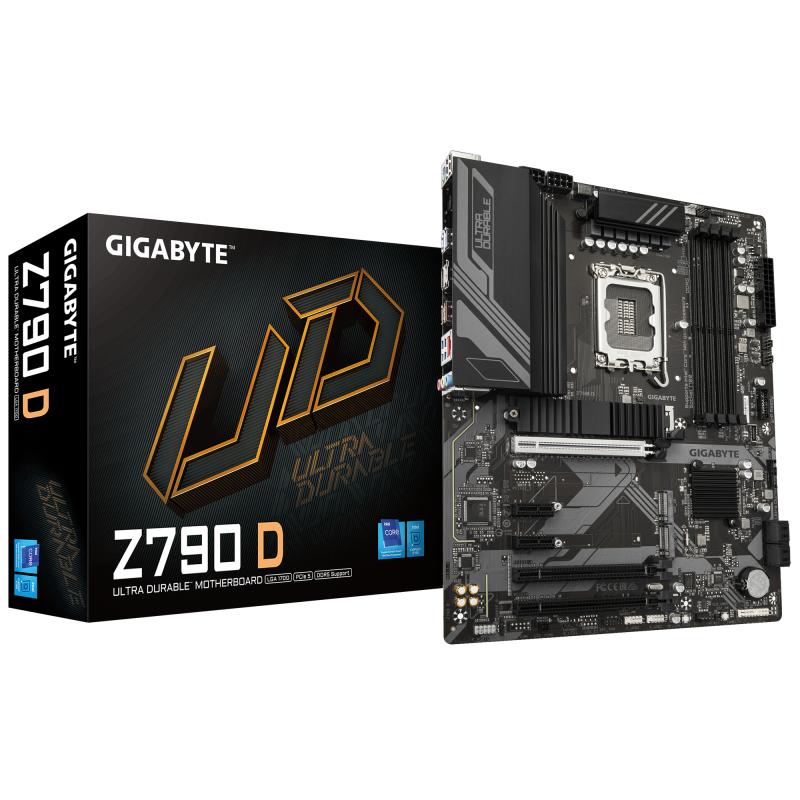

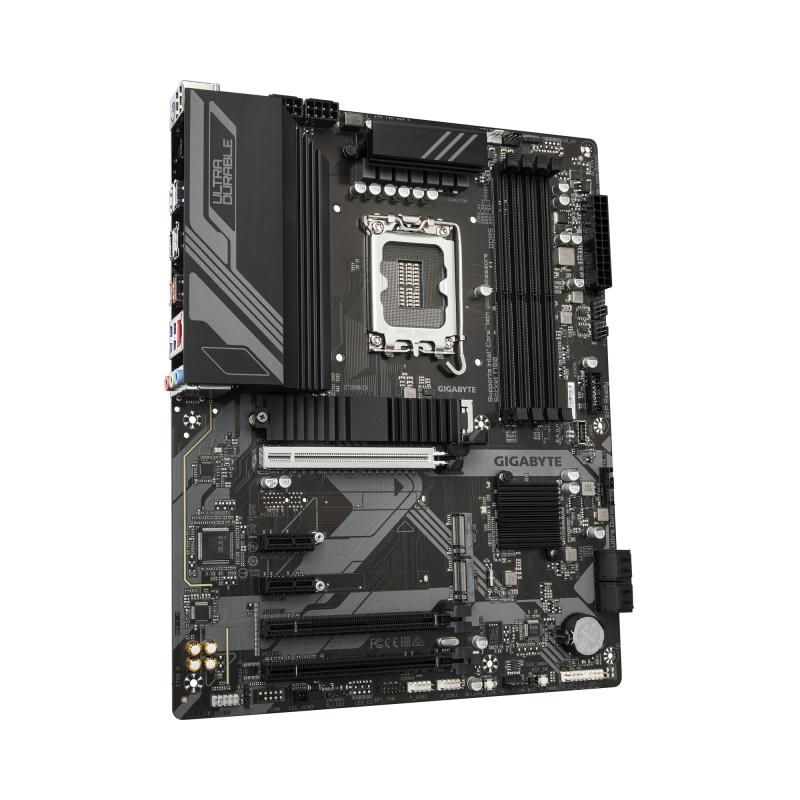

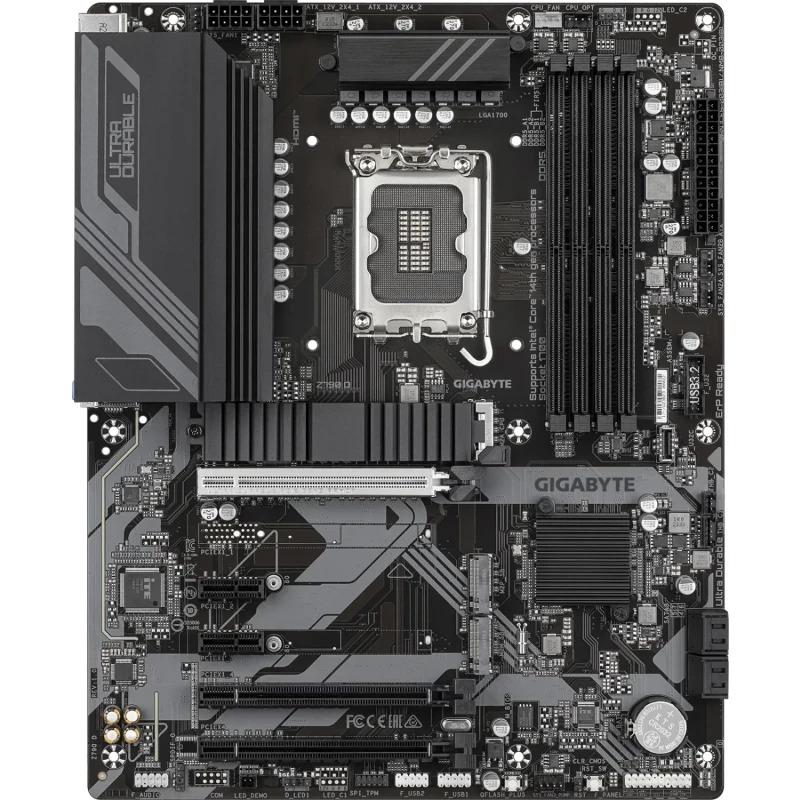

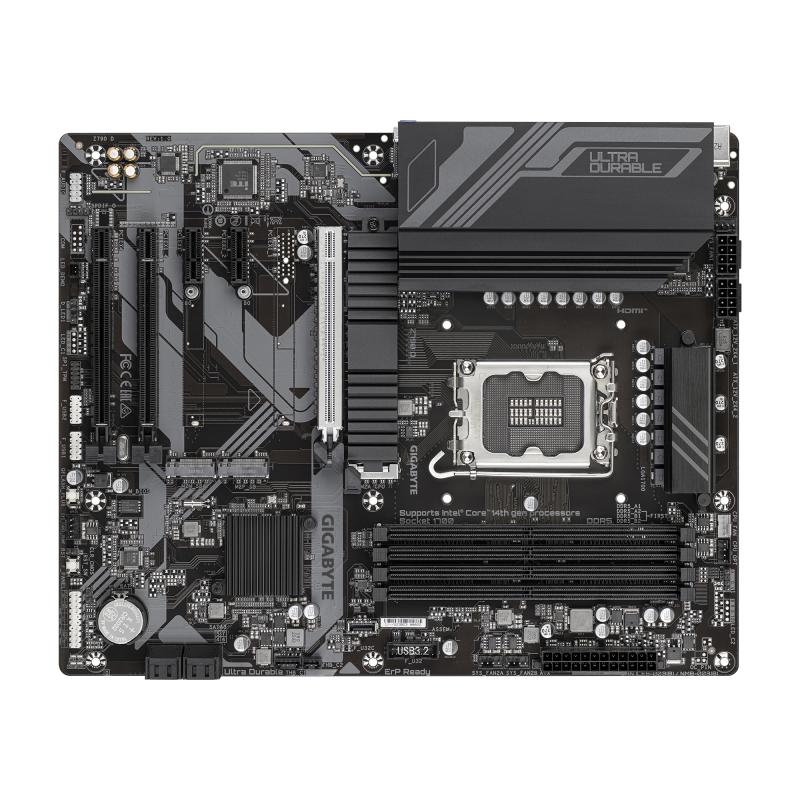

Placa de baza GIGABYTE Z790 D LGA1700

Placa de baza GIGABYTE Z790 D LGA1700, 4x DDR5, 1x HDMI 1x DP, 3x PCIE x16 2x PCIE x1, 3x M.2, 4x SATA 6GB/s, ATX

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Motherboard form factor

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset

Intel Z790 Express

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

HDCP

Yes

Maximum resolution

4096 x 2304 pixels

Discrete graphics support

Yes

DirectX version

12.0

Total number of SATA connectors

4

Number of EATX power connectors

2

Thunderbolt headers

2

12V power connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Maximum internal memory

192 GB

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory clock speed (max)

7600 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory clock speeds

4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Wi-Fi

No

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Cables included

SATA

Package weight

1.8 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Maximum number of SMP processors

1

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

192 GB

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

2

USB connector type

USB Type-A, USB Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Width

305 mm

Depth

244 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
