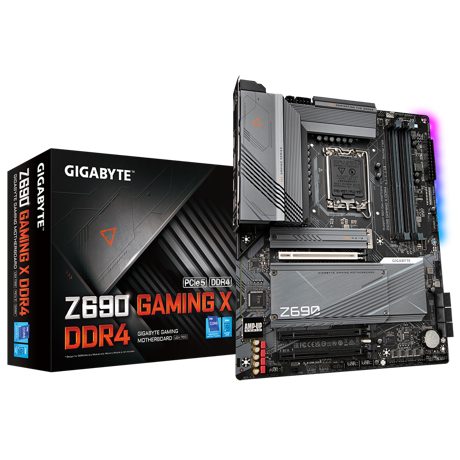

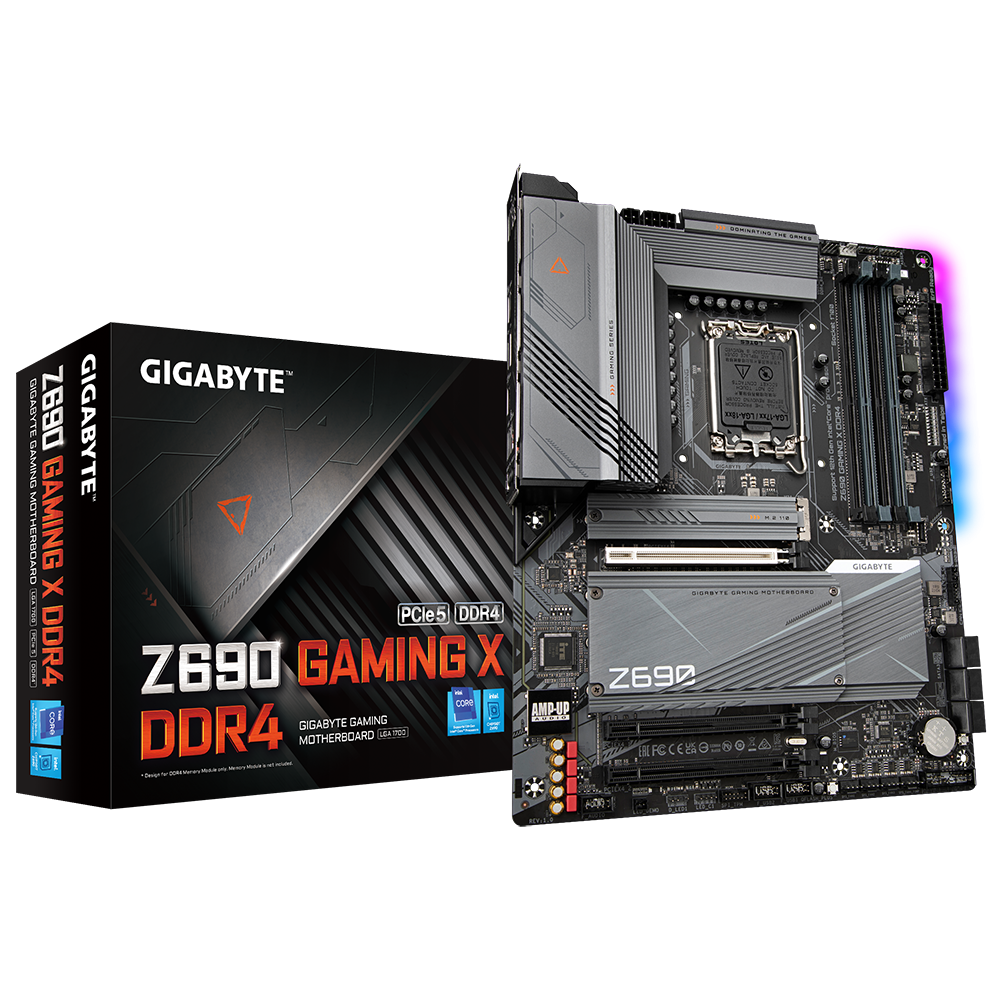

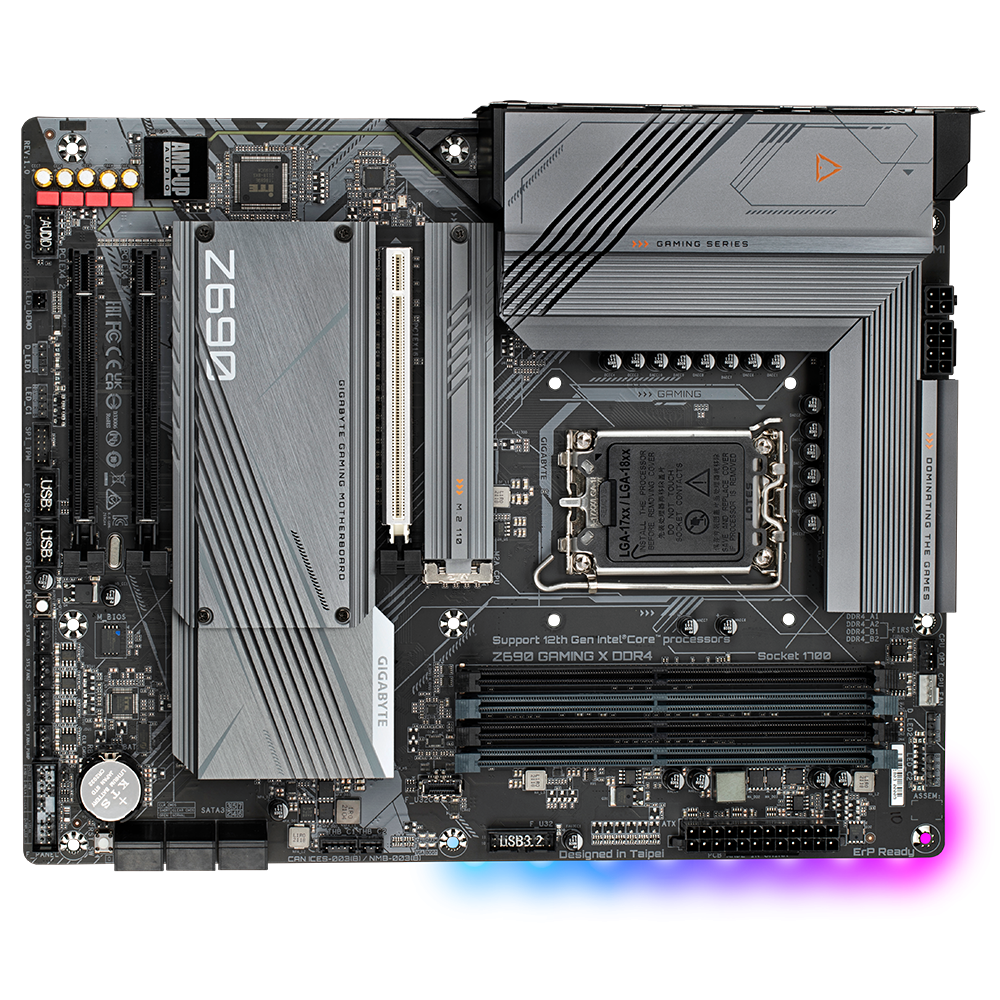

Placa de baza Gigabyte Z690 GAMING X D4, LGA 1700

Placa de baza Gigabyte Z690 GAMING X D4 LGA 1700 Intel® Z690 GAMING Motherboard with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design, 4 x PCIe 4.0 M.2 with Enlarged Thermal Guard, 2.5GbE LAN, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus​ Supports 12th Gen Intel® Core™ Series Processors​ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​ Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​ Shielded Memory Routing to Avoid Interference Fully Covered Thermal Design with High Coverage MOSFET Heatsinks​ AMP-UP Audio with ALC1220 and WIMA Audio Capacitors Fast 2.5GbE LAN with Bandwidth Management​ 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​ RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips​ Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/Z690-GAMING-X-DDR4-rev-10#kf

Form factor

ATX

PCI

0

Slot PCI-Ex1

0

Slot PCI-Ex16

3

Slot RAM

4

Serial-or-Paralel

No/No

USB

4-8

Conectori SATA

6GB/s

Chipset

Intel

CPU încorporat

No

Slot M.2

4

RAM type

DDR4

Video output

HDMI/Display Port

Socket CPU

1700
