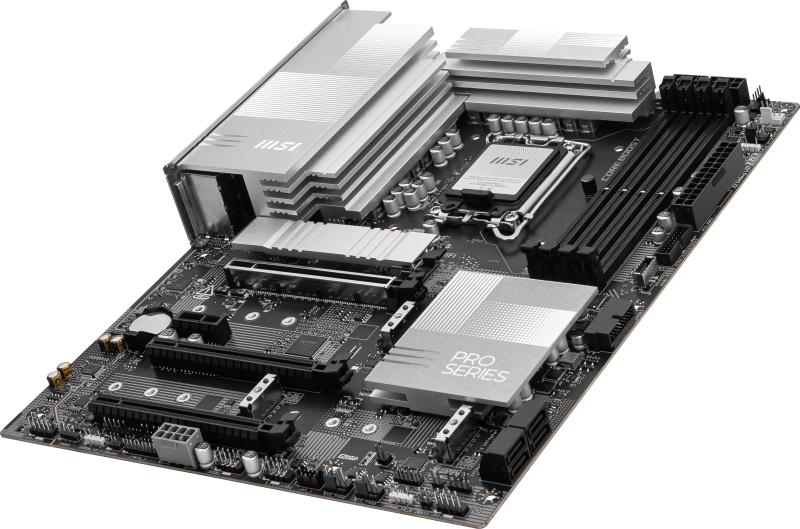

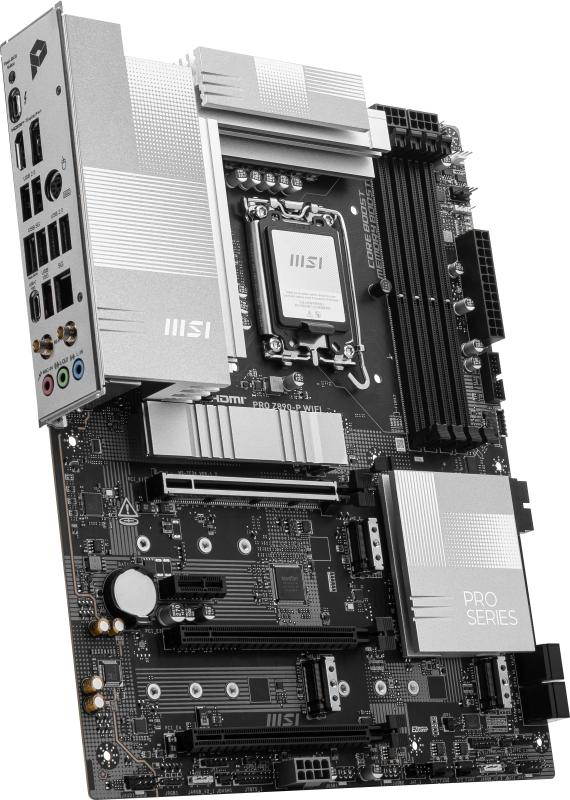

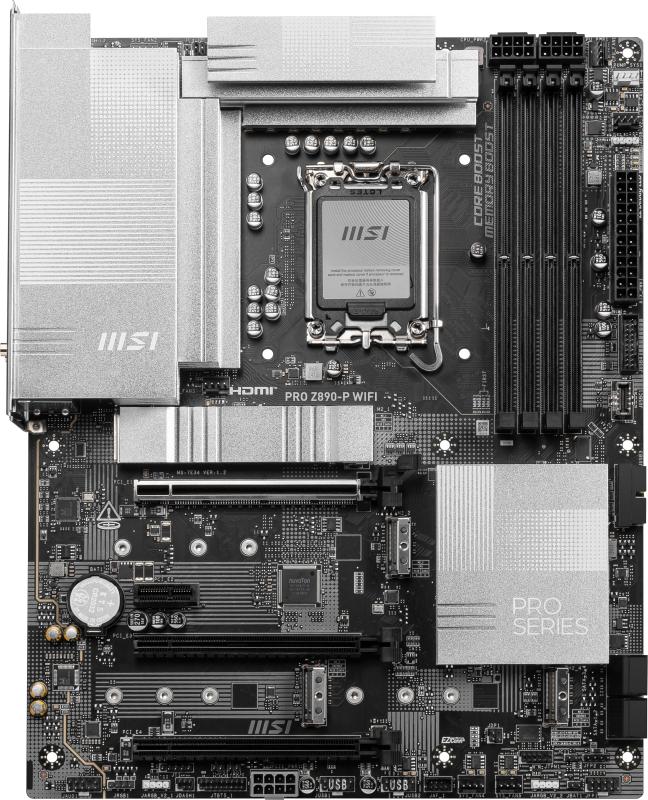

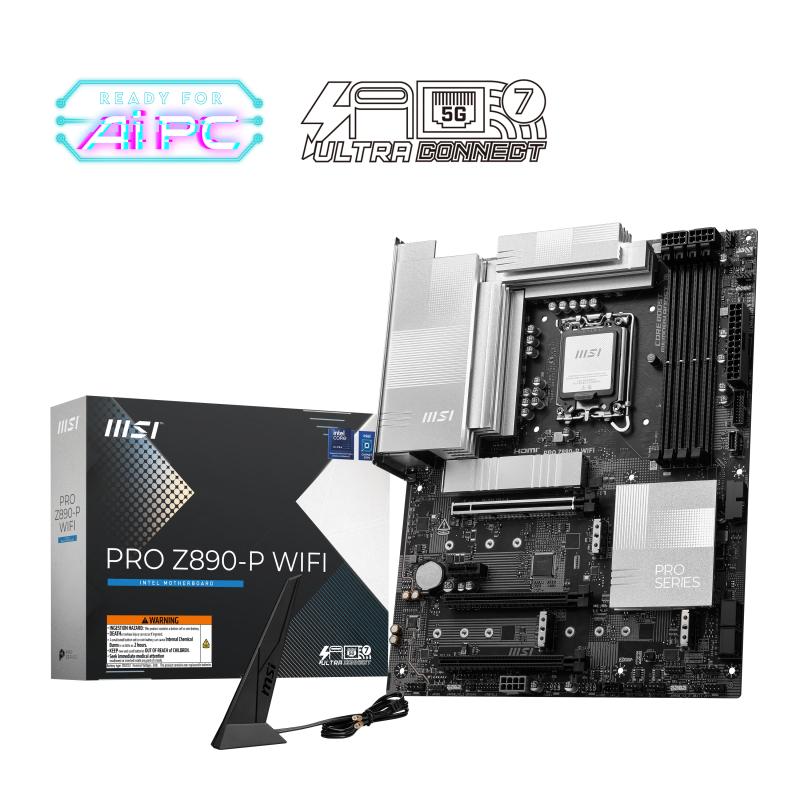

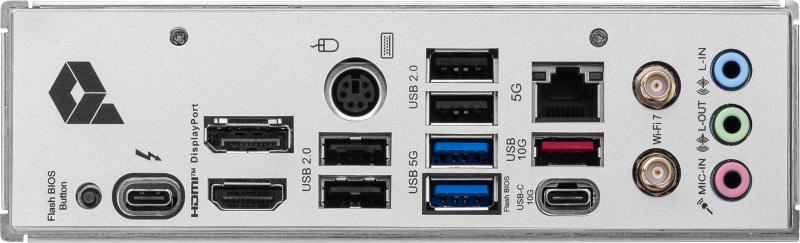

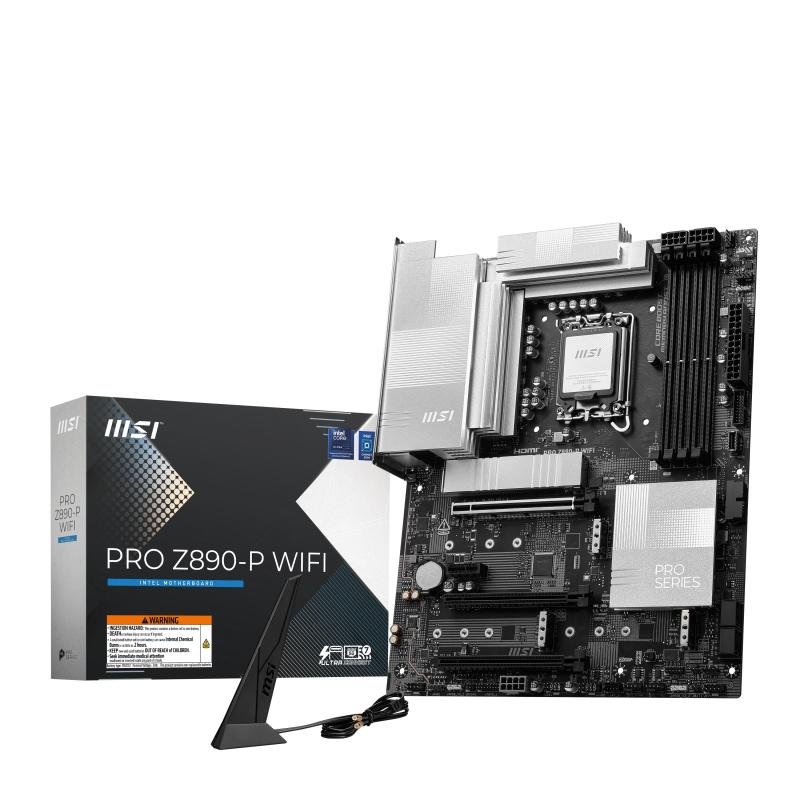

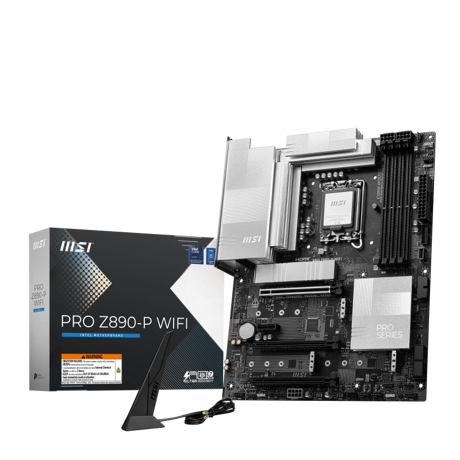

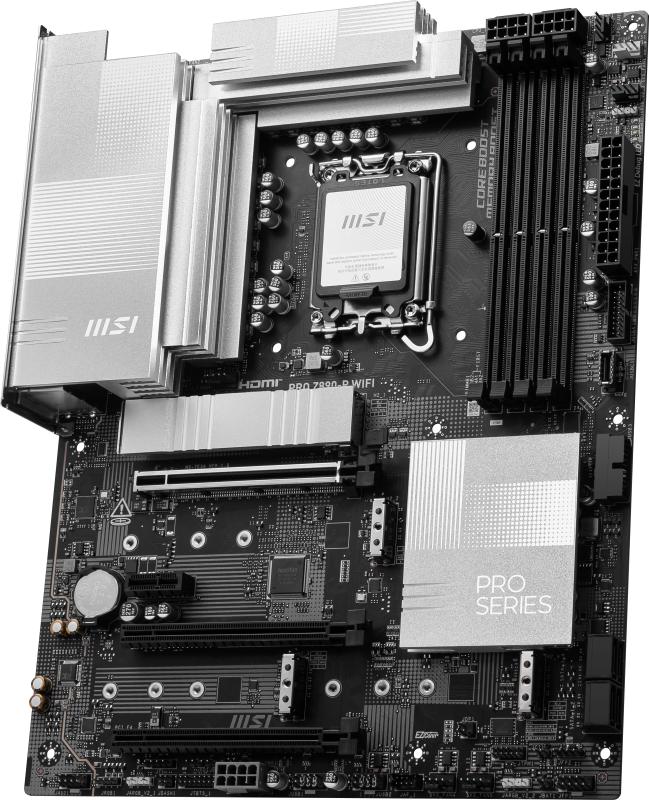

MB MSI PRO Z890-P WIFI AM5 DDR5

MB MSI PRO Z890-P WIFI AM5 DDR5

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

PCI Express x1 (Gen 4.x) slots

1

PCI Express x4 (Gen 4.x) slots

2

Audio output channels

7.1 channels

Motherboard chipset

Intel Z890

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 11

Component for

PC

On-board graphics card

No

Total number of SATA connectors

4

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

TPM connector

Yes

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Supported memory clock speed (max)

9200 MHz

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Supported memory clock speeds

6400,9200 MHz

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

mSATA ports quantity

0

HDMI version

2.1

DisplayPorts quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

Maximum internal memory supported by processor

256 GB

Thunderbolt ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 2.0 ports quantity

4

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of HDDs supported

8

Number of storage drives supported

4

RAID levels

0, 1, 5, 10

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

Yes/No
