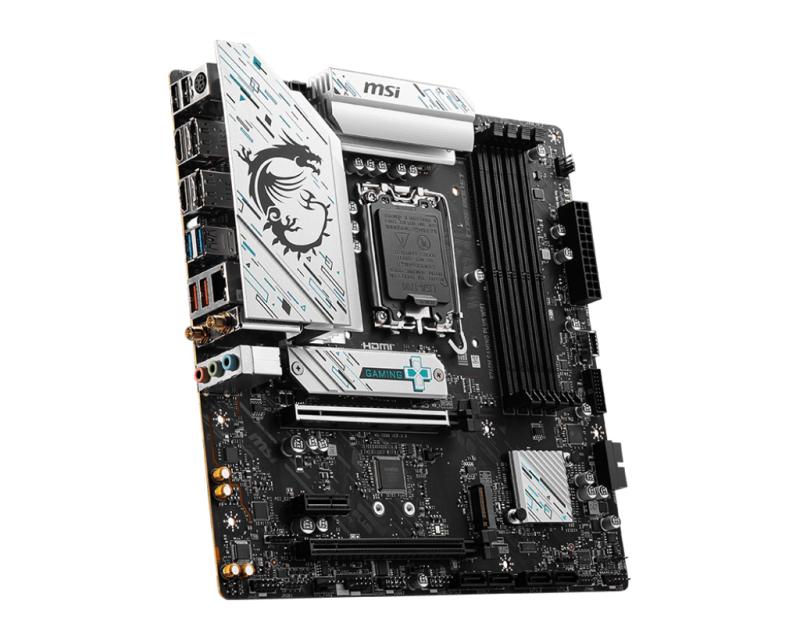

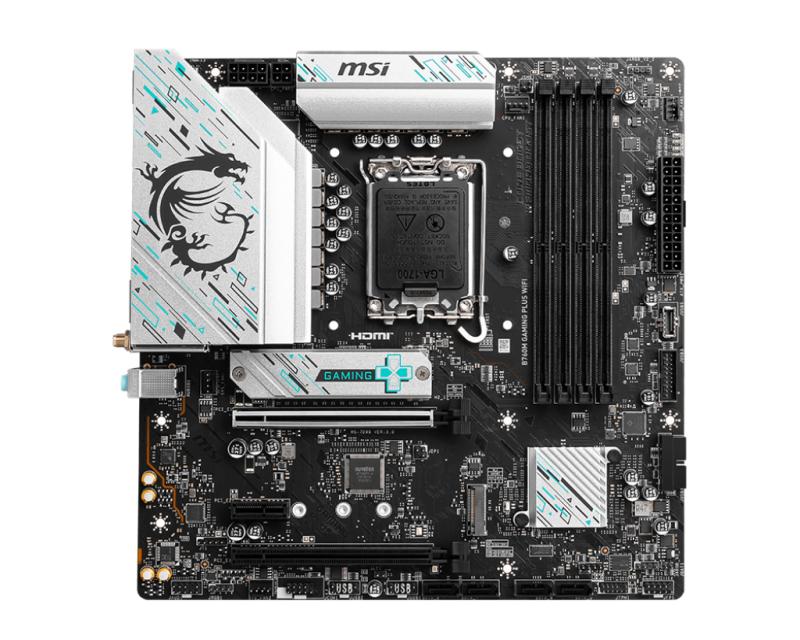

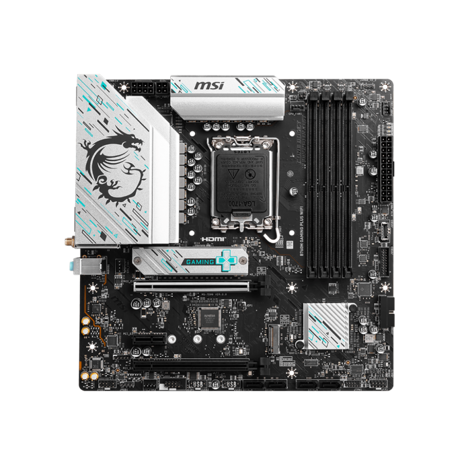

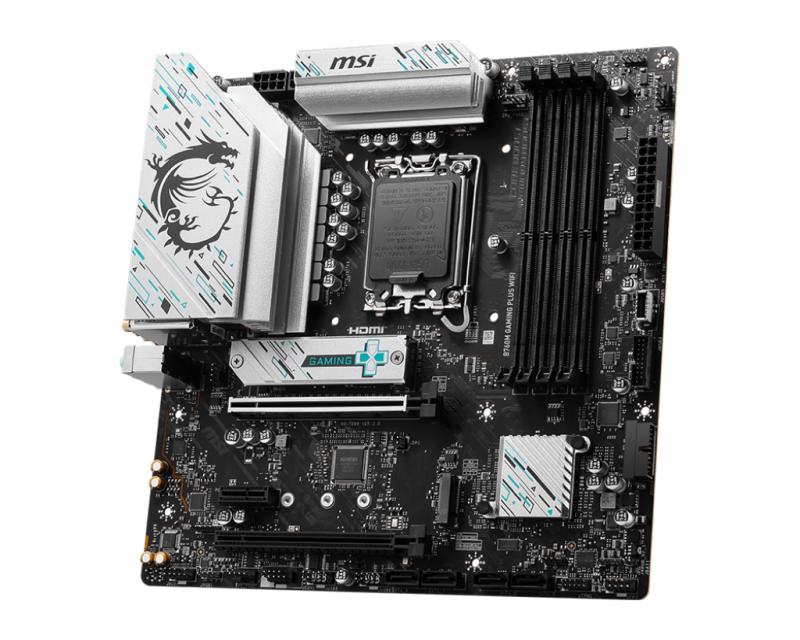

Placa de Baza MSI B760M GAMING PLUS WIFI LGA1700, 4x DDR5, 2x HDMI 2x DP, 2x PCIE x16 1x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza MSI B760M GAMING PLUS WIFI LGA1700, 4x DDR5, 2x HDMI 2x DP, 2x PCIE x16 1x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

PCI Express x1 (Gen 3.x) slots

2

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

Motherboard form factor

micro ATX

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

Power source type

ATX

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

ECC сompatibility

Non-ECC

Supported memory clock speeds

6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

Supported memory clock speed (max)

6800 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

192 GB

Number of memory slots

4

Memory slots type

DIMM

Bluetooth version

5.3

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

DisplayPort version

1.4

HDMI version

2.1

DisplayPorts quantity

2

DVI-D ports quantity

0

HDMI ports quantity

2

Processor manufacturer

Intel

Processor socket

LGA 1700

Maximum number of SMP processors

1

Supported processor sockets

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

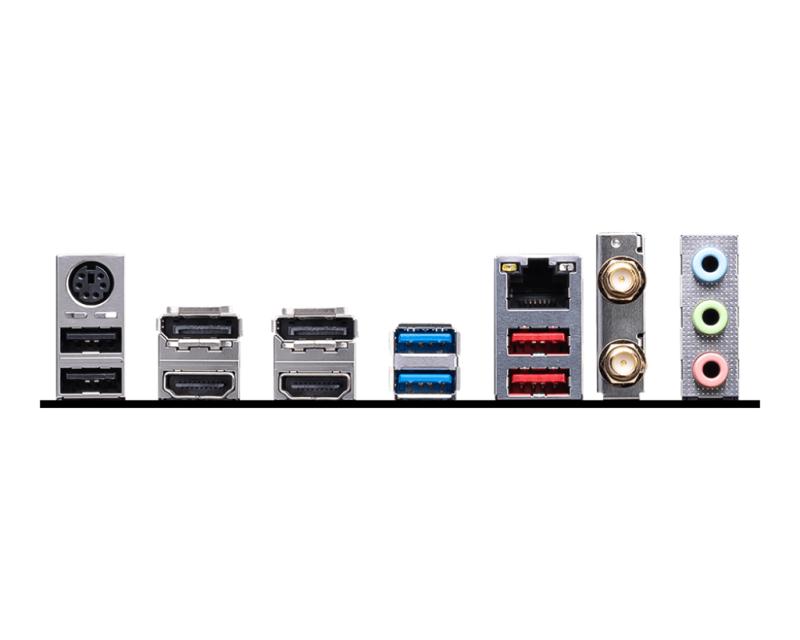

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Depth

243.8 mm

Width

243.8 mm

MB-Socket

1700

RAM-Slots

4

MB-Format

micro-ATX

PCI-Ex16

2

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No
