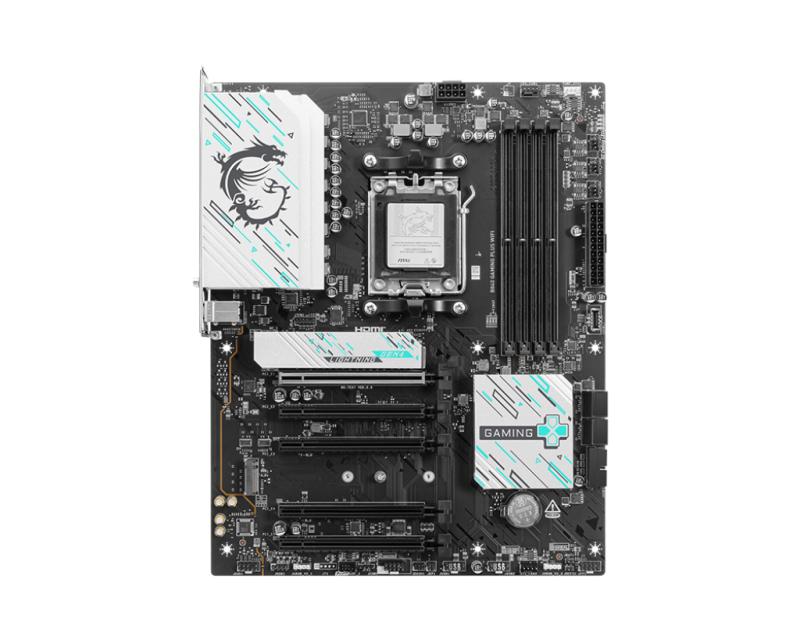

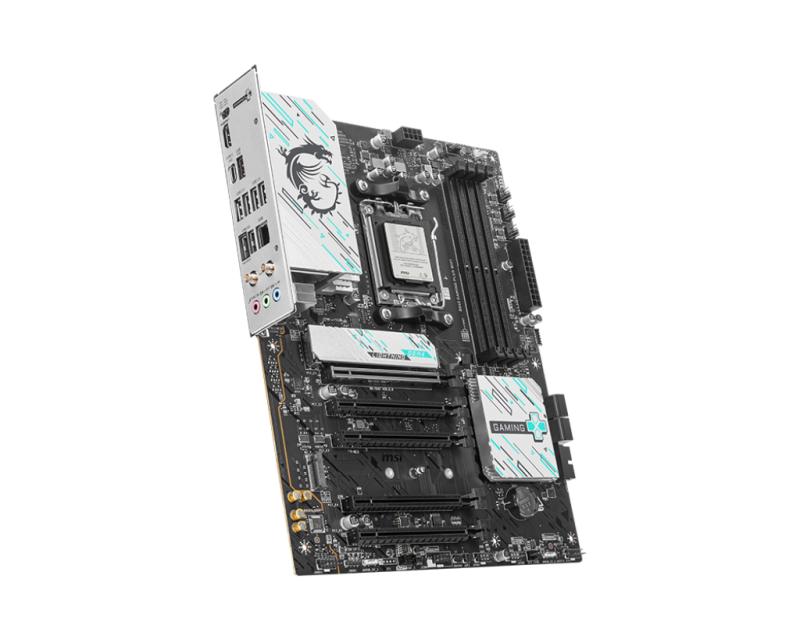

Placa de Baza MSI B840 GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI, 5x PCIE x16, 2x M.2, 4x SATA 6GB/s, ATX

Placa de Baza MSI B840 GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI, 5x PCIE x16, 2x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

ACPI version

6.5

Product colour

Black

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 3.x) slots

4

1st M.2 largest key size

2280

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

PC health monitoring

CPU, Fan, Temperature, Voltage

Motherboard chipset family

AMD

Motherboard chipset

AMD B840

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Number of RGB LED pin headers

3

Number of water pump connectors

1

Number of CPU fan connectors

1

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

5

Total number of SATA connectors

4

Number of SATA III connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

RGB LED pin header

Yes

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8000 MHz

Supported memory clock speeds

4800,5600,8000 MHz

Memory channels

Dual-channel

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Bluetooth version

5.4

BLUETOOTH

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

DVI-D ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

RAID support

Yes

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, Micro SATA III

RAID levels

0, 1, 10

Number of storage drives supported

6

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
