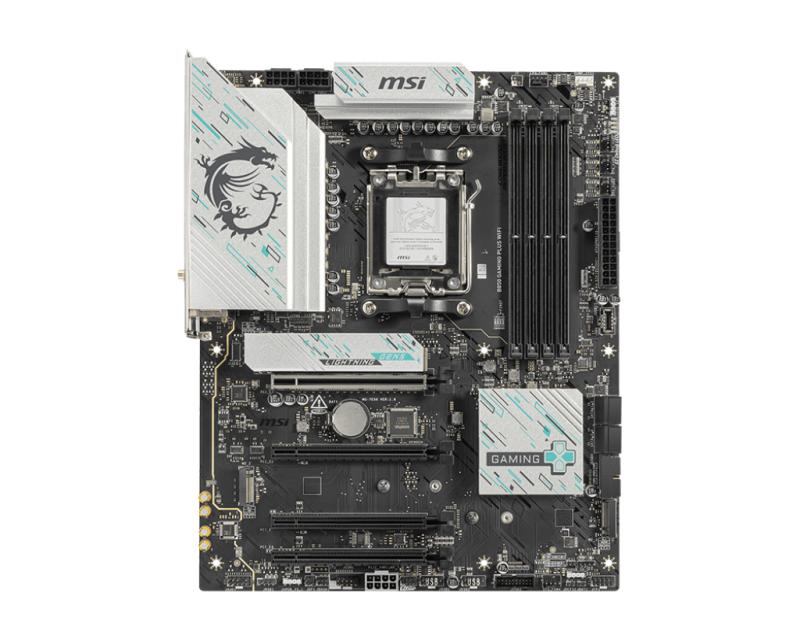

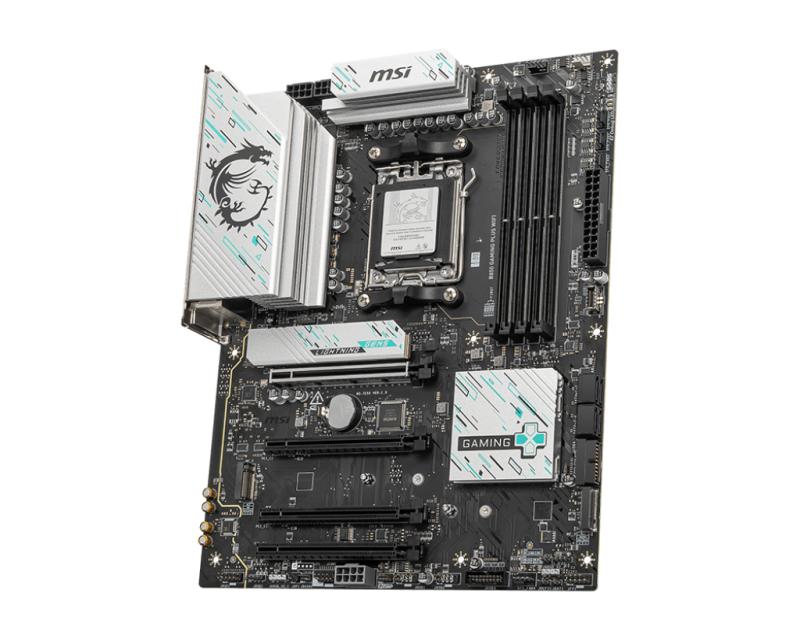

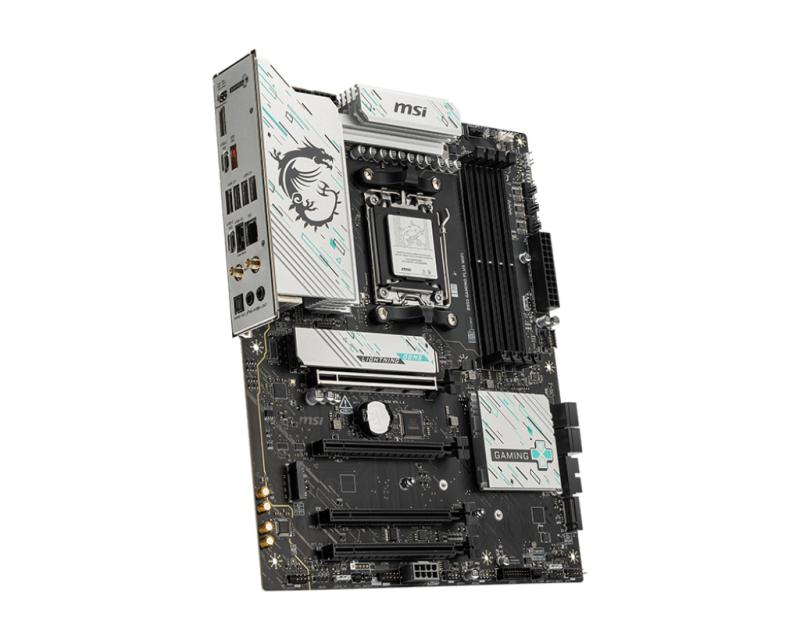

Placa de Baza MSI B850 GAMING PLUS WIFI AM5, 4x DDR5, 1x DP, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza MSI B850 GAMING PLUS WIFI AM5, 4x DDR5, 1x DP, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

3rd M.2 largest key size

2280

PCI Express x16 (Gen 3.x) slots

2

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

On-board graphics card

No

Number of RGB LED pin headers

3

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Total number of SATA connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

RGB LED pin header

Yes

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

CPU fan connector

Yes

Number of CPU fan connectors

4

Number of water pump connectors

1

Supported memory clock speed (max)

8200 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Supported memory clock speeds

4800,5600,8200 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

mSATA ports quantity

0

HDMI version

2.1

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

RAID levels

0, 1

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, Micro SATA III

Number of HDDs supported

4

Number of storage drives supported

7

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
