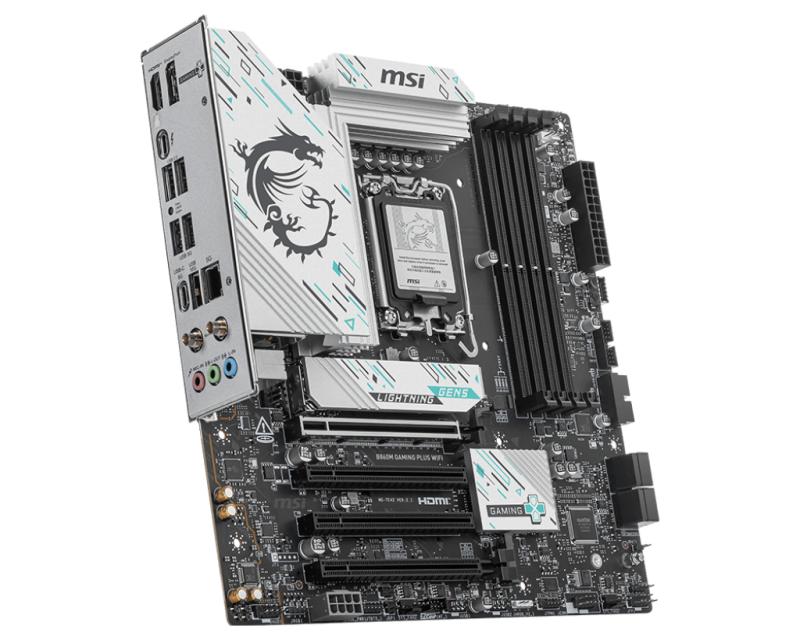

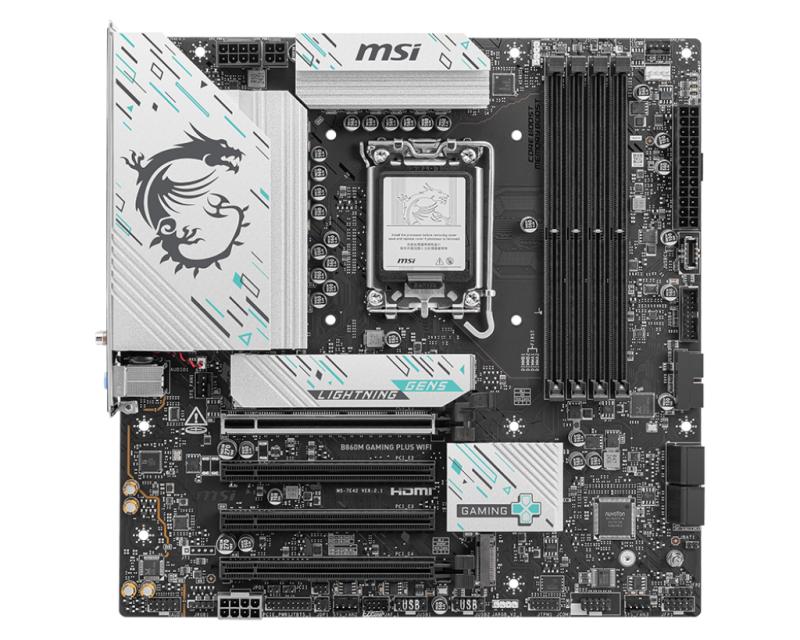

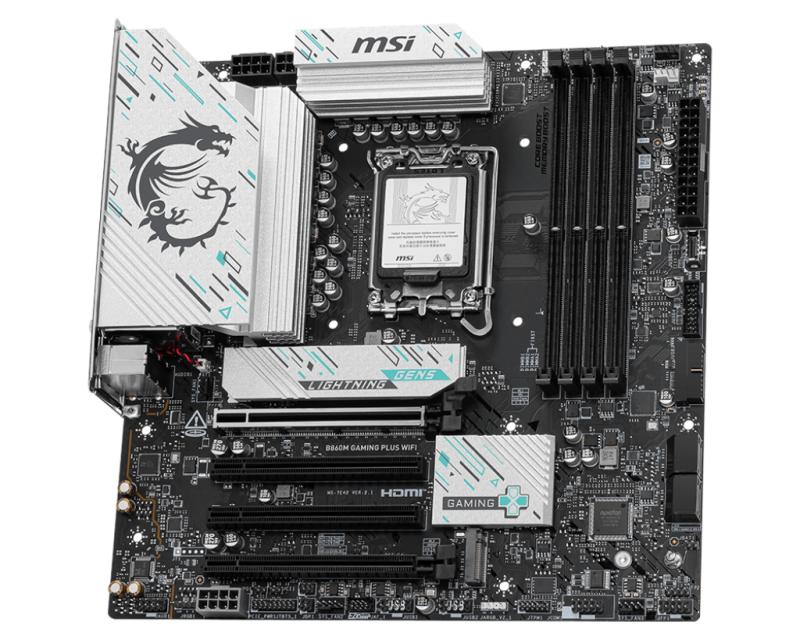

Placa de Baza MSI B860M GAMING PLUS WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Type-C DP, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, mATX

Placa de Baza MSI B860M GAMING PLUS WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Type-C DP, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 4.x) slots

3

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

Motherboard chipset

Intel B860

Windows operating systems supported

Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Number of SATA III connectors

4

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

RGB LED pin header

Yes

Total number of SATA connectors

4

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of water pump connectors

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Supported memory clock speed (max)

8800 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Supported memory clock speeds

4800,6400,8800 MHz

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

WLAN controller model

Killer Wi-Fi 7 1750x

HDMI version

2.1

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

Intel

Maximum internal memory supported by processor

256 GB

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

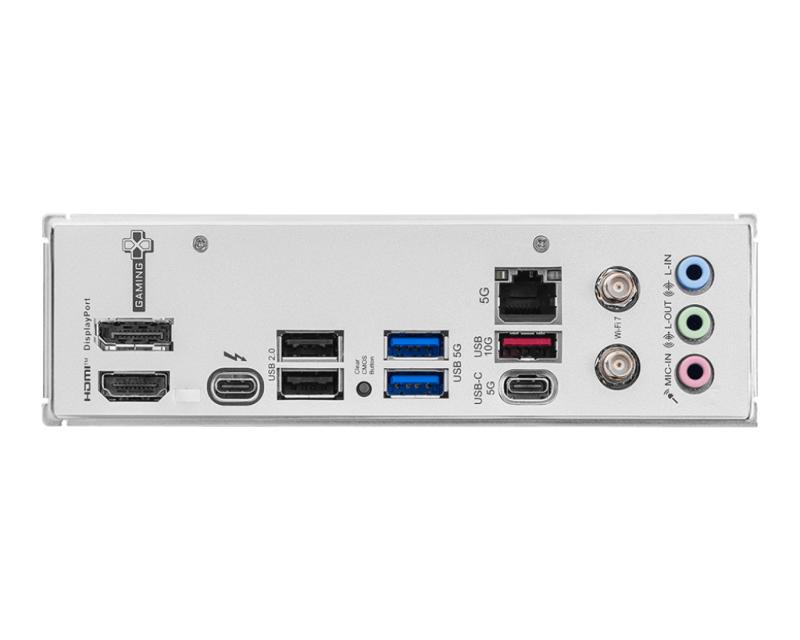

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, Micro SATA III

Depth

243.8 mm

Width

243.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
