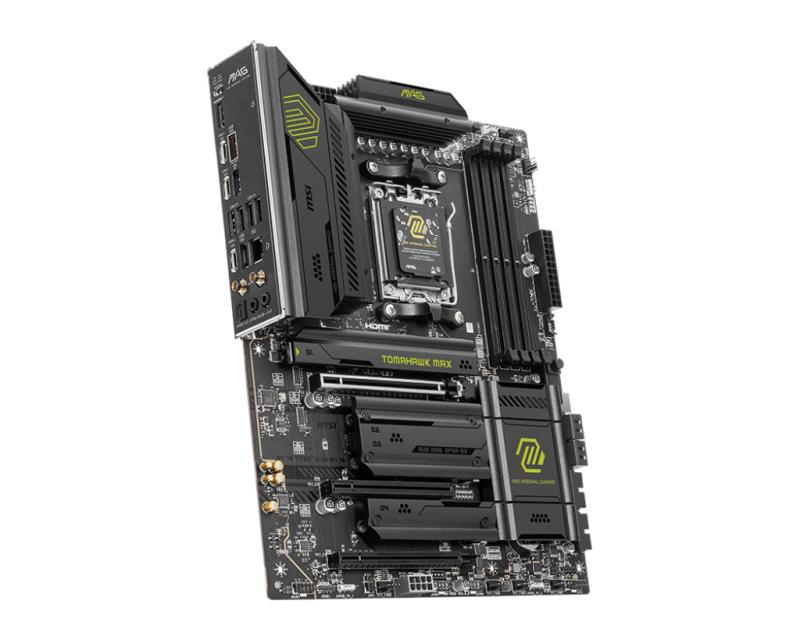

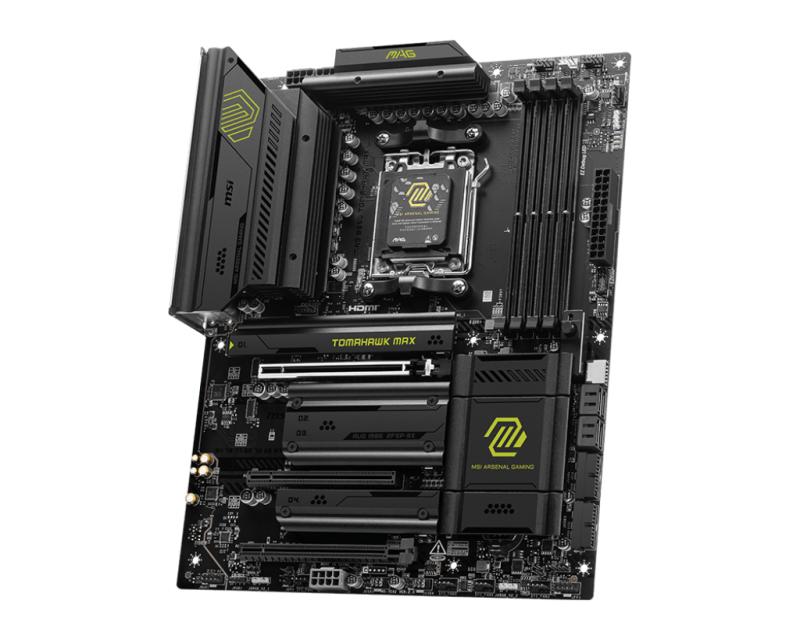

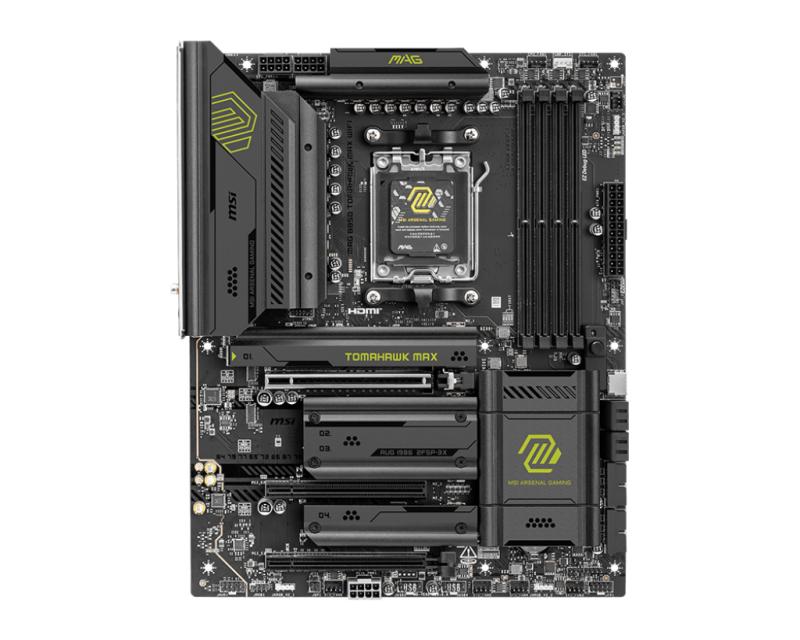

Placa de Baza MSI MAG B850 TOMAHAWK MAX WIFI AM5, 4x DDR5, 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Placa de Baza MSI MAG B850 TOMAHAWK MAX WIFI AM5, 4x DDR5, 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Product colour

White

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

2nd M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

Motherboard chipset

AMD B850

Audio Chip

Realtek ALC4080

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

On-board graphics card

No

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

RGB LED pin header

Yes

Total number of SATA connectors

4

Number of water pump connectors

1

Number of RGB LED pin headers

3

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of CPU fan connectors

6

Supported memory clock speeds

4800,5600,8400 MHz

Supported memory clock speed (max)

8400 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

BLUETOOTH

Yes

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi

Yes

Bluetooth version

5.4

Ethernet interface type

5 Gigabit Ethernet

mSATA ports quantity

0

HDMI version

2.1

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

AMD

Maximum internal memory supported by processor

256 GB

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

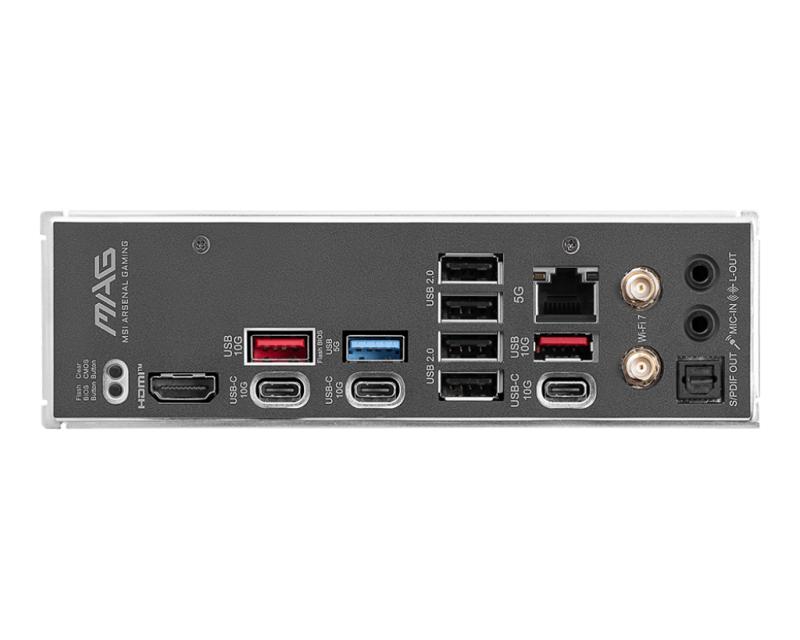

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

3

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 10

Number of HDDs supported

4

Number of storage drives supported

8

Supported storage drive interfaces

M.2, Micro SATA III

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
