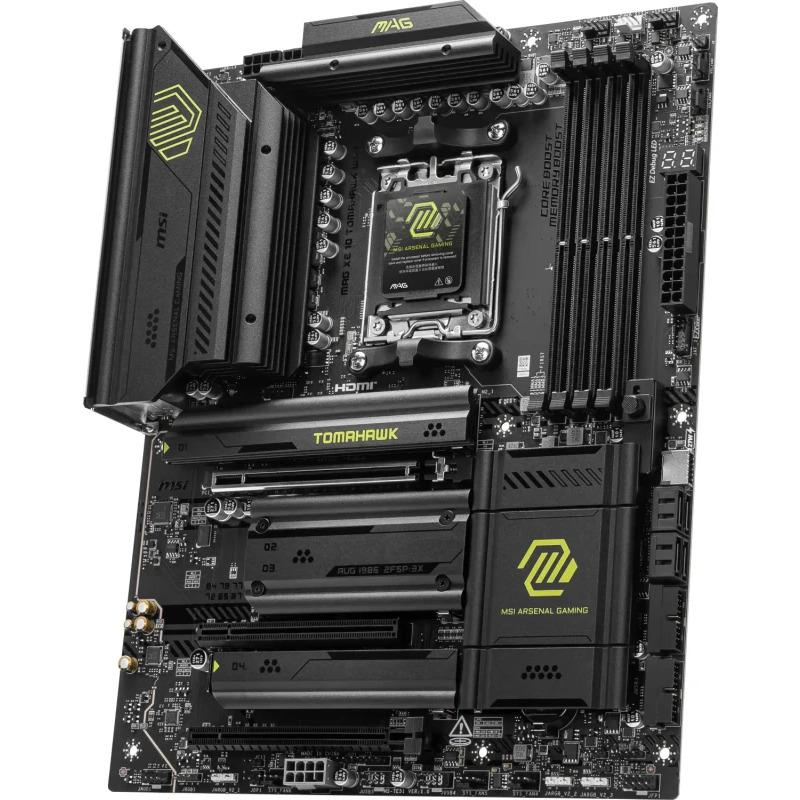

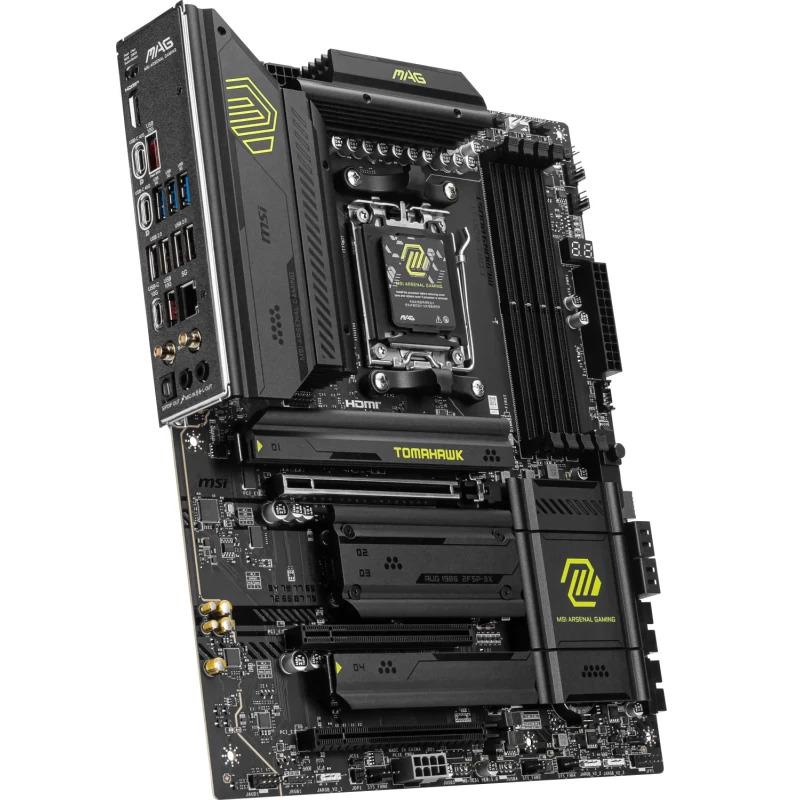

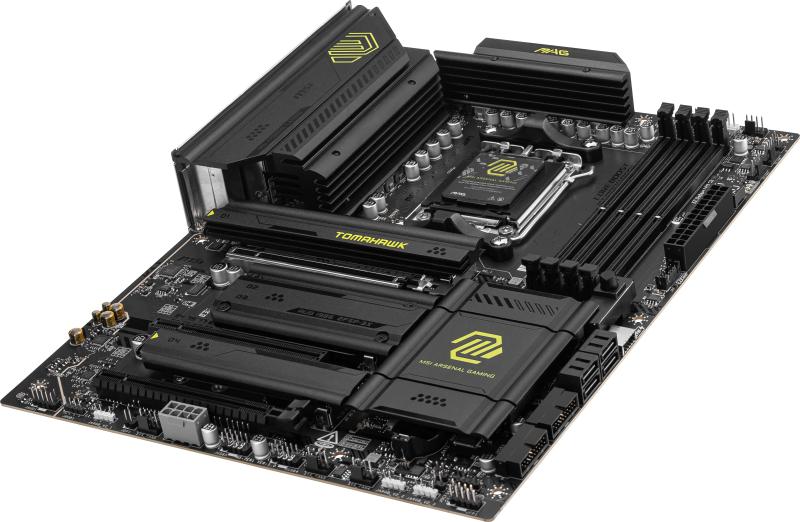

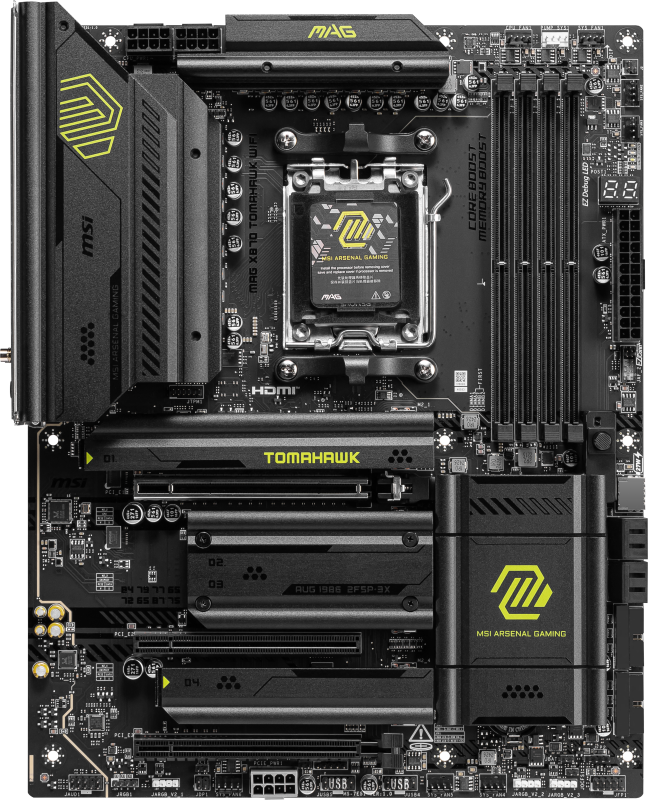

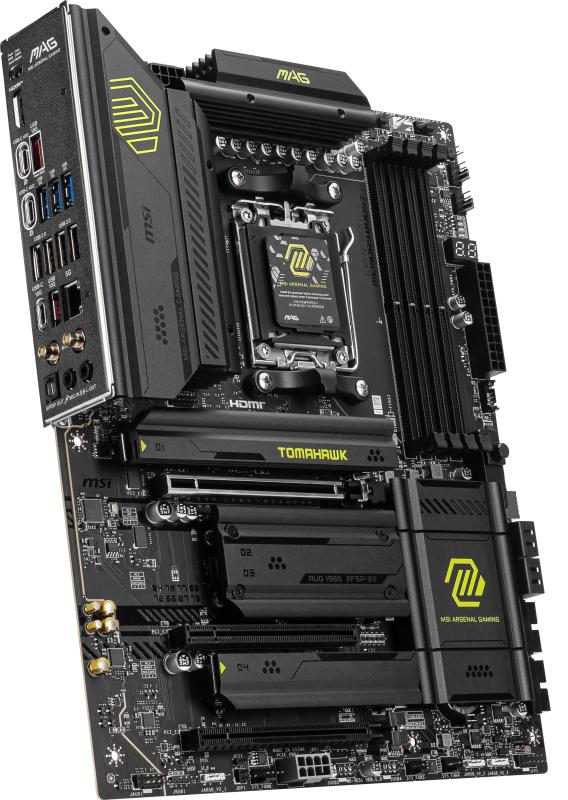

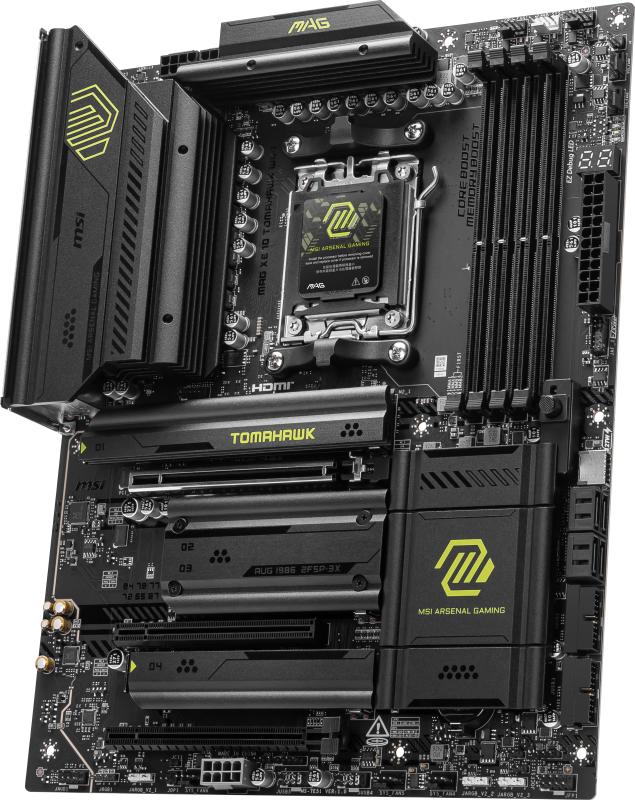

Placa de Baza MSI MAG X870 TOMAHAWK WIFI AM5

Placa de Baza MSI MAG X870 TOMAHAWK WIFI AM5, 4x DDR5, 1x PCIE 5.0 x16 3x PCIE 4.0, 3x M.2, 4x SATA 6GB/s, ATX

Product colour

Black

Number of M.2 (M) slots

4

PCI Express x16 slots

3

Motherboard form factor

ATX

Motherboard chipset family

AMD

PC health monitoring

CPU, Fan, Temperature, Voltage

Motherboard chipset

AMD X870

Component for

PC

Audio output channels

7.1 channels

On-board graphics card

No

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Total number of SATA connectors

4

USB 2.0 connectors

4

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

BLUETOOTH

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Ethernet interface type

2.5 Gigabit Ethernet

mSATA ports quantity

0

DisplayPorts quantity

2

DVI-D ports quantity

0

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Maximum internal memory supported by processor

256 GB

USB4 Gen 2x2 ports quantity

2

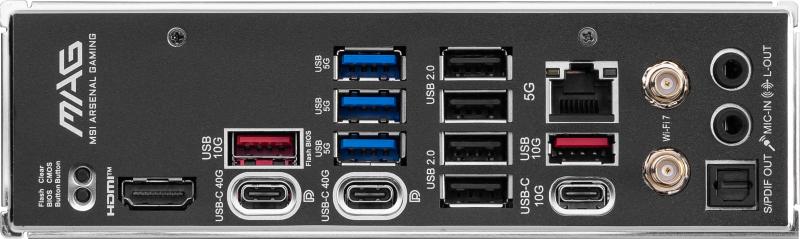

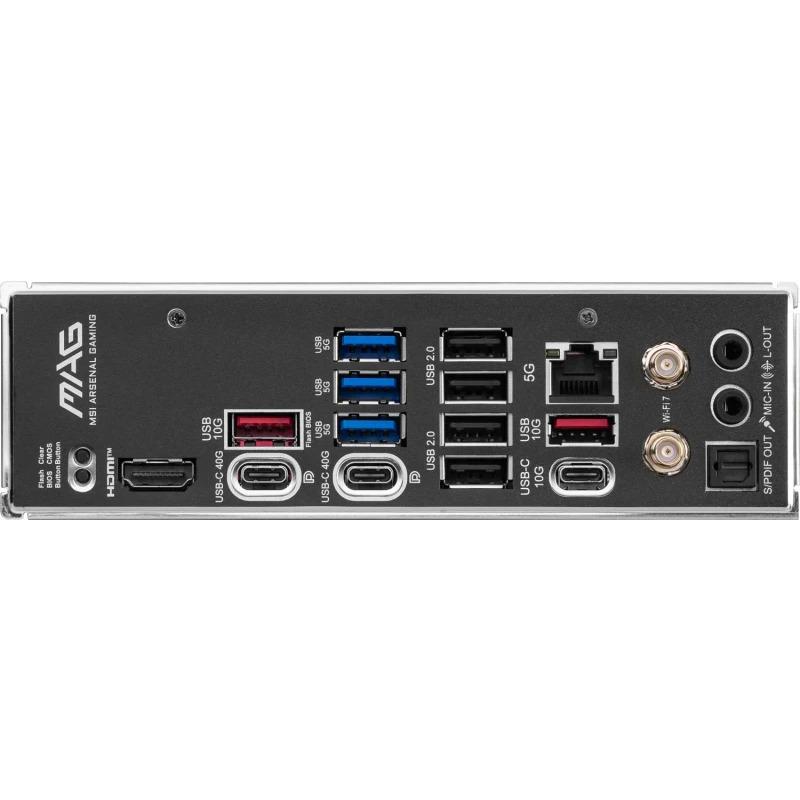

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

S/PDIF out port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Microphone in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

RAID levels

0, 1, 10

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
